Please kindly contact us for full data sheet of the display.

DESCRIPTION

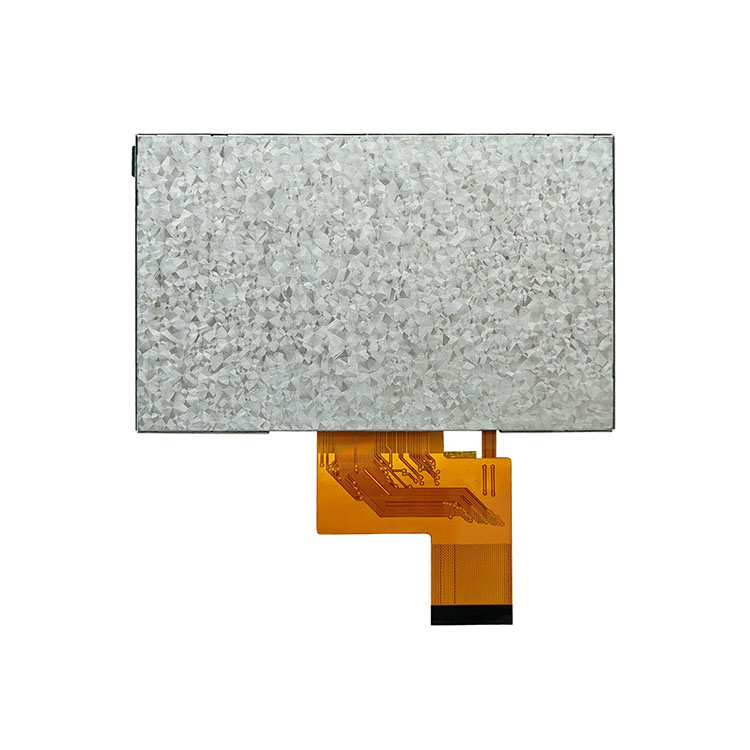

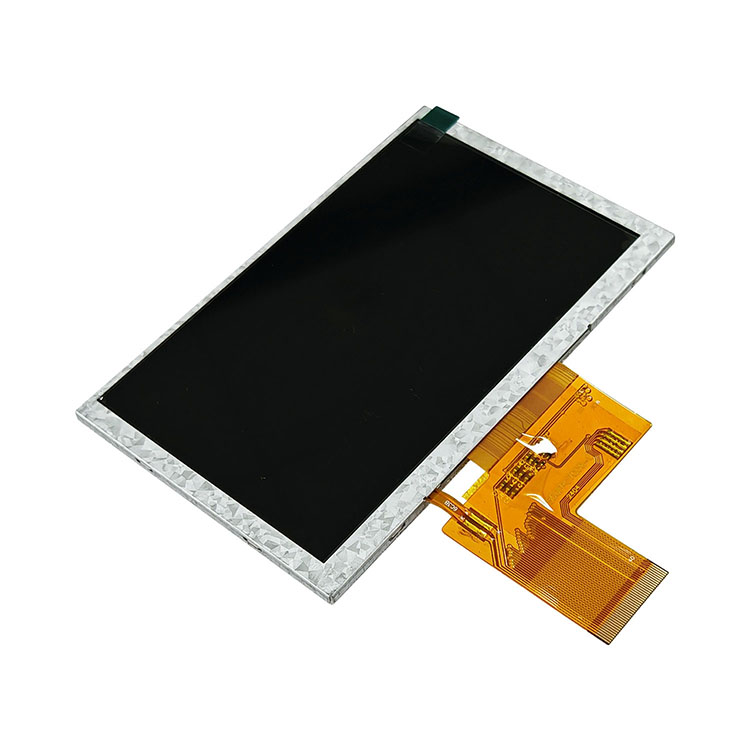

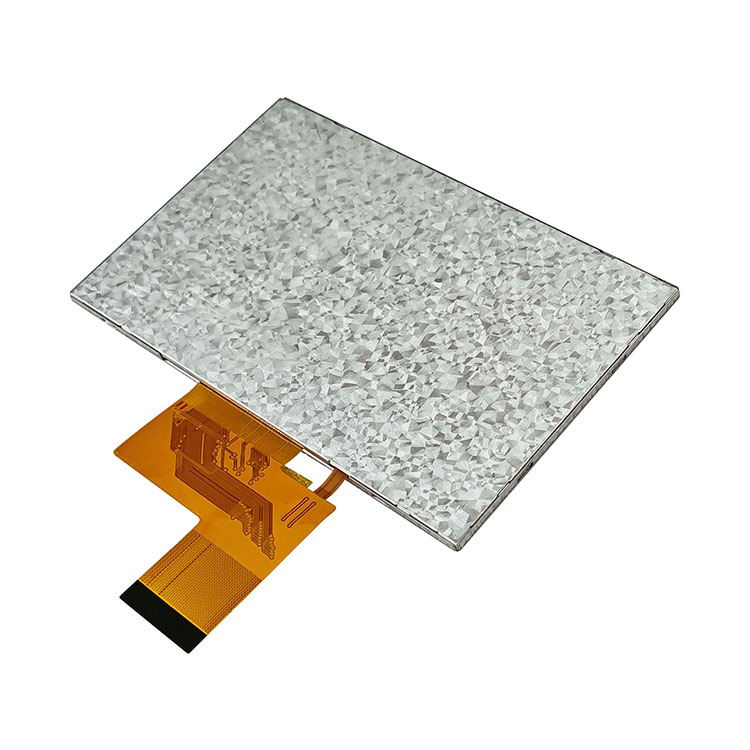

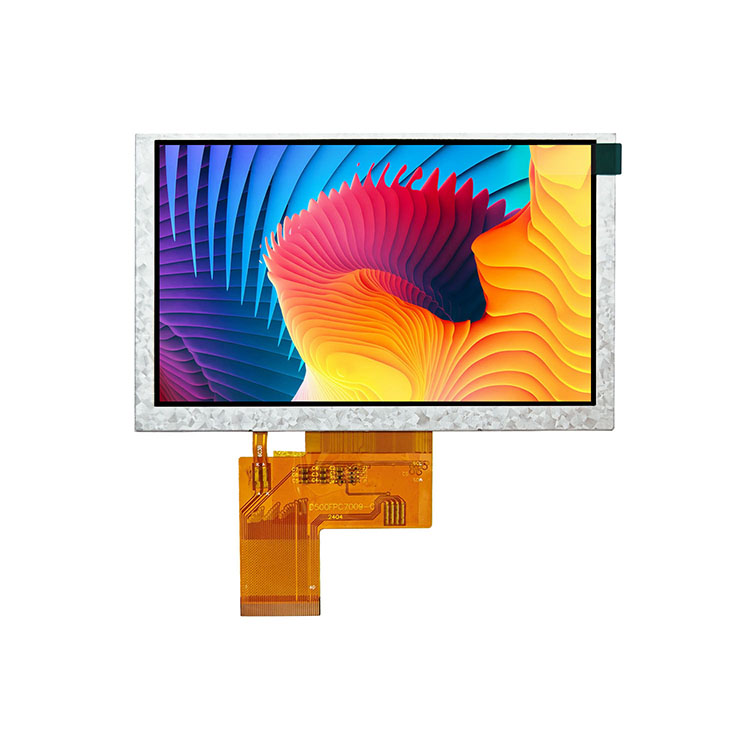

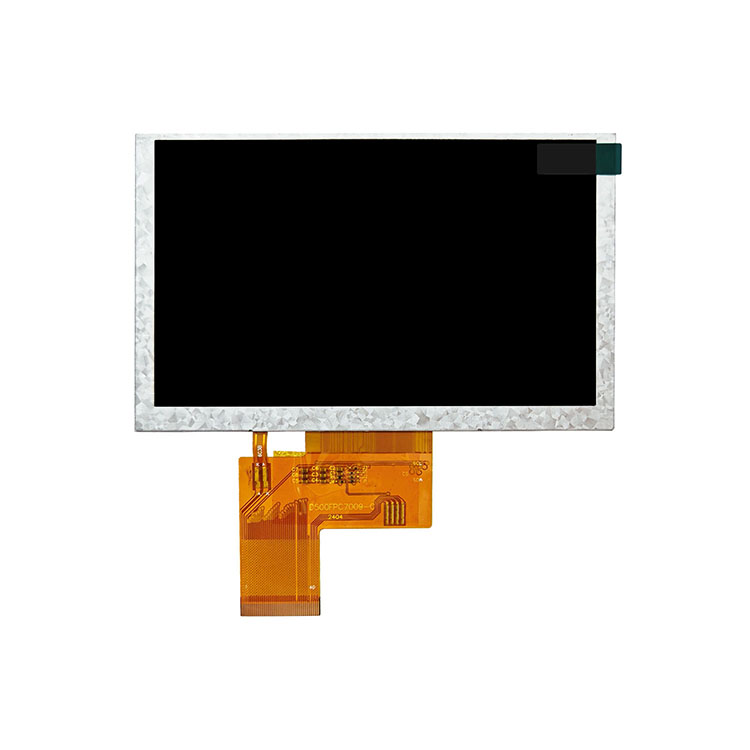

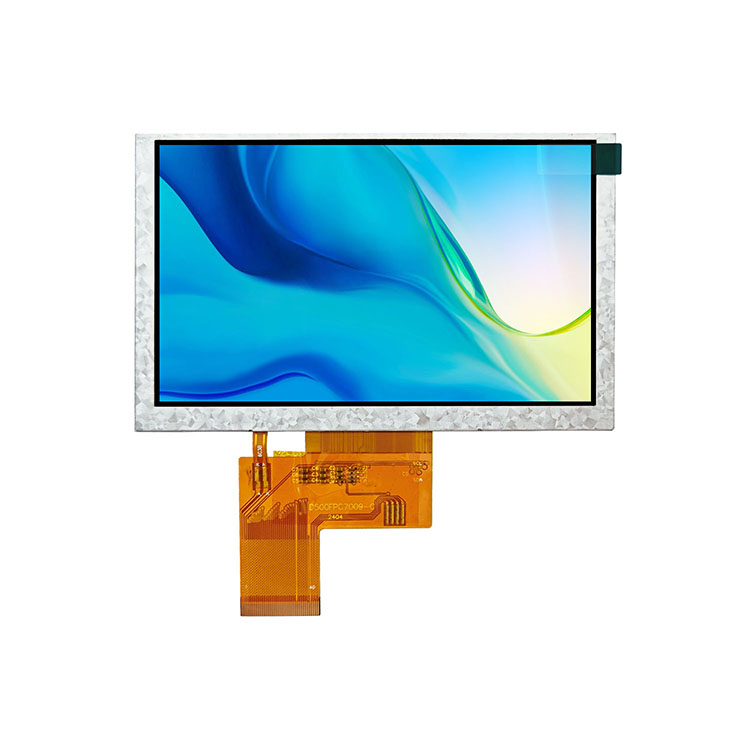

HICENDA HT500N7009V1 is a 5-inch IPS TFT LCD module with a resolution of 800x480, powered by the ST7262 driver IC and utilizing a 24-bit RGB interface. This display is designed with a normally black, transmissive LCD type and offers wide-angle visibility via IPS technology. With 16.7 million colors and a graphic dot-matrix format, it delivers a vibrant, full-color visual experience suitable for various embedded and human-machine interface applications.

GENERAL SPECIFICATION

Parameter	Specification
Model No.	HT500N7009V1
Display Size	5 inch
Resolution	800(RGB) × 480
LCD Type	Normally Black, Transmissive
Viewing Direction	IPS (All angles)
Display Format	Graphic Dot-matrix
Outline Dimensions	120.7(W) × 75.8(H) × 2.83(T) mm (excl. FPC)
Active Area	108(W) × 64.8(H) mm
Pixel Pitch	0.135(W) × 0.135(H) mm
Pixel Arrangement	16.7M colors (24-bit RGB)
Backlight	White
Interface Type	24-bit RGB
Display Mode	Full Color
Operating Temperature	−20°C ~ +70°C
Storage Temperature	−30°C ~ +80°C

Overview of the 5-Inch ST7262 RGB TFT LCD Module

The HT500N7009V1 stands out as a balanced and adaptable display solution for applications that demand clarity, color fidelity, and robust integration. Its 5-inch screen size, compact form factor, and wide operational temperature range make it ideal for industrial control panels, handheld instruments, and user interface terminals.

As an IPS panel, this module ensures consistent image quality across all viewing angles. The normally black transmissive design not only improves contrast but also enhances readability under dynamic lighting conditions.

Display Technology and Visual Characteristics

IPS Panel Performance

The IPS (In-Plane Switching) architecture employed in the HT500N7009V1 delivers wide viewing angles with minimal color distortion. This characteristic is vital in collaborative or open-viewing environments where screen content must remain consistent from different directions.

Full-Color Imaging and Pixel Design

With a resolution of 800(RGB)×480 and 24-bit RGB input, the module supports up to 16.7 million colors. The pixel pitch is precisely 0.135 mm by 0.135 mm, ensuring that the image remains sharp even at close inspection distances. This makes it particularly effective in applications with detailed visual output or small fonts.

Interface and Integration Details

RGB Interface and Driver IC

The 24-bit parallel RGB interface is a well-established standard for high-speed data transfer in embedded display applications. Combined with the ST7262 driver IC, the display ensures stable timing control, efficient data handling, and long-term reliability in system design.

Mechanical Compatibility and Mounting

With an overall outline of 120.7 mm × 75.8 mm × 2.83 mm (excluding the FPC), the HT500N7009V1 fits seamlessly into compact enclosures. Its active display area measures 108 mm × 64.8 mm, maximizing screen utility relative to the module's footprint.

Environmental Endurance and Reliability

Designed to perform under varied environmental conditions, the display operates reliably from -20°C to +70°C and can be stored safely within a range of -30°C to +80°C. This durability supports deployments in both indoor and semi-outdoor industrial scenarios.

Applications Across Industries

The HT500N7009V1’s specifications lend themselves to a variety of use cases:

Industrial automation terminals

Vehicle-mounted displays

Medical monitoring equipment

Portable instrumentation panels

Smart home control units

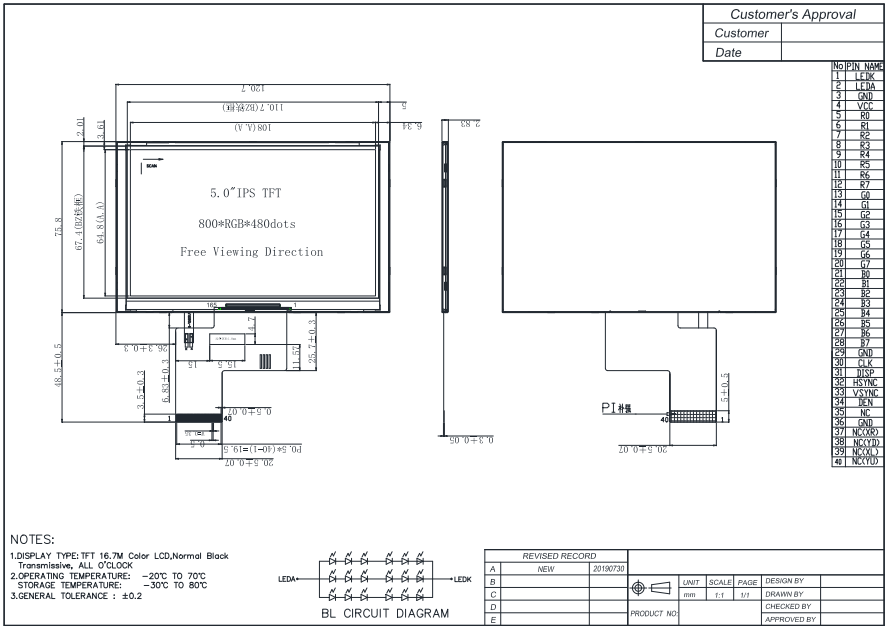

DRAWING

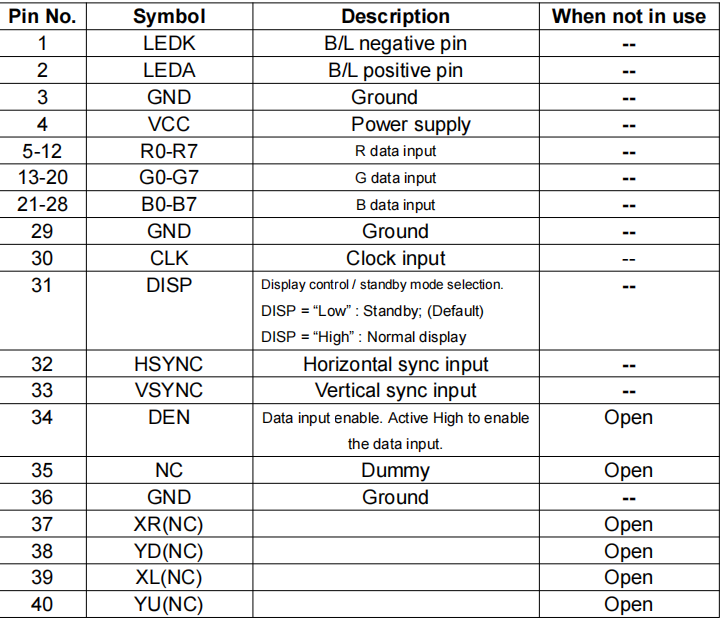

INTERFACE PIN FUNCTION
