Description

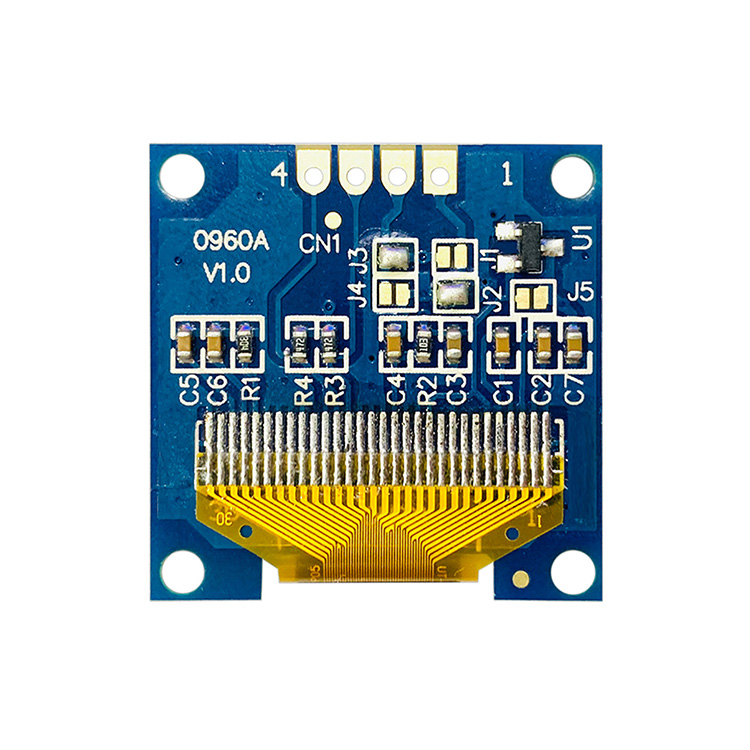

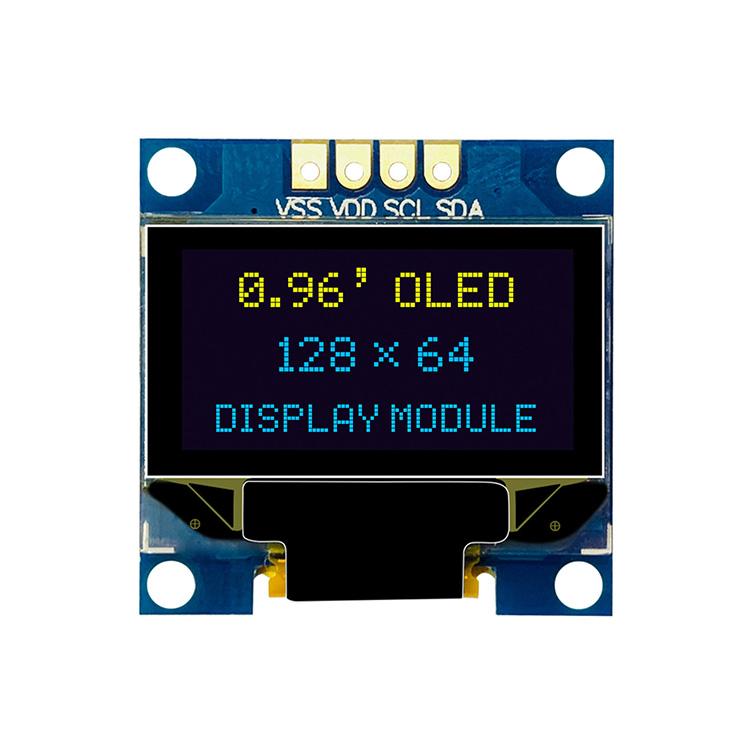

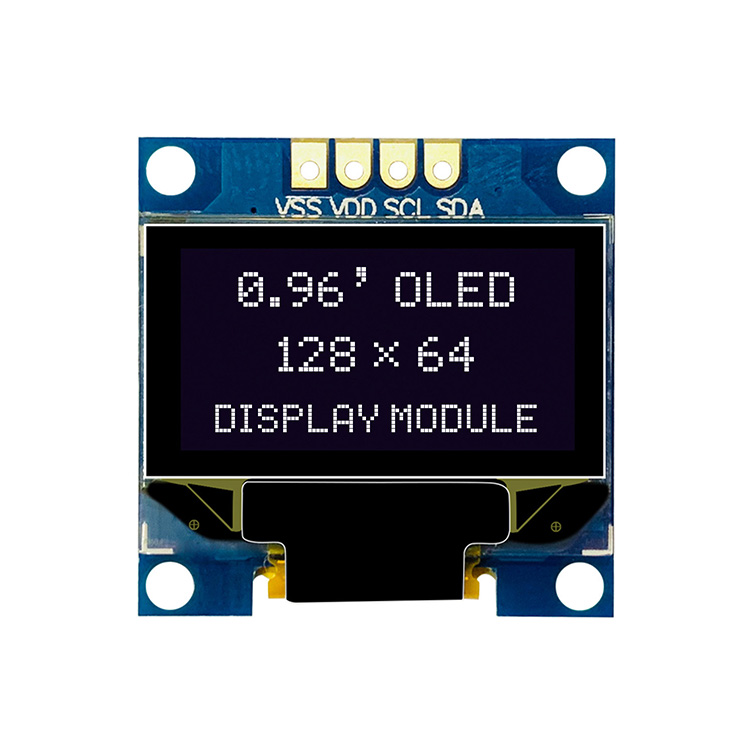

The 0.96 inch OLED display module (Model No: HT096AWH30PG01I4V10) features a 128×64 dot matrix resolution and utilizes the SSD1306 or SH1107 driver IC. This compact module adopts a passive matrix architecture and offers an IPS-like wide viewing direction. Designed with a 4-pin IIC interface, the module supports monochrome displays in white, blue, or yellow-blue. With its compact dimensions, stable drive performance, and wide operating temperature range, it serves as a versatile display solution for a wide range of embedded applications.

Technical Specifications Table

Technical Features and Performance Advantages

The 0.96 inch OLED module is engineered for high-clarity visual output within a minimal form factor. Despite its small size, it delivers crisp, bright graphics, which makes it ideal for wearable devices, IoT systems, and portable instruments.

Display Performance and Drive Mechanism

This display adopts a passive matrix OLED (PMOLED) design with a 1/64 duty cycle. The SSD1306 and SH1107 driver ICs are industry-proven solutions that enable reliable performance while minimizing power consumption. The pixel structure—defined by a pixel pitch of 0.17 mm—ensures good legibility for icons and characters, even under low power conditions.

Interface and Integration

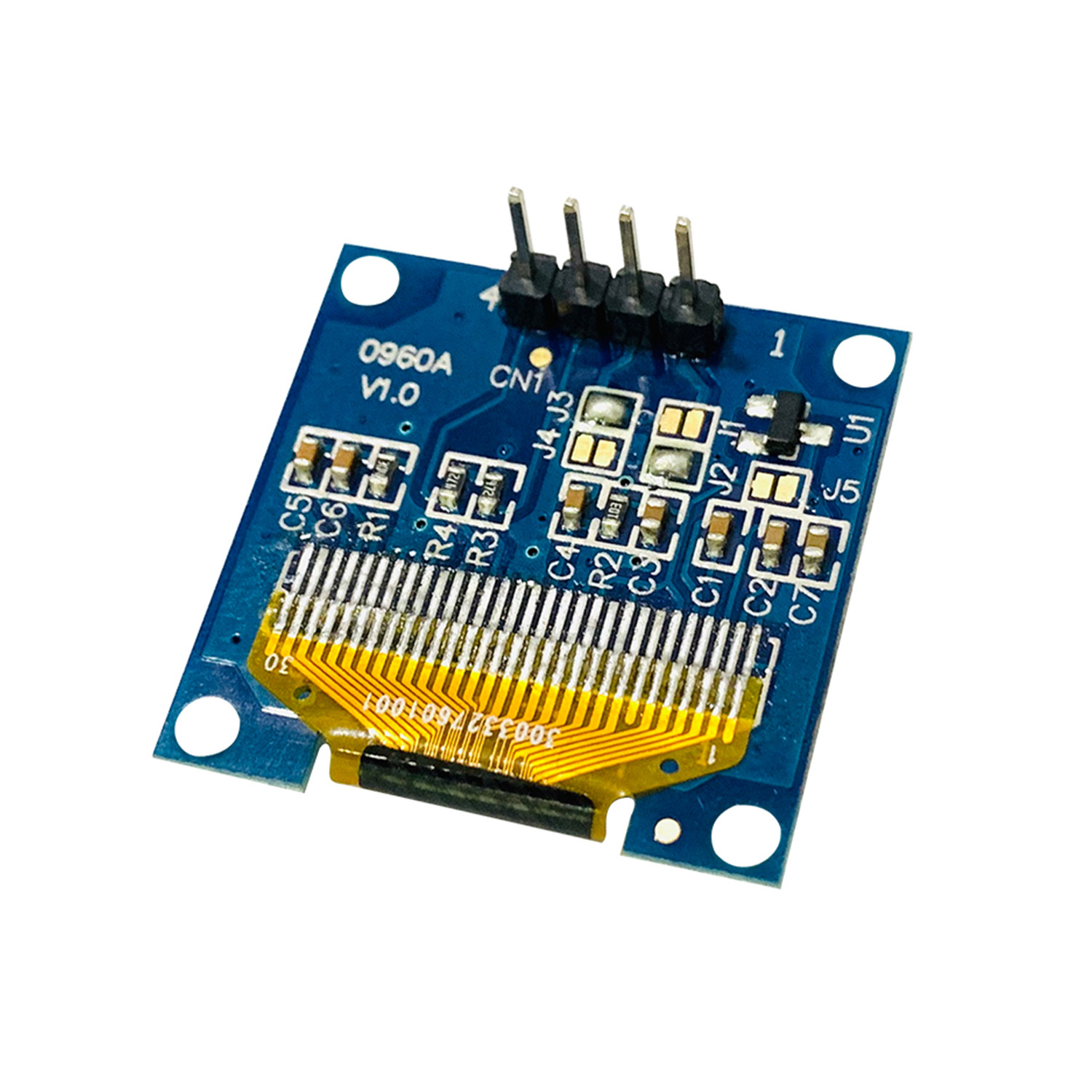

With its IIC communication interface, the display allows for easy integration with various microcontrollers, such as those used in Arduino, Raspberry Pi, and STM32 development platforms. The 4-pin connector layout supports efficient routing and compact design assembly, suitable for low-profile enclosures.

Application Suitability and Industrial Reliability

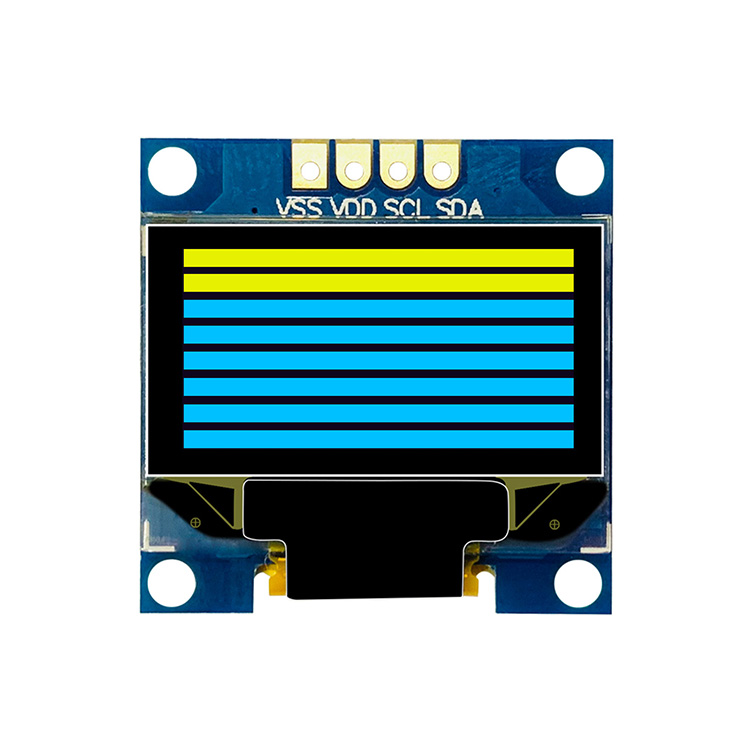

This module’s broad temperature tolerance (-20℃ to +70℃ operating, -30℃ to +80℃ storage) enhances its utility in industrial, medical, and consumer electronics environments. Its monochrome color options—including white, blue, and yellow-blue—offer flexibility for UI design in low-light or high-contrast conditions.

Key Application Areas

Wearable fitness and health trackers

Industrial handheld meters

IoT sensor displays

Smart home interface panels

Compact consumer electronics with status displays

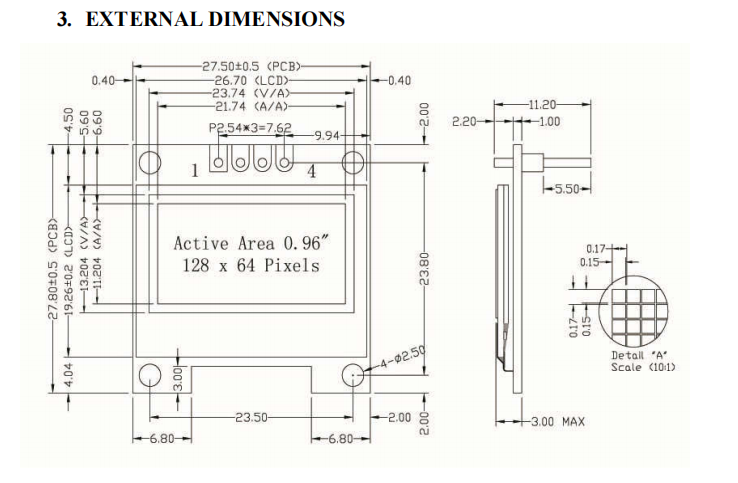

Drawing:

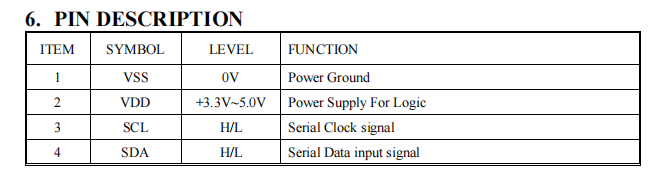

Pin Definition:

Conclusion

The 0.95-inch SPI Full-Color OLED Display Module offers high resolution, superior color reproduction, and efficient power management, making it a preferred choice for various compact display applications. With a robust SSD1331 driver IC, a 4-wire SPI interface, and an extensive temperature range, this display module stands as a reliable solution for cutting-edge embedded technologies.
