5.0"

  • TFT LCD Display 5.0 inch,480(RGB)x272
  • TFT LCD Display 5.0 inch,480(RGB)x272
  • TFT LCD Display 5.0 inch,480(RGB)x272
  • TFT LCD Display 5.0 inch,480(RGB)x272
  • TFT LCD Display 5.0 inch,480(RGB)x272
  • TFT LCD Display 5.0 inch,480(RGB)x272
TFT LCD Display 5.0 inch,480(RGB)x272TFT LCD Display 5.0 inch,480(RGB)x272TFT LCD Display 5.0 inch,480(RGB)x272TFT LCD Display 5.0 inch,480(RGB)x272TFT LCD Display 5.0 inch,480(RGB)x272TFT LCD Display 5.0 inch,480(RGB)x272

TFT LCD Display 5.0 inch,480(RGB)x272

  • Size: 5.0 TFT
  • Controller IC: ILI6482B
  • Resolution:320(RGB)x480
  • Interface: RGB 24-Bit
  • Product description: TFT LCD Display 5.0 inch,480(RGB)x272
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

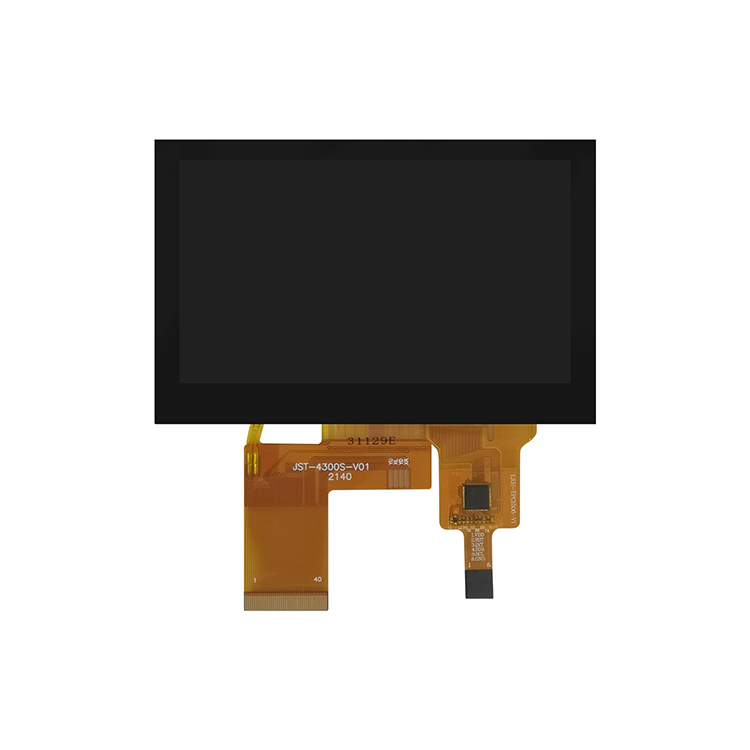

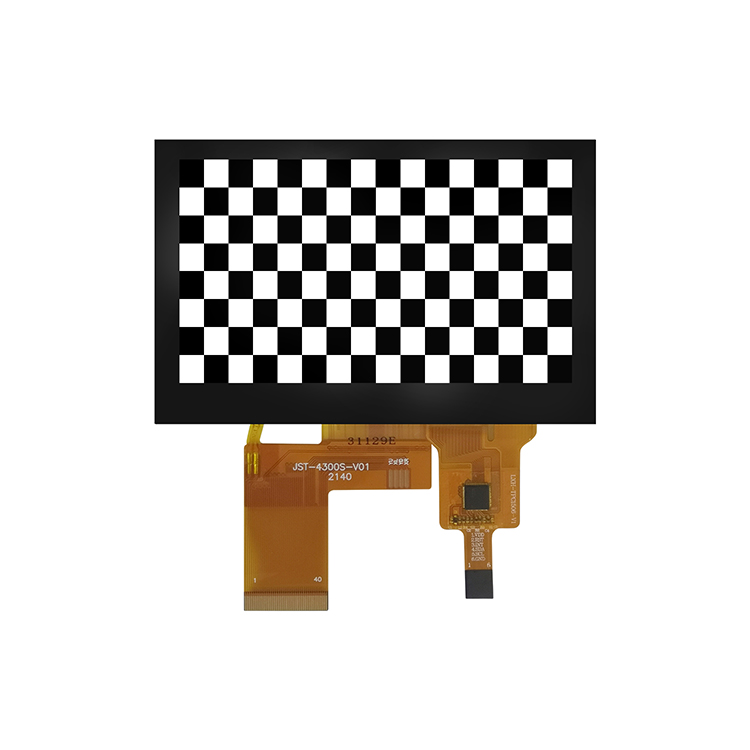

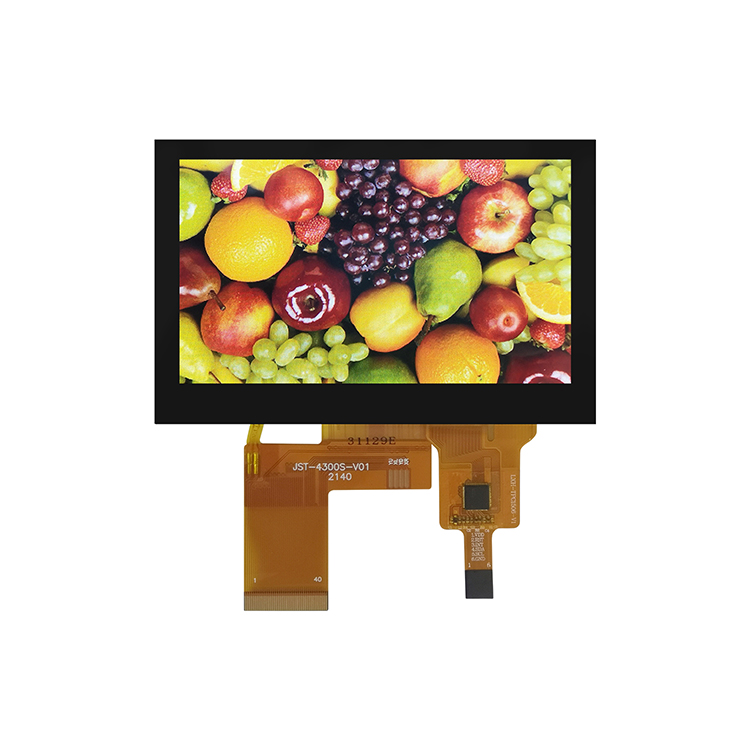

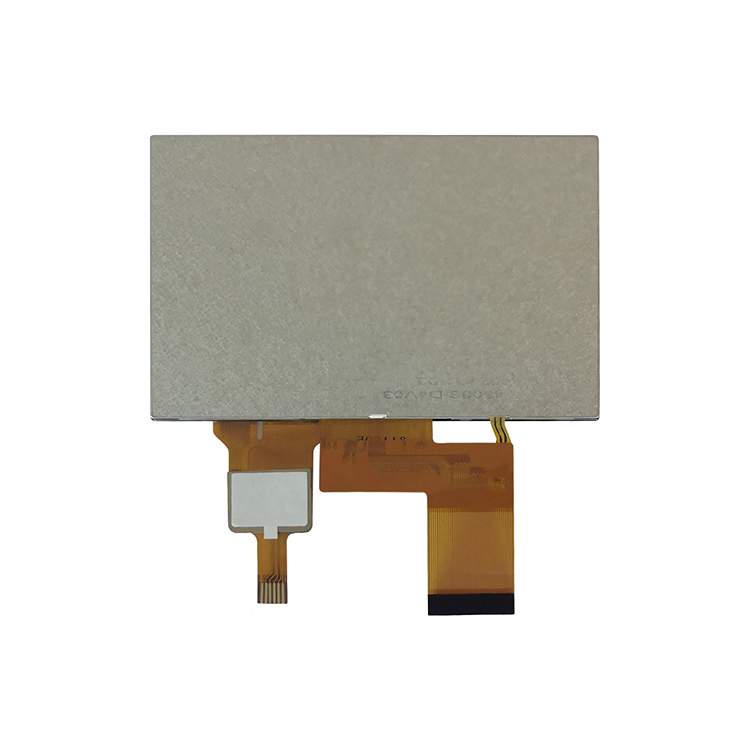

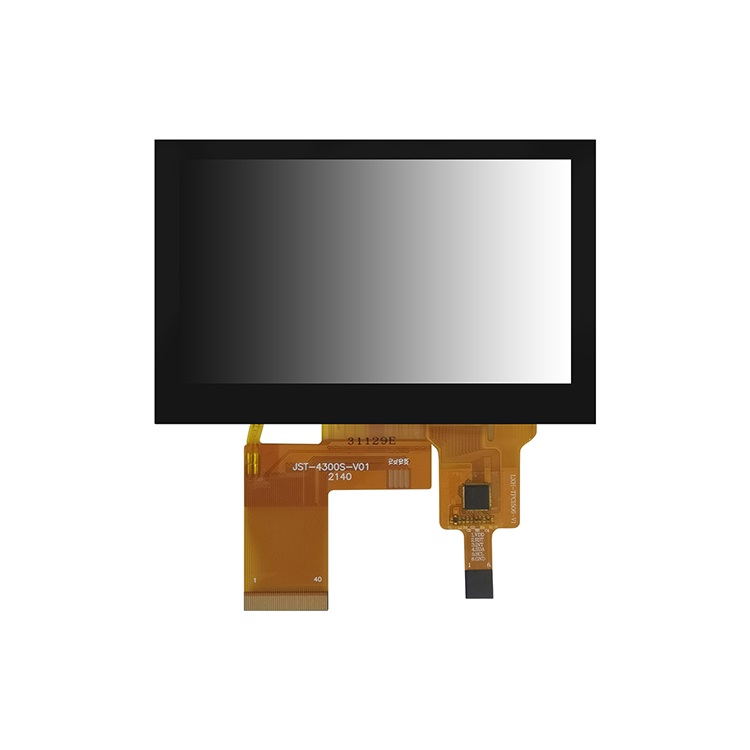

HICENDA TFT HT50CRGB-V1 is a color active matrix LCD module incorporating amorphous

silicon TFT (Thin Film Transistor). It is composed of a color TFT-LCD panel, driver IC, FPC
and a back light unit. The module display area contains 480X272pixels. This product accords
with RoHS environmental criterion.






GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT50CRGB-V1
Diagonal Screen size: 5.0  inch
Interface:
RGB 24-Bit
Backlight:

12chips white LEDS, Serial
Number of Pixels:

480(RGB)x272

Panel Size:

120.70*75.80*3.2 (mm)
Driver IC:

ILI6482B

Active Area:

110.88*62.832 (mm)
Display Mode:

Normally white/Transmissive
Input voltage:

3.3V

Weight:

40 (g)

Operating Temperature:

-40~85°



DRAWING





INTERFACE PIN FUNCTION
