  • Size: 5.0 TFT
  • Controller IC:ST7701S
  • Resolution:480(RGB)x854
  • Interface: RGBRGB+SPI
  • Product description: TFT LCD Display 5.0 inch,480(RGB)x854
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA TFT HT050H4001-50732-V3 isacoloractivematrix thinfilm transistor(TFT)IPS liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD panel,Driver IC ,FPC and Backlight, This TFT LCD has a 5.0-inch diagonally measured active

display area with WVGA resolution (480vertical by 854 horizontal pixel array).





GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT050H4001-50732-V3
Diagonal Screen size: 5.0 inch
Interface:
 RGB+SPI
Backlight:

White LED*12
Number of Pixels:

480(RGB)x854

Panel Size:

66.4X120.05X2.2 (mm)
Driver IC:

ST7701S

Active Area:

61.63 x 109.65 (W) (mm)
Display Mode:

Normally white/Transmissive
Power Supply Voltage:

3.3V

Weight:

TBD

Operating Temperature:

-20~70°

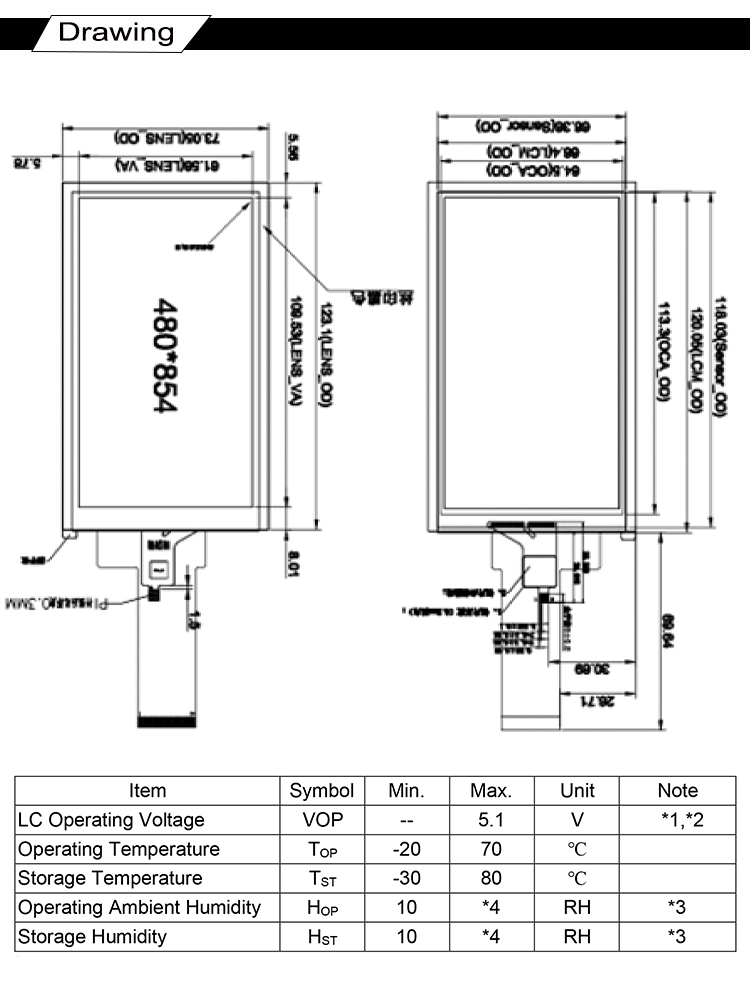

DRAWING

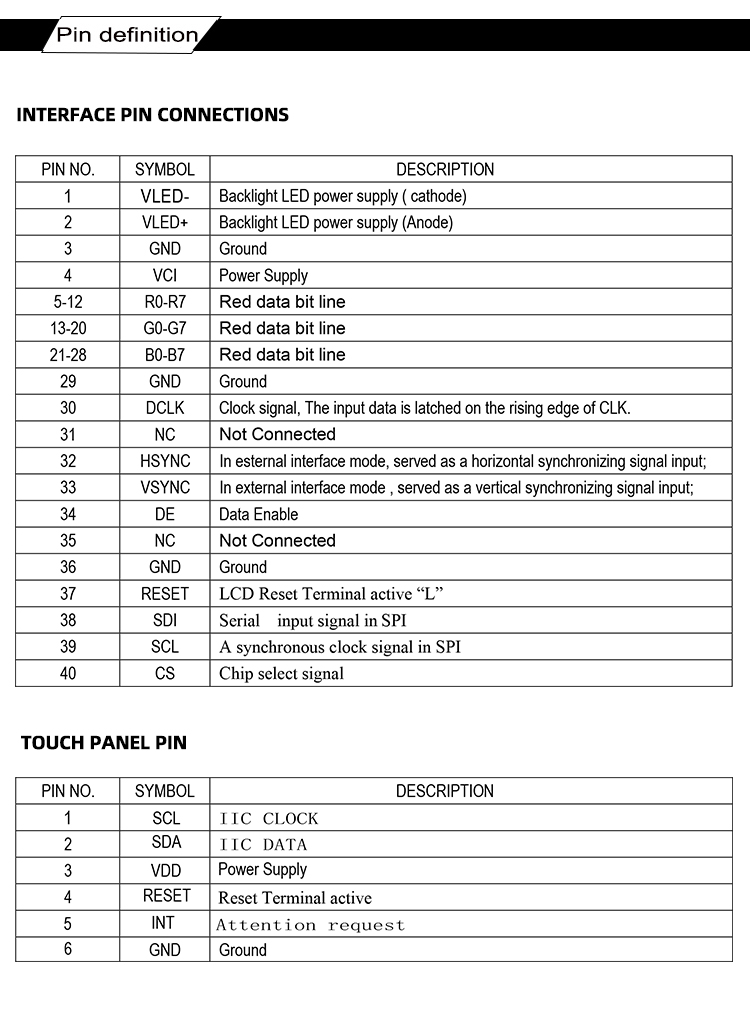

INTERFACE PIN FUNCTION
