DESCRIPTION

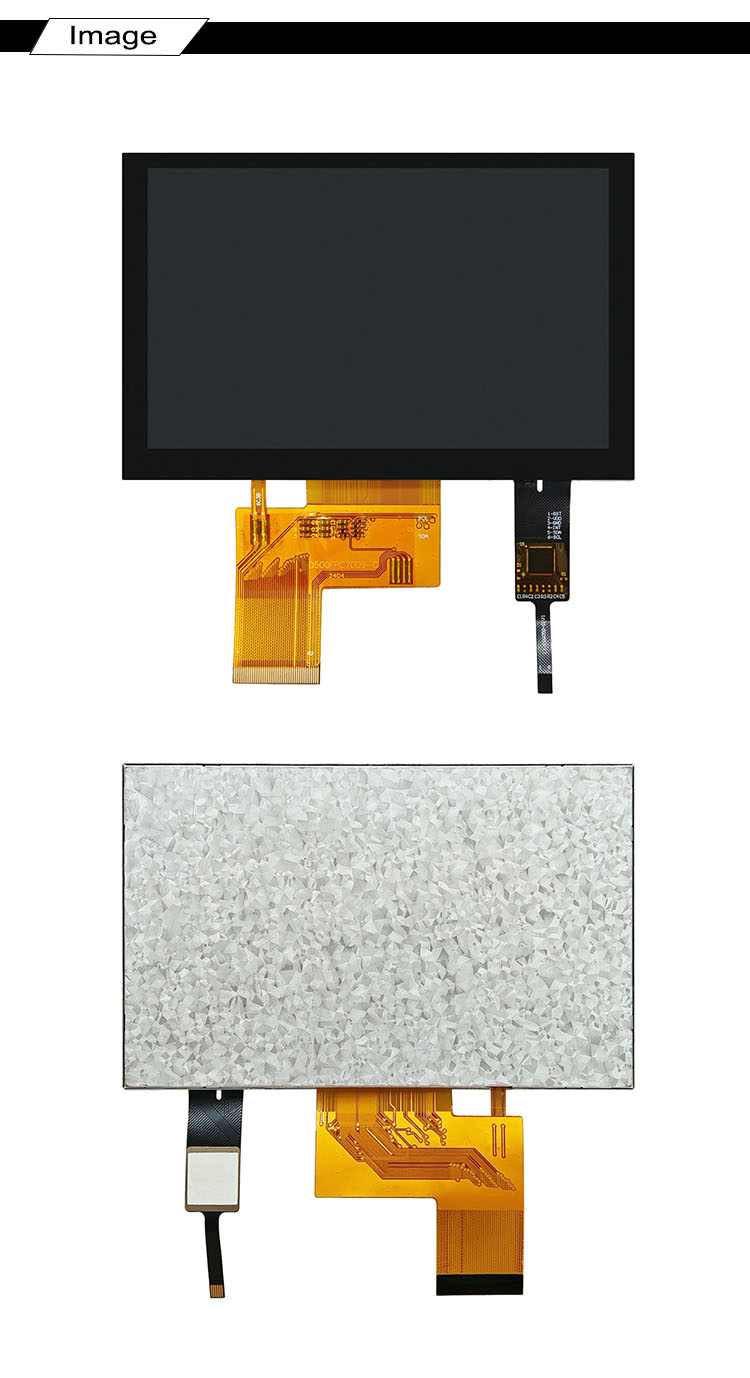

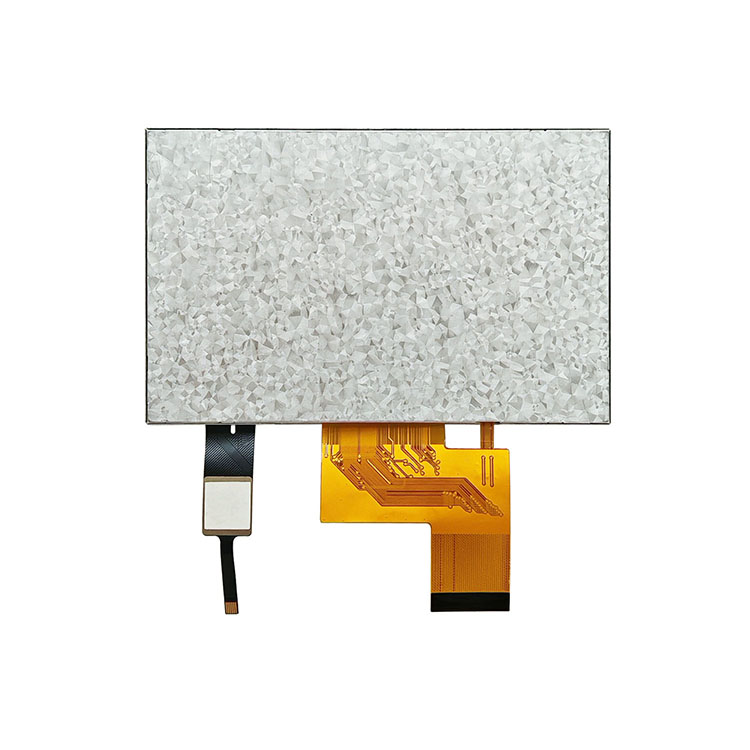

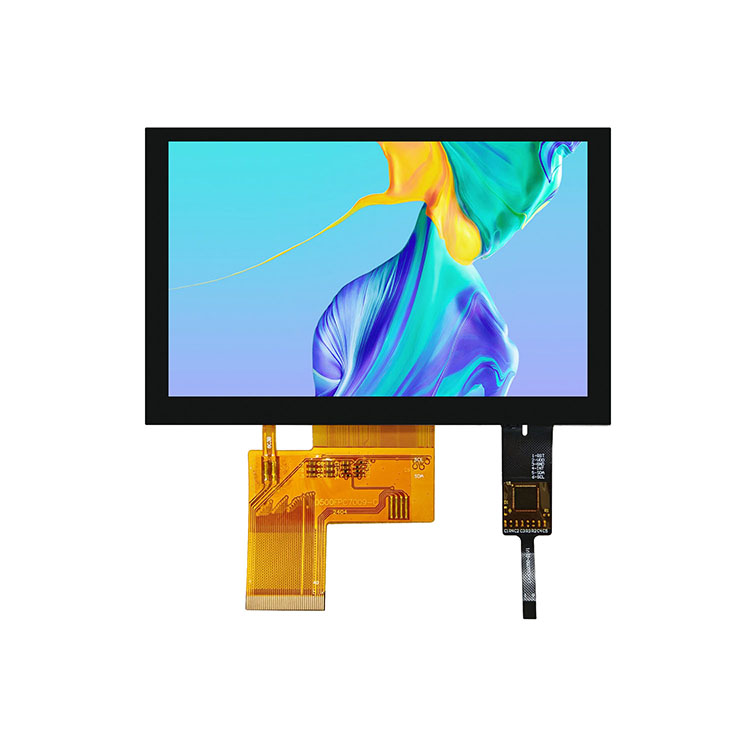

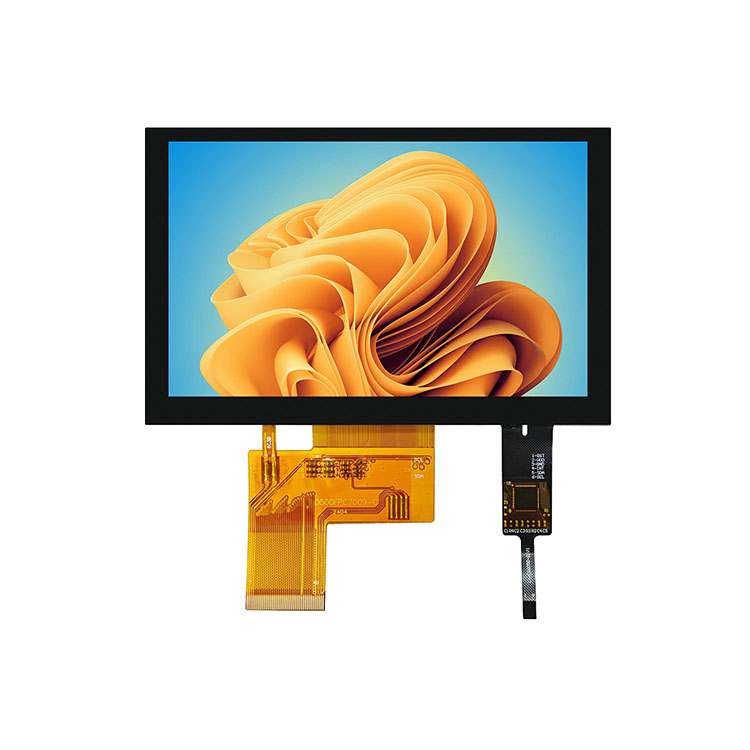

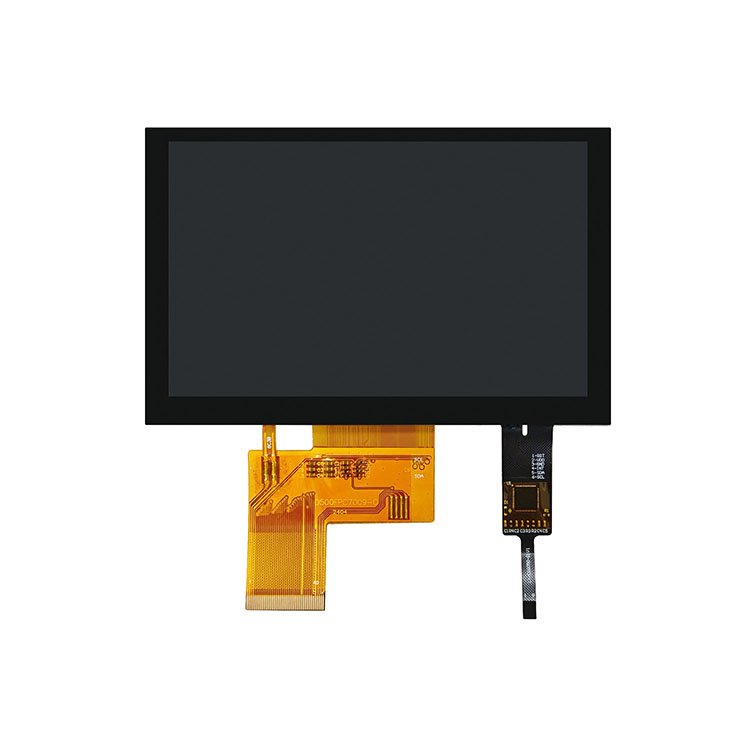

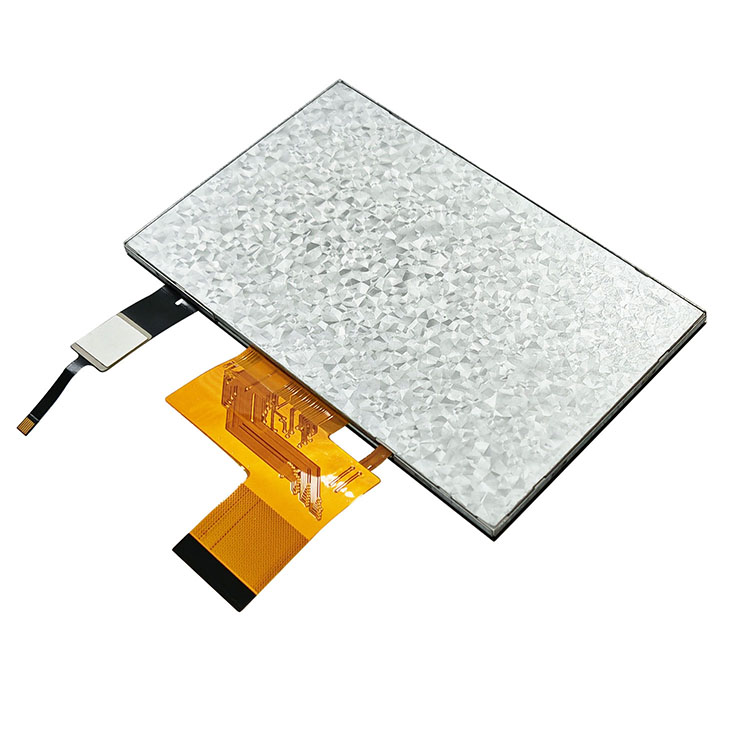

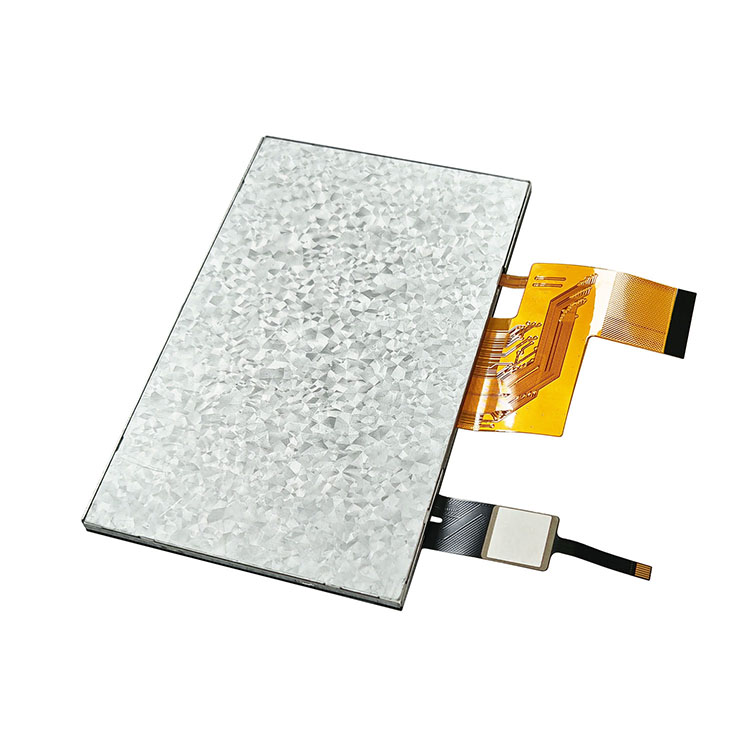

HICENDA The HT500T7009VC is a 5.0 inch IPS TFT LCD display module designed with robust performance and visual precision in mind. With a resolution of 800x480 and a wide-viewing IPS panel, this module is engineered for a diverse range of embedded applications. Powered by the ST7262 driver IC and utilizing a 24-bit RGB parallel interface, it delivers rich 16M colors with clarity and consistency. The compact structure and integrated capacitive touch support make it ideal for modern industrial and consumer interface systems

GENERAL SPECIFICATION

Parameter	Specification
Model No.	HT500T7009VC
Display Size	5.0 inch
Resolution	800 (RGB) × 480 pixels
Display Type	a-Si TFT IPS active matrix
Viewing Direction	Full view (IPS)
Display Format	Graphic Dot-Matrix
Outline Dimensions	120.7(W) × 75.8(H) × 4.3(T) mm (Excl. FPC)
Active Area	108.0(W) × 64.8(H) mm
Pixel Pitch	0.135(W) × 0.135(H) mm
Driver IC	ST7262
Display Colors	16.7M (24-bit RGB)
Interface Type	24-bit RGB Parallel
Touch Panel	Capacitive Touch (Yes)
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C
Pin Count	40 pins

 Optical & Display Characteristics

H3: IPS Technology & Visual Performance

Thanks to its IPS (In-Plane Switching) technology, the module provides consistent color accuracy and brightness across wide viewing angles. This makes it particularly well-suited for graphical user interfaces, control panels, or handheld equipment where orientation flexibility is critical.

 800×480 Resolution & Pixel Pitch

The resolution of 800x480 pixels coupled with a pixel pitch of 0.135mm ensures crisp and well-defined visual content. Each pixel contributes to the fine granularity of display, supporting clear rendering of both text and imagery.



 Electrical Interface and Integration

ST7262 Driver IC and RGB 24-bit Interface

At the core of the module lies the ST7262 driver IC, a reliable and proven solution for mid-sized TFT displays. Its integration with a 24-bit parallel RGB interface allows for seamless transmission of full-color image data, enabling developers to achieve fast refresh rates and vivid color reproduction.

Pin Definition and System Compatibility

With a 40-pin interface design, the module provides streamlined connectivity for integration with standard display controllers or embedded boards. This setup accommodates a broad spectrum of industrial and consumer-grade systems.



 Mechanical Dimensions & Build

Structural Design

Measuring 120.7mm x 75.8mm x 4.3mm, the module is compact yet robust. The active display area of 108.0mm x 64.8mm is optimized for 16:9 layout applications, and the overall mechanical profile supports integration into enclosures with limited space.

Environmental Endurance

The HT500T7009VC module is rated for operation between -20°C to +70°C, with storage tolerance extending from -30°C to +80°C. This ensures durability across a range of environmental conditions, from outdoor kiosks to in-vehicle systems.



Application Scenarios

Given its high-resolution display, integrated touch interface, and wide temperature range, the 5.0-inch TFT module is widely applicable in fields such as:



Industrial automation control panels

Medical diagnostic terminals

Consumer electronics (e.g., smart home control interfaces)

Embedded automotive displays

Portable testing equipment



Conclusion

The HT500T7009VC 5.0 inch TFT LCD module exemplifies a balance of optical clarity, electrical efficiency, and mechanical durability. Its IPS technology, high color depth, and flexible RGB interface make it a strong candidate for applications requiring

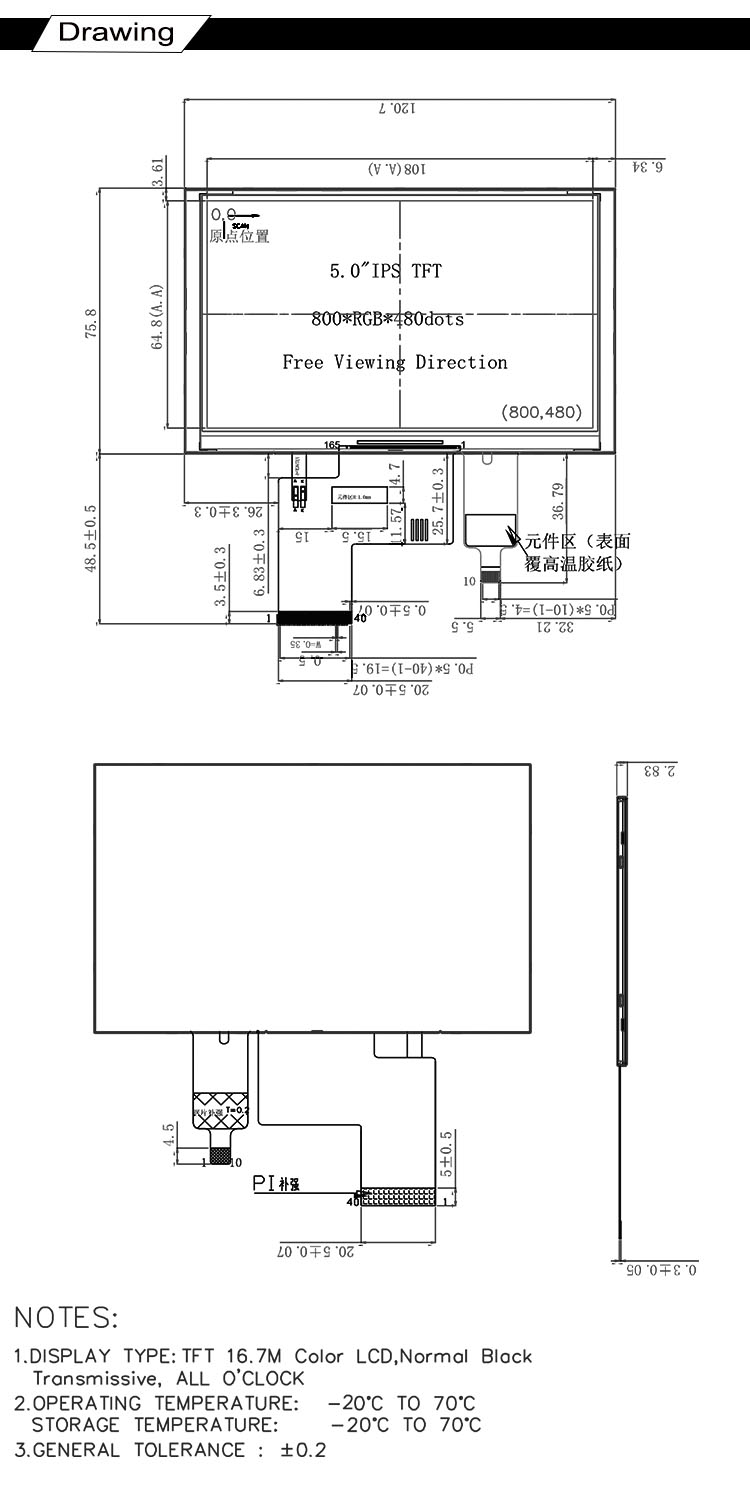

DRAWING

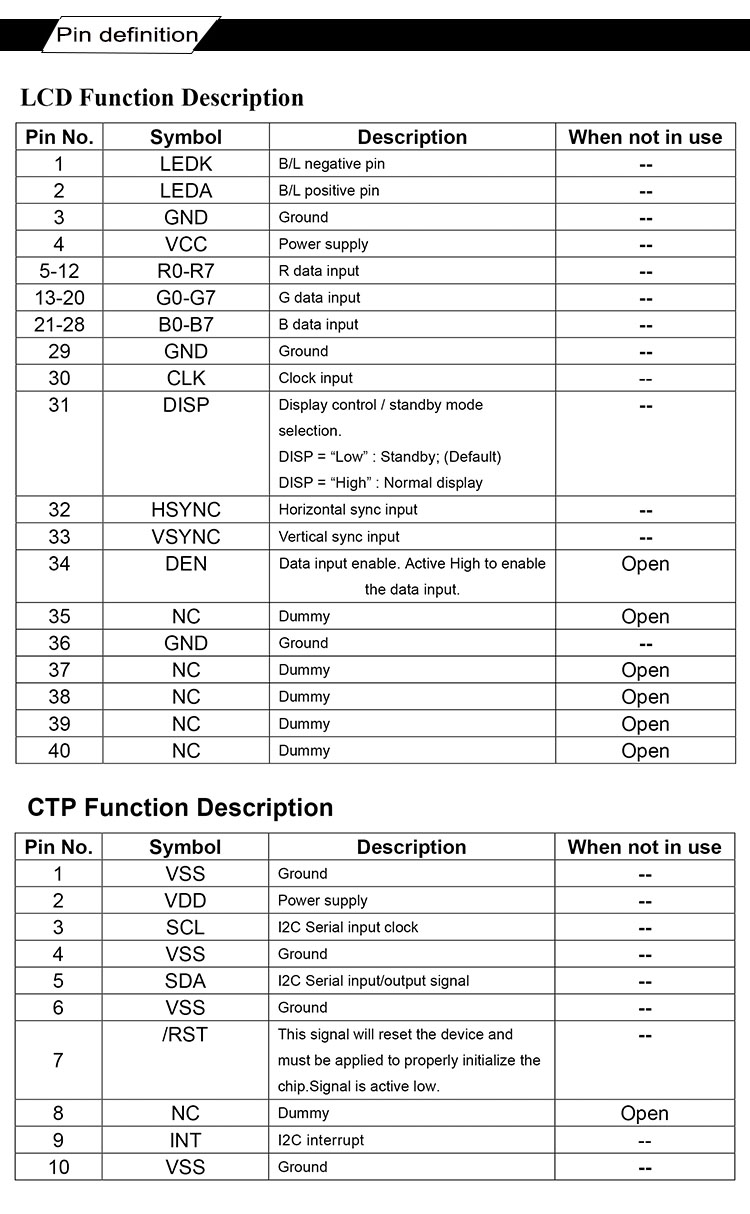

INTERFACE PIN FUNCTION
