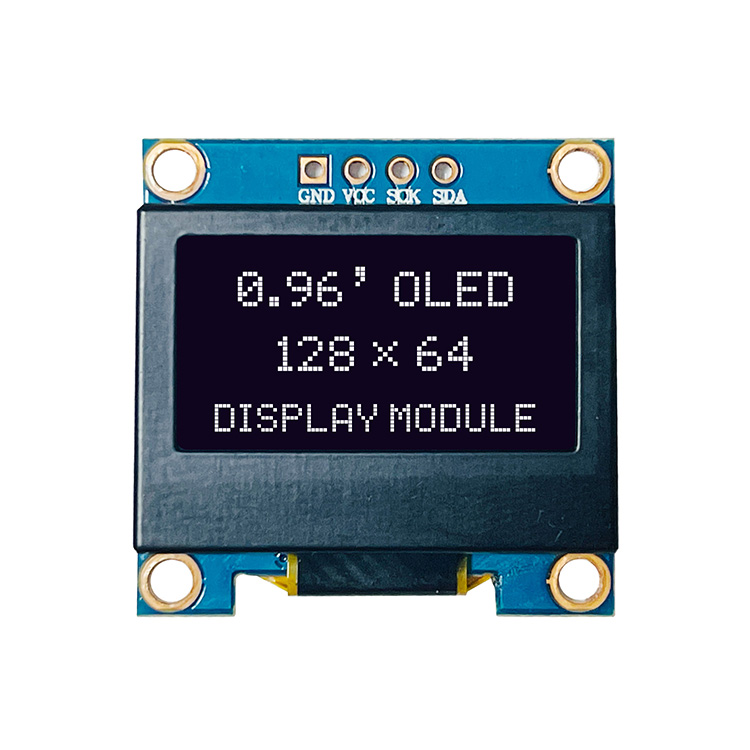

0.96-Inch OLED Display Module 128×64 Dots SSD1306/SH1106 IIC Interface

0.96-Inch OLED Display Module 128×64 Dots SSD1306/SH1106 IIC Interface

Driver IC:SSD1306 or SH1106
Size: 0.96
Resolution: 128*64
Interface: I2C
Product description: 0.96-Inch OLED Display Module 128×64 Dots SSD1306/SH1106 IIC Interface
INQUIRY

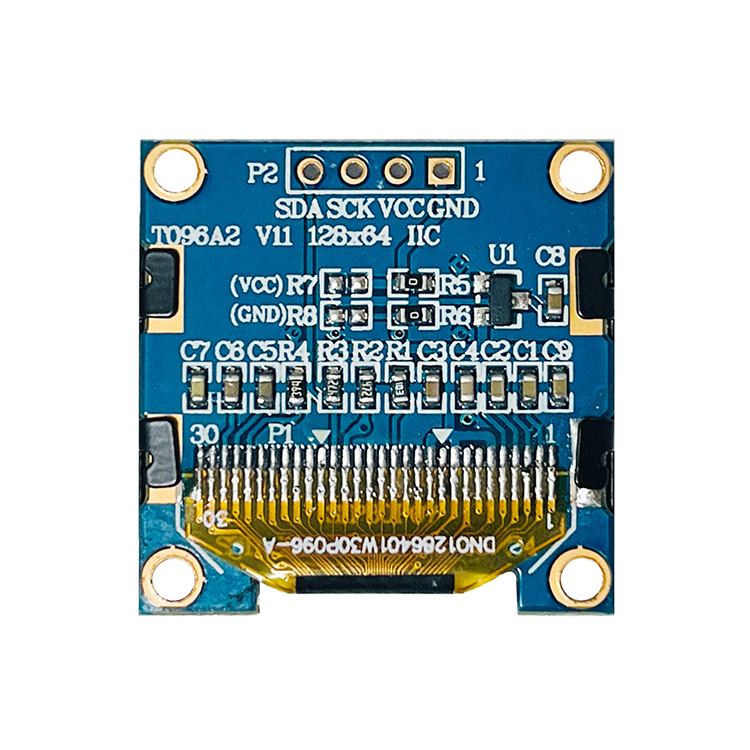

Description

The 0.96 inch OLED display module featuring 128×64 dots resolution with SSD1306 or SH1106 driver IC and IIC interface stands out as a compact and versatile display solution ideal for various embedded and consumer applications. This monochrome white display (also available in blue or yellow-blue variants) is engineered for clarity, efficiency, and reliability. With its passive matrix design and robust operating temperature range, it offers consistent performance across diverse environments.

Technical Specifications Table

Parameter Specification

Model No HT096AWH30PG01I4V10

Display Size 0.96 inch

Resolution 128 × 64 dots

Display Type Passive Matrix OLED

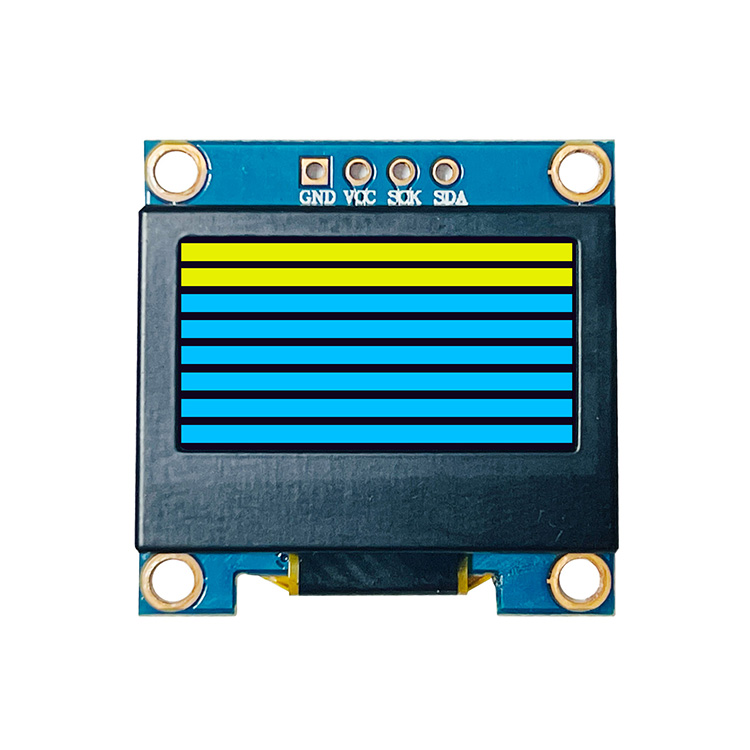

Display Color Monochrome (White / Blue / Yellow-Blue)

Viewing Direction IPS (All-round viewing)

Active Area 23.74 × 13.204 mm

Effective Area 21.74 × 11.204 mm

Pixel Size 0.15 × 0.15 mm

Pixel Pitch 0.17 × 0.17 mm

Driver IC SSD1306 or SH1106

Interface IIC

Drive Duty 1/64 Duty

Operating Temperature -40℃ to +70℃

Storage Temperature -40℃ to +85℃

Outline Dimension 27.5L × 27.8W × 3.0(MAX)H mm

Pin No 4 Pins

Technical Specifications and Features

Display Characteristics

The module is equipped with a passive matrix OLED display offering excellent contrast and readability. The display format of 128×64 dots enables clear visual output for text, graphics, and icons.

Driver IC and Interface

SSD1306 and SH1106 Compatibility

The display supports both SSD1306 and SH1106 driver ICs. These drivers are widely adopted for their efficiency in rendering graphics and text while minimizing power consumption. Both ICs enable high-speed communication over the IIC interface, simplifying hardware integration.

IIC Interface

The IIC (Inter-Integrated Circuit) interface ensures reliable and straightforward connectivity with microcontrollers and development boards, making this module well-suited for rapid prototyping and production environments.

Advantages of the 0.96-Inch OLED Module

Robust Performance Across Conditions

Designed for reliability, this display module operates seamlessly across a wide temperature range from -40℃ to +70℃, withstanding challenging conditions in industrial and outdoor applications.

Compact and Efficient Design

The module's slim profile (maximum thickness of 3.0 mm) and compact outline make it ideal for space-constrained designs without compromising display clarity.

High Readability and Wide Viewing Angle

The IPS viewing direction ensures excellent readability from multiple angles, enhancing user experience in handheld or wearable devices.

Application Scenarios

Ideal Use Cases

Wearable electronics (e.g., smart bands, health monitors)

Industrial handheld devices

IoT modules and controllers

Compact instrumentation displays

Consumer gadgets requiring simple GUI output

Drawing:

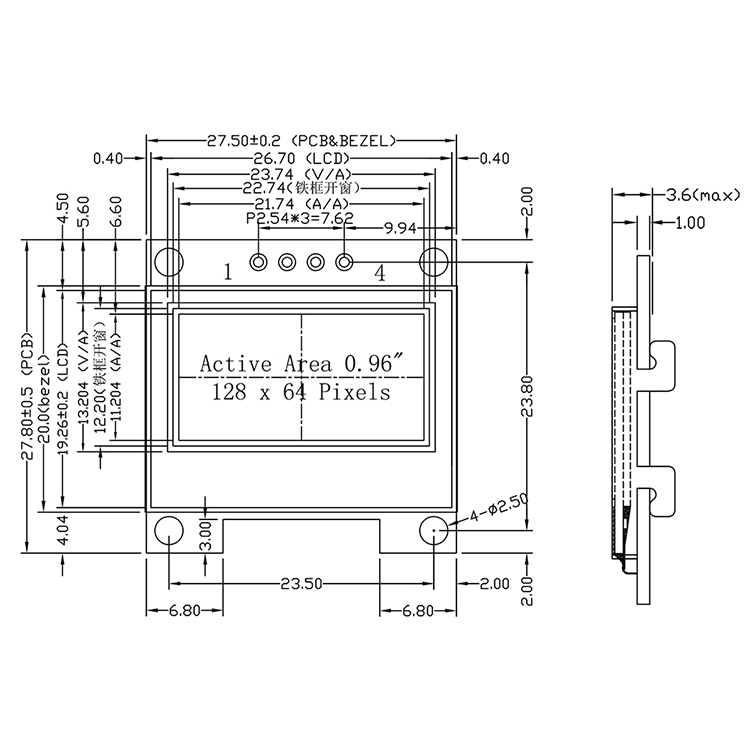

Pin Definition:

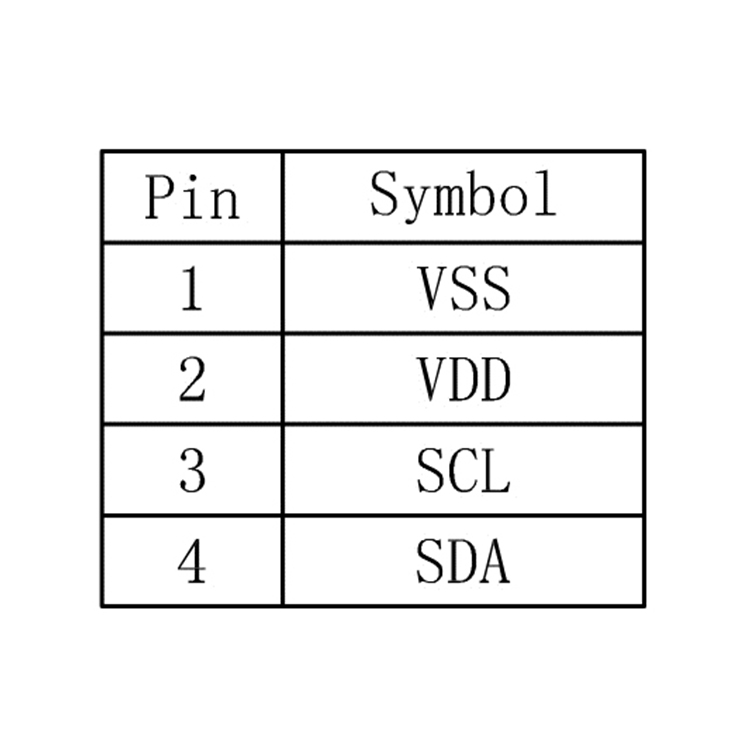

Conclusion
