DESCRIPTION

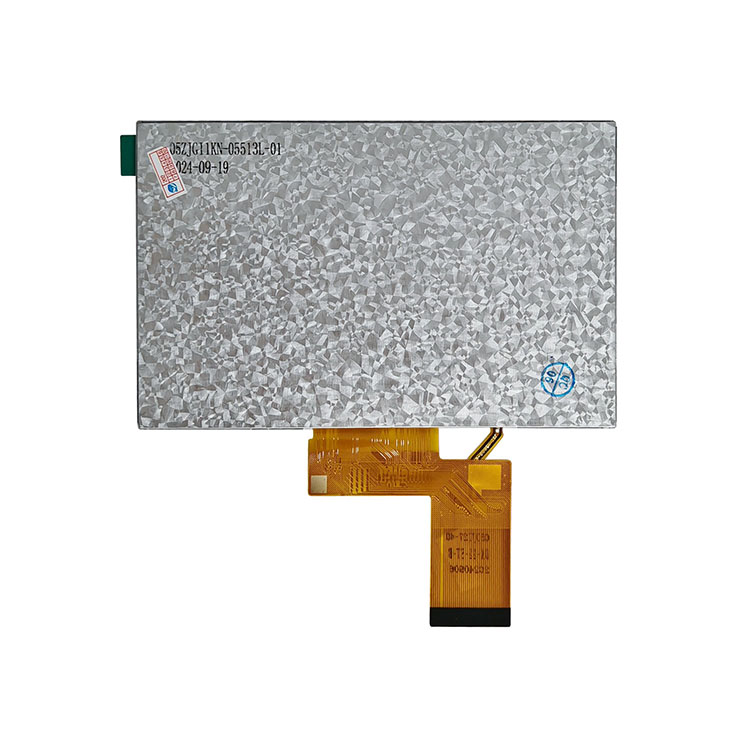

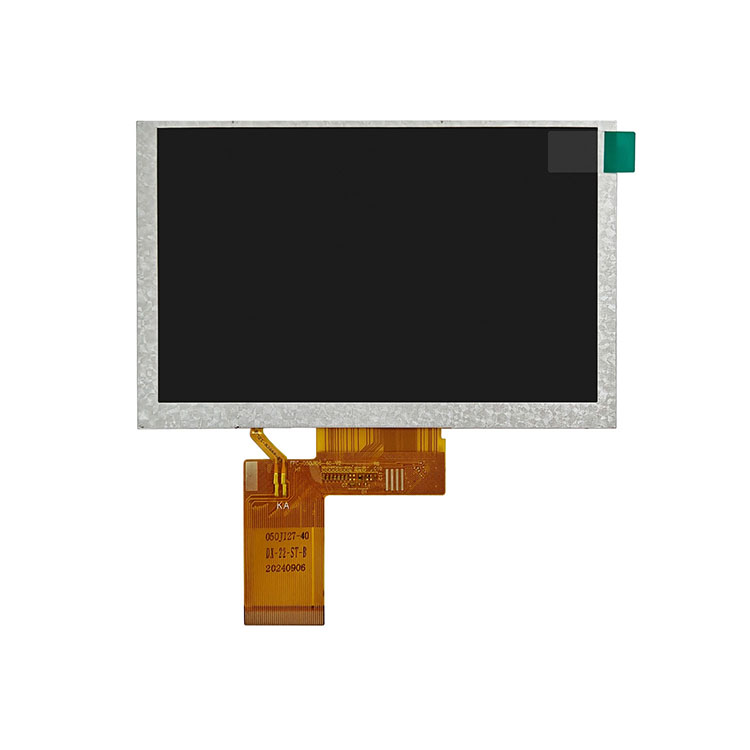

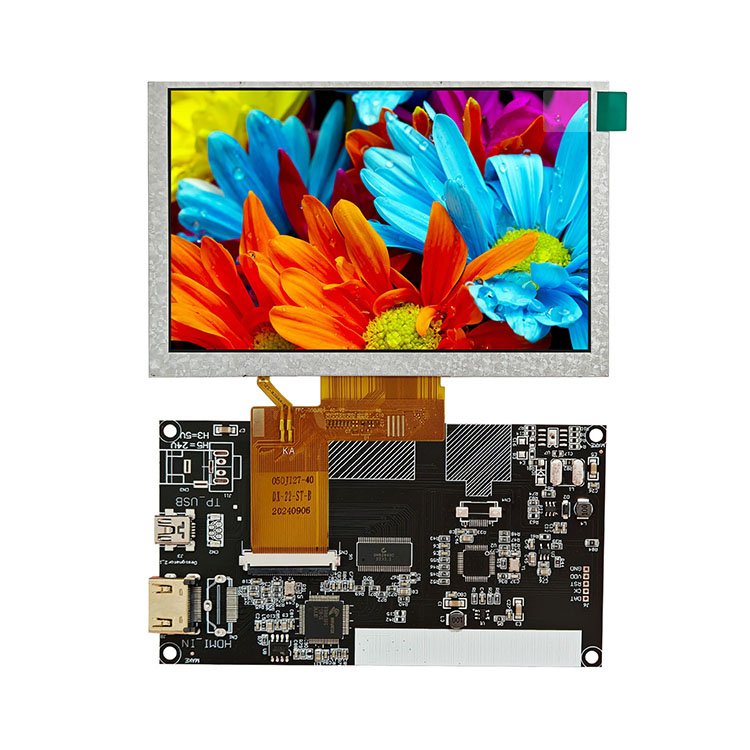

HICENDA HT050JGI1K-05287Y is a 5-inch TFT LCD display module with HDMI connectivity, offering an 800×480 resolution and full-color output. Designed with an IPS panel for consistent image quality from all viewing angles, this module features a transmissive, normally black display mode. It includes an RGB interface and integrates the HX8394F driver IC. Notably compact, with a thickness of only 3.05 mm, the module supports a wide operating temperature range (-20°C to +70°C), making it ideal for embedded and industrial applications. Equipped with 18 white LEDs for backlighting and supporting 16.7M display colors, it is well-suited for systems requiring reliable visual output under varying environmental conditions.

GENERAL SPECIFICATION

Display Technology and Core Specifications

The HT050JGI1K-05287Y display module is built upon mature TFT (Thin-Film Transistor) LCD technology. Its IPS (In-Plane Switching) architecture ensures wide viewing angles and stable color reproduction, meeting the demand for professional-grade display modules in compact embedded systems.

Display Performance Parameters

The module features a resolution of 800×RGB×480, delivering vibrant, full-color images across its 108.00 mm × 61.80 mm active area. It operates in a normally black, transmissive display mode, enhancing contrast and visibility, especially in environments with variable lighting conditions.

Interface and Driver Architecture

RGB Interface and Driver IC

Communication is handled via a 40-pin RGB interface, which facilitates high-speed data transmission suitable for real-time video display. The integrated HX8394F driver IC is optimized for TFT control, offering stable performance across a wide temperature range.

HDMI Board Compatibility

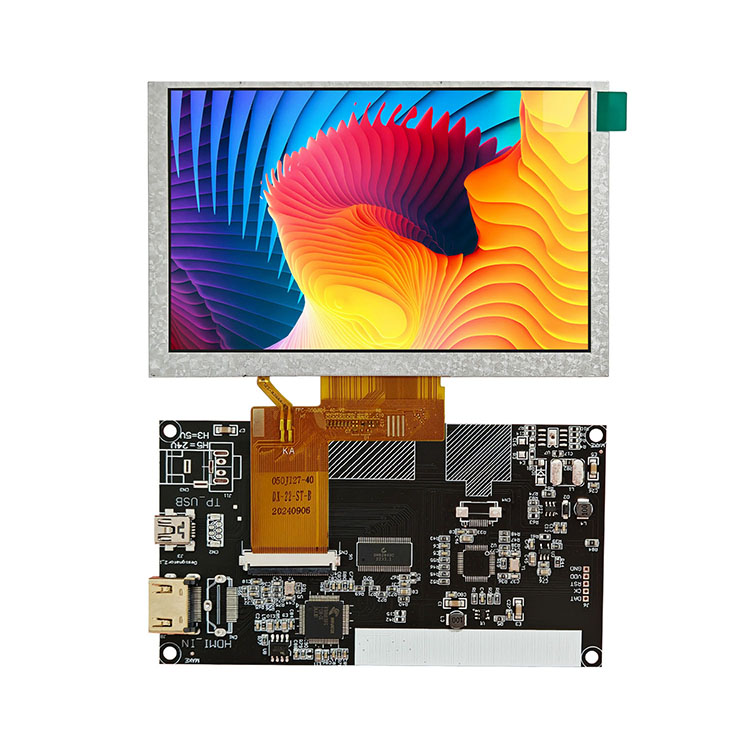

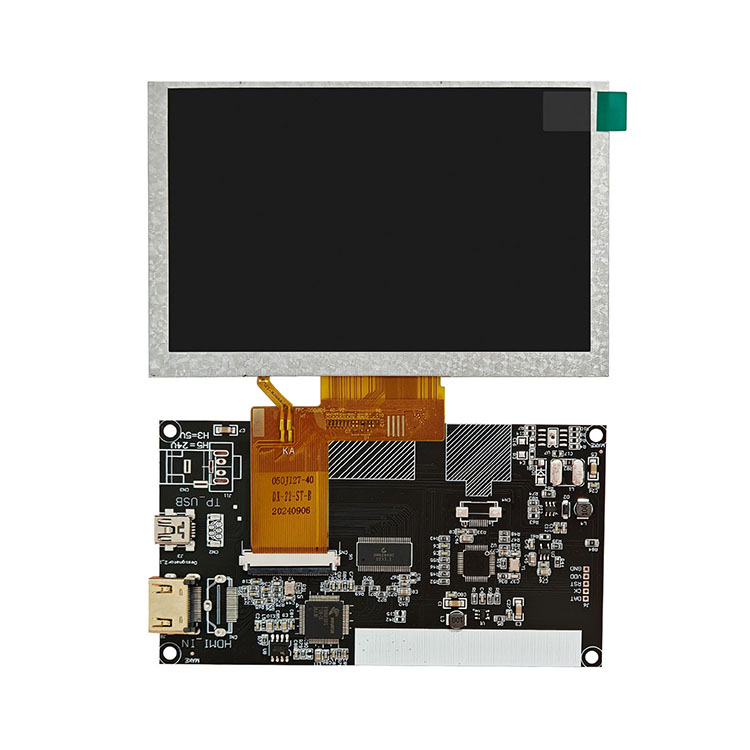

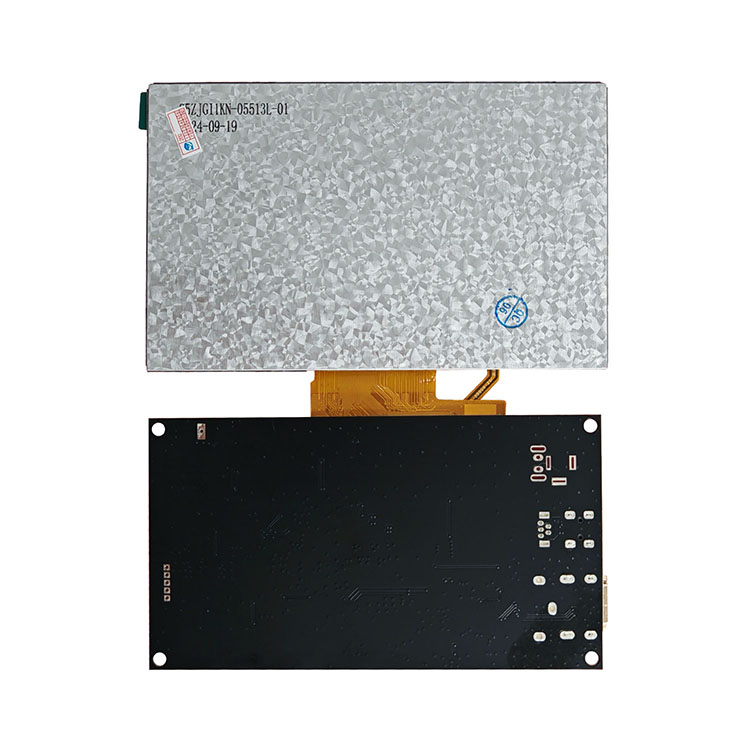

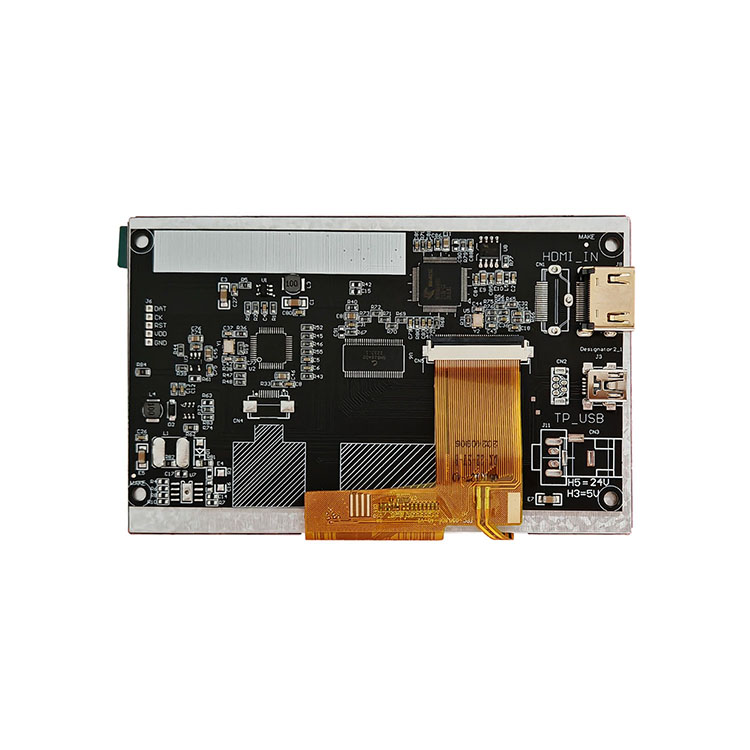

Though the native interface is RGB, this module is typically paired with an HDMI conversion board for plug-and-play compatibility with standard multimedia sources. This hybrid design makes it attractive for developers in prototyping and production environments.

Mechanical and Electrical Specifications

The mechanical layout is engineered for compact integration, with a total outline dimension of 120.70 mm × 75.90 mm × 3.05 mm. The slim form factor and standardized pin configuration facilitate seamless integration into housing systems.

Backlighting and Power

An array of 18 white LEDs provides efficient backlighting, delivering uniform brightness with low power consumption. The display’s passive matrix mode ensures energy efficiency, which is crucial in battery-powered or thermally constrained applications.

Environmental Durability

With a tested operating temperature range from -20°C to +70°C and storage tolerance from -30°C to +80°C, this module is built to endure demanding industrial environments.

Applications and Use Cases

Embedded Systems and Industrial Panels

This module’s compact size and robust temperature tolerance make it an ideal solution for embedded displays in industrial control panels, handheld terminals, and diagnostic equipment.

Multimedia and Human-Machine Interfaces (HMI)

When paired with HDMI boards, the HT050JGI1K-05287Y transforms into an effective HMI solution for applications ranging from consumer electronics to kiosk systems.

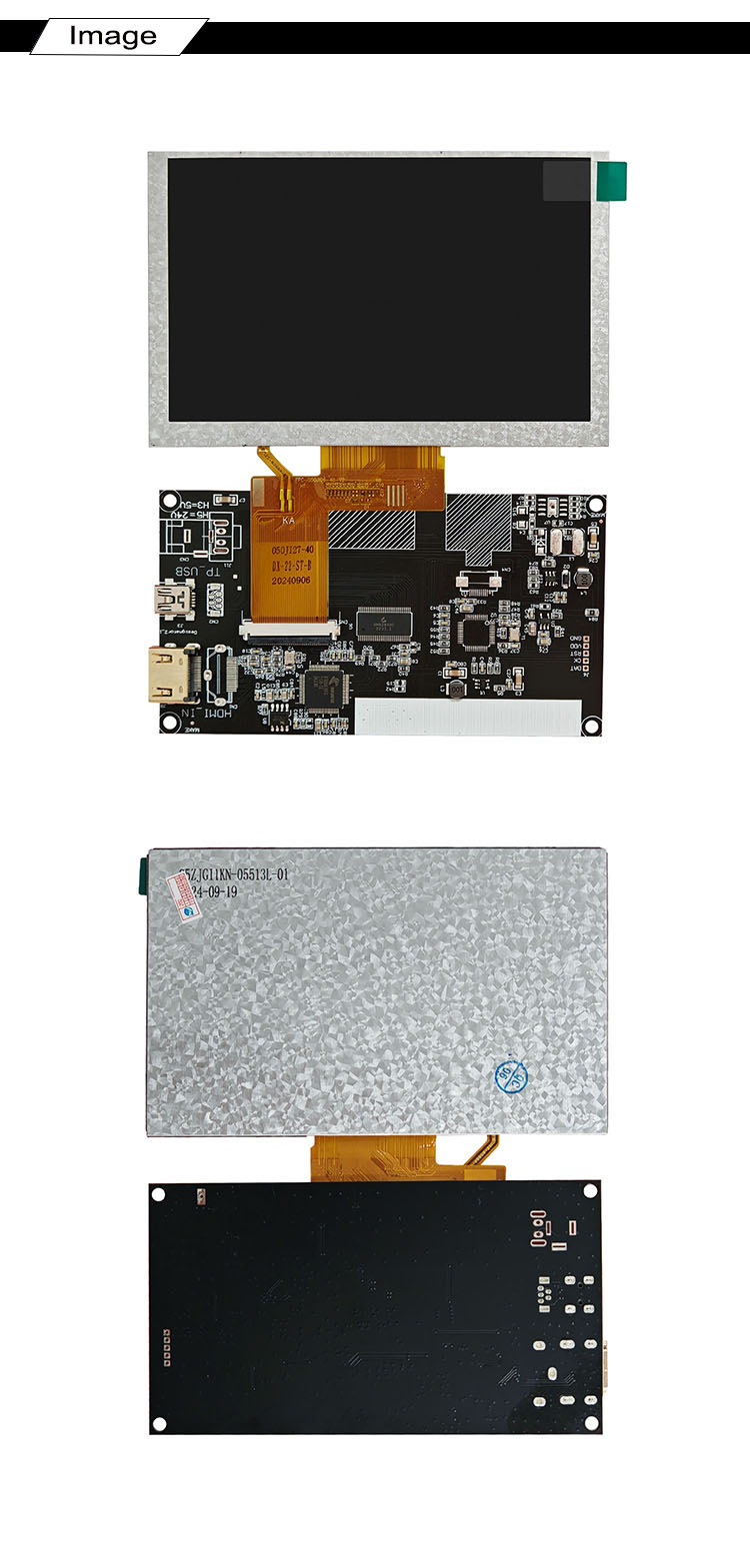

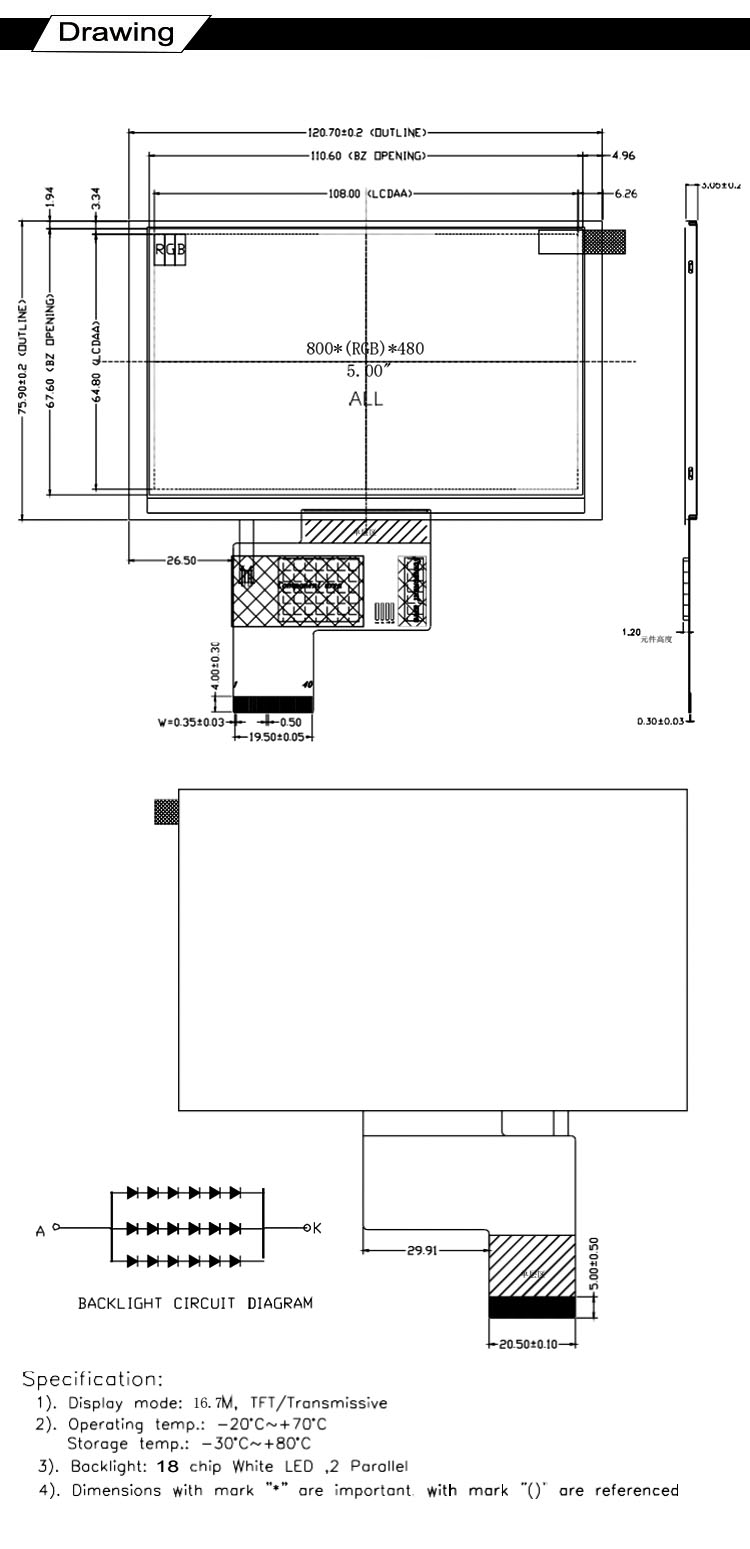

DRAWING

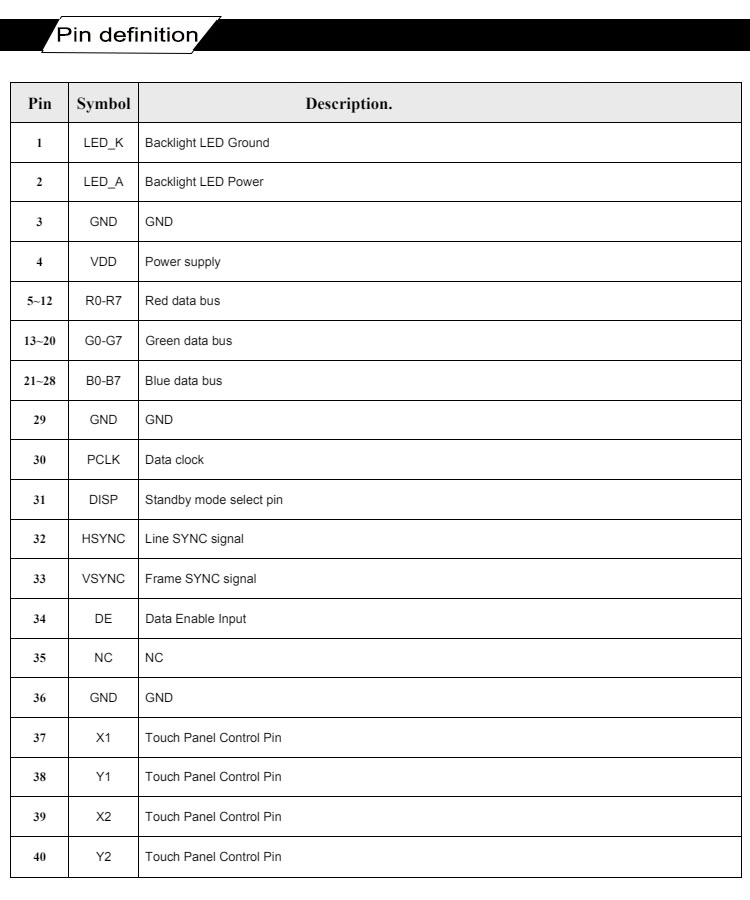

INTERFACE PIN FUNCTION

Conclusion

The HT050JGI1K-05287Y 5-inch TFT LCD HDMI-compatible module represents a finely engineered balance of performance, durability, and integration flexibility. Its high-resolution output, wide viewing angle, and extended temperature range make it a preferred choice for developers and system integrators across various technical domains.
