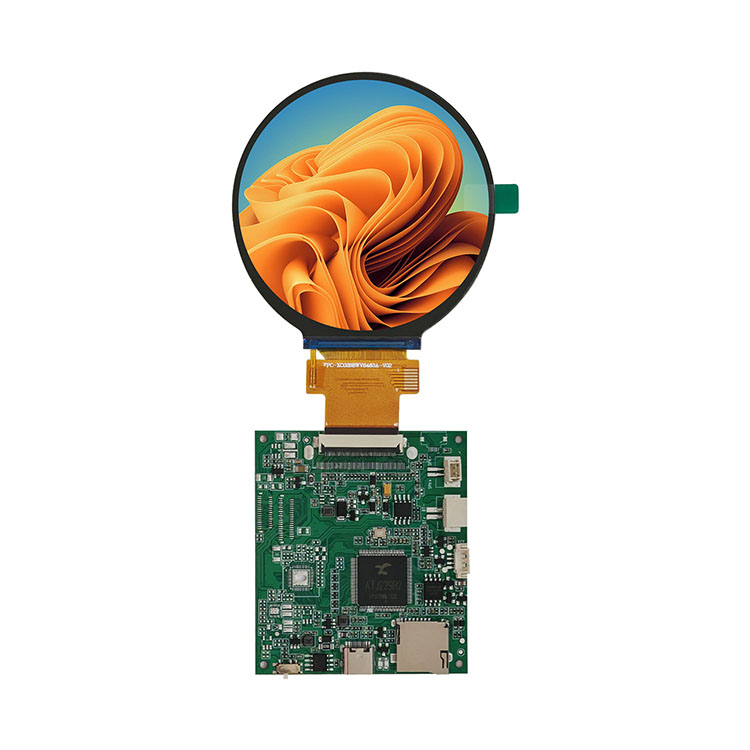

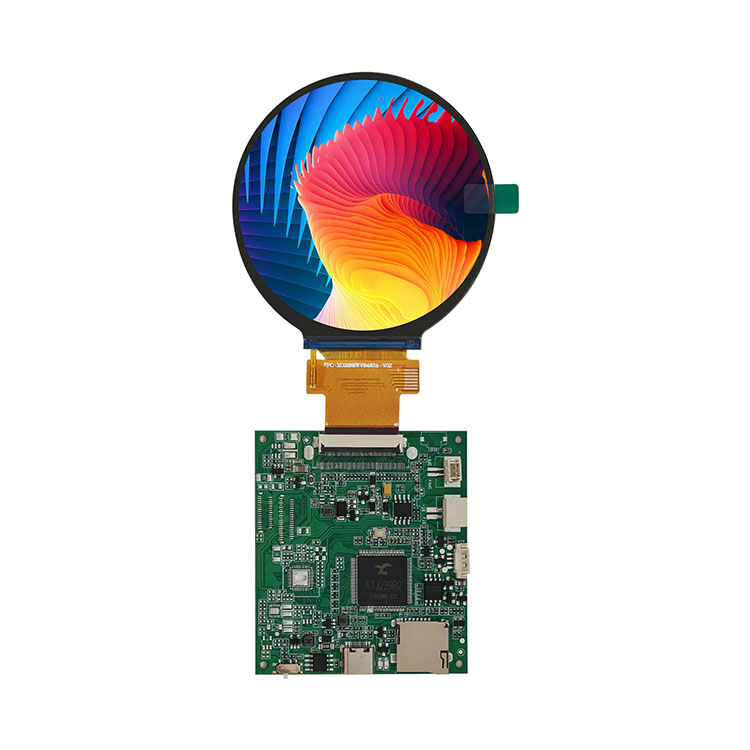

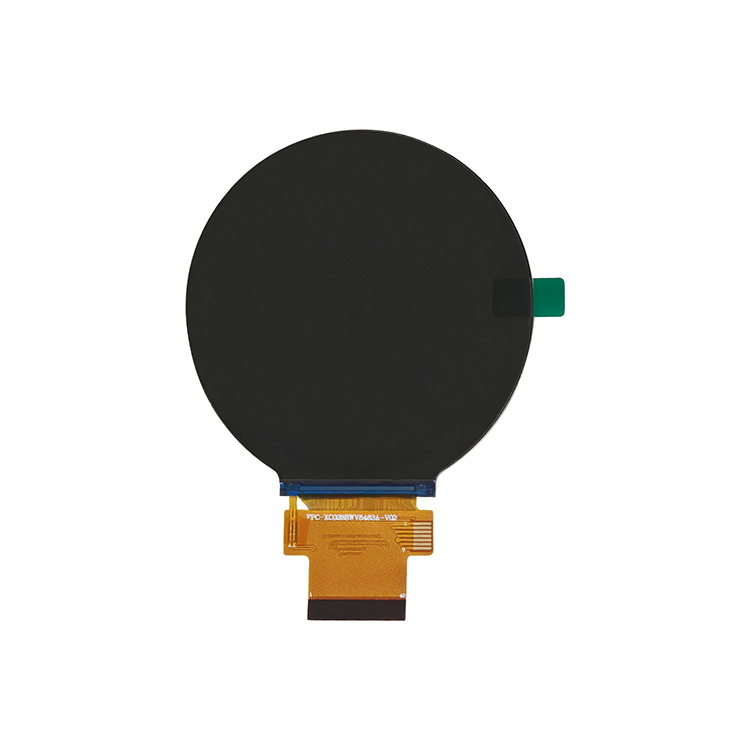

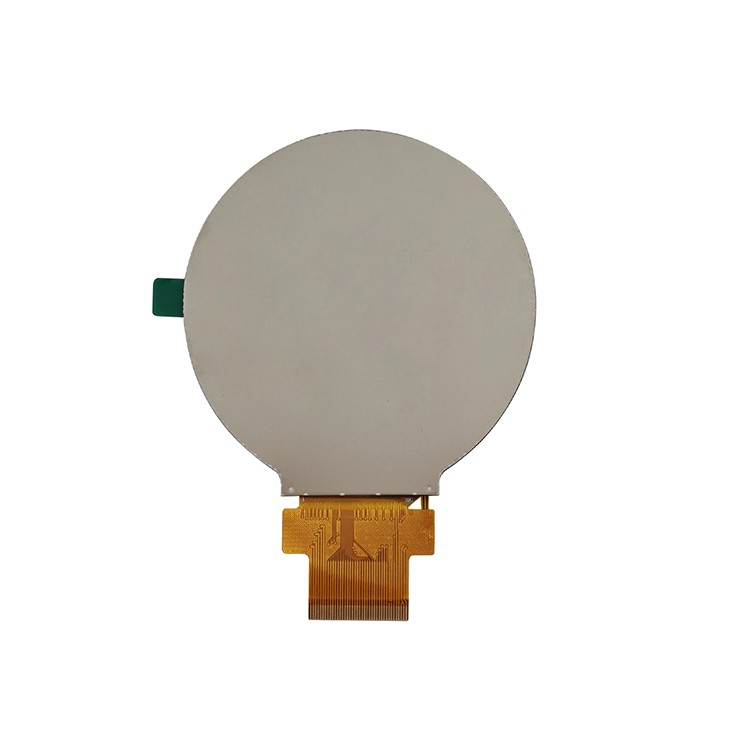

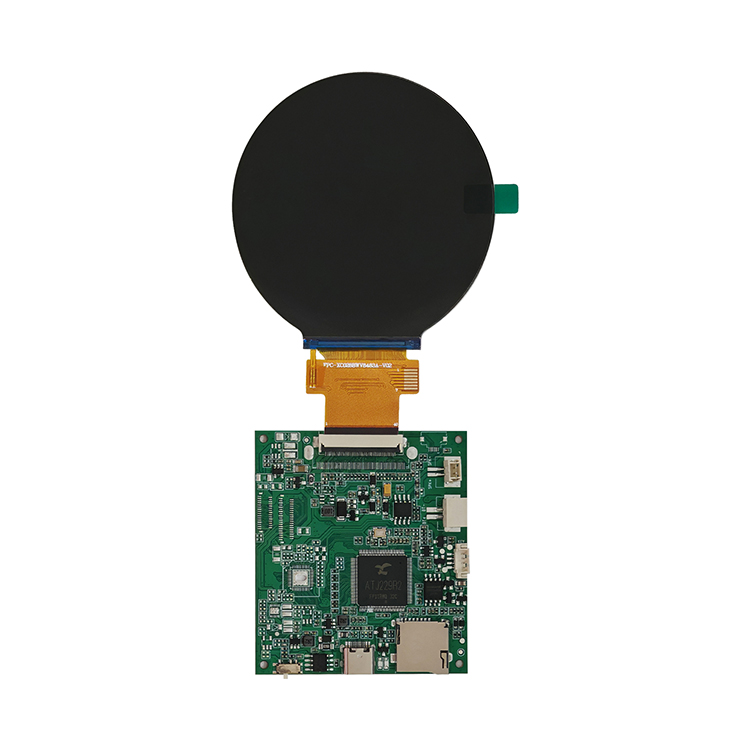

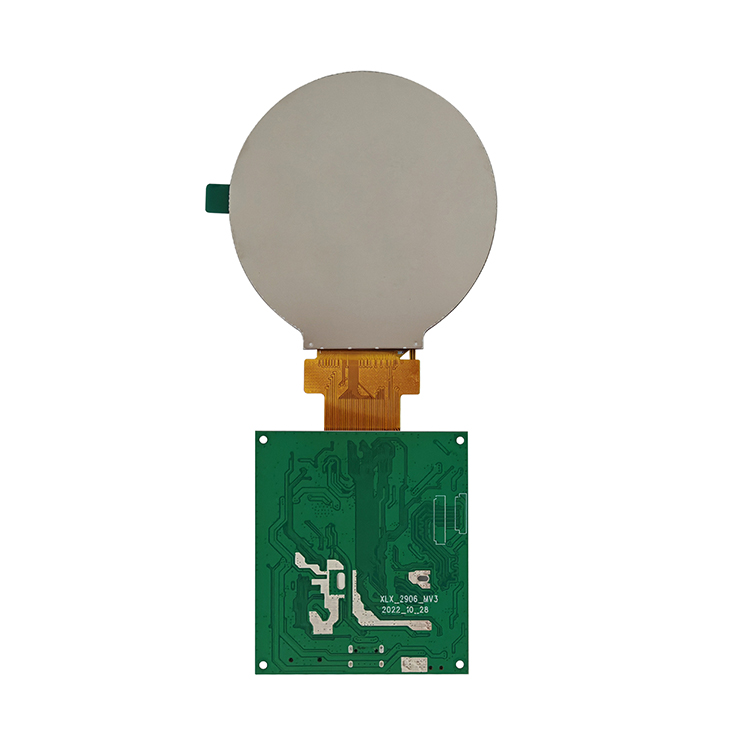

IPS 2.8 2.76" inch Round TFT display 480x480 touchscreen MIPI interface

Size: 2.8 INCH
Controller IC:ST7701S
Resolution:480(H)X480(V)
Interface:MIPI
Product description: IPS 2.8 2.76" inch Round TFT display 480x480 touchscreen MIPI interface
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

HICENDA HD276003C30-V1 is a transmissive type color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module (TFT-LCD panel, driver IC and FPC), a back-light unit and. The resolution of 2.1" contains 480 RGB X480 pixels and can display up to 16.7m colors.

GENERAL SPECIFICATION

Specification	Details
Display Size	2.8 inch (actual 2.76")
Resolution	480(H) x 480(V)
Panel Type	a-Si TFT with IPS technology
Active Area	70.13 mm (H) x 70.13 mm (V)
Outline Dimensions	73.03 mm (H) x 76.58 mm (V)
Pixel Pitch	0.1461 mm (H) x 0.1461 mm (V)
Viewing Angle	Full-view IPS
Interface	MIPI (30 pins)
Driver IC	ST7701S
Display Colors	16.7 million (24-bit RGB)
Backlight Configuration	4 White LEDs in parallel
Operating Temperature	-20°C to +70°C
Storage Temperature	-30°C to +80°C

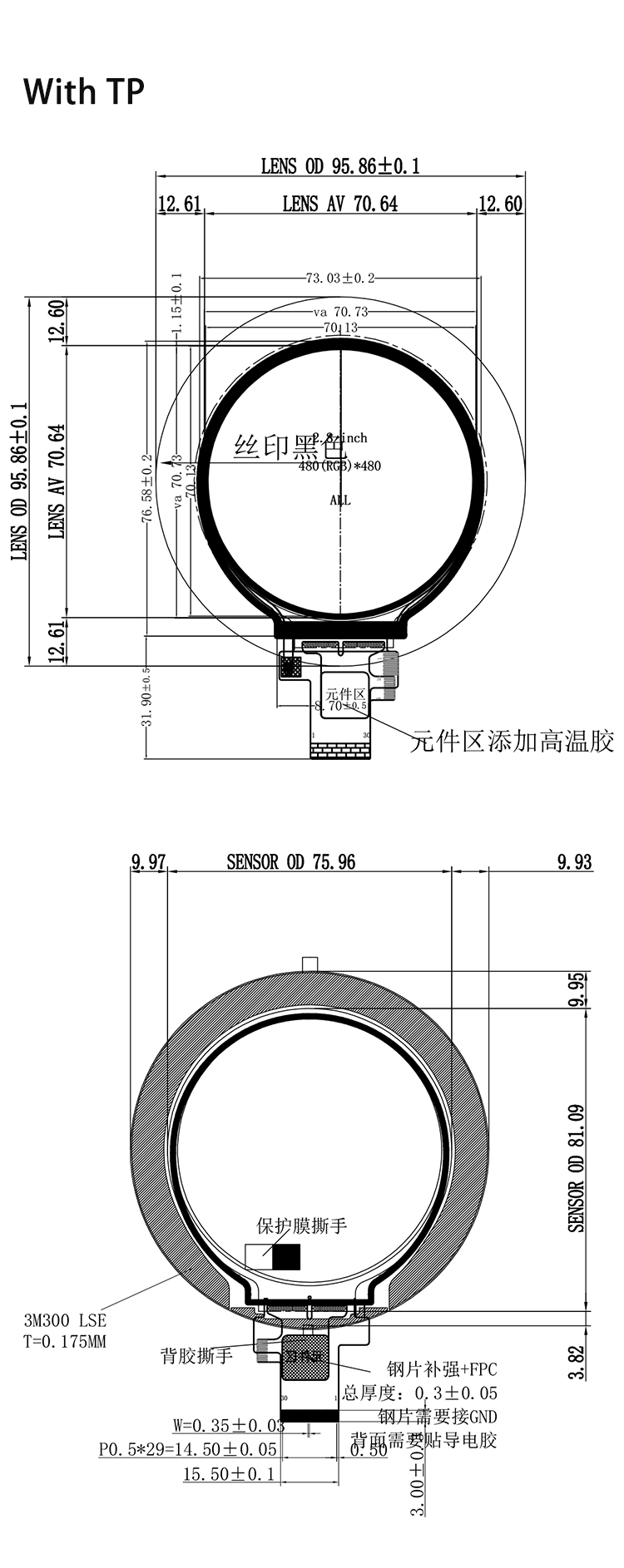

DRAWING

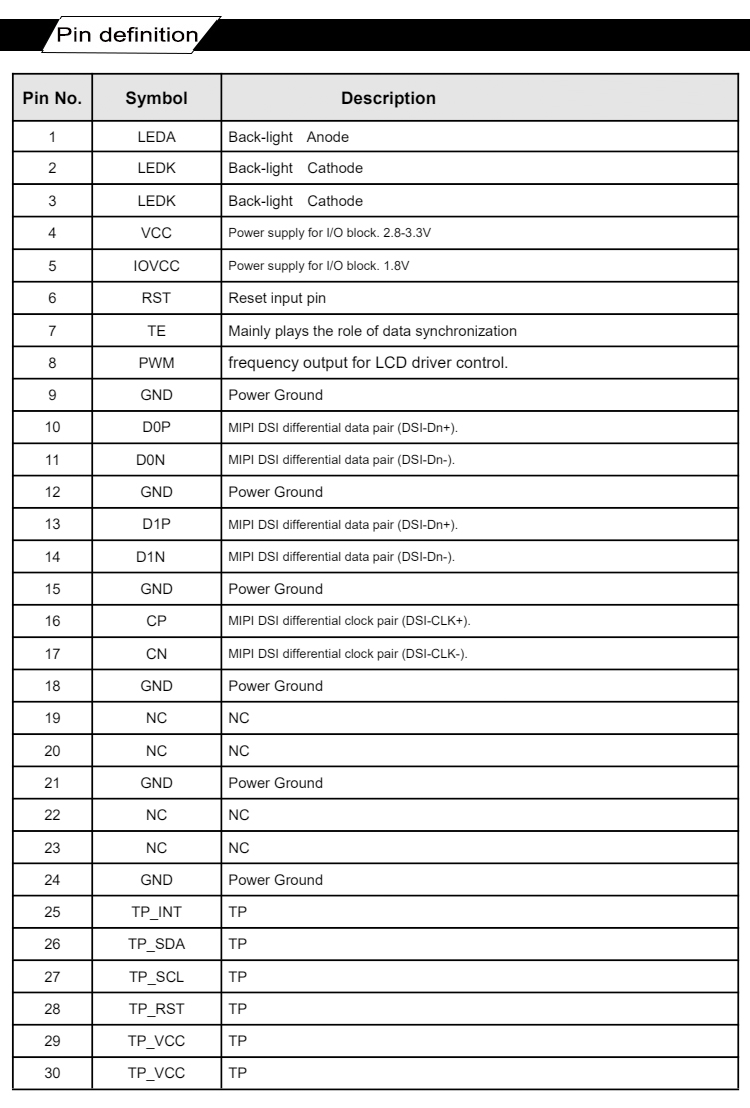

INTERFACE PIN FUNCTION
