  • Size: 10.1 TFT
  • Controller IC: TBD
  • Resolution:1280(RGB)x800
  • Interface: LVDS
  • Product description: TFT LCD Display 10.1 inch ,1280(RGB)x800
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

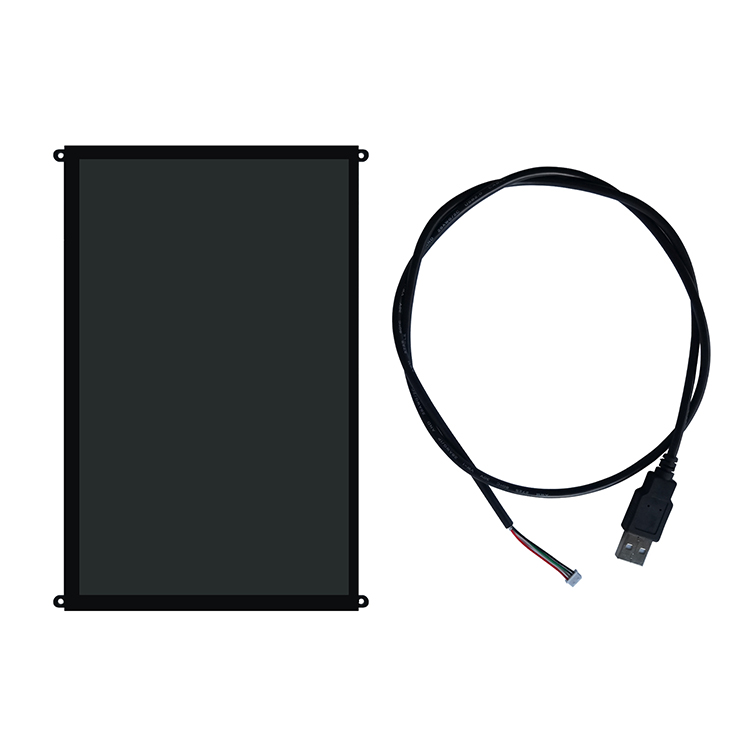

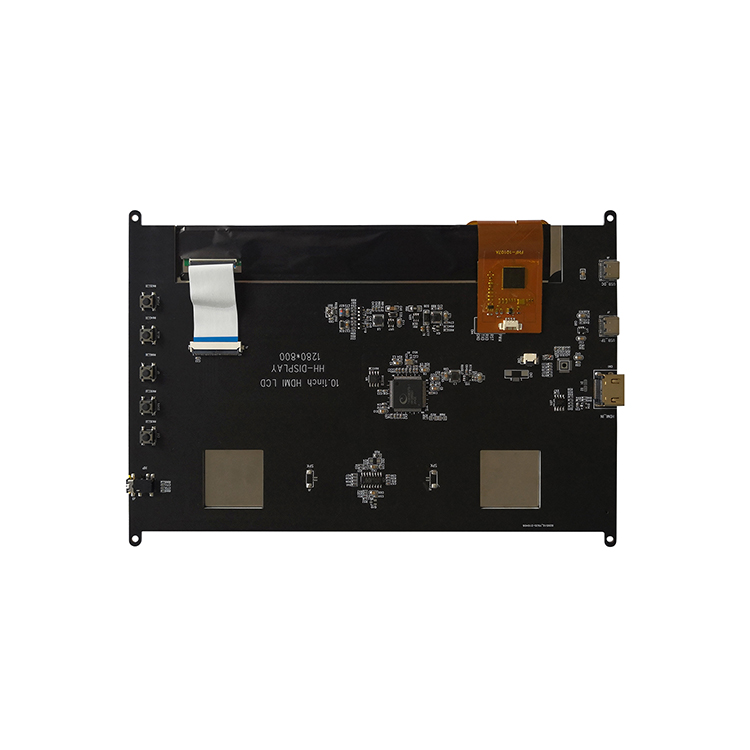

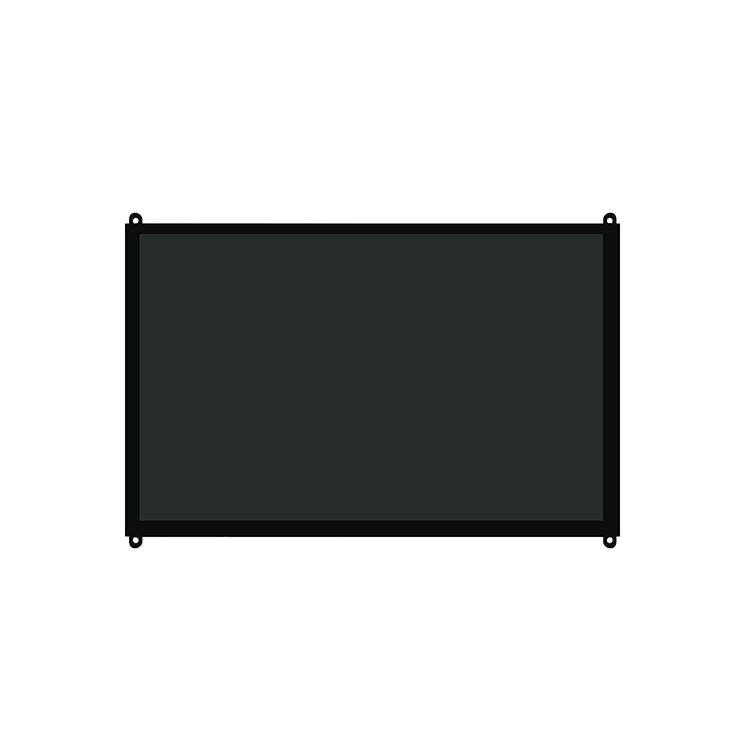

HICENDA TFT 10.1 color active matrix LCD module incorporating amorphous silicon TFT (Thin

Film Transistor). It is composed of a color TFT - LCD panel, driver IC, FPC and a
back light unit. The module display area contains 1280*800 pixels. This product
accords with ROHS environmental criterion.





GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT101RPI-IPS-TP
Diagonal Screen size: 10.1 inch
Interface:
LVDS
Backlight:

White LED
Number of Pixels:

1280(RGB)x800

Panel Size:

229.46X149.10X2.65 (mm)
Driver IC:

TBD

Active Area:

216.96(W) X135.60(H)(mm)
Power input:

USB 5V DC 5V-2A
TOUCH:

Support (capacitance screen) single-point touch, multi-point touch

Weight:

TBD

Operating Temperature:

-10~60°



DRAWING

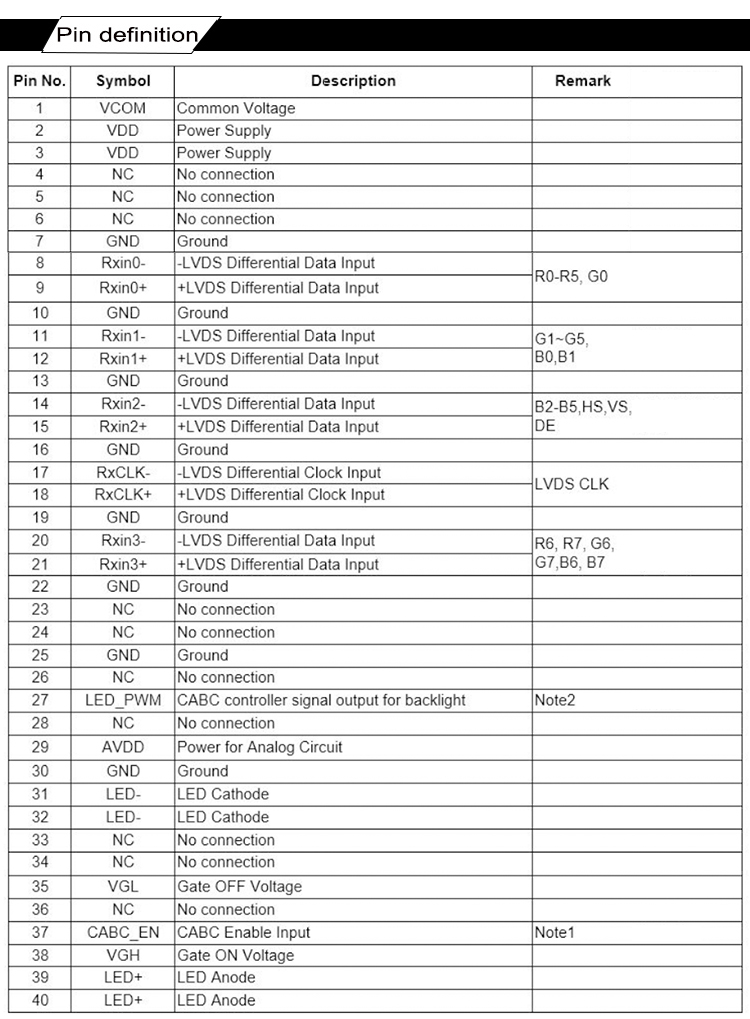

INTERFACE PIN FUNCTION
