Eink display 2.13",122×250 pixel

  • Size: 2.13 Eink
  • Controller IC: SSD1680Z8
  • Resolution:122×250 pixel
  • Interface:4-wire SPI or 3- wire SPI i

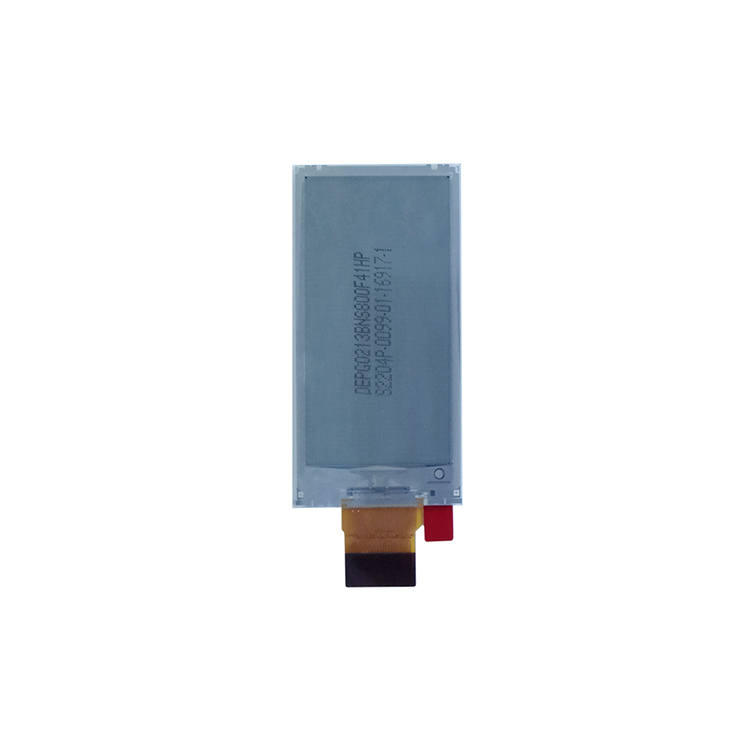

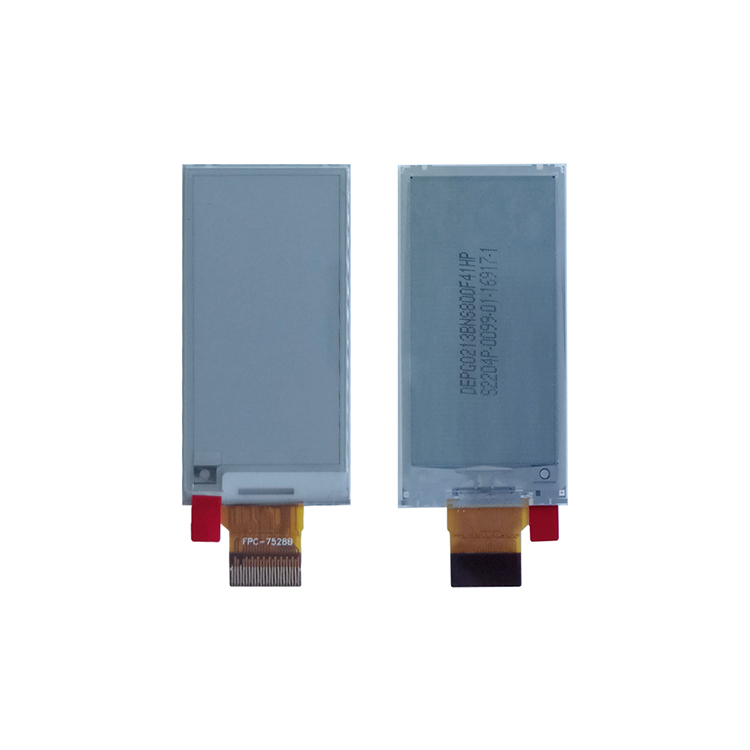

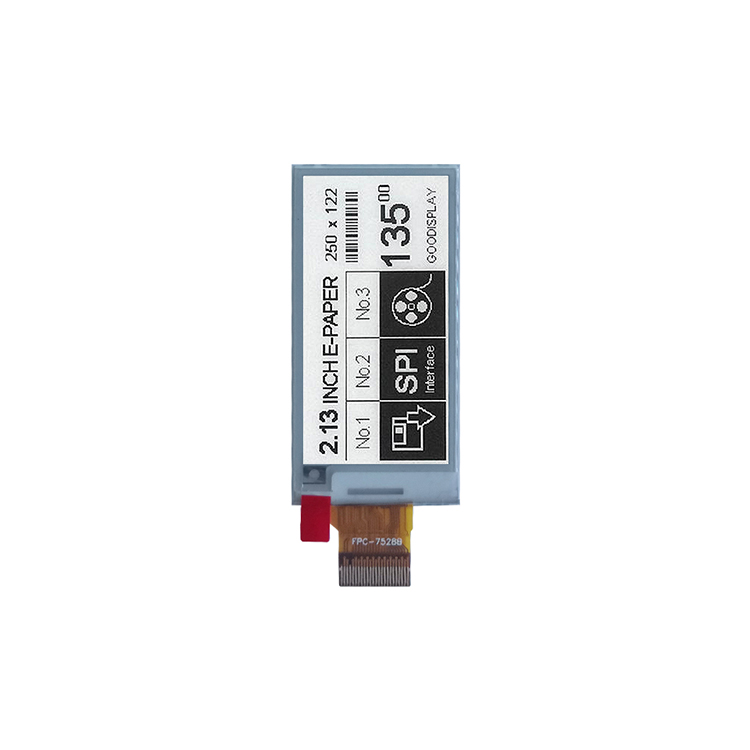

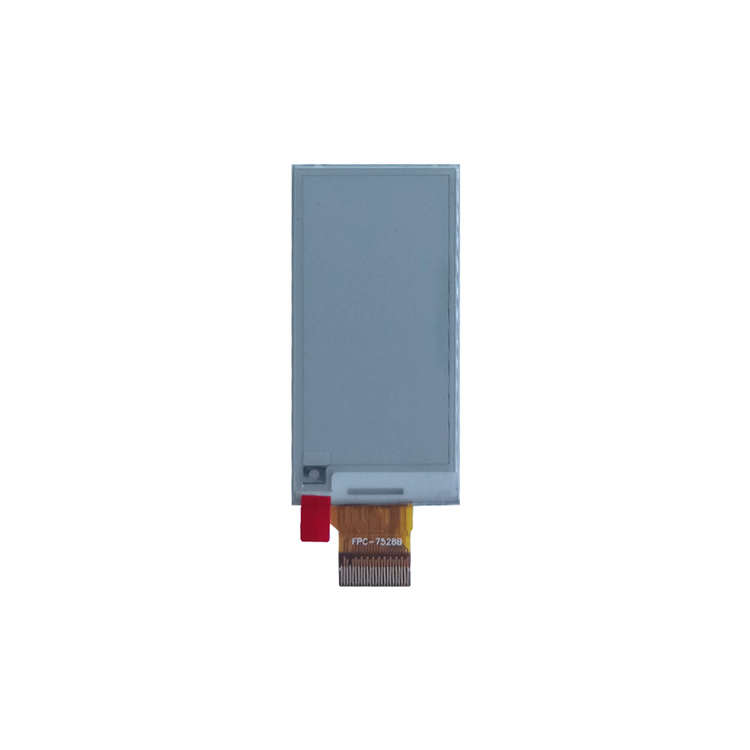

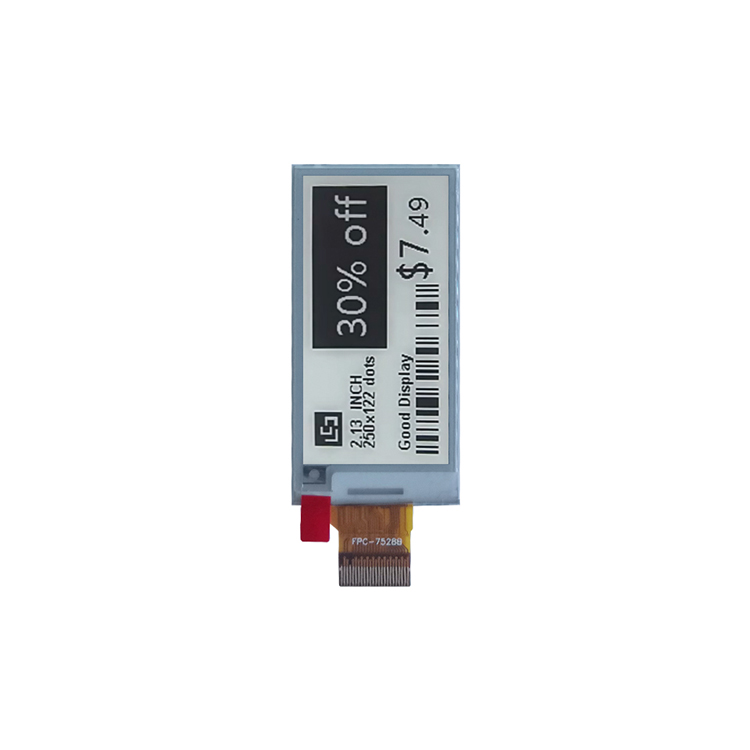

  • Product description: Eink display 2.13",122×250 pixel
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA HEDP0213BNS800F41 is an Active Matrix Electrophoretic Display (AM EPD), with

interface and a reference system design. The display is capable to display images at 1-bit white and
black full display capabilities.The 2.13 inch active area contains 122×250 pixels. The module is a
TFT-array driving electrophoresis display, with integrated circuits including gate driver, source
driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be
used in portable electronic devices, such as Electronic Shelf Label (ESL) System.






GENERAL SPECIFICATION

Display Type: Eink display
Display Mode:
Active Matrix Electrophoretic Display
Model Number: HEDP0213BNS800F41
Diagonal Screen size: 2.13 inch
Interface:
4-wire SPI or 3-
wire SPI i
Number of Pixels:

122(H)×250(V)


Panel Size:

29.2(H)×59.2 (V) ×1.0(D)(mm)
Driver IC:

SSD1680Z8

Active Area:

23.705×48.55 (mm)
Display Mode:

EINK
Pixel Size:

0.1942×0.1942(mm)

Weight:

3.2±0.5(g)


Color:

Eink

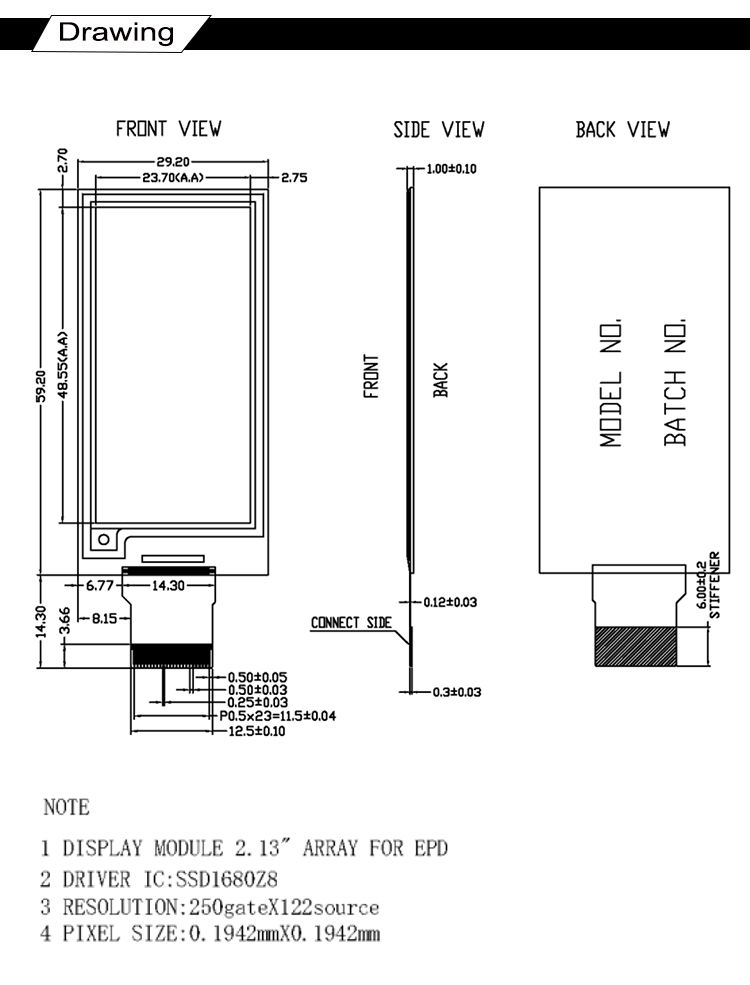

DRAWING
