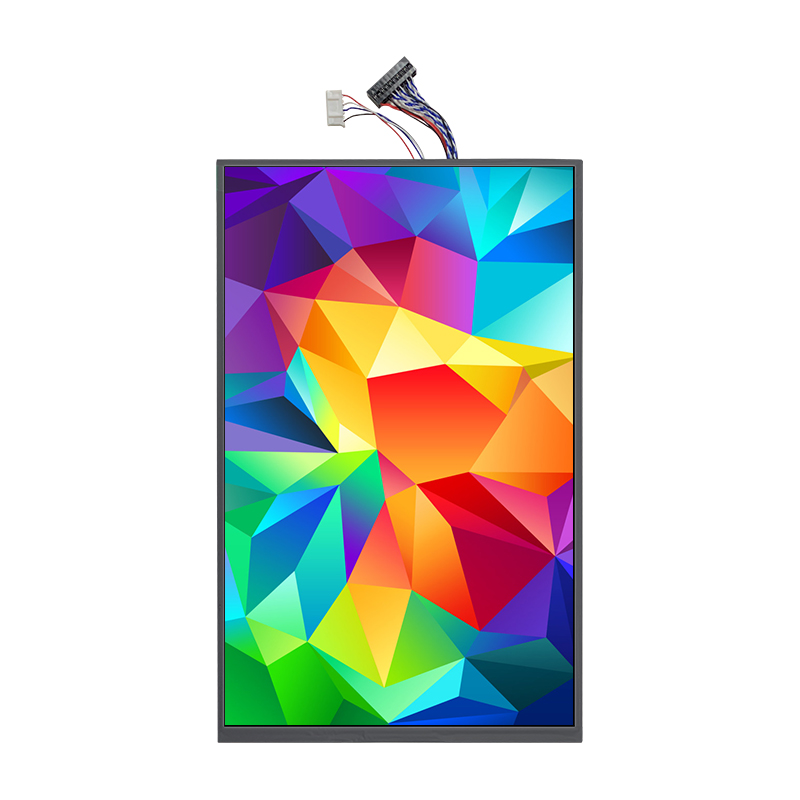

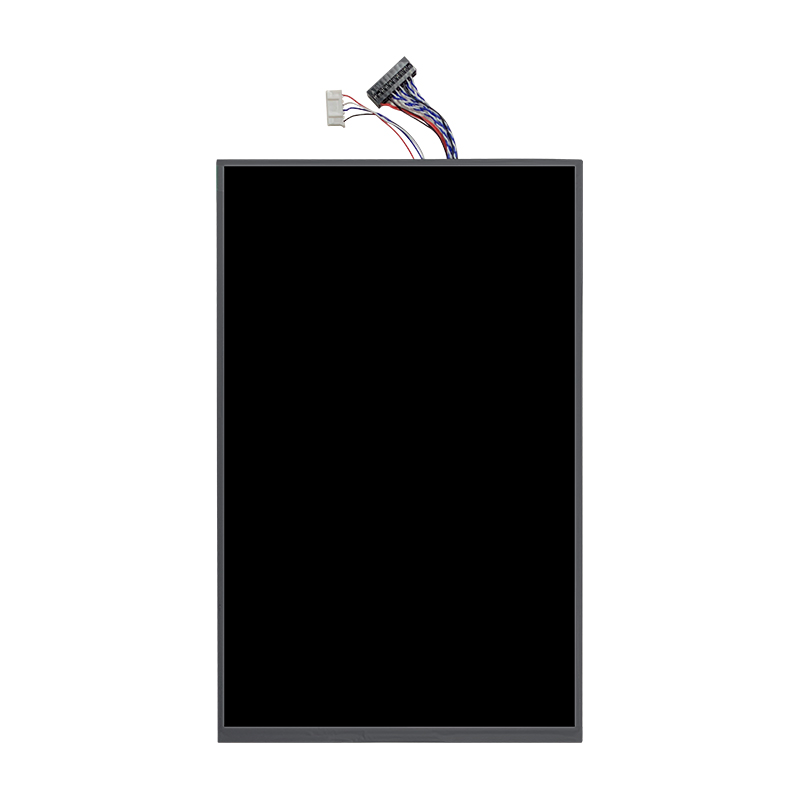

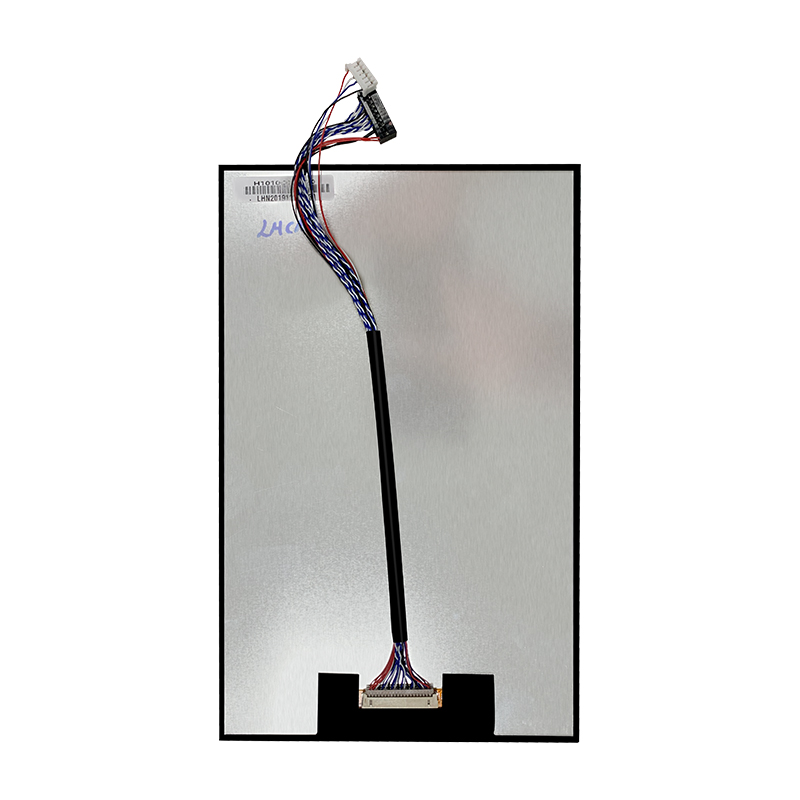

10.1 inch screen 1024x600 10.1 inch TFT LCD display with LVDS interface for Elevator display Selling well- 副本

  • Display Mode:IPS with Normally Black
  • Size:10.1
  • Resolution: 1280*800
  • Interface:LVDS
  • Product description: Hicenda Technology Co.,ltd can supply high quality 10.1 inch small tft display for medical or industrial device.HD 800*1280 dot matrix 10.1 Inch tft lcd display,10.1 inch TFT LCD display with LVDS in
  • INQUIRY


1. Display Specifications

  • LCD Size: 10.1 inches
  • Dot Matrix Size: 800*1280
  • Backlight:White LED
  • Hardware Interface: LVDS
  • Display mode: IPS with Normally Black
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  20Pin

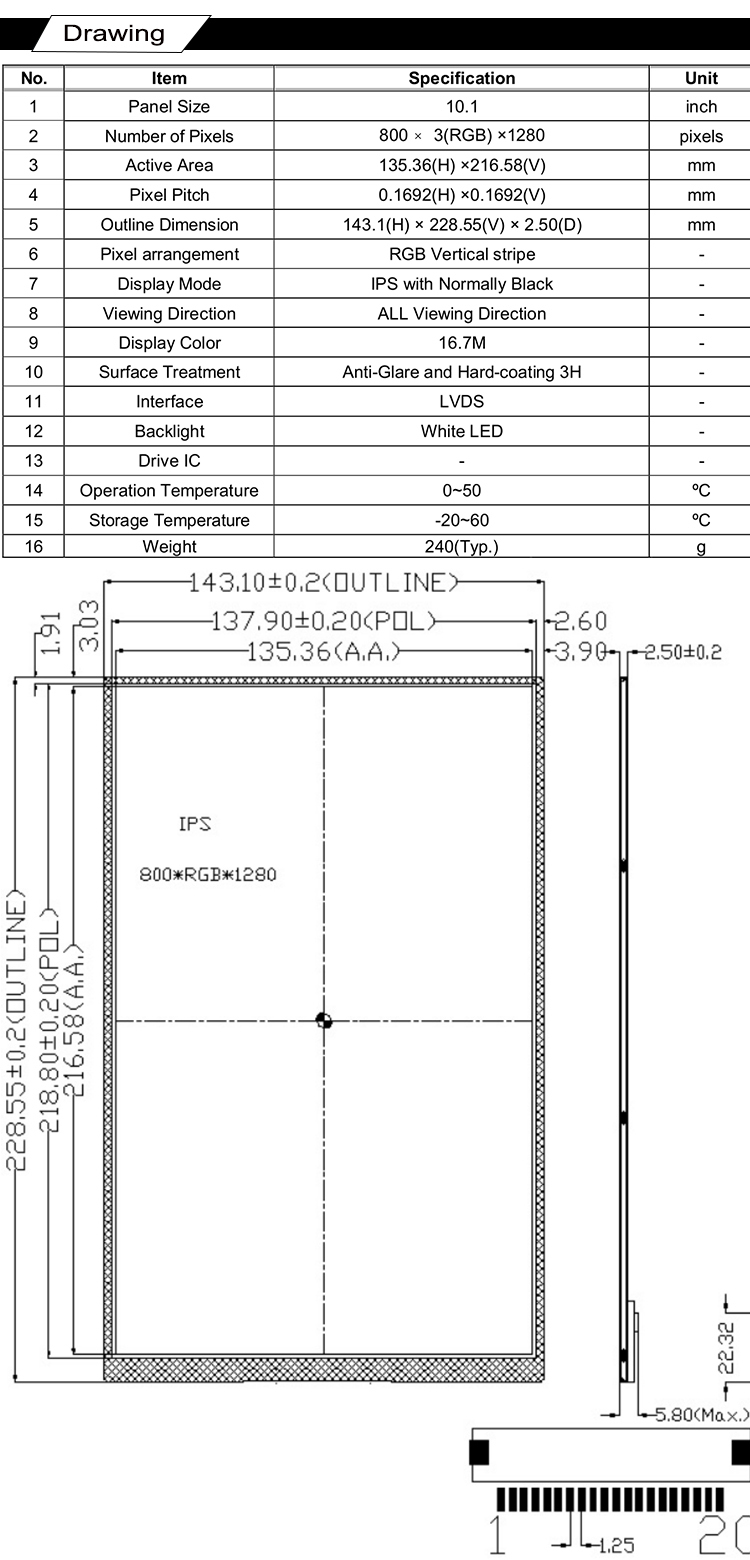

  • Display Area:135.36x216.58 mm
  • Size:143.1(H)x228.55(V)x2.5(D)
  • Viewing Direction: ALL Viewing Direction

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
