TFT LCD Display 8.0 inch ,1024(RGB)x768

  • Size: 8.0 TFT
  • Controller IC: TBD
  • Resolution:1024(RGB)x768
  • Interface: LVDS
  • Product description: TFT LCD Display 8.0 inch ,1024(RGB)x768
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA TFT 8.0 is a color active matrix thin film transistor(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 8.0 inch diagonally measured active display area with (1024 by 768 pixel) resolution




GENERAL SPECIFICATION

Display Type: TFT display
Display Mode: Passive Matrix
Model Number:
HT080MH40K1
Diagonal Screen size: 8.0 inch
Interface:
LVDS
Backlight:

White LED
Number of Pixels:

1024(RGB)x768

Panel Size:

183.00 (W) 141.00(H) 5.5(D)(mm)
Driver IC:

TBD

Active Area:

162.05(W) 121.54(H)(mm)
Pixel Pitch:

0.05275(W) × 0.15825(H) (mm)
Surface treatment:

Hard Coating

Weight:

TBD

Operating Temperature:

-40~85°

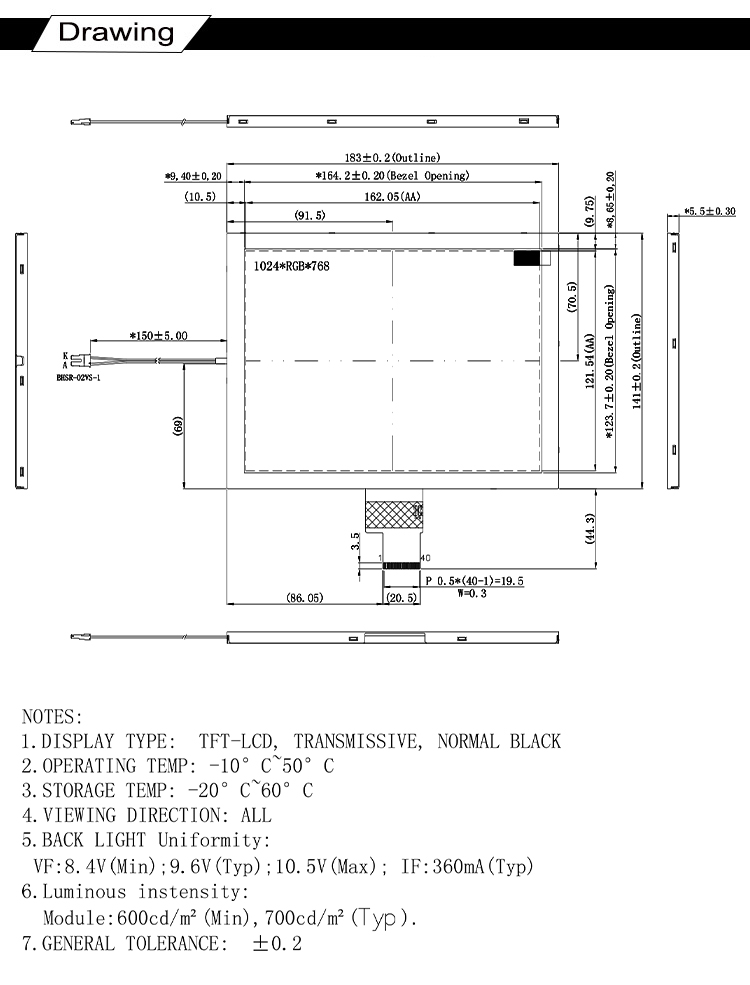

DRAWING

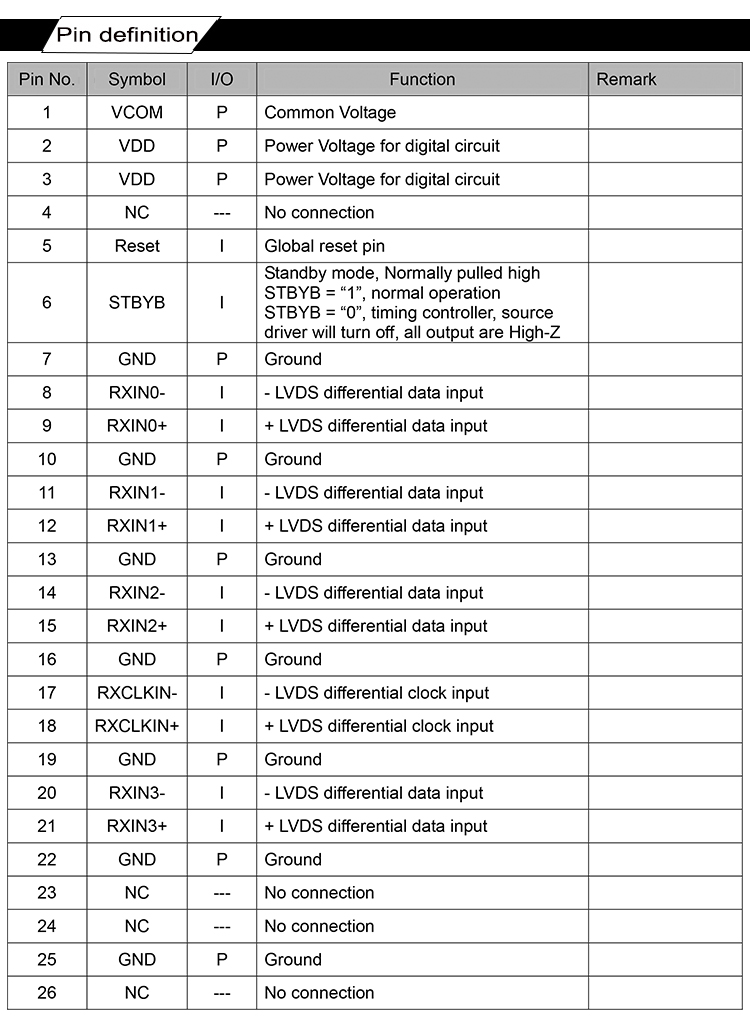

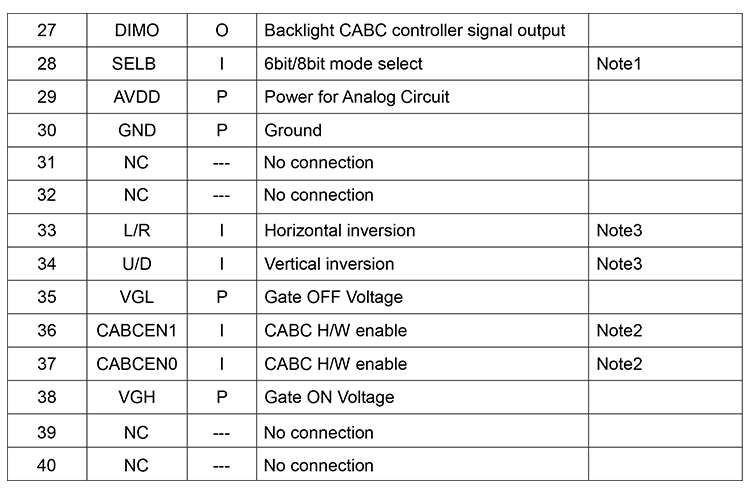

INTERFACE PIN FUNCTION
