Please kindly contact us for full data sheet of the display.

DESCRIPTION

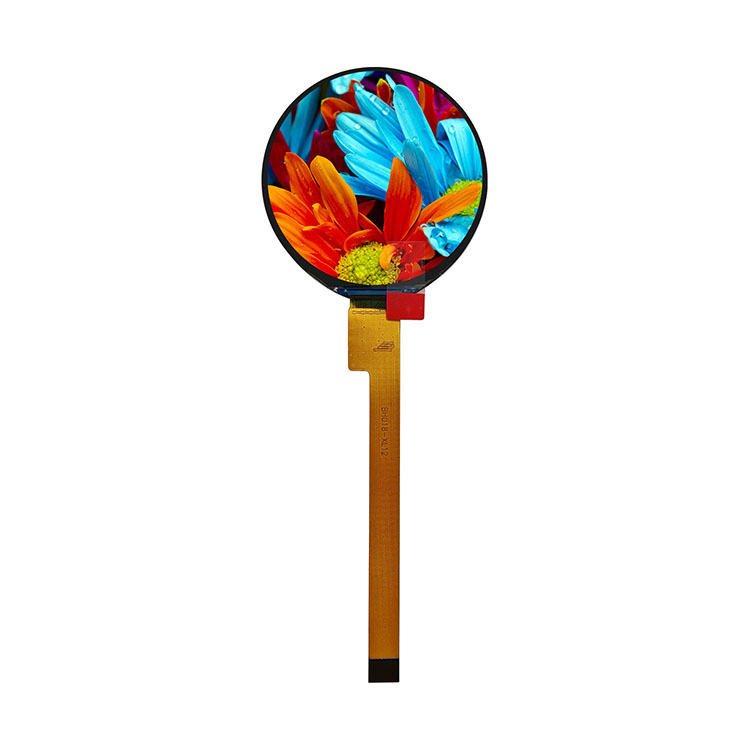

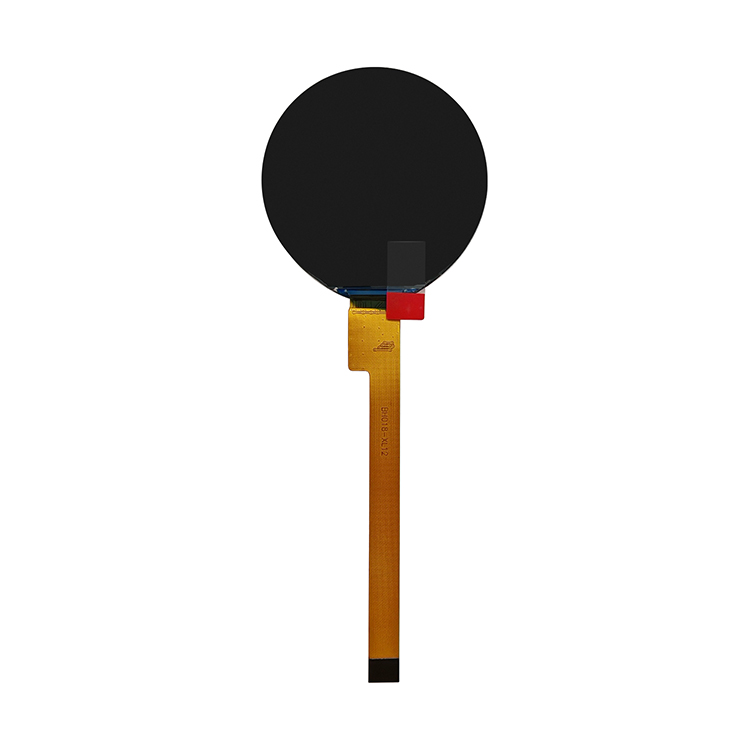

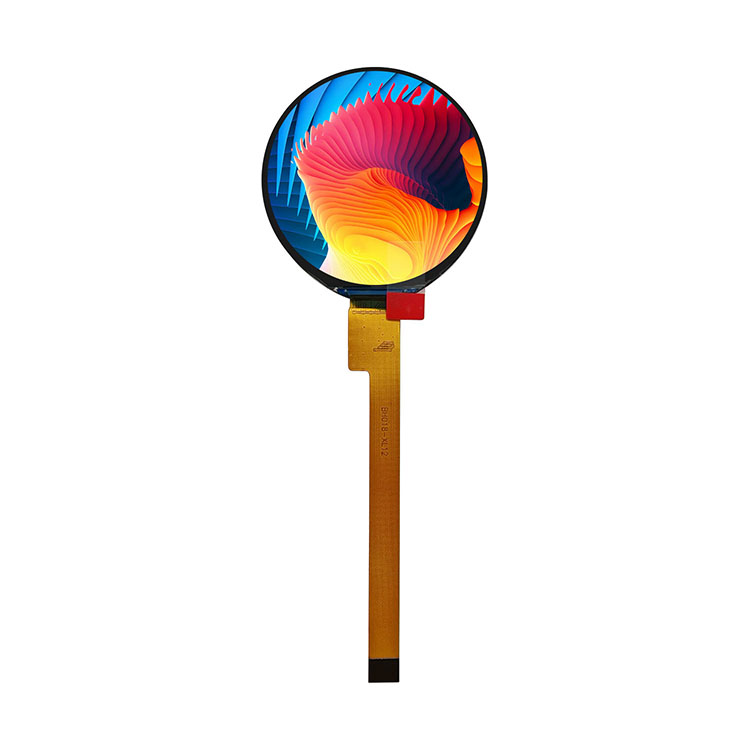

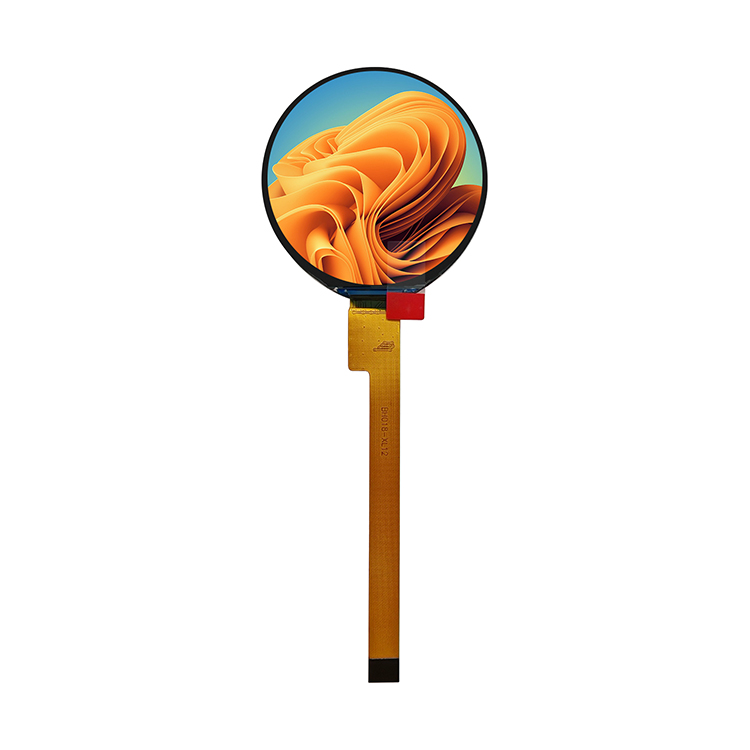

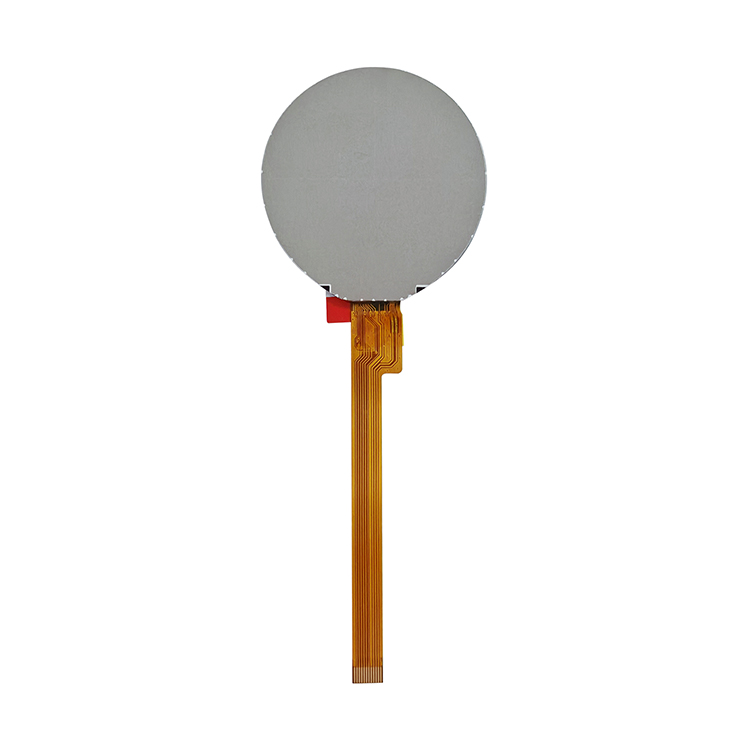

Hicenda IPS round display 1.8 inch 360x360 pixels circle TFT LCD display offers an advanced display solution designed for a variety of applications, where clarity and color depth are essential. The model HT018-XL12-1087 is a compact yet high-performance display with a 1.8-inch screen size and a high resolution of 360x360 pixels. Featuring In-Plane Switching (IPS) technology, this display delivers vibrant colors and a wide viewing angle, making it ideal for both industrial and consumer electronics. With a SPI interface and a full-color display, this model offers seamless integration with microcontrollers and other digital systems, delivering both durability and efficiency in a sleek and compact design.

This article delves into the specifications, technologies, and operational parameters of the HT018-XL12-1087, providing a comprehensive understanding of its capabilities.

GENERAL SPECIFICATION

Key Features and Specifications

The HT018-XL12-1087 display provides a combination of robust performance and modern display technology. Let's break down its key features for a deeper understanding.

Display Technology: IPS and Transmissive

In-Plane Switching (IPS) Technology

At the heart of the HT018-XL12-1087 is its IPS technology, which enhances the user experience by offering improved color accuracy and consistency. This technology allows for a wider viewing angle, ensuring the display remains clear and vivid from multiple perspectives. IPS screens are well-known for their superior color reproduction, making them particularly valuable in devices requiring accurate and dynamic image presentation.

Transmissive Mode

The transmissive mode of the display ensures that light is passed through the panel, further enhancing visibility. Combined with the IPS technology, the result is a vibrant, clear display that can be viewed comfortably in different lighting conditions. This makes the display suitable for outdoor as well as indoor applications.

Display Resolution and Color Depth

High Resolution for Enhanced Detail

The 360x360 pixel resolution on a 1.8-inch screen provides clear and sharp images. This high resolution, along with a 0.1269 mm pixel pitch, ensures that each individual pixel is rendered with precision, delivering exceptional detail in both static images and dynamic content.

16.7 Million Colors

The display is capable of rendering up to 16.7 million colors, which enhances its versatility in displaying a wide range of graphics, from simple icons to complex images and videos. The high color depth ensures that gradients appear smooth, with no visible banding.

SPI Interface and Connectivity

Seamless SPI Communication

The SPI interface provides a fast and reliable communication method for data exchange between the display and the controlling device. This interface is widely used in embedded systems, as it is easy to implement and offers high-speed data transfer rates. The HT018-XL12-1087 is compatible with a range of microcontrollers and processors, making it an excellent choice for a variety of embedded applications.

Flexible Connectivity Options

The 30-pin connector ensures easy integration into designs. Whether you're working with industrial machinery, medical devices, or consumer electronics, the display's connector type and SPI interface allow for flexible and efficient system integration.

Robustness and Durability

Operating and Storage Temperature

The HT018-XL12-1087 is designed to perform in challenging environments. With an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, this display can function reliably in both extreme cold and heat. These wide temperature tolerances make it suitable for use in automotive, industrial, and outdoor environments.

Edge LED Backlight

The edge & white LED backlight ensures consistent brightness and energy efficiency. The backlight system is designed for long-term use, delivering sufficient illumination while maintaining low power consumption.

Applications of the IPS Round TFT LCD Display

Consumer Electronics

Due to its compact size and high-quality output, this display is suitable for various consumer electronics applications. Whether it’s in wearable devices, smartwatches, or portable gadgets, the combination of vibrant colors and clear detail provides an immersive viewing experience.

Industrial and Embedded Systems

In industrial applications, the display’s durability, wide operating temperature range, and efficient power consumption make it an ideal choice for equipment that needs to operate reliably in harsh conditions. Furthermore, the SPI interface facilitates easy integration with existing embedded systems.

Medical Devices

The HT018-XL12-1087 also finds applications in medical devices, where the clarity of the display is crucial for accurate readings. Its high resolution and consistent color performance make it a great option for devices such as handheld diagnostic tools and portable monitors.

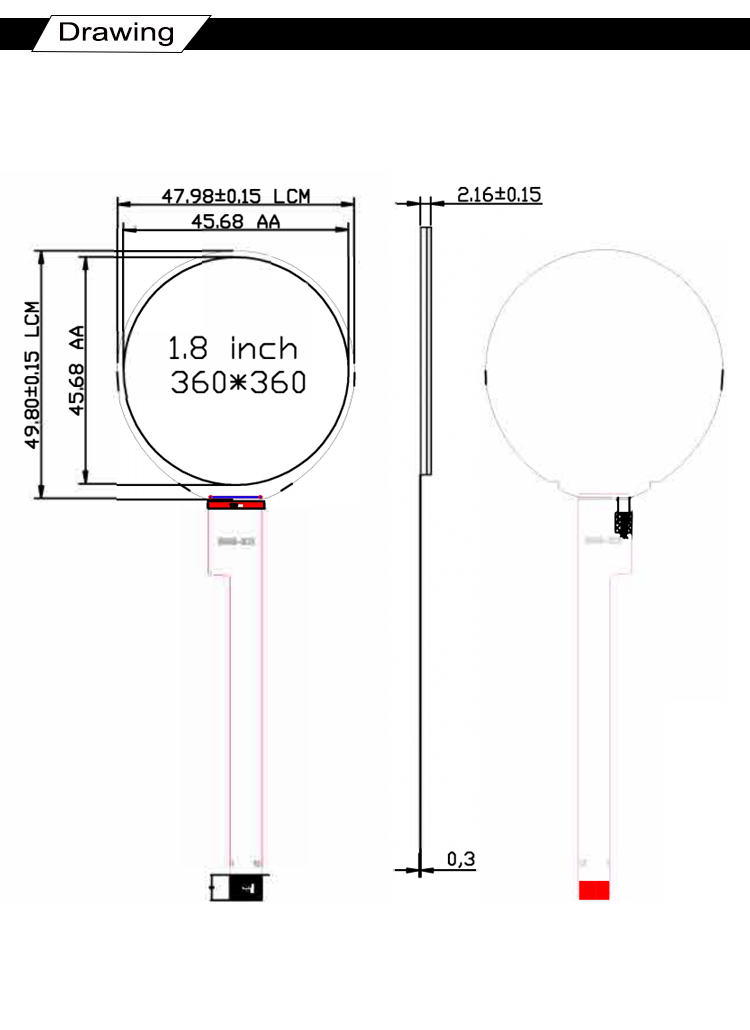

DRAWING

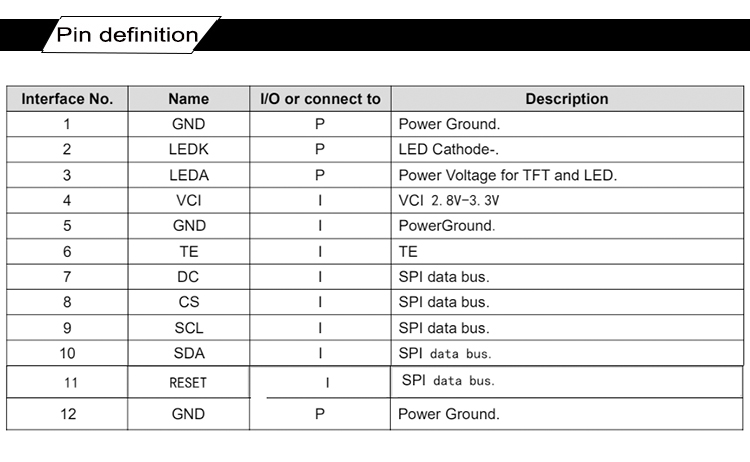

INTERFACE PIN FUNCTION

Conclusion

The HT018-XL12-1087 IPS round display offers an advanced and versatile solution for a range of applications. With its high resolution, vibrant color reproduction, and wide viewing angles, it ensures superior image quality in various settings. The SPI interface, coupled with its robust design and durable backlight, makes it an excellent choice for devices that require both performance and reliability. Whether for consumer electronics, industrial systems, or medical devices, this display meets the demands of modern technology while offering a sleek and efficient form factor.
