Circular TFT Display

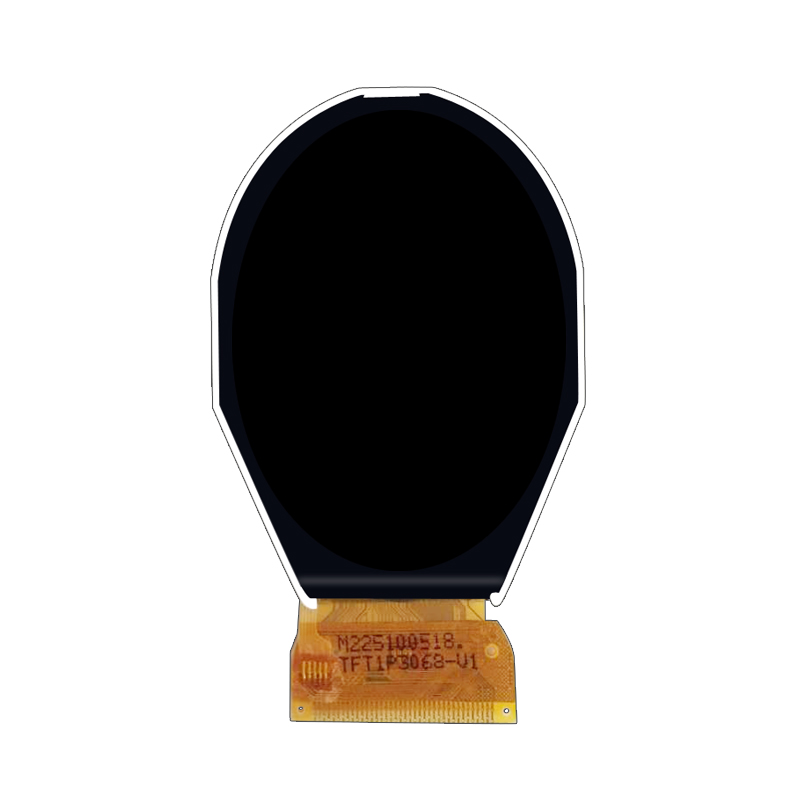

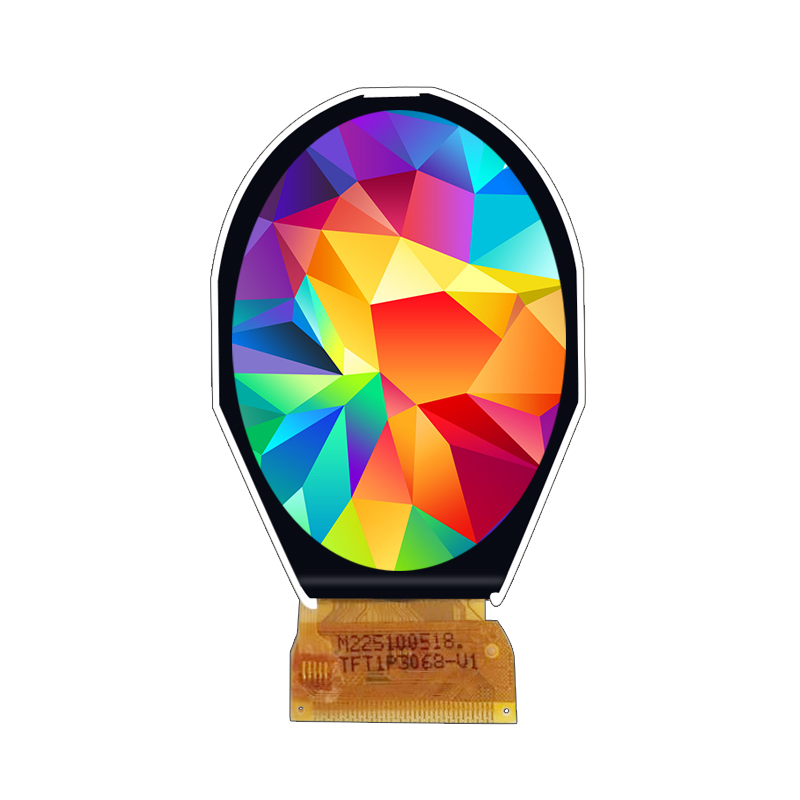

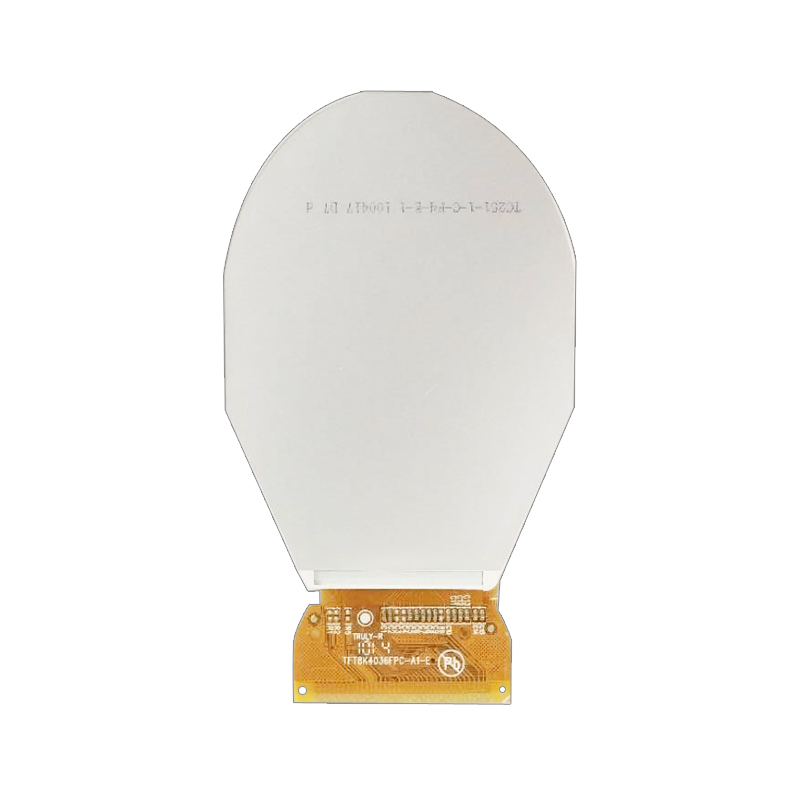

  • Oval lcd display 2.51 inch tft lcd 240*320 dots resolution ips with parallel port interface 250 nits ellipse lcd
  • Oval lcd display 2.51 inch tft lcd 240*320 dots resolution ips with parallel port interface 250 nits ellipse lcd
  • Oval lcd display 2.51 inch tft lcd 240*320 dots resolution ips with parallel port interface 250 nits ellipse lcd
Oval lcd display 2.51 inch tft lcd 240*320 dots resolution ips with parallel port interface 250 nits ellipse lcdOval lcd display 2.51 inch tft lcd 240*320 dots resolution ips with parallel port interface 250 nits ellipse lcdOval lcd display 2.51 inch tft lcd 240*320 dots resolution ips with parallel port interface 250 nits ellipse lcd

Oval lcd display 2.51 inch tft lcd 240*320 dots resolution ips with parallel port interface 250 nits ellipse lcd

  • Display mode:240(RGB) × 320 dot matrix, TFT-LCD module
  • Size: 2.51
  • Resolution: 240*320
  • Interface: parallel port
  • Product description: Hicenda Technology Co.,ltd can supply high quality 2.51 inch small tft display for medical or industrial device.high lightness 2.51" inch tft Display multicolour 240*2.51 Driver Chip ILI9335
  • INQUIRY


1. Display Specifications

  • LCD Size: 2.51 inches
  • Dot Matrix Size: 320*240
  • Backlight Type: LED
  • Hardware Interface: RGB interface
  • Driver IC: ILI9335
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  38Pin

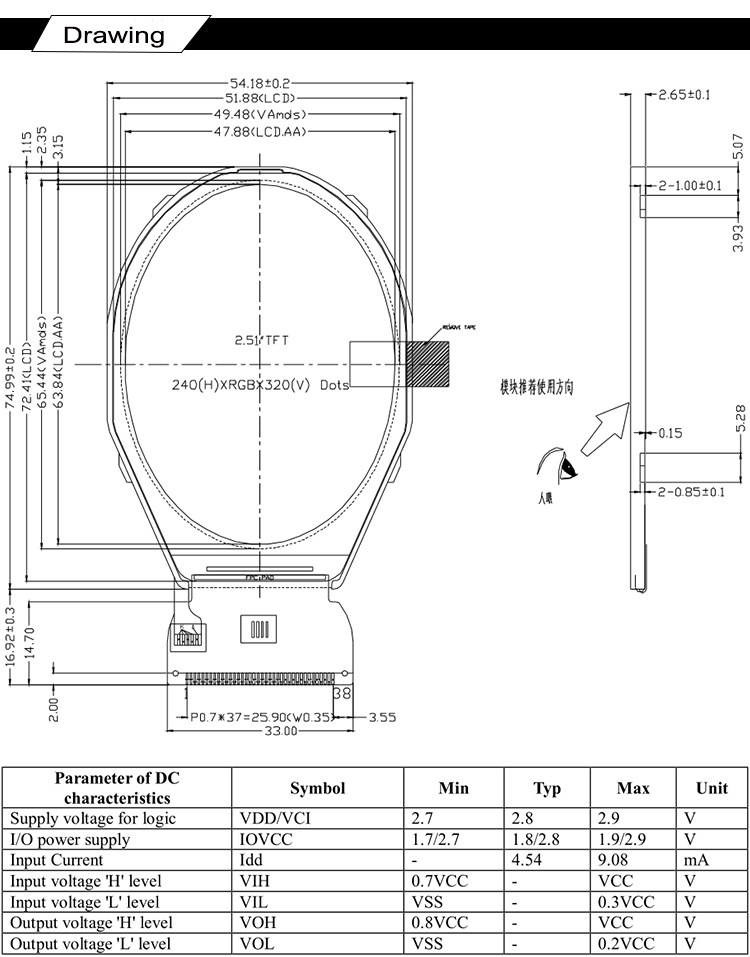

  • Display Area: 47.88*63.84mm
  • Size: 54.182*74.99*2.65mm
  • Viewing Direction: 6 O'CLOCK

PIN No Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
