Circular TFT Display

  • Round tft display 1.22 inch 240(RGB)x204 resolution
  • Round tft display 1.22 inch 240(RGB)x204 resolution
  • Round tft display 1.22 inch 240(RGB)x204 resolution
Round tft display 1.22 inch 240(RGB)x204 resolutionRound tft display 1.22 inch 240(RGB)x204 resolutionRound tft display 1.22 inch 240(RGB)x204 resolution

Round tft display 1.22 inch 240(RGB)x204 resolution

  • Size: 1.22
  • Resolution:240*204
  • Interface:SPI
  • Driver IC:ST7789 IC
  • Product description: 1.22'' IPS round tft lcd display module China, it is 240RGBx204resolution 1.22'' tft panel. The tft lcd is 1.22 inch in diagonal. It is ST7789 controller ic,SPI interface.
  • INQUIRY

Round tft display 1.22 inch 240(RGB)x204 resolution


DESCRIPTION

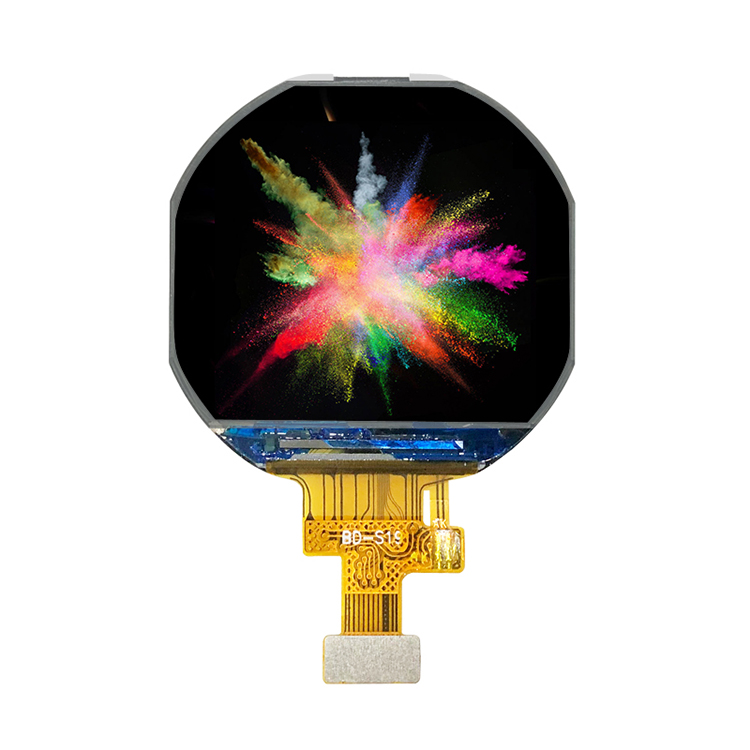

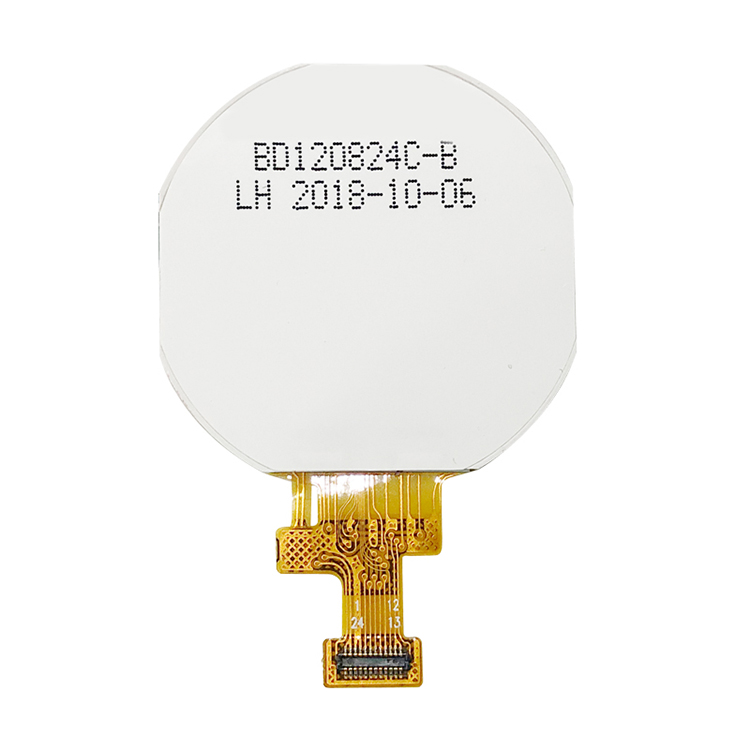

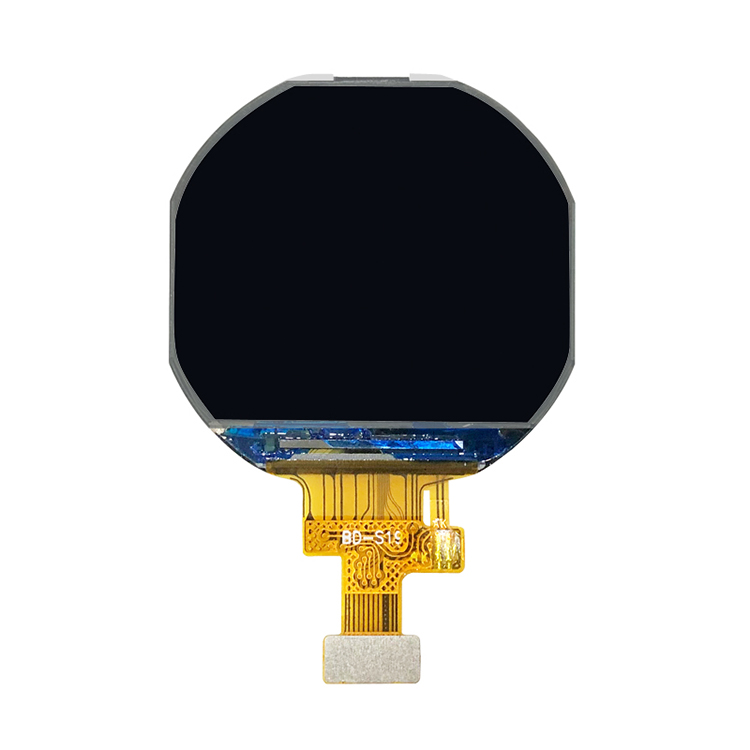

TFT LCD display 1.22 inch is a color round tft lcd display panel which is made with 240RGBx204 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots, which are arranged in vertical stripes. This small tft display is only 1.22" in diagonal, packed with RGB pixels, for making very small high-density displays.

This round 1.22 round tft lcd screen is with full viewing angel display, and built in with ST7789 controller IC, it supports SPI interface.which is normally used for any smart watch, and other hand-held equipment which requires display in high quality.

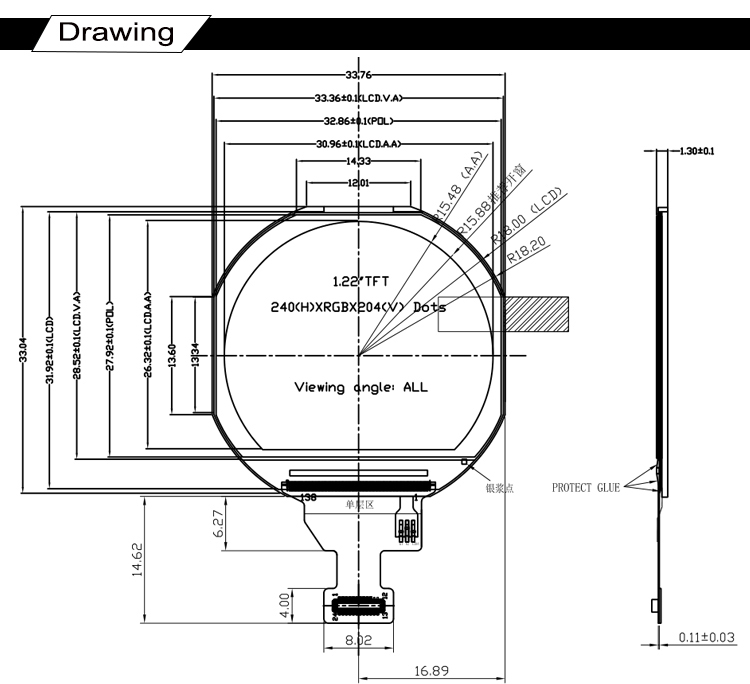

DRAWING

SPECIFICATIONS

Interface Pin Function


General Specification


Brand Name:
Hicenda
Place of Origin:
Shenzhen,China
Model Number:
HG-122
Resolution:
240*204 pixels
Brightness:
500CD/m2
Interface:
4 wire-SPI
Pins
24pin
Active area:
30.96 (H) X 26.32 (V) mm
Outline size:
33.76mm*33.04mm*1.3mm
Operating temperature:
-20~+70 °C
Storage temperature:
-20~+80 °C
power supply
2.8v~3.2v
Contrast Ratio:
800:1
