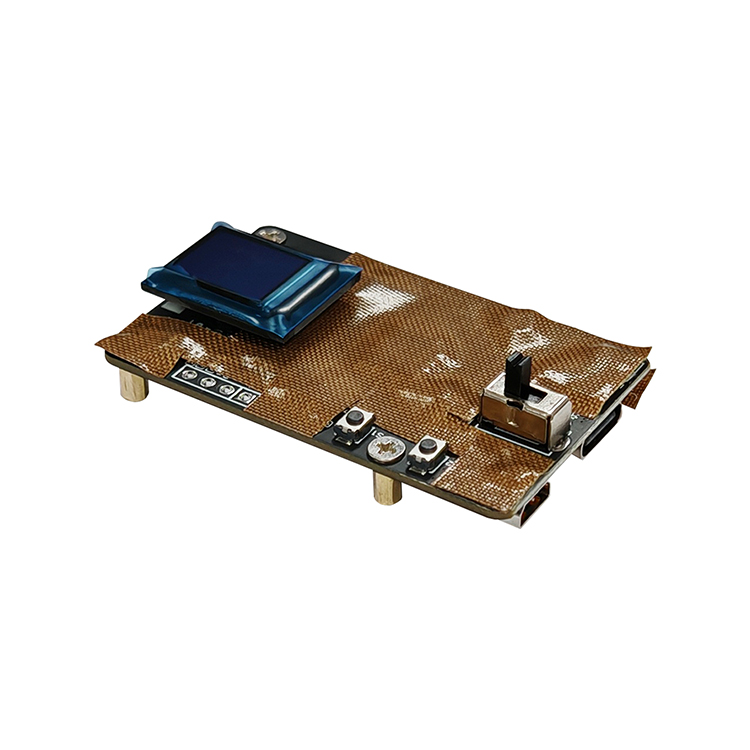

0.6 inch Micro oled display 640x400 resolution MIPI (1 lane) + I²C Interface 3000nits

0.6 inch Micro oled display 640x400 resolution MIPI (1 lane) + I²C Interface 3000nits

Display Size:0.6
Resolution:800 (RGB)×600
Interface: MIPI

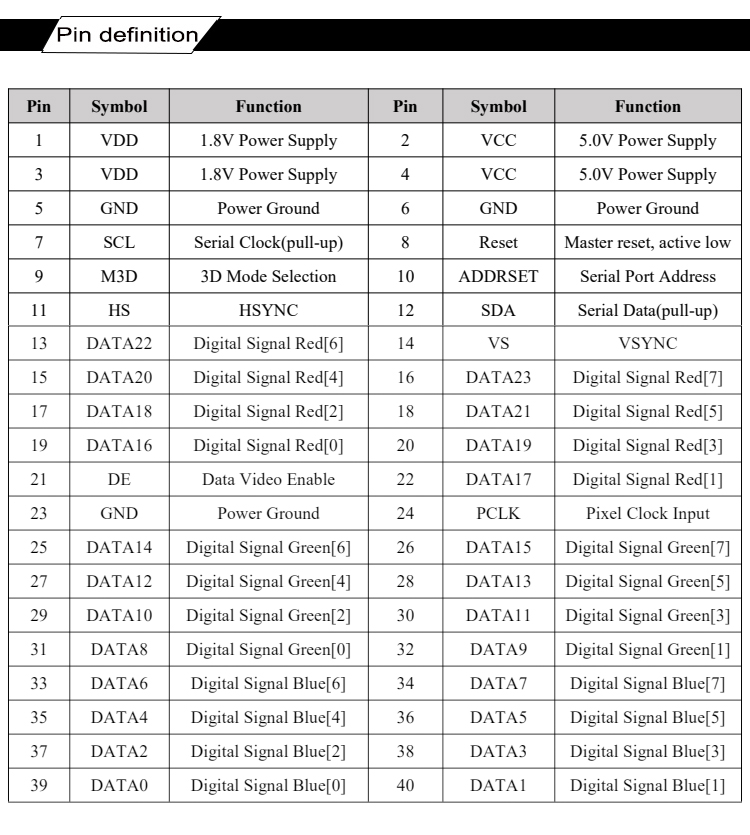

Pin:39 Pins
Product description: 0.6 inch Micro oled display 640x400 resolution MIPI (1 lane) + I²C Interface 3000nits
INQUIRY

0.6 inch Micro OLED display 800X600 SVGA for Military field

DESCRIPTION

HSM060SVGA series AMOLED microdisplay fabricated by Hicenda’s proprietary top emitting and high luminance efficiency Si-Base AMOLED technology. HSM060SVGA series microdisplay includes full color, Monochrome white, Monochrome green and other specifications. With the same interface and pin definition, HSM060SVGAseries products have 12.06mm×9.06mm (0.6 inch) display area, and supported less than or equal to SVGA resolutions format. With proper optic enhancementdevices, the microdisplay can provide high quality, large virtual image.

SPECIFICATIONS

Specification	Value
Model No	HG060SVGA
Display Size	0.6 inches
Resolution	800 × 600 (RGB vertical stripe)
Active Pixels	800 × 604
Luminance	200cd/m² (Color), 500cd/m² (Mono White), 10000cd/m² (Mono Green)
Pixel Size	15µm × 15µm
Pixel Array	RGB Vertical Stripe

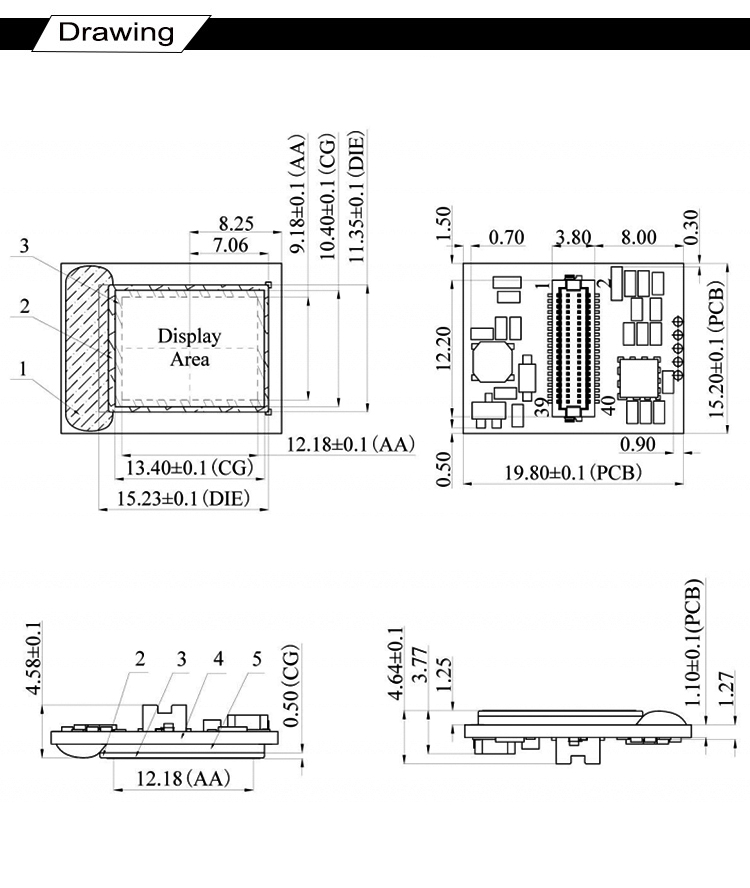

Active Area	12.06 mm × 9.06 mm (Diagonal: 0.60")
Gray Level	256
Interface	MIPI (1 lane) + I²C
Contrast Ratio	>10,000:1
Life (T90)	500 hours @ 3000 cd/㎡; 600H@ 6000 cd/㎡; 600H@ 10000 cd/㎡
Operating Temperature	-40℃ to +65℃
Storage Temperature	-55℃ to +90℃
Operating Humidity	≤85% RH (without condensation)
Lifetime	20,000 hours at specified luminance
Net Weight	1.7 g
