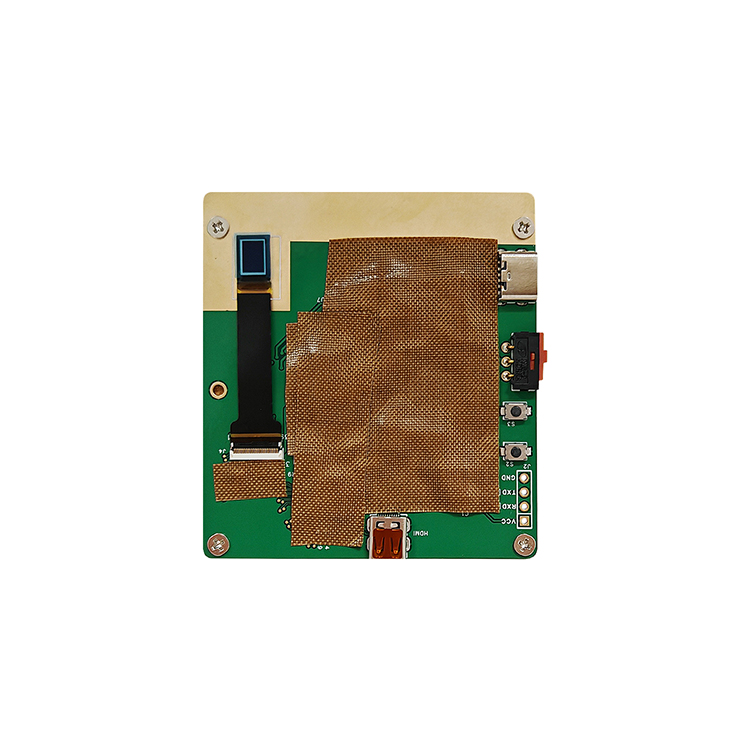

0.23 inch micro oled display 640x400 resolution MIPI Interface

Please kindly contact us for full data sheet of the display.

DESCRIPTION

The HMRVXR023 series of products are AMOLED micro-displays prepared using top-emitter, high-efficiency, silicon-based active OLED technology. This series includes full-color (C), monochromatic white light (W), monochromatic red light (R), and monochromatic green light (G) specifications. They feature high brightness, high contrast, narrow bezels, wide viewing angles, wide temperature ranges, and low power consumption. When paired with appropriate optical systems, they can achieve high-quality large-screen display effects. These displays can be used in near-eye display systems such as head-mounted displays and AR glasses.

• No backlight - a direct emissive display with high contrast and a wide color gamut
• Fast refresh rate up to 60Hz
• Low power consumption (this depends on the image shown)
• Wide operation temperature range
• Good image quality
• High resolution
• impact size
• very thin and light in weight

more key features of the micro oled screen makes it very popular in the marketing and applied for many files such as industrial, medical and consumer fields

(Applications: ar devices, vr headsets,View finders, head mounted displays, very small monitors, etc.)

GENERAL SPECIFICATION

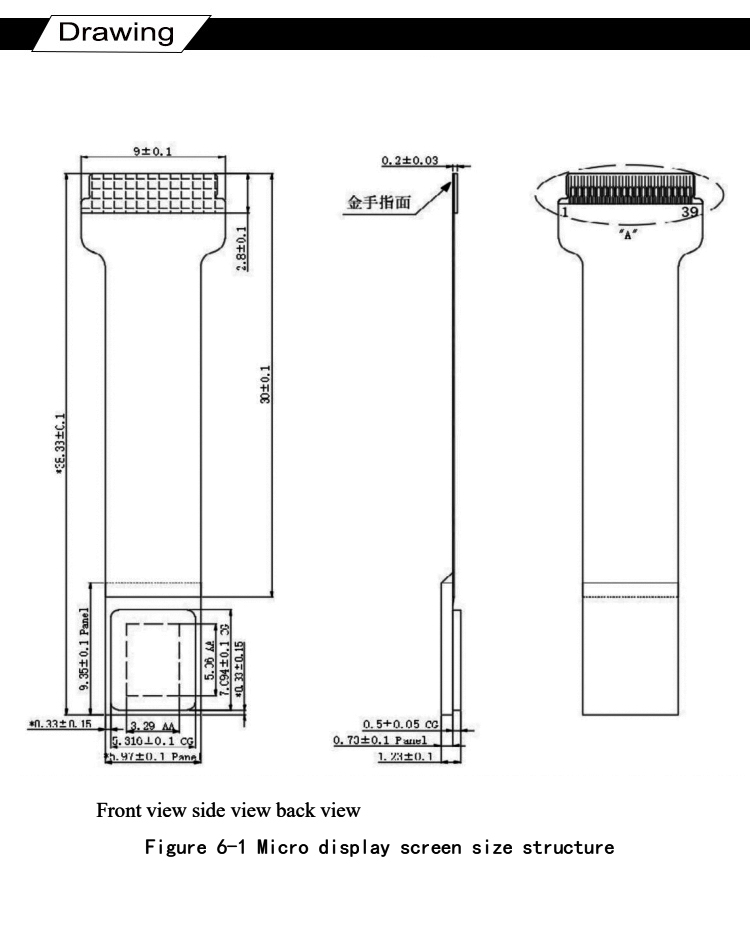

DRAWING

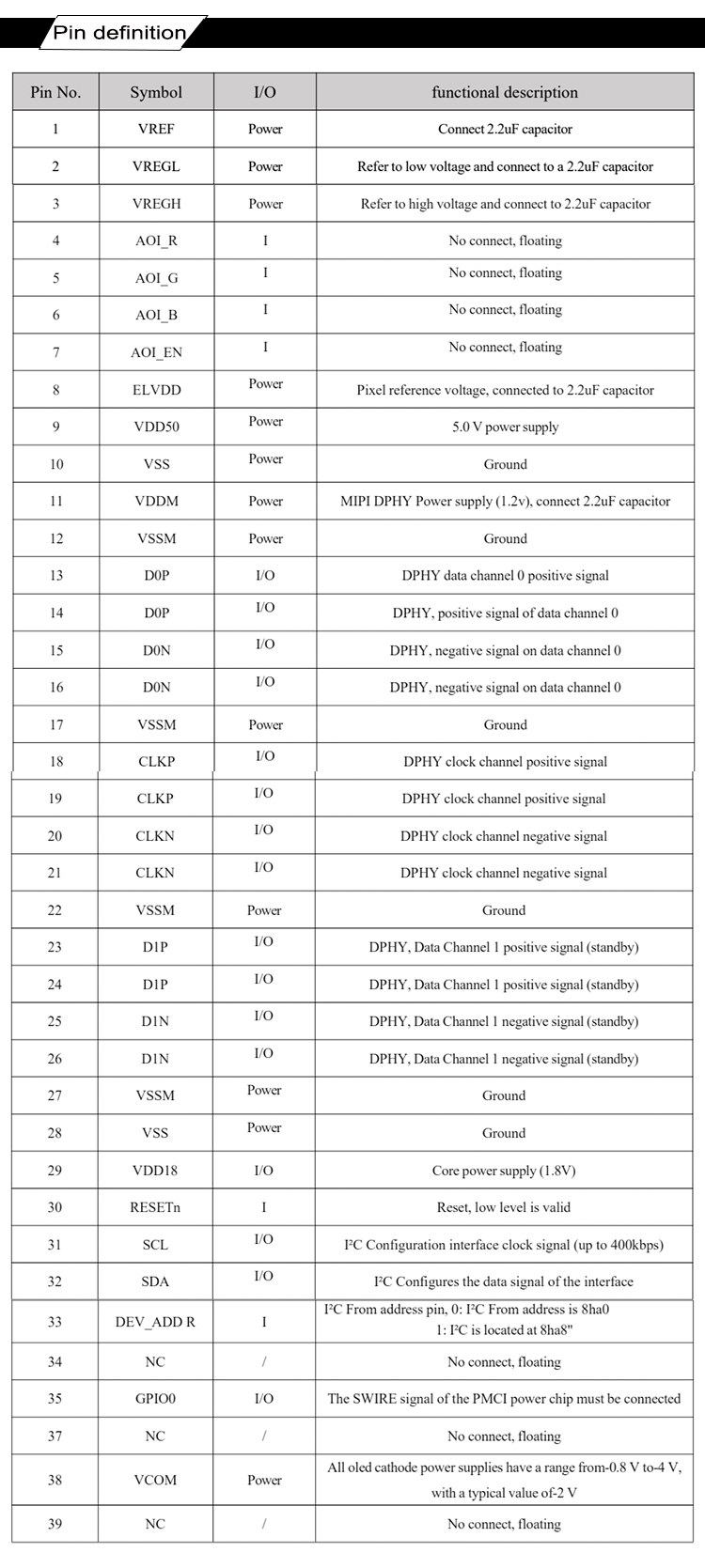

INTERFACE PIN FUNCTION
