OLED Microdisplay 0.23 inch 640(RGB)x400

  • Size: 0.23

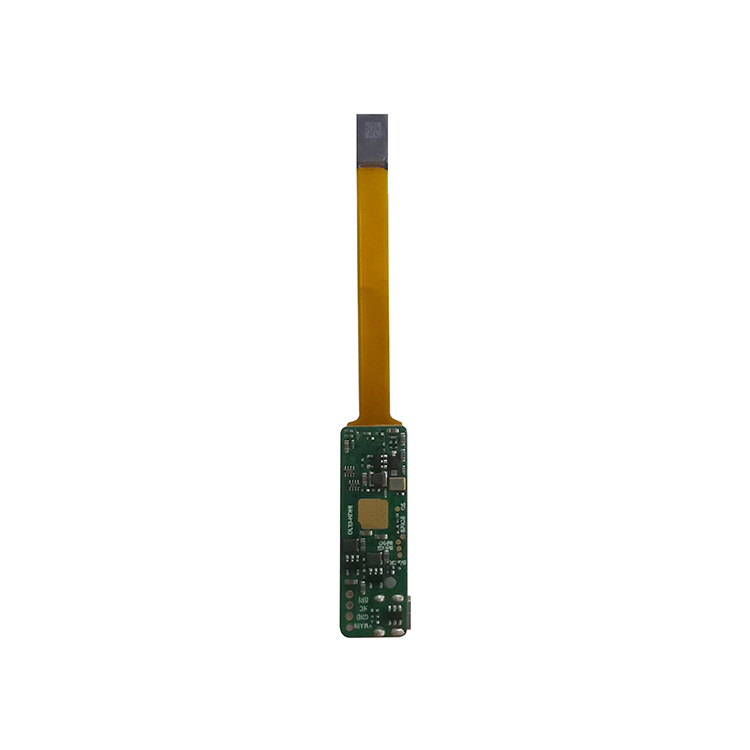

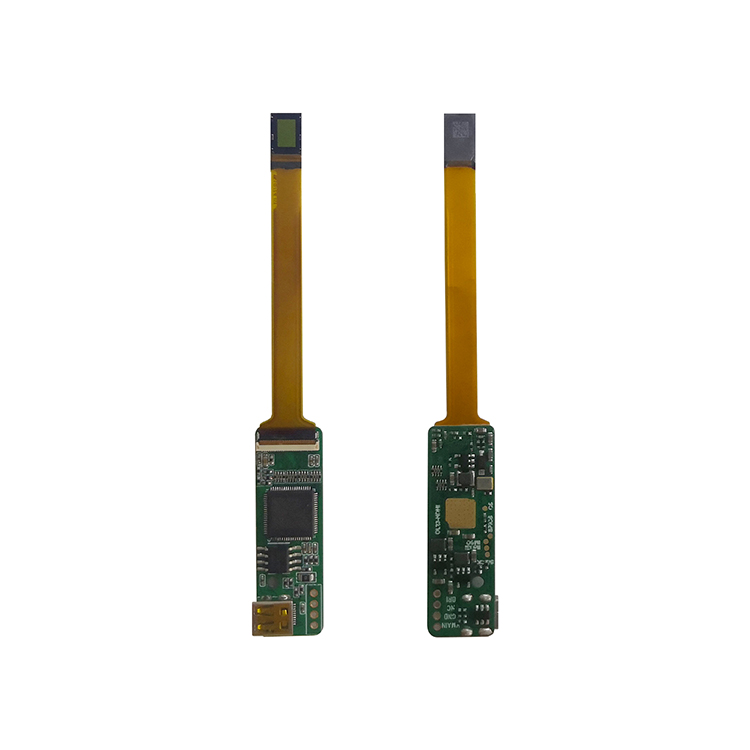

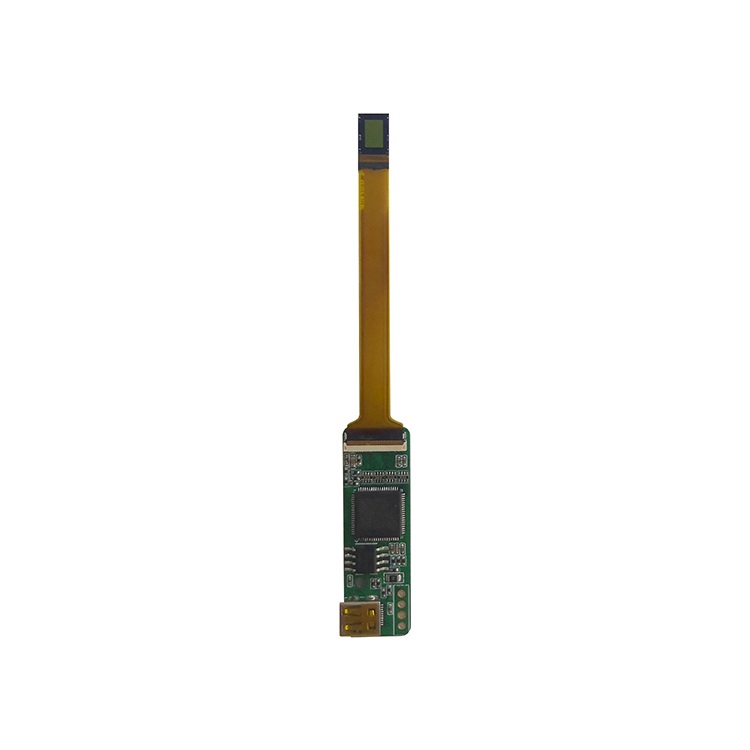

  • Driver Board: CVBS/HDMI Board
  • Resolution: 0.23 inch AMOLED Microdisplay, 640(RGB)X400
  • Luminance:800 cd/m2/3000 cd/m2
  • Product description: OLED Microdisplay 0.23 inch 640(RGB)x400
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

The HGECX336AF is a 0.6 cm (type 0.23) diagonal, 640 (RGB) × 400 dots active matrix color OLED panel module using
single-crystal silicon transistors. This panel incorporates panel driver and logic driver, and realizes small size, light weight
and high definition.
(Applications: View finders, head mounted displays, very small monitors, etc.)




GENERAL SPECIFICATION

Display Type: oled display
Display Mode: Passive Matrix
Model Number:

HGECX336AF

Diagonal Screen size: 0.23 Inch
Interface:

parallel RGB 24-bit, YCbCr 24-bit and YCbCr 16-bit input

Number of Pixels:

640 (RGB) × 400

Panel Size:

15.6 x 13.6 x 0.2 (mm)

Active Area:

8.143x 6.146 (mm)

Weight:

TBD

Operating Temperature:

-10~70°



DRAWING



INTERFACE PIN FUNCTION
