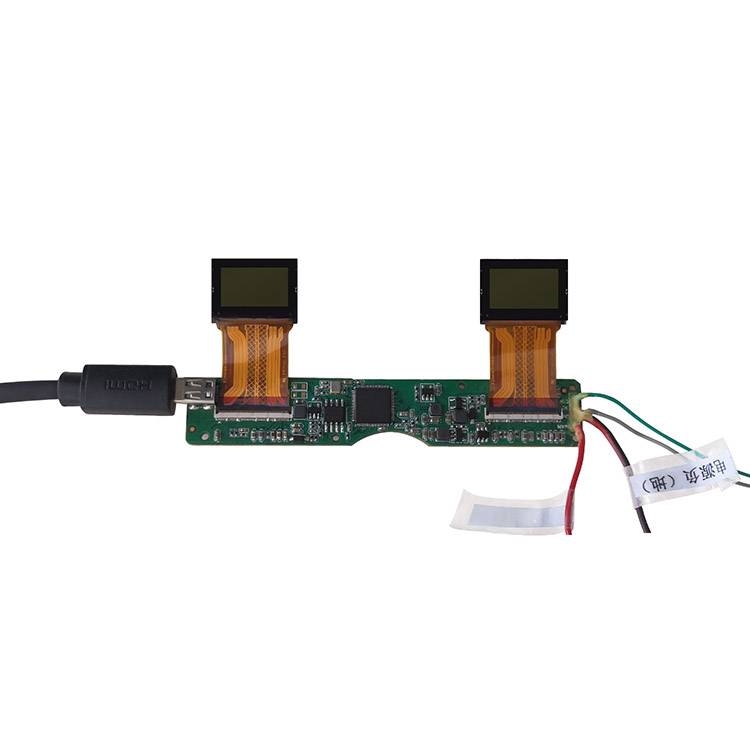

  • 0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays
  • 0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays
  • 0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays
  • 0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays
  • 0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays
0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays

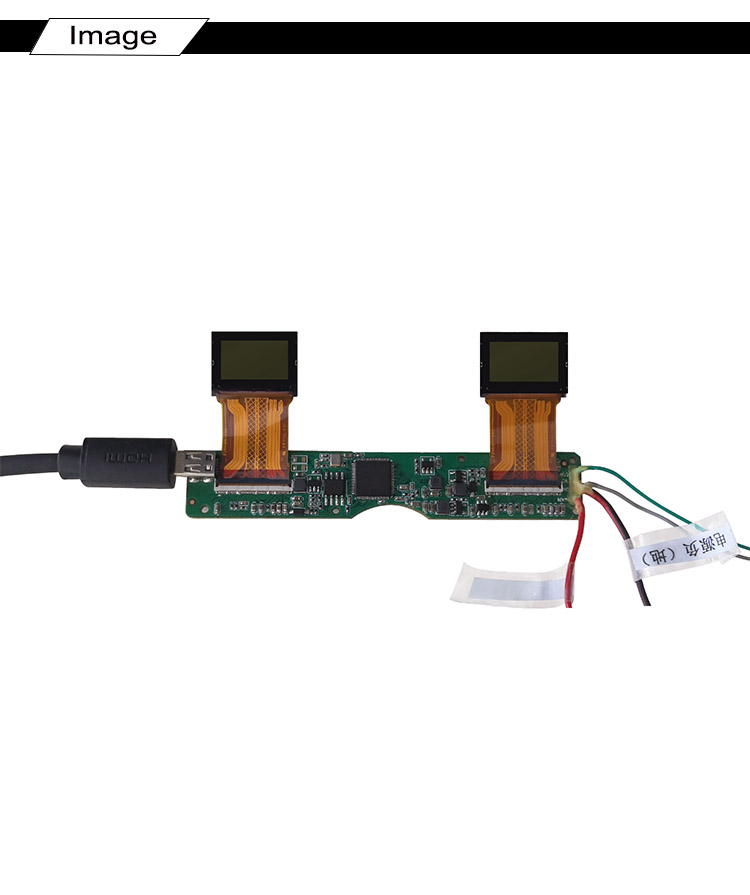

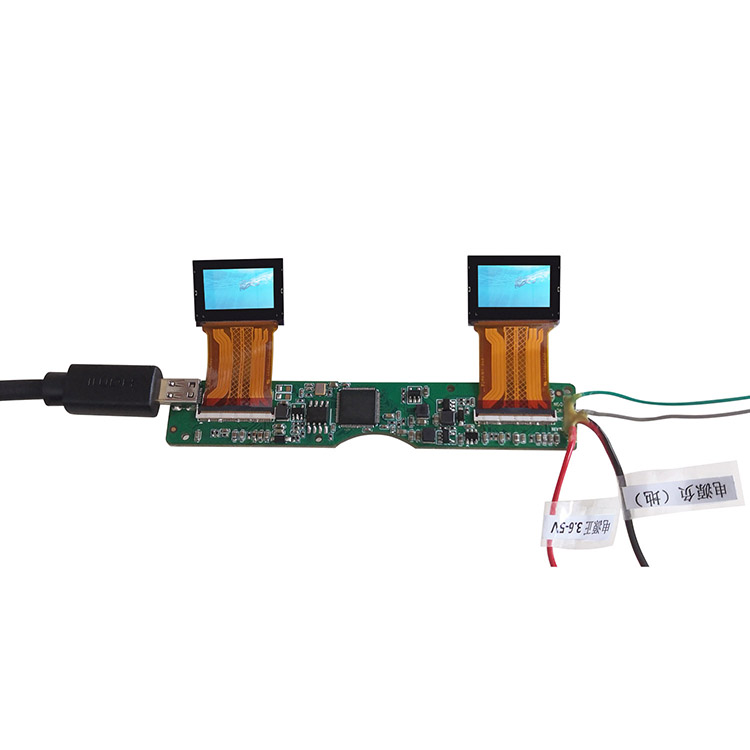

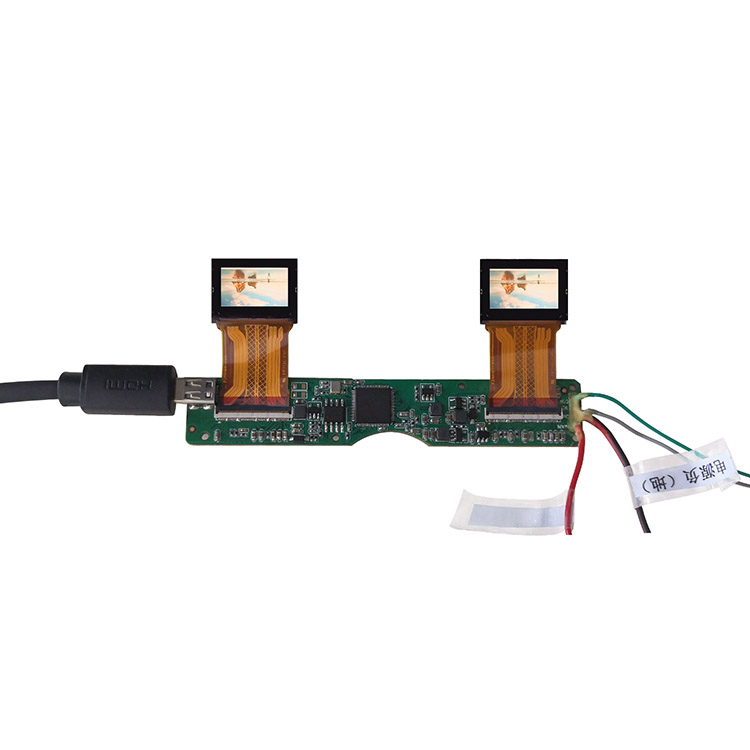

0.71 inch AMOLED Micro display,1920(RGB)X1080, one PCB run two displays

  • Display Size:0.71
  • Resolution:1920 (RGB)×1080
  • Interface: LVDS
  • Pin:81Pins
  • Product description: High Resolution 1080P Micro OLED Display 0.71 inch for AR VR
  • INQUIRY

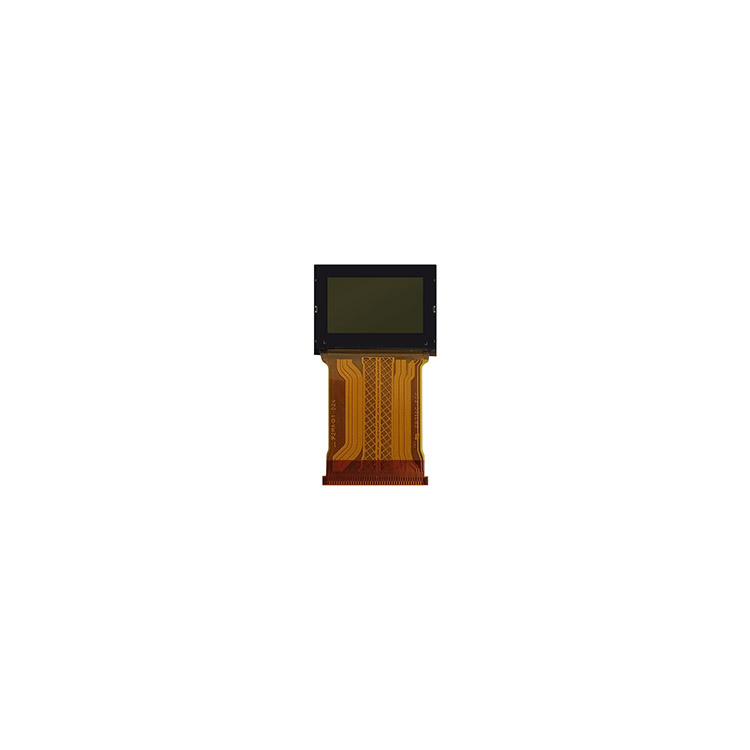

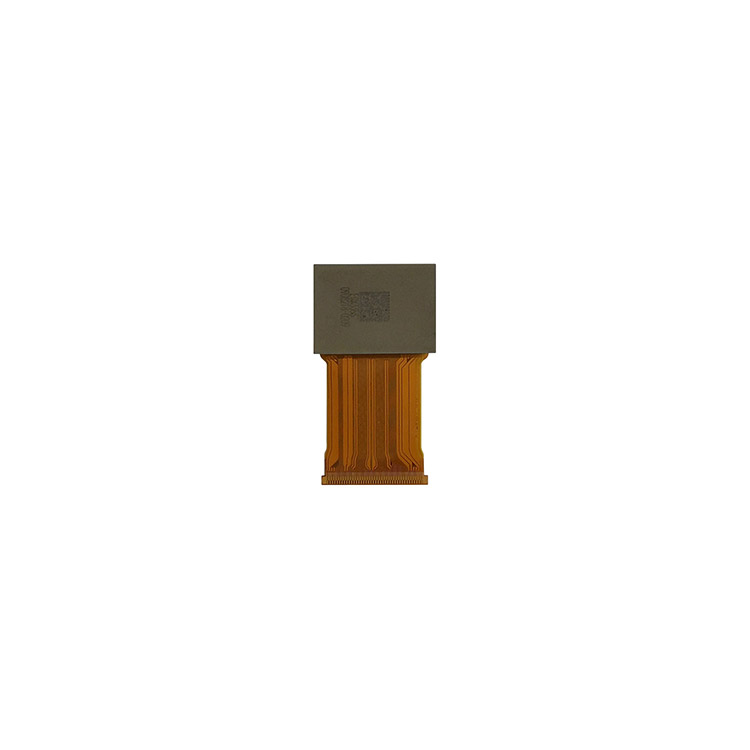

0.71 inch AMOLED Microdisplay,1920(RGB)X1080, 3000 nits


DESCRIPTION

HGECX335SN is a 1.8 cm (0.71inxh) diagonal, 1920(RGB) × 1080 dots active matrix color OLED (Organic Light Emitting
Display) panel module based on single crystal silicon transistors. The module integrates panel driver and logic driver, and
achieves smaller size, light in weight and high resolution. .
(Potential applications: Head mounted displays, View finders, Small monitors etc.)

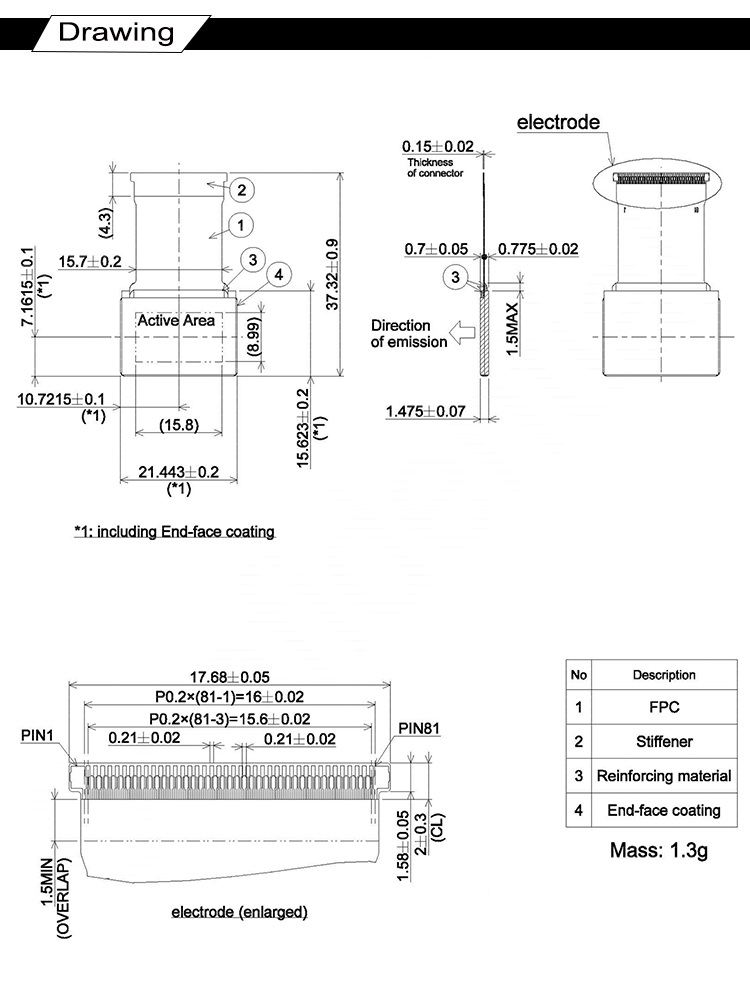

DRAWING


SPECIFICATIONS

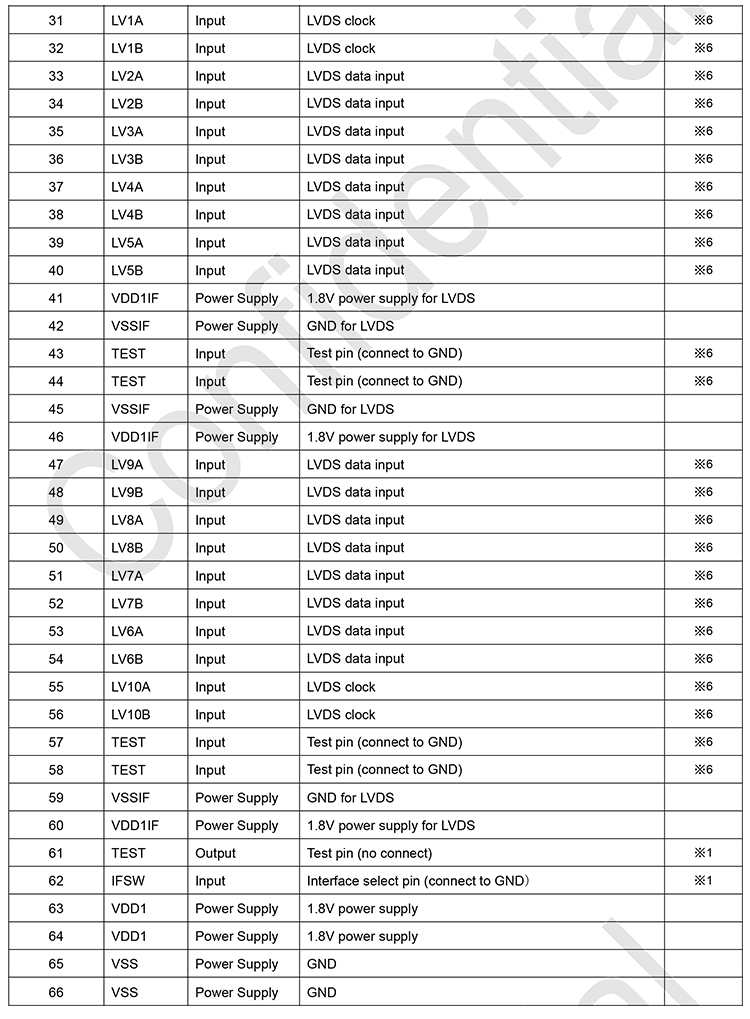

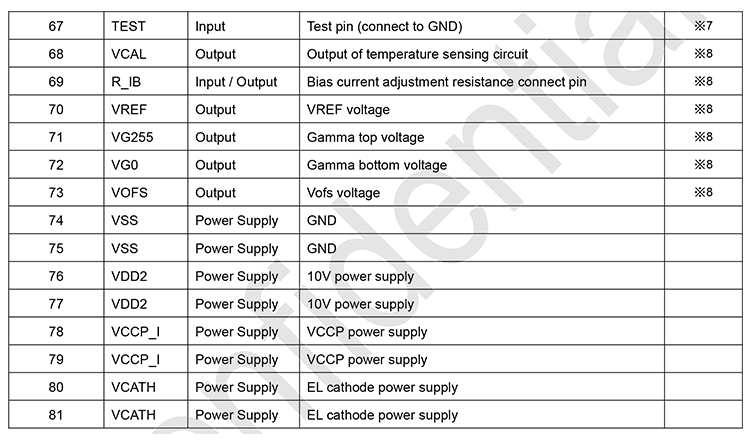

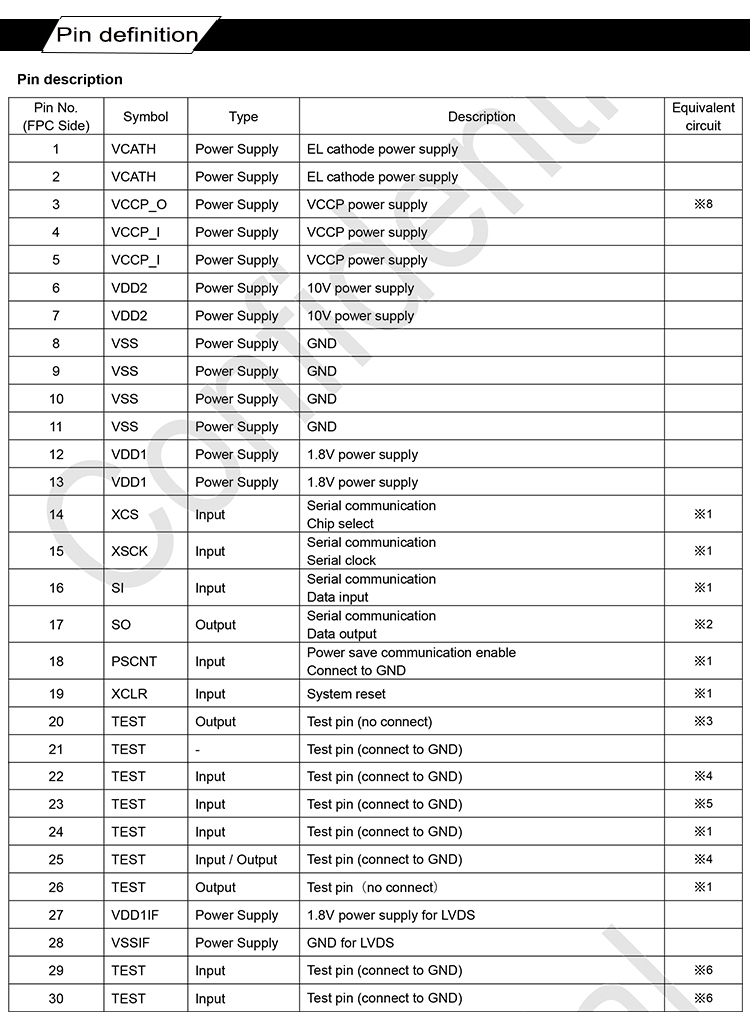

Interface Pin Function



General Specification



Display Type AM-OLED, OLED Display Brand SONY
Interface Screen Size 0.71
Orientation Landscape Display Color Full Color
Manufacturer SONY Resolution

1920 (RGB

)×1080

Driver IC
15.80(H) × 8.99(V)
Bezel Area(mm) -
Luminance 3000 cd/m² (Typ.) Viewing Angle -55。~55。
Color Depth 16.7M 100% Mass -
Refresh Rate - Signal Type

RGB

Voltage Supply - Operating Temp -30 ~ 70 °C
Storage Temp -40 ~ 85 °C Aspect Ratio 16:9 (H:V)
Mode Name HAECX335AF
Screen Type AM-OLED/OLED
Arrangement - Outline(mm) -
Treatment - Response -
Work Mode - Backlight No B/L
Used For AR Glass/Telescope/Gunsight/Thermal imager Touch Panel none
Contrast Ratio >100,000 : 1 Outdoor Visibility

Sunlight

readable

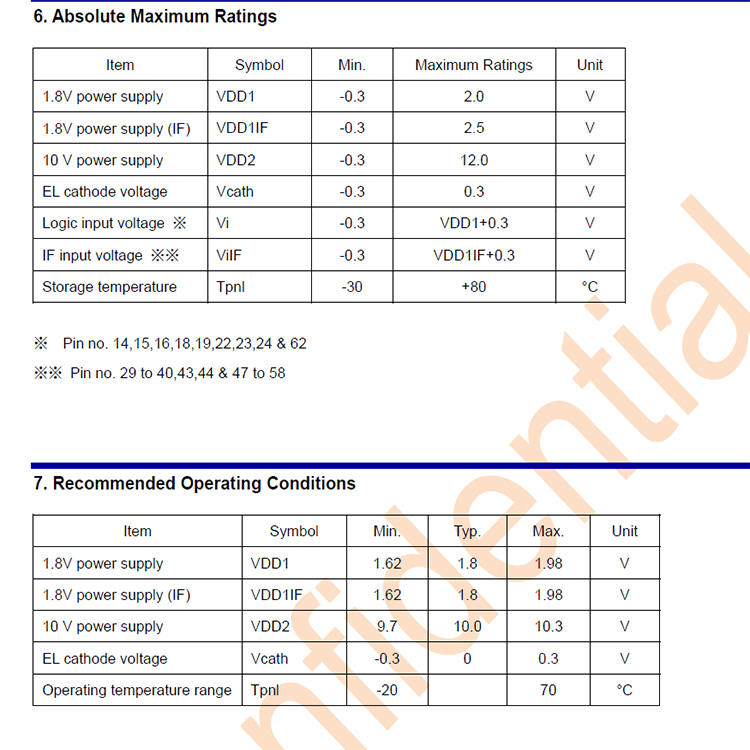

Absolute Maximum Ratings

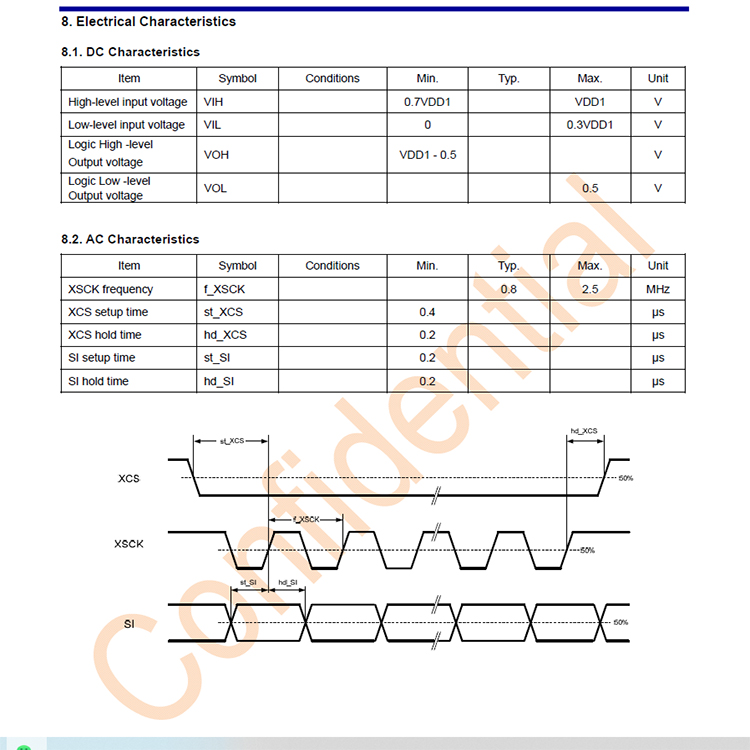

Electrical Characteristics
