Please kindly contact us for full data sheet of the display.

DESCRIPTION

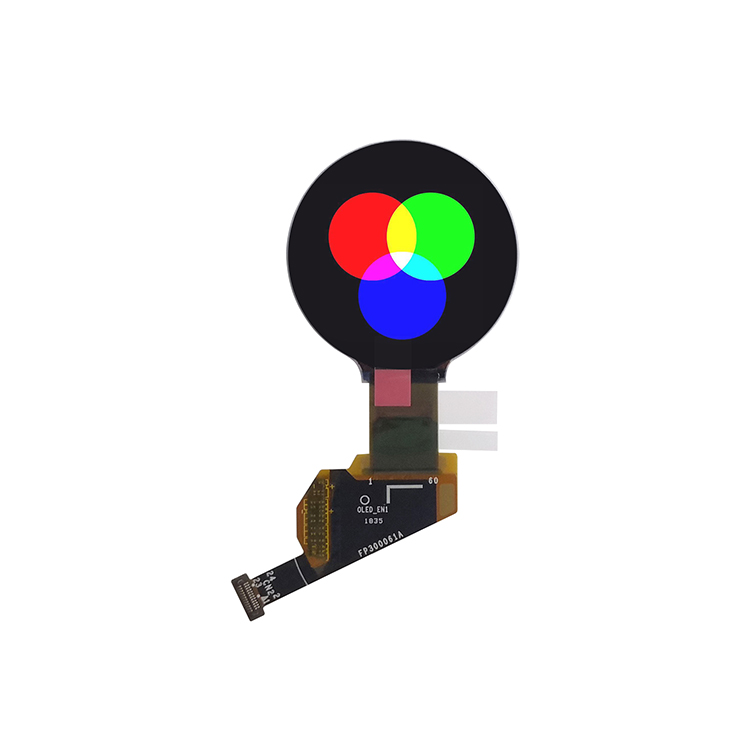

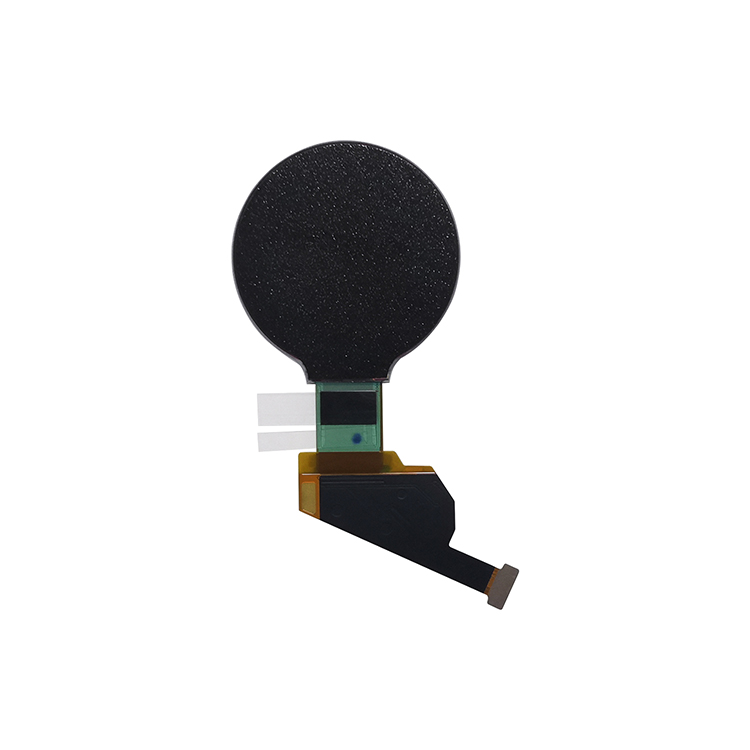

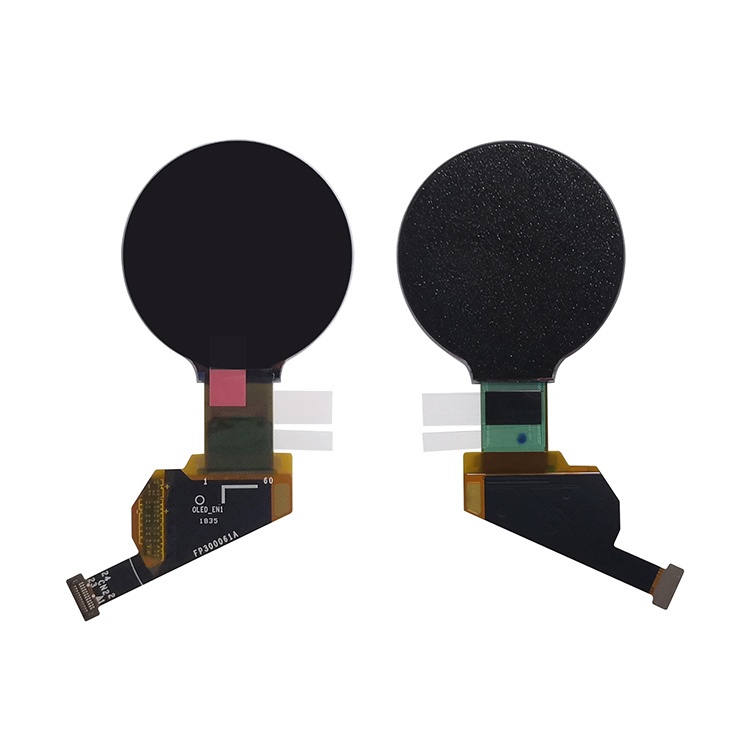

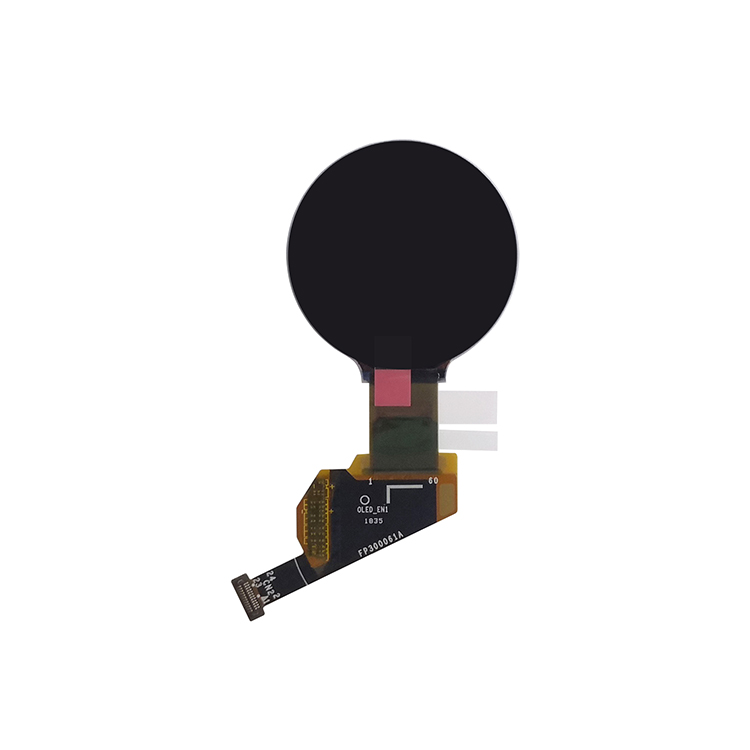

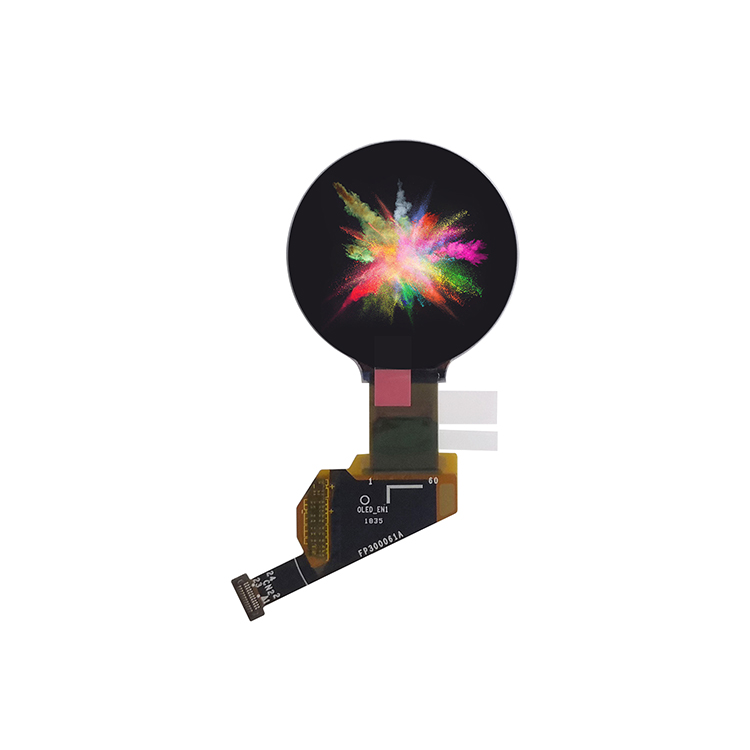

HICENDA OLED 1.39 is is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s (Thin Film Transistors) as active switching devices. This module has a 1.39 inch diagonally measured active area with 400x400 resolutions (400 horizontal by 400 vertical pixel arrays). Each pixel is divided into RED,GREEN, BLUE dots and this module can display 16.7M colors.

GENERAL SPECIFICATION

Display Type:	amoled  display
Display Mode:	COLOR AMOLED
Model Number:	HG--E1393AA62
Diagonal Screen size:	1.39 inch
Interface:	MIPI 1-lane
Drive Duty:	1/64 Duty
Number of Pixels:	400x400
Panel Size	38.6 x 40.5 x 0.69 (mm)
Driver IC:	RM69330
Active Area:	φ38.6
Pixel Pitch:	29.5 x 88.5 (mm)
LTPS Glass outline:	38.6 x 40.5 (mm)
Weight:	2 (g)
Operating Temperature:	-40~85°

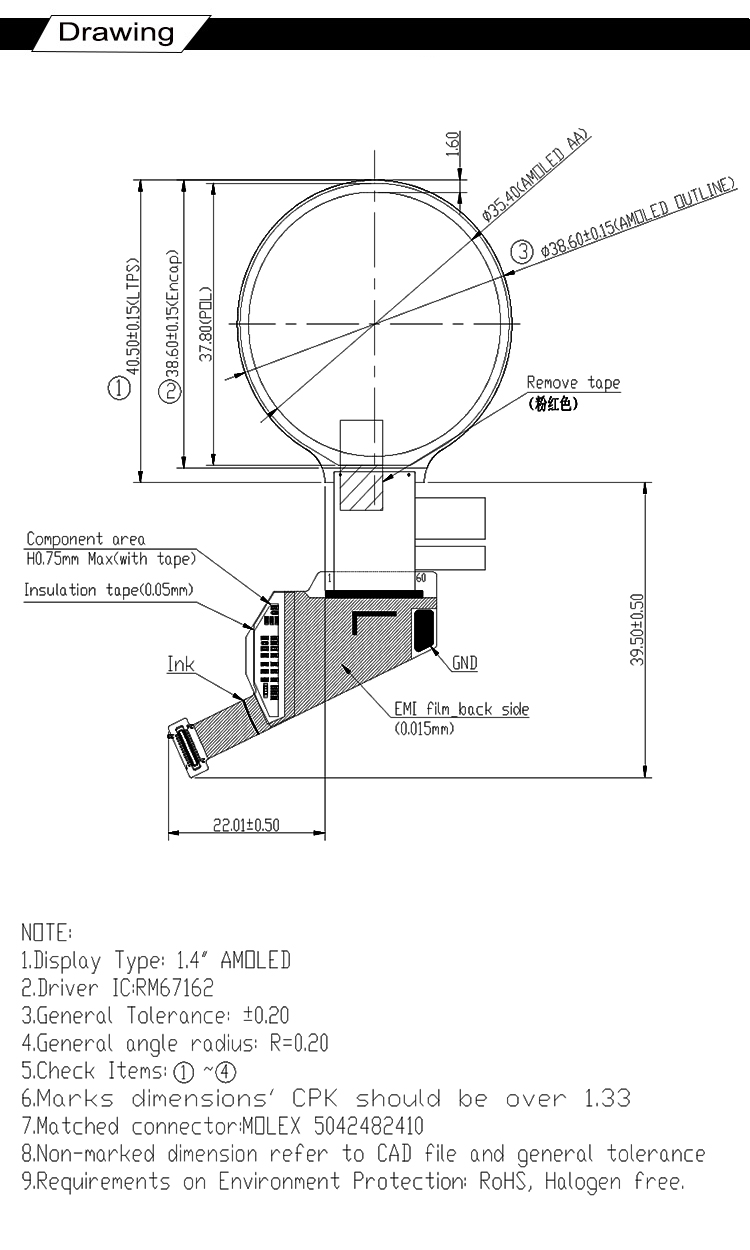

DRAWING

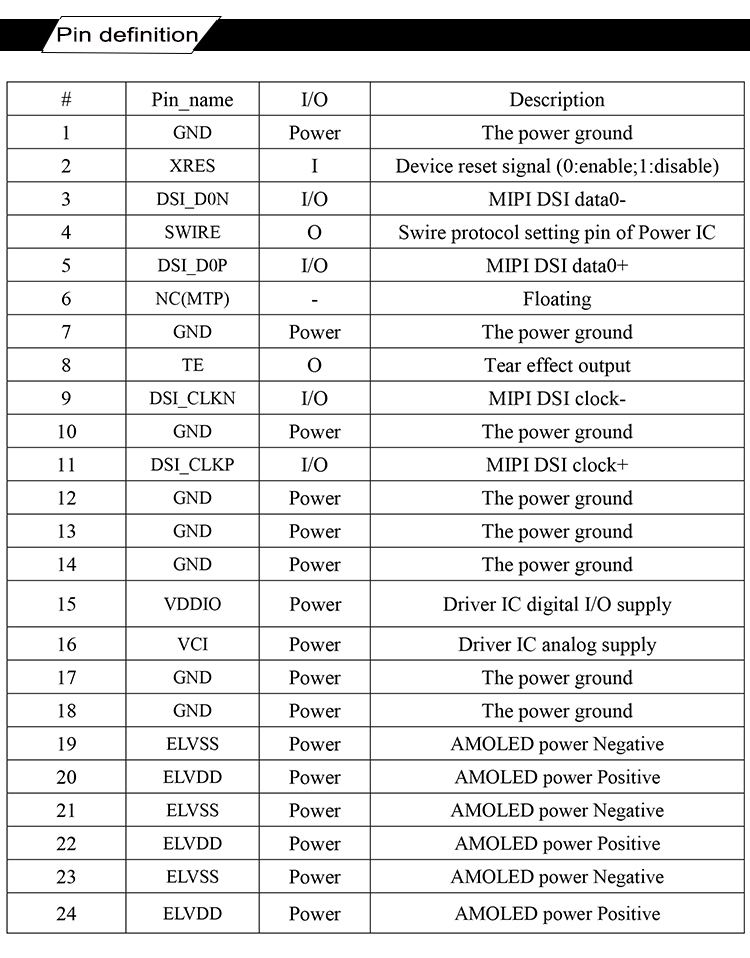

INTERFACE PIN FUNCTION
