DESCRIPTION

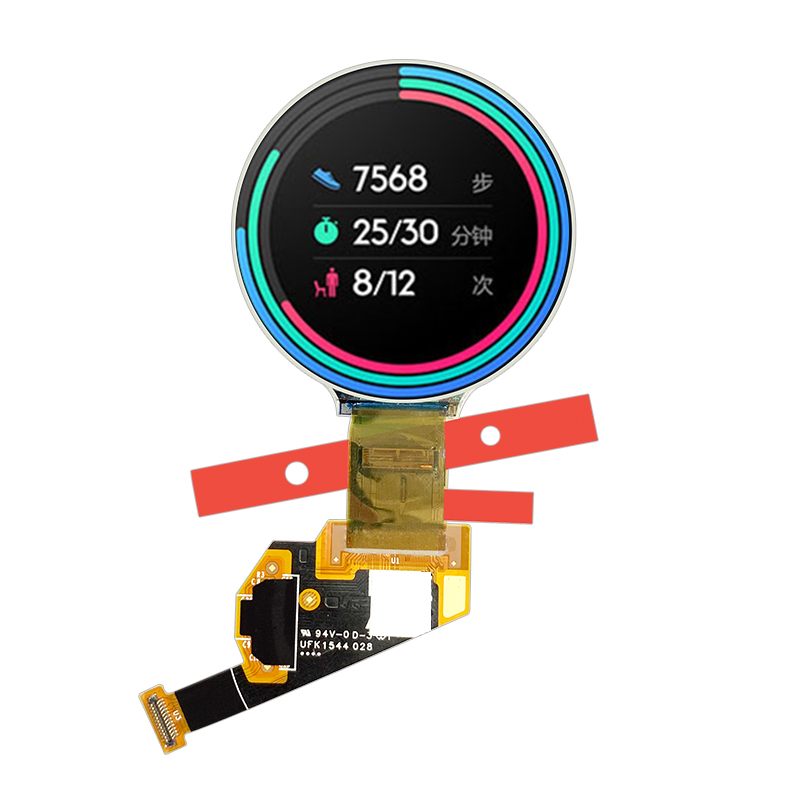

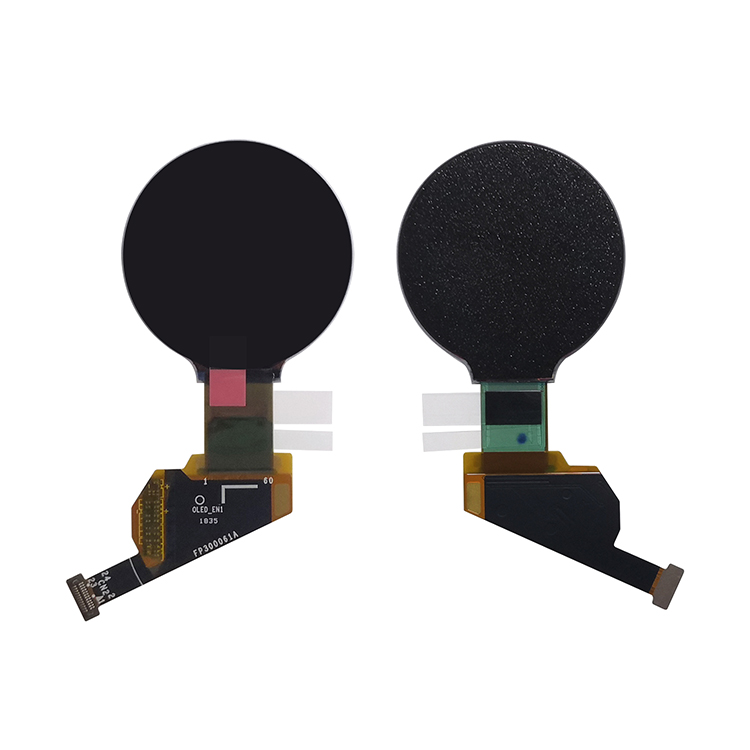

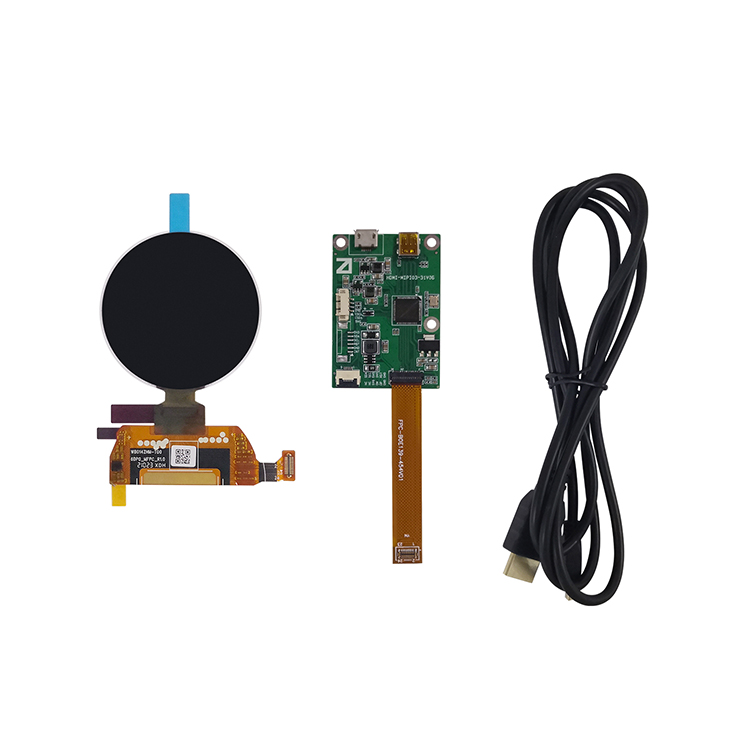

HICENDA OLED 1.39 is is a color active matrix AMOLED module using Low Temperature Poly-silicon TFT’s (Thin Film Transistors) as active switching devices. This module has a 1.39inch diagonally measured active area with 454x454 resolutions (454horizontal by 454 vertical pixel arrays). Each pixel is divided into RED,GREEN, BLUE dots and this module can display 16.7M colors.

GENERAL SPECIFICATION

Display Type:	amoled  display
Display Mode:	COLOR AMOLED
Model Number:	HG--QT014ZN
Diagonal Screen size:	1.39 inch
Interface:	MIPI/SPI
Drive Duty:	1/64 Duty
Number of Pixels:	454x454
Panel Size	38.6(H)+38.6(V) (mm)
Driver IC:	RM69330
Active Area:	￠35.4
Pixel Pitch:	78(mm)
Pixel Size:	78*78 (mm)
Weight:	1.54 (g)
Operating Temperature:	-40~85°

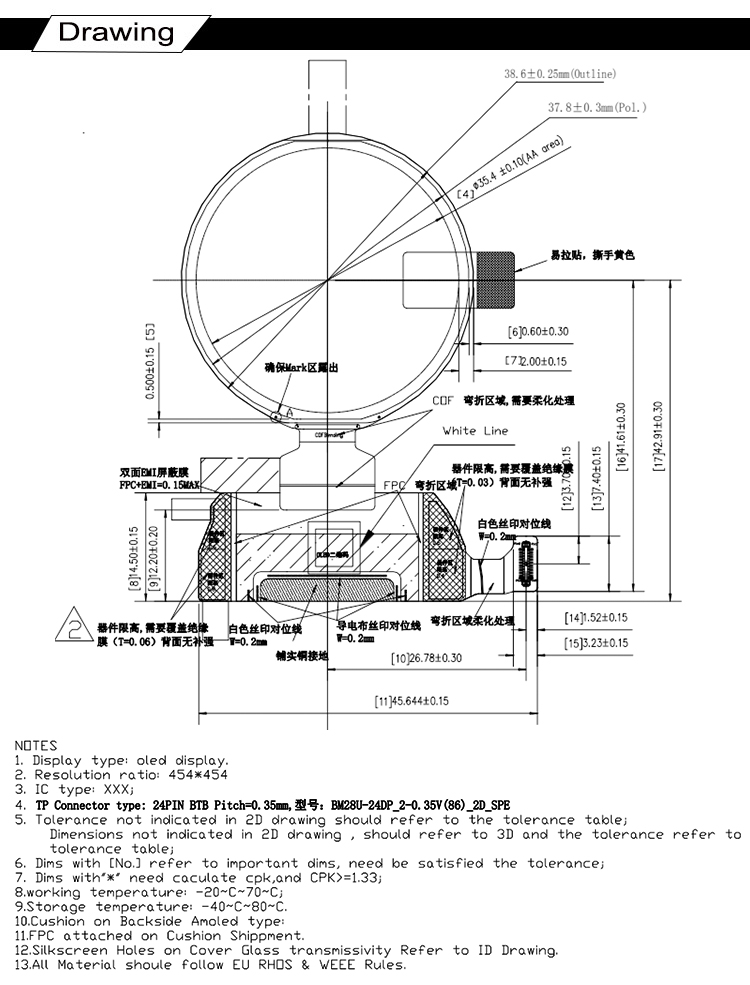

DRAWING

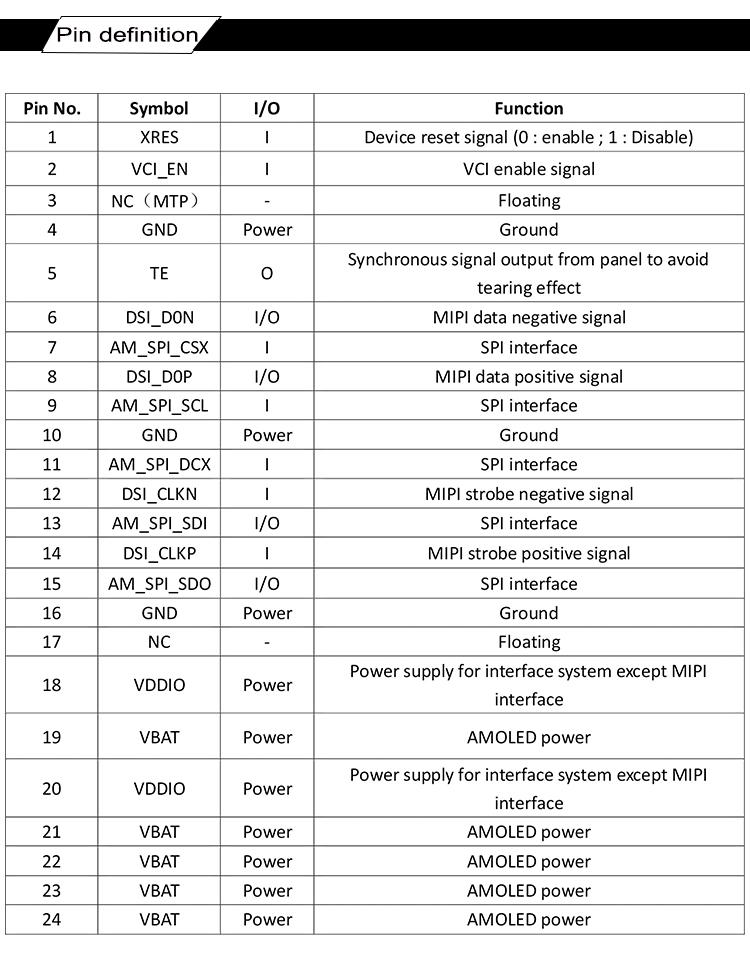

INTERFACE PIN FUNCTION
