2.1" Round

  • Small round 2.1 inch tft lcd display 480x480
  • Small round 2.1 inch tft lcd display 480x480
  • Small round 2.1 inch tft lcd display 480x480
  • Small round 2.1 inch tft lcd display 480x480
  • Small round 2.1 inch tft lcd display 480x480
  • Small round 2.1 inch tft lcd display 480x480
Small round 2.1 inch tft lcd display 480x480Small round 2.1 inch tft lcd display 480x480Small round 2.1 inch tft lcd display 480x480Small round 2.1 inch tft lcd display 480x480Small round 2.1 inch tft lcd display 480x480Small round 2.1 inch tft lcd display 480x480

Small round 2.1 inch tft lcd display 480x480

  • Size: 2.1
  • Controller IC:ST7701S
  • Resolution: 480x480
  • Interface:3SPI+18RGB
  • Product description: Small round 2.1 inch tft lcd display 480x480
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA TFT 2.1 is a round color active matrix LCD module incorporating amorphous silicon TFT (Thin

Film Transistor). It is composed of a color TFT - LCD panel, driver IC, FPC and a back light unit. The module display area contains 480*480 pixels. This product accords with ROHS environmental criterion.




GENERAL SPECIFICATION



Display Type: TFT display
Display Mode: color active matrix
Model Number:

HT021WVC02-B1323A


Diagonal Screen size: 2.1 inch
Interface:

3SPI+18RGB


Number of color:

262K
Number of Pixels:

480(RGB)×480


Panel Size:

56.18*59.71*2.3 mm
Driver IC:

ST7701S


Active Area:

53.28*53.28 mm
Pixel Pitch:

39.6 (H) x 118.8(V) um
Viewing Direction:

All View

Weight:

TBD

Operating Temperature:

-20~70°

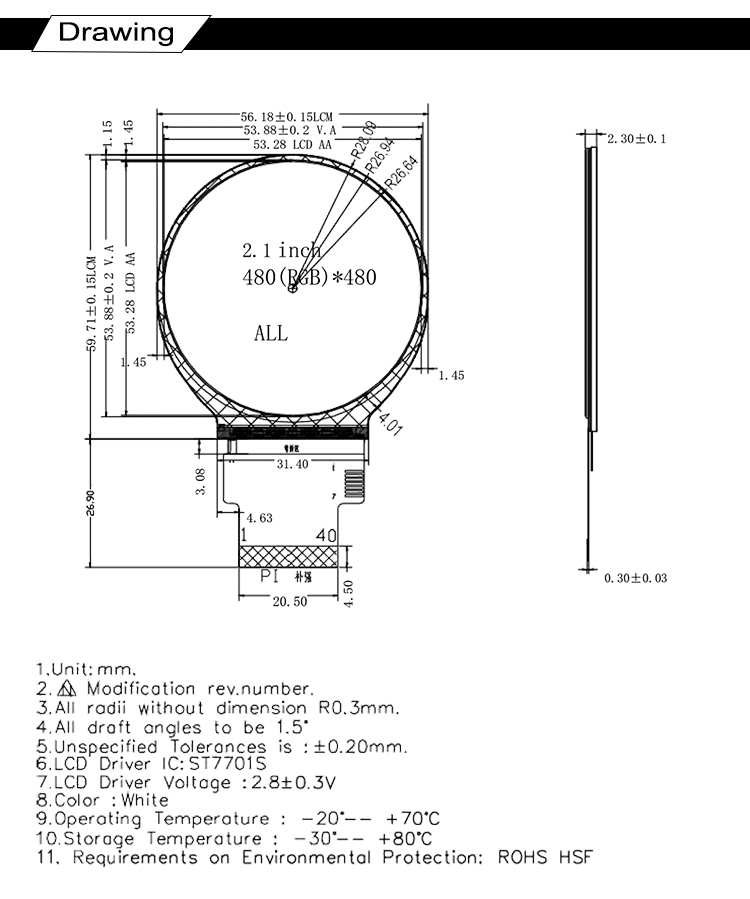

DRAWING




INTERFACE PIN FUNCTION
