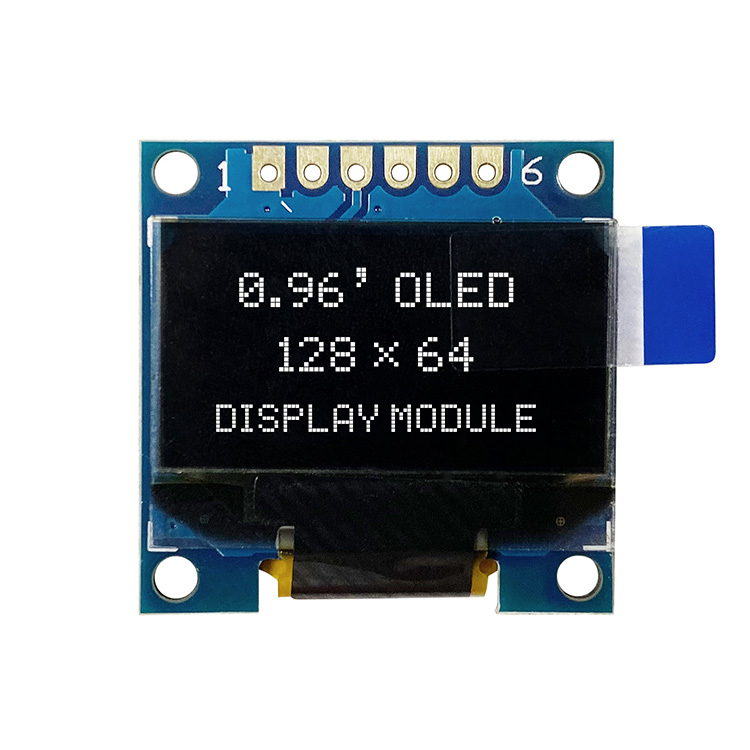

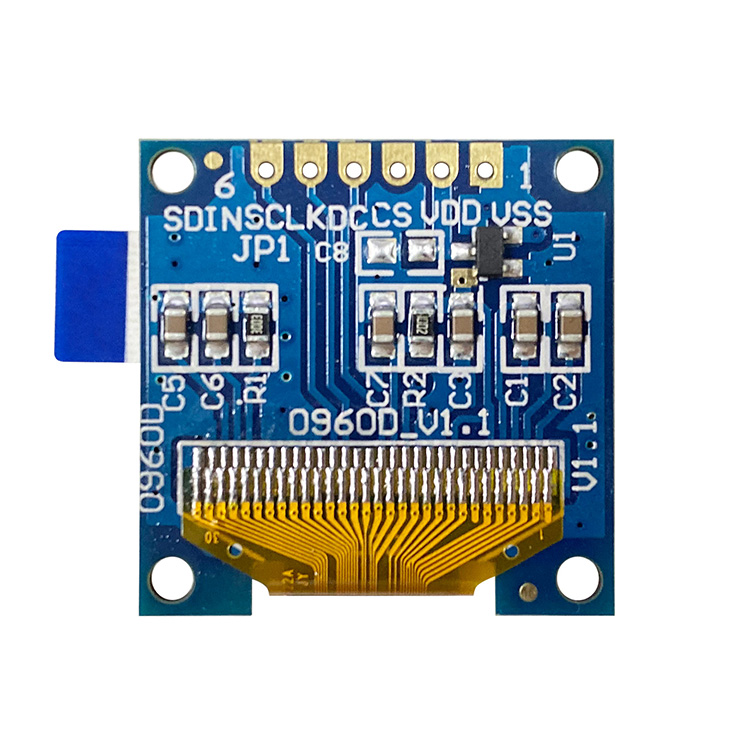

The 0.96-inch OLED display module, model HT-2864HW09630P01, is a compact and highly versatile unit designed around the SSD1306 driver IC. Featuring a 128×64 dot matrix resolution, this passive matrix display delivers monochrome output in white, blue, or yellow-blue color options. It supports multiple interfaces including 8-bit 68XX/80XX parallel, 3-/4-wire SPI, and I²C, enabling flexible integration across a wide range of embedded systems. With IPS-level wide viewing angles, the module provides superior visual clarity and is engineered to perform reliably across industrial-grade temperature ranges.
| Parameter | Specification |
|---|---|
| Model Number | HT-2864HW09630P01 |
| Display Size | 0.96 inch |
| Resolution | 128 × 64 dots |
| Display Type | Passive Matrix |
| Viewing Direction | IPS |

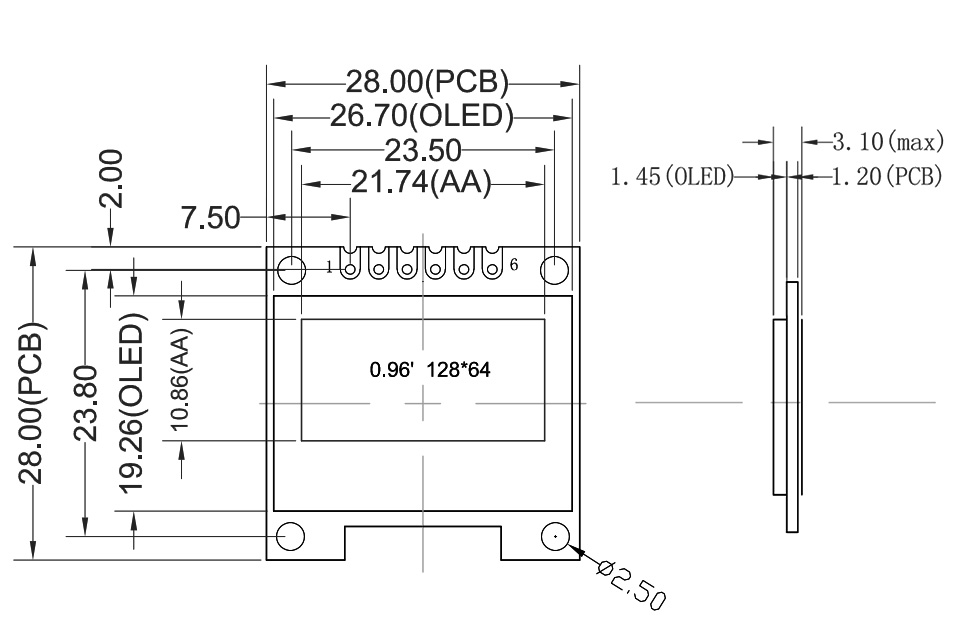

| Outline Dimensions | 26.70 × 19.26 × 1.4 mm |
| Active Area | 21.744 × 10.864 mm |
| Effective Area | 21.74 × 11.204 mm |
| Pixel Size | 0.154 × 0.154 mm |
| Pixel Pitch | 0.17 × 0.17 mm |

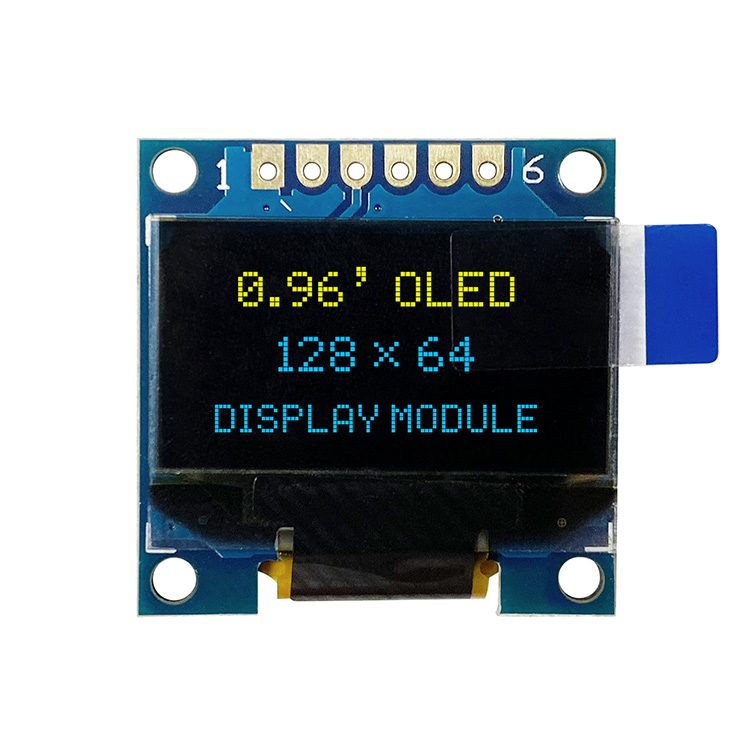

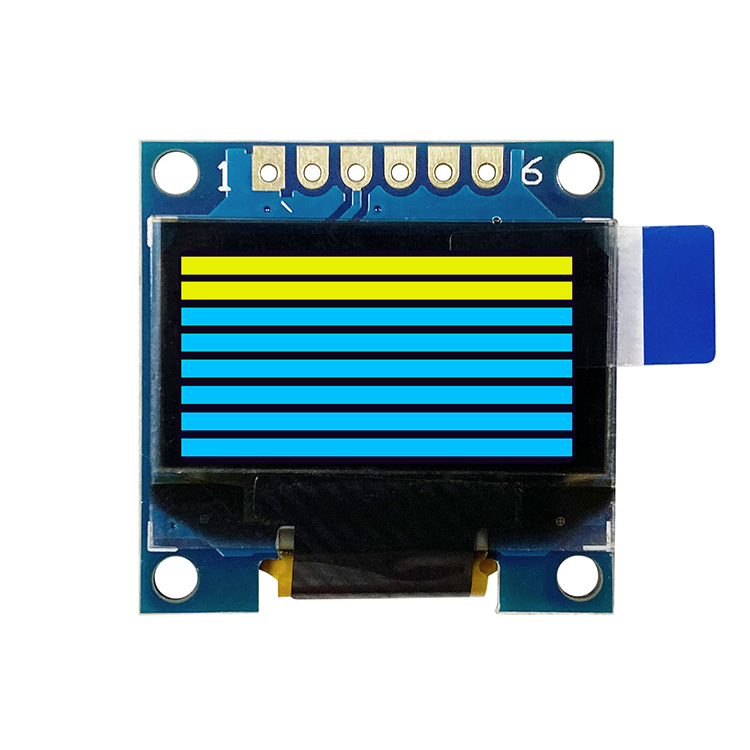

| Display Colors | Monochrome (White / Blue / Yellow-Blue) |
| Driver IC | SSD1306 |
| Drive Duty | 1/64 Duty |
| Interface Options | 8-bit 68XX/80XX, 3-/4-wire SPI, I²C |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |

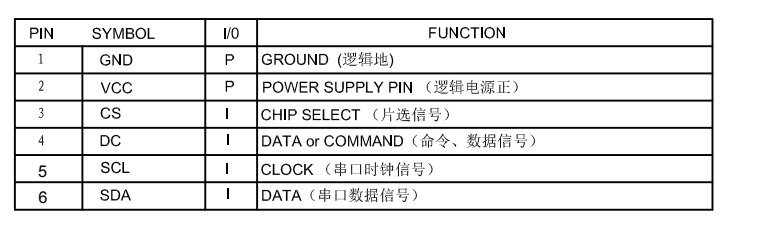

| Number of Pins | 6 |
The HT-2864HW09630P01 OLED module combines compactness, flexibility, and performance. Its low-profile form factor and robust electrical interface make it ideal for applications in consumer electronics, wearables, medical instrumentation, and industrial controls.
The module employs passive matrix technology and a finely segmented pixel array, offering crisp and consistent imaging at 128×64 resolution. The IPS-like viewing characteristic ensures the display maintains uniform contrast and readability across a wide angular range.
The active area of 21.744 mm × 10.864 mm corresponds closely with the effective area of 21.74 mm × 11.204 mm. This design precision allows for efficient light emission and excellent pixel fidelity.
With a pixel pitch of 0.17 mm and pixel size of 0.154 mm × 0.154 mm, the display achieves an optimal balance between resolution and energy efficiency, which is critical in battery-sensitive environments.
The SSD1306 driver IC empowers this OLED module with multiple communication pathways. It supports:
8-bit Parallel (68XX/80XX series)
3-wire and 4-wire SPI
I²C Interface
This flexibility greatly enhances compatibility with a wide variety of microcontrollers and embedded platforms.
The display operates on a 1/64 duty cycle, balancing illumination consistency with reduced power consumption. The SSD1306 is well-established in the embedded systems community for its rich feature set and reliability.
Designed with industrial reliability in mind, the module operates within a temperature range of -20℃ to +70℃ and can be stored between -30℃ and +80℃. Its mechanical design—only 1.4 mm thick—makes it suitable for compact enclosures and space-constrained layouts.
Given its small size, multi-interface support, and low power draw, the 0.96-inch SSD1306 OLED module finds extensive application in:
Portable health monitors
Smart wearables
IoT sensor displays
Handheld measurement devices
Embedded system status panels
Its broad operating temperature and crisp visual performance make it suitable for both consumer and industrial-grade implementations.
