DESCRIPTION

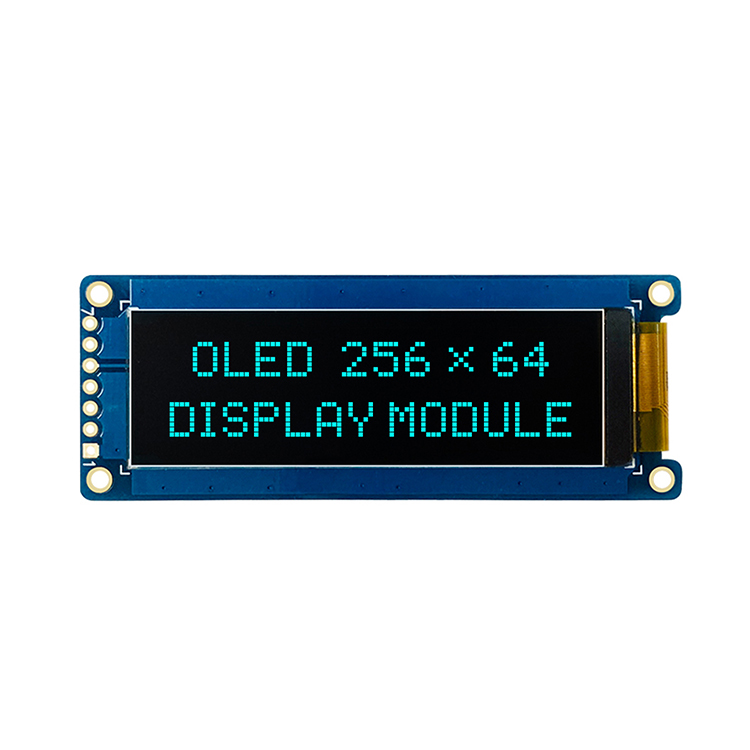

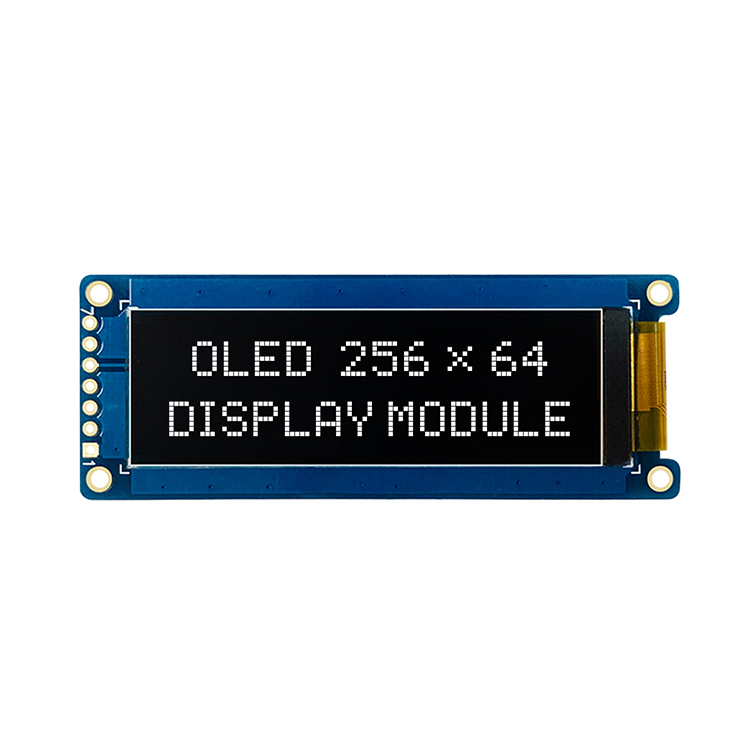

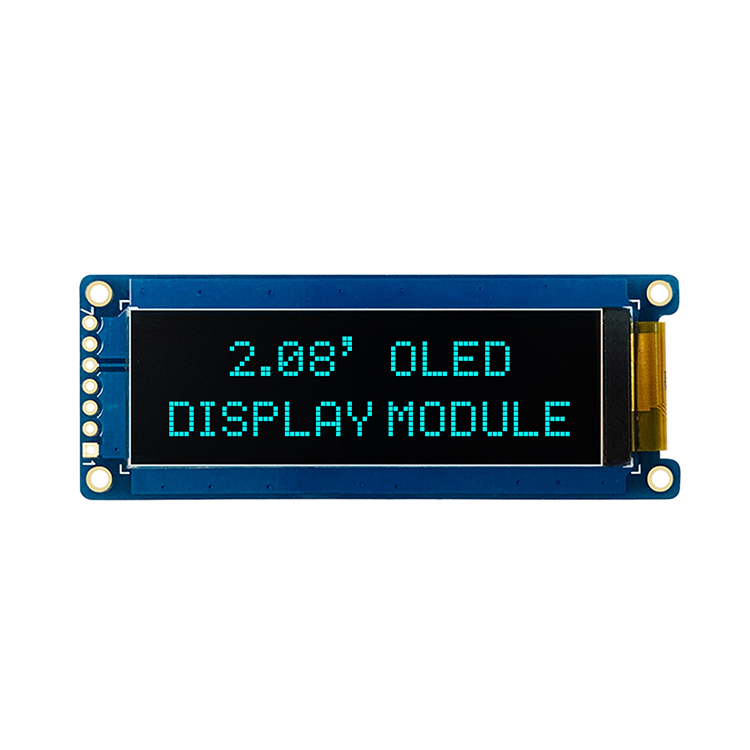

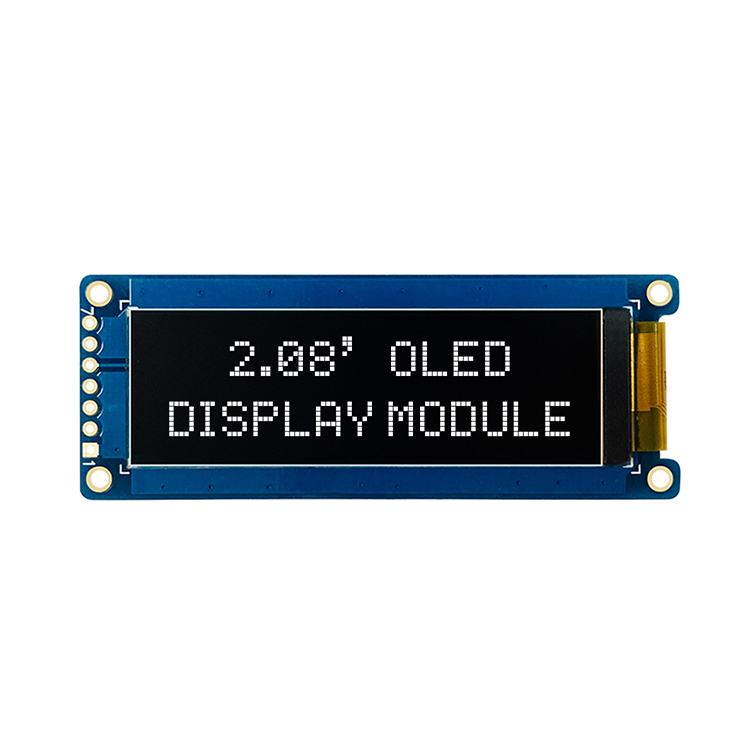

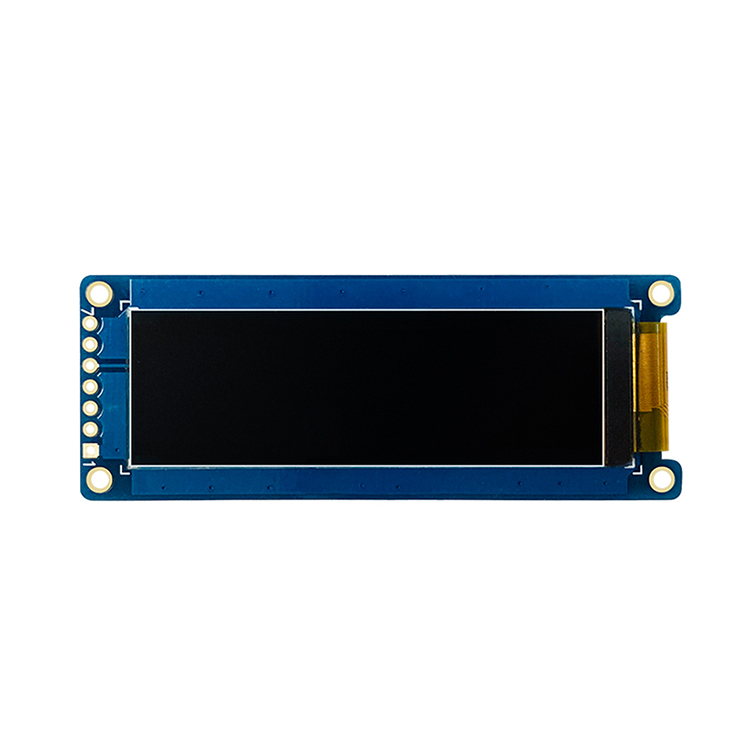

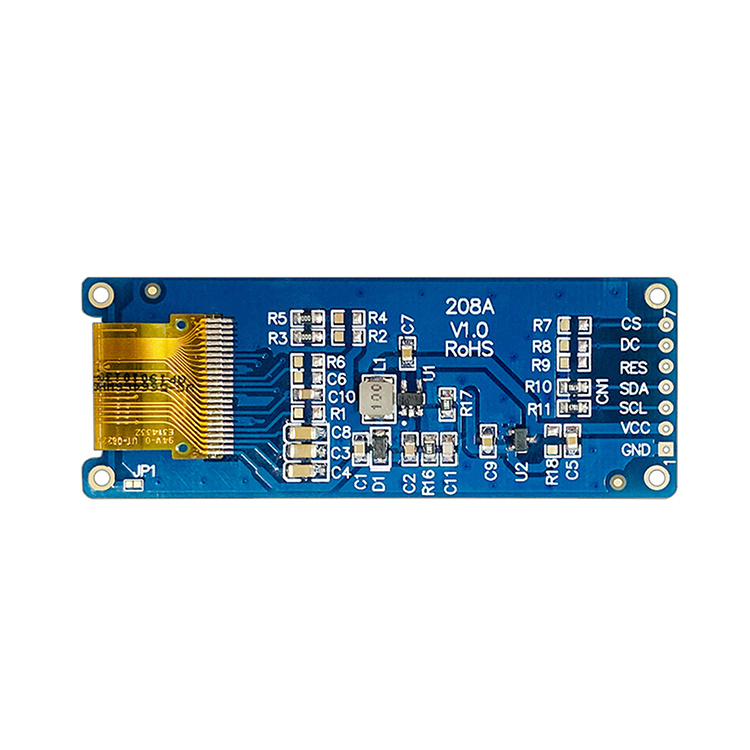

HICENDA 2.08 inch OLED display module presented here is a compact graphic display solution based on a 256×64 dot matrix architecture and driven by the SH1122 controller via an SPI interface. Designed in a 7-pin configuration, it operates in passive matrix mode and supports monochrome output in white or blue. With a wide viewing direction, robust temperature tolerance, and a slim mechanical profile, the module is well suited for embedded systems requiring stable visual performance in constrained environments.

GENERAL SPECIFICATION

Key Parameters Table

Structural and Electrical Characteristics

From an engineering perspective, this module reflects a careful balance between resolution, interface simplicity, and mechanical compactness. The SH1122 driver IC integrates display RAM and control logic, enabling efficient data transmission through SPI while minimizing pin usage. This approach is particularly advantageous in microcontroller-based designs where I/O resources are limited.

The 256×64 dot matrix provides sufficient pixel density for graphical elements, waveform rendering, and character display. Meanwhile, the passive matrix driving scheme ensures low power consumption and reliable operation across extended temperature ranges.

Interface Design and Integration

The SPI interface simplifies communication between the display and host controller, supporting high-speed data transfer with minimal wiring complexity. The 7-pin layout typically includes power supply lines, clock, data input, chip select, and control signals, enabling straightforward integration into compact PCB designs.

Advantages of SPI Implementation

· Reduced pin count compared to parallel interfaces

· Lower electromagnetic interference due to serialized data transmission

· Flexible clock configuration for performance tuning

· Compatibility with a wide range of microcontrollers and embedded platforms

In practical applications, the SPI interface contributes to both system reliability and design efficiency, especially in portable or space-constrained devices.

Optical Performance and Display Behavior

OLED technology inherently provides high contrast ratios and fast response times. In this module, the monochrome emission ensures uniform brightness and excellent readability under various lighting conditions. The wide viewing angle further enhances usability, allowing consistent image quality from multiple perspectives.

The pixel dimension of 0.18 mm contributes to sharp rendering of fine graphics and text. Combined with the 256×64 resolution, the display is capable of presenting detailed information without compromising clarity.

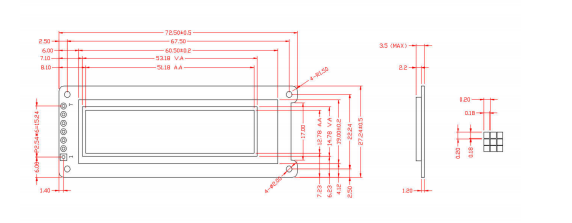

DRAWING

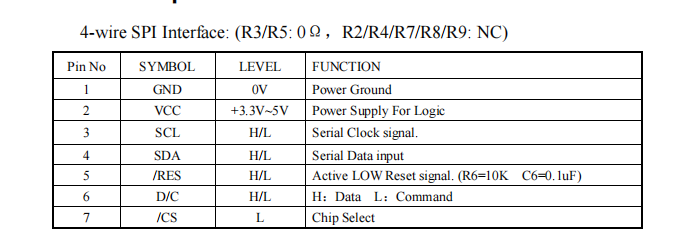

INTERFACE PIN FUNCTION

Application Scenarios

Given its structural and electrical properties, this 2.08 inch OLED module is particularly suitable for:

· Industrial control interfaces

· Portable diagnostic instruments

· Embedded monitoring systems

· Smart home control panels

· Handheld measurement devices

Its extended operating temperature range also makes it reliable for outdoor or harsh environment deployments.

Design Considerations

When integrating this module into a system, attention should be given to power supply stability and initialization sequencing of the SH1122 controller. Proper configuration of contrast and display timing parameters can further optimize visual performance.

Additionally, thermal management, although less critical due to OLED efficiency, should still be considered in sealed or high-density designs to ensure long-term operational stability.



In summary, the 2.08 inch SPI OLED display module with SH1122 driver offers a refined combination of compact design, efficient interfacing, and dependable optical performance. Its thoughtful engineering makes it a practical and versatile choice for modern embedded display applications.
