Description:

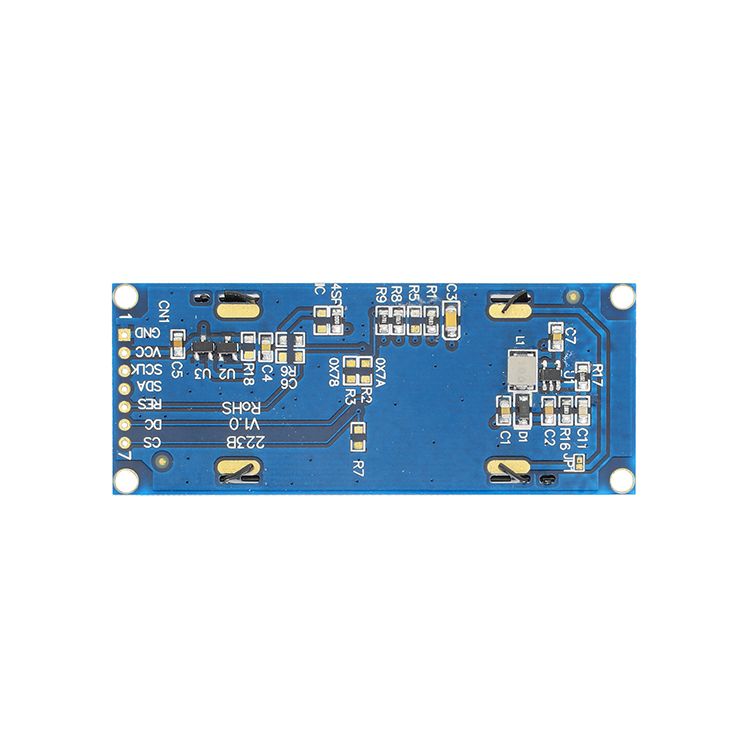

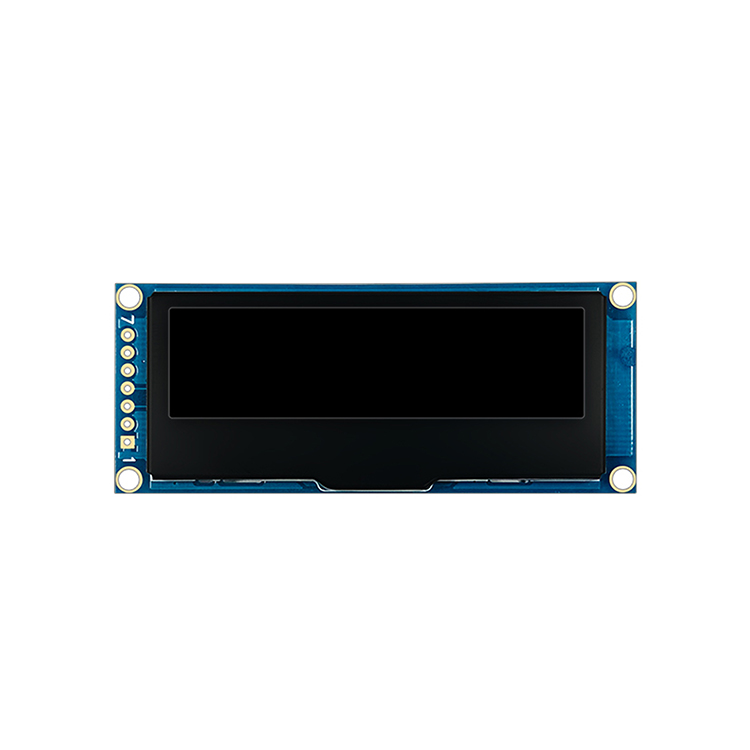

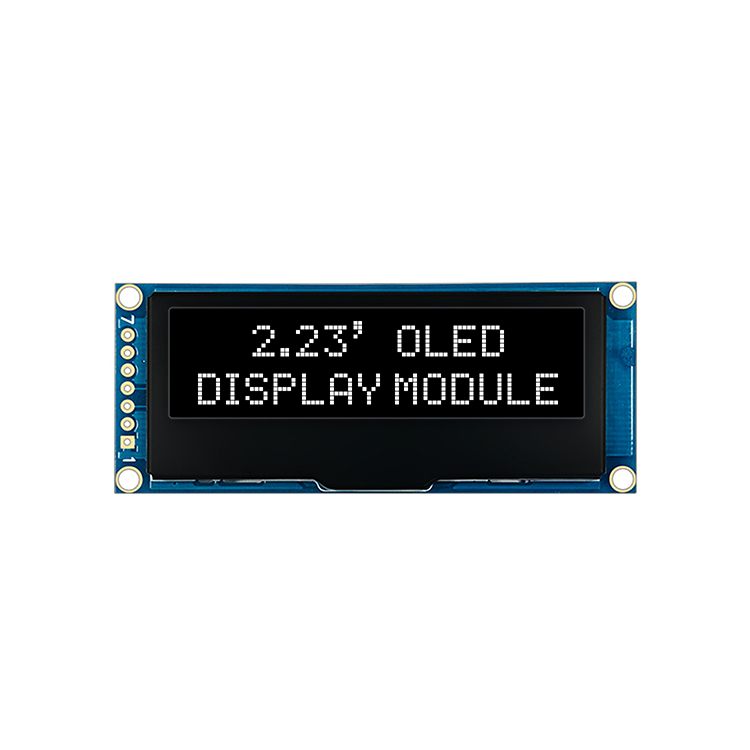

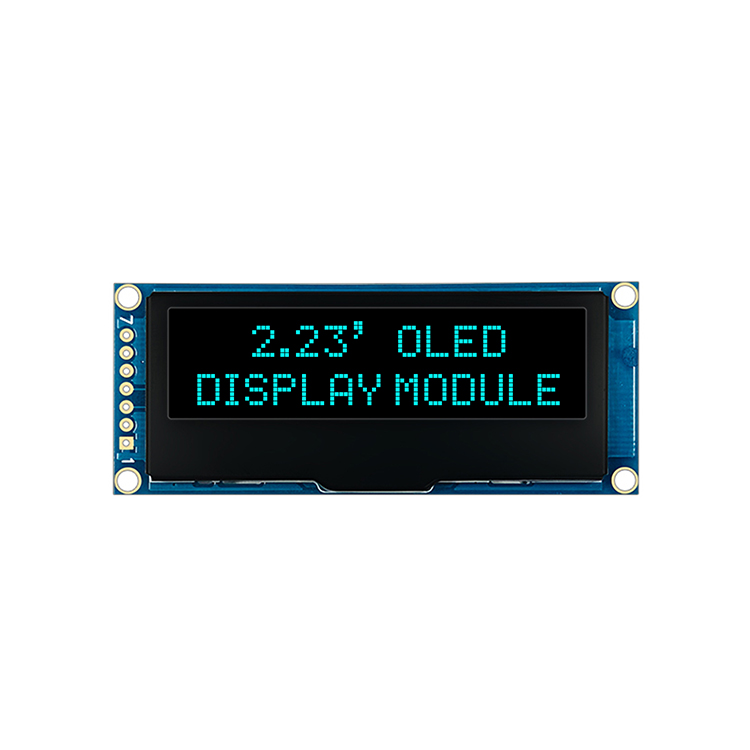

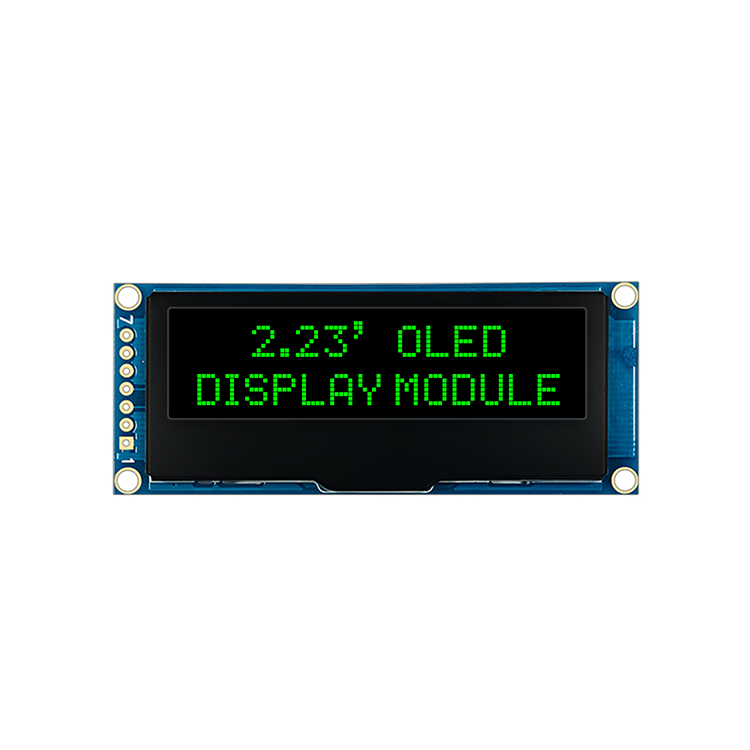

The 2.23-inch SPI OLED display module, featuring a 128×32 dot matrix and driven by SSD1305 or SSD1309 controller ICs, is a compact monochrome display solution designed for embedded applications. With a passive matrix structure, wide viewing direction, and support for 4-wire SPI communication, the module integrates a 7-pin interface within a slim mechanical outline of 74.0 × 30.0 × 7.8 mm. It operates reliably across a broad temperature range from -40°C to 80°C, offering flexible color options including white, blue, and yellow-green, making it suitable for industrial instrumentation and portable electronic devices.

Mechanical Specifications

Structural and Optical Characteristics

Passive Matrix OLED Architecture

The module adopts a passive matrix OLED (PMOLED) configuration, which balances power efficiency and structural simplicity. While not intended for high-refresh video content, this architecture excels in static or low-refresh graphical interfaces, where stability and low energy consumption are prioritized.

Display Geometry and Pixel Arrangement

With a resolution of 128×32 dots distributed over a 2.23-inch active area, the display achieves a clear and concise visual output. The pixel pitch of 0.43 × 0.41 mm ensures consistent spacing, while the pixel size of 0.41 × 0.39 mm contributes to uniform luminance across the panel.

Viewing Performance

The display supports an all-direction viewing angle, a characteristic inherent to OLED technology. This allows consistent contrast and readability regardless of the observer’s position, an advantage in handheld or panel-mounted systems.

Electrical Interface and Control Logic

SSD1305 / SSD1309 Driver IC

The integration of SSD1305 or SSD1309 driver ICs ensures stable grayscale control and efficient display management. These controllers are widely adopted due to their compatibility with various microcontroller platforms and their optimized command structure for graphical rendering.

SPI Communication Interface

The 4-wire SPI interface simplifies system integration by reducing pin count while maintaining adequate data throughput for the given resolution. This makes the module particularly suitable for compact embedded designs where I/O resources are limited.

Mechanical Design and Environmental Adaptability

Compact Form Factor

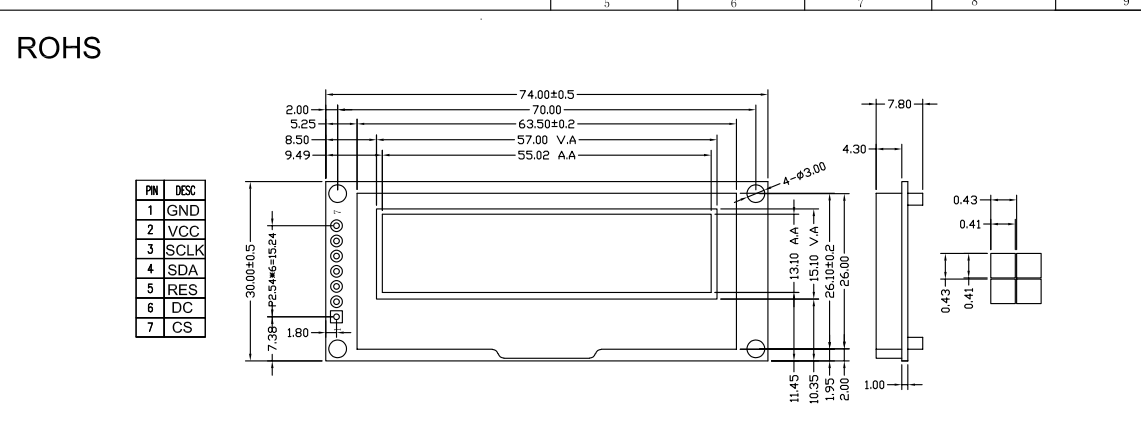

With an outline dimension of 74.0 × 30.0 × 7.8 mm and a viewable area of 57.0 × 15.1 mm, the module is engineered for space-constrained applications. The 7-pin configuration further enhances its integration flexibility.

Wide Temperature Range

The module demonstrates robust environmental performance, operating reliably between -40°C and 80°C, and withstanding storage conditions down to -40°C and up to 85°C. This makes it applicable in both industrial and outdoor scenarios.

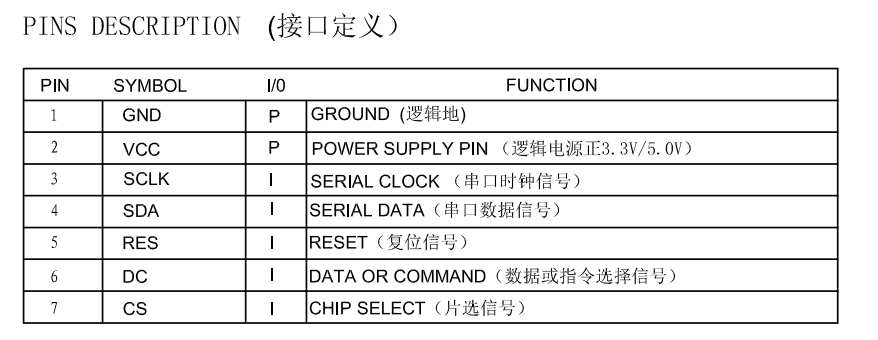

Definition:

Application Considerations

Embedded Systems Integration

The module’s SPI interface and moderate resolution make it well-suited for microcontroller-based systems such as industrial control panels, measurement instruments, and portable diagnostic devices.

Power and Longevity

OLED technology eliminates the need for backlighting, contributing to lower power consumption and thinner construction. When operated within recommended parameters, the module delivers stable luminance and extended service life.

Concluding Remarks

This 2.23-inch 128×32 OLED display module represents a pragmatic balance between performance, integration simplicity, and environmental durability. Its combination of SSD1305/SSD1309 control, SPI communication, and compact mechanical design enables reliable deployment across a wide range of professional and industrial applications, where clarity and consistency are valued over high-resolution complexity.
