Please kindly contact us for full data sheet of the display.

DESCRIPTION

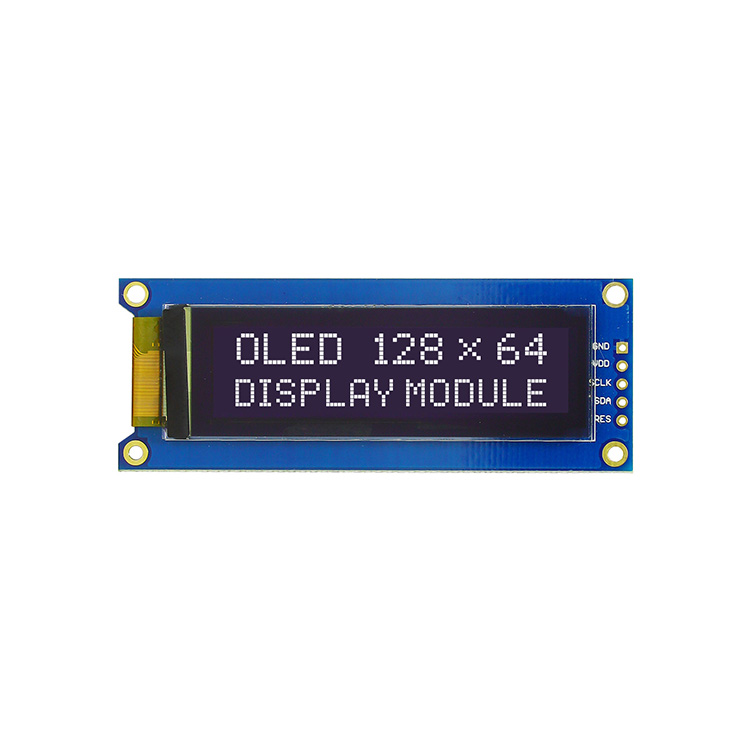

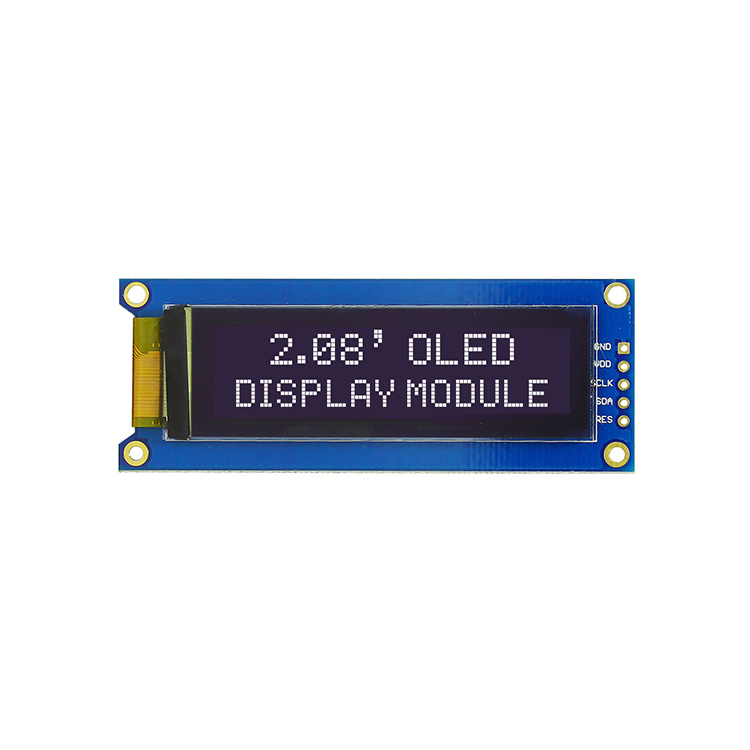

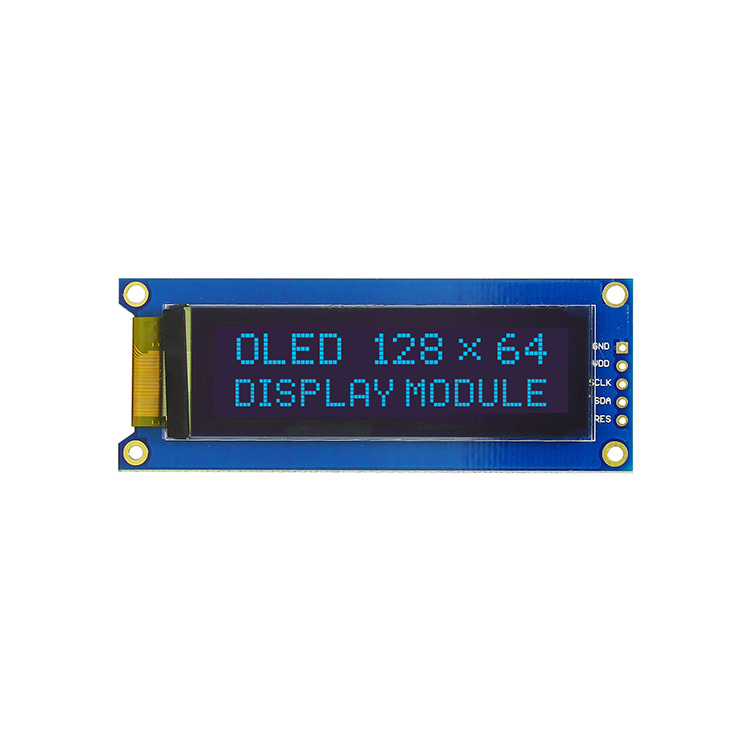

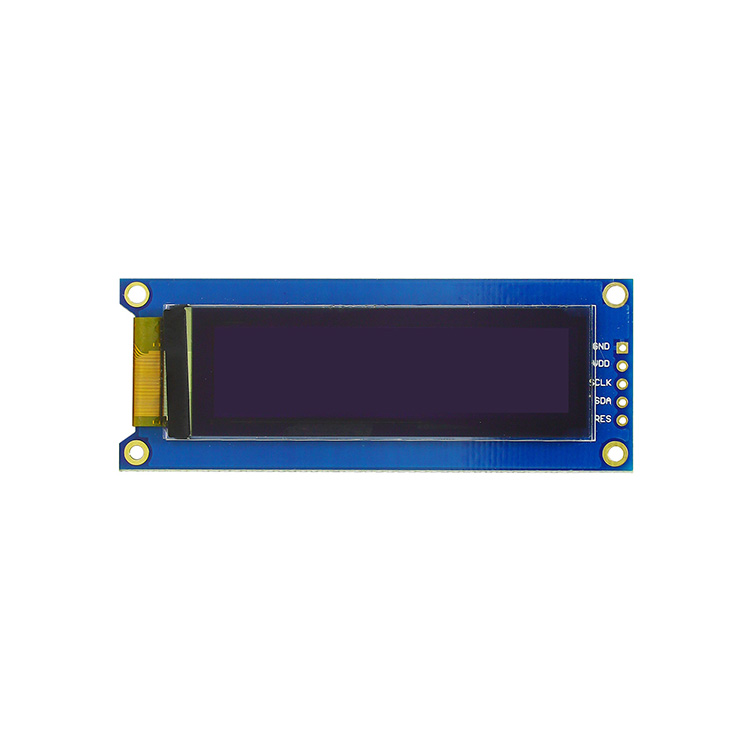

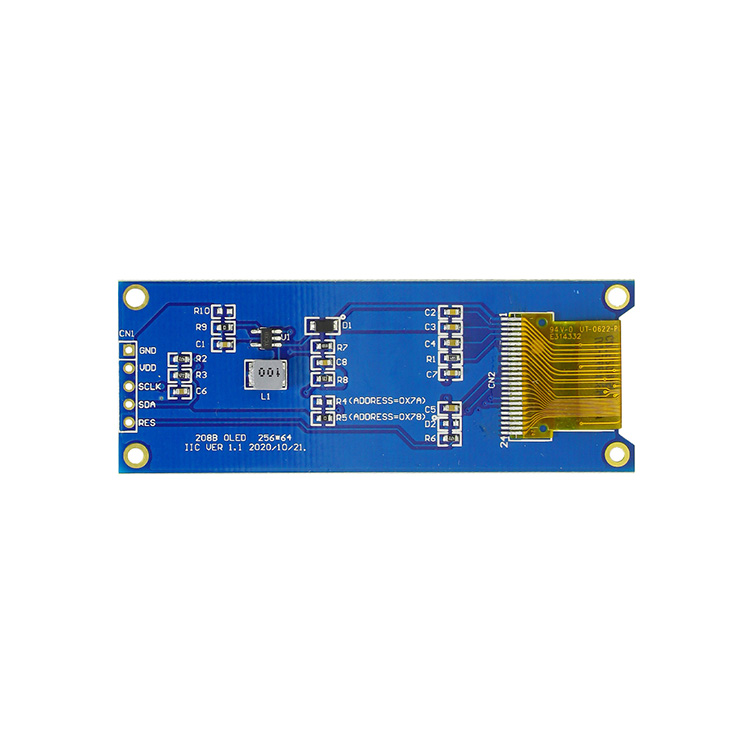

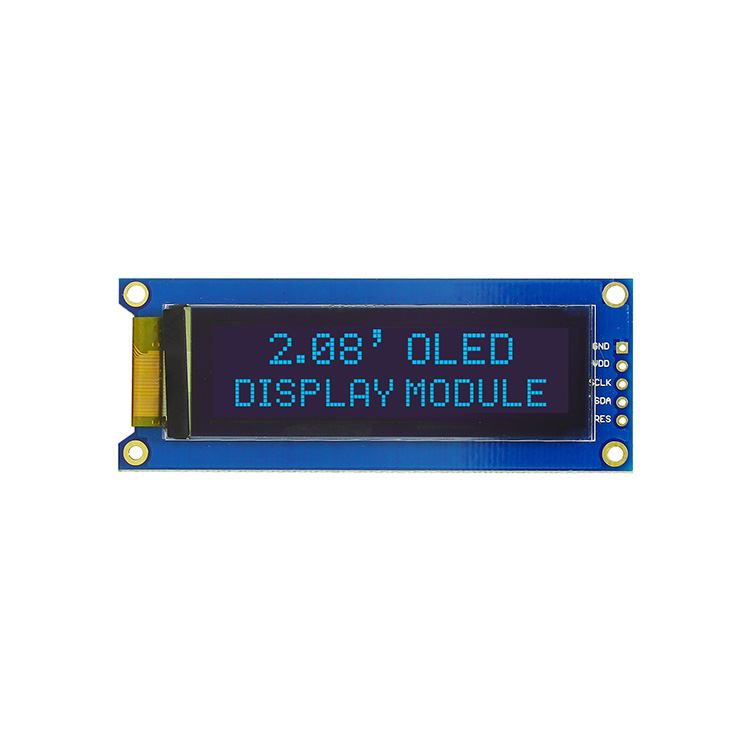

HICENDA The 2.08-inch OLED display module described here is a passive-matrix graphic display featuring a 256×64 dot structure, driven by the SH1122 controller and interfaced via IIC. With a compact mechanical profile and a wide operating temperature range, the module is designed for stable performance in embedded systems requiring clear monochrome visualization. Its uniform viewing characteristics and fine pixel structure make it suitable for instrumentation, portable equipment, and industrial control interfaces.

GENERAL SPECIFICATION

Key Parameters Table

Structural and Optical Characteristics

Display Architecture

This module adopts a passive matrix OLED (PMOLED) configuration, which balances power efficiency with structural simplicity. The 256×64 dot matrix arrangement enables the rendering of detailed graphical content within a narrow form factor. The monochrome emission, available in white or blue, ensures high contrast and readability under varying ambient lighting conditions.

The pixel pitch of 0.18 × 0.18 mm contributes to a crisp image output, while the active viewing area of 51.18 × 12.78 mm is optimized for elongated interface layouts such as status bars, data panels, or compact dashboards.

Viewing Performance

With an “all-direction” viewing characteristic, the display maintains consistent luminance and contrast across wide angles. This property is inherent to OLED technology and eliminates the limitations typically associated with conventional LCD viewing cones. As a result, the module performs reliably in applications where the observer’s position is not fixed.

Electrical Interface and Driver Integration

SH1122 Driver IC

At the core of the module is the SH1122 driver IC, a controller specifically designed for high-resolution monochrome OLED displays. It supports graphic display modes and integrates RAM addressing, allowing flexible control over pixel mapping and screen updates.

The driver operates under a 1/64 duty cycle, ensuring balanced brightness and extended panel lifespan. Its internal architecture simplifies system integration by reducing the need for external components.

IIC Communication Interface

The module utilizes an IIC (Inter-Integrated Circuit) interface, enabling efficient communication with host microcontrollers using minimal pin count. The 4-pin configuration (typically VCC, GND, SCL, SDA) simplifies hardware design and is particularly advantageous in space-constrained systems.

IIC communication ensures stable data transmission with low electromagnetic interference, making it suitable for sensitive electronic environments.

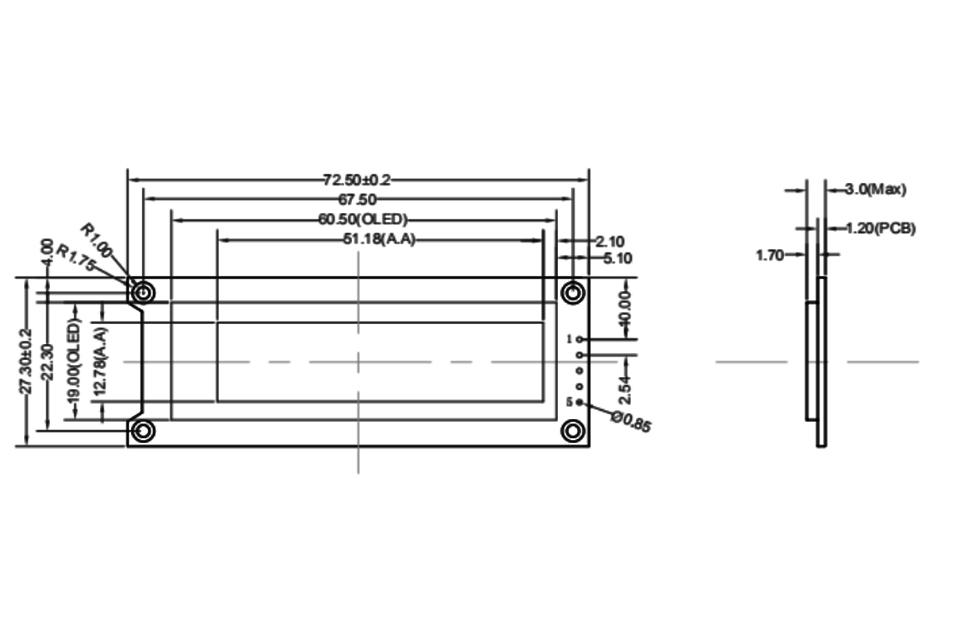

DRAWING

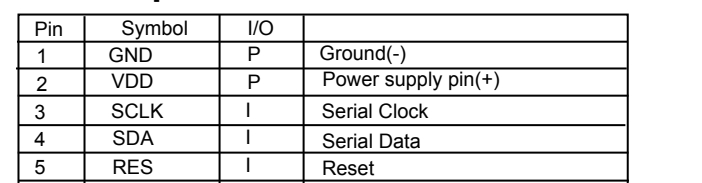

INTERFACE PIN FUNCTION

Application Considerations

Embedded Systems Integration

The combination of a high-resolution dot matrix and a simple IIC interface positions this module as a practical solution for embedded applications. It is particularly suitable for microcontroller-based systems where pin availability and communication efficiency are critical constraints.

Industrial and Portable Devices

Given its durability and wide temperature tolerance, the module can be deployed in industrial control panels, handheld diagnostic tools, and portable measurement instruments. The OLED technology ensures fast response time and stable brightness without the need for backlighting, further enhancing energy efficiency.

Conclusion

The 2.08-inch OLED display module with SH1122 driver IC demonstrates a well-balanced integration of optical clarity, electrical simplicity, and mechanical reliability. Its thoughtful design supports a wide range of applications, from compact consumer devices to demanding industrial environments, while maintaining consistent display performance and ease of system integration.
