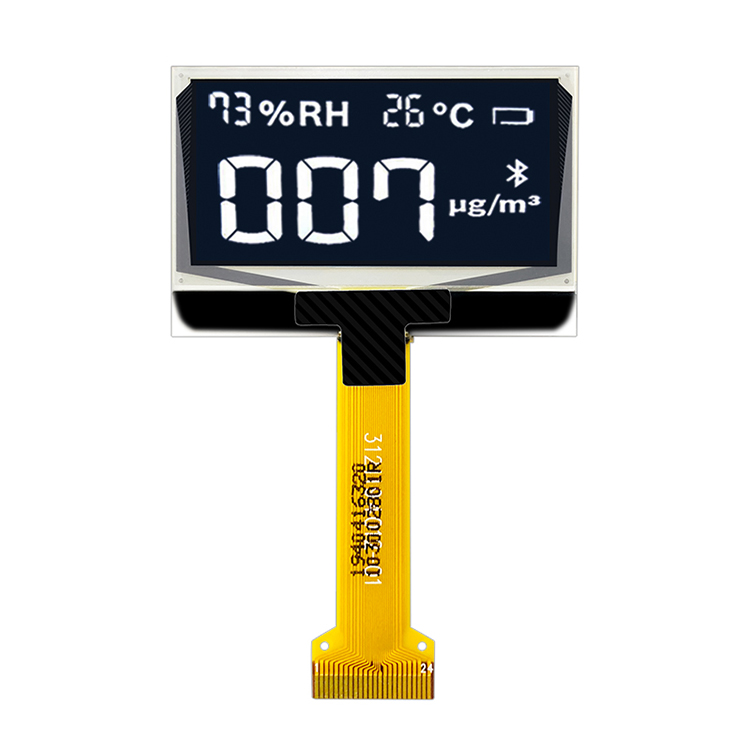

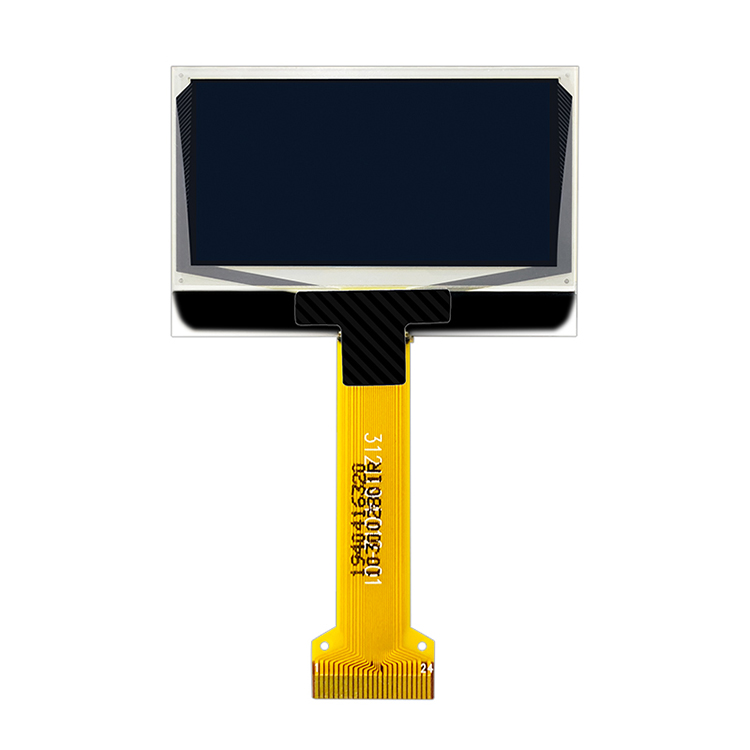

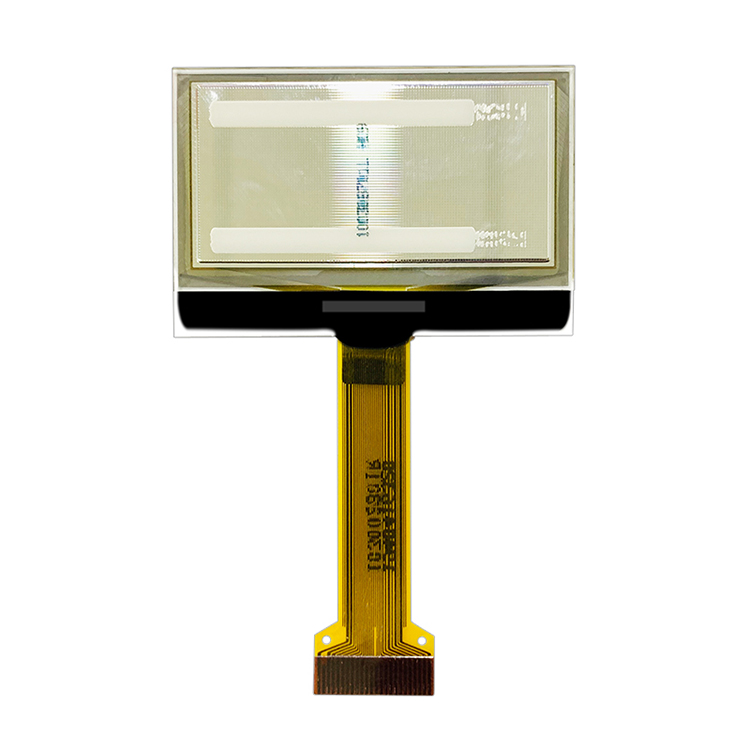

DESCRIPTION

HICENDA OLED 1.6 is a  passive matrix micro OLED display module which is made of 128x64 dots. It has the module dimension of 41.9 × 65.1× 1.61 mm and Active Area size 36.45× 18.21 mm. This OLED micro display is built in with SSD1325 IC, it supports 6800/8080/SPI interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.60 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.

GENERAL SPECIFICATION

Display Type:	oled display  (White/Yellow)
Display Mode:	Passive Matrix
Model Number:	HG--160-12864KSWEG18
Diagonal Screen size:	1.60 inch
Interface:	6800/8080/SPI 24P  (Connector)
Drive Duty:	1/64 Duty
Number of Pixels:	128x64
Panel Size	41.9 × 65.1× 1.61(mm)
Driver IC:	SSD1325
Active Area:	36.45× 18.21 (mm)
Pixel Pitch:	0.285 x 0.285(mm)
Pixel Size:	0.258 x 0.258 (mm)
Weight:	5.15 (g)
Operating Temperature:	-40~85°

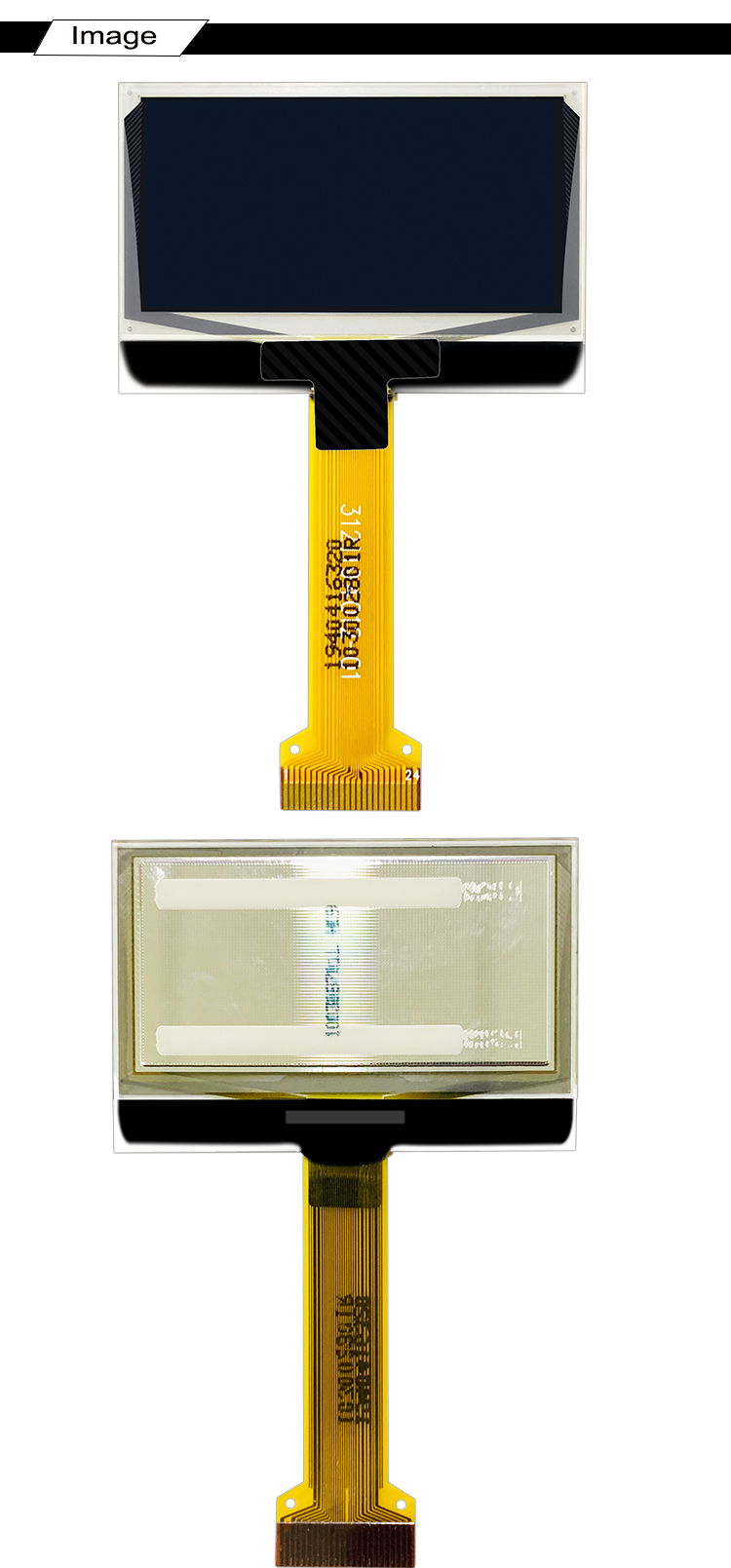

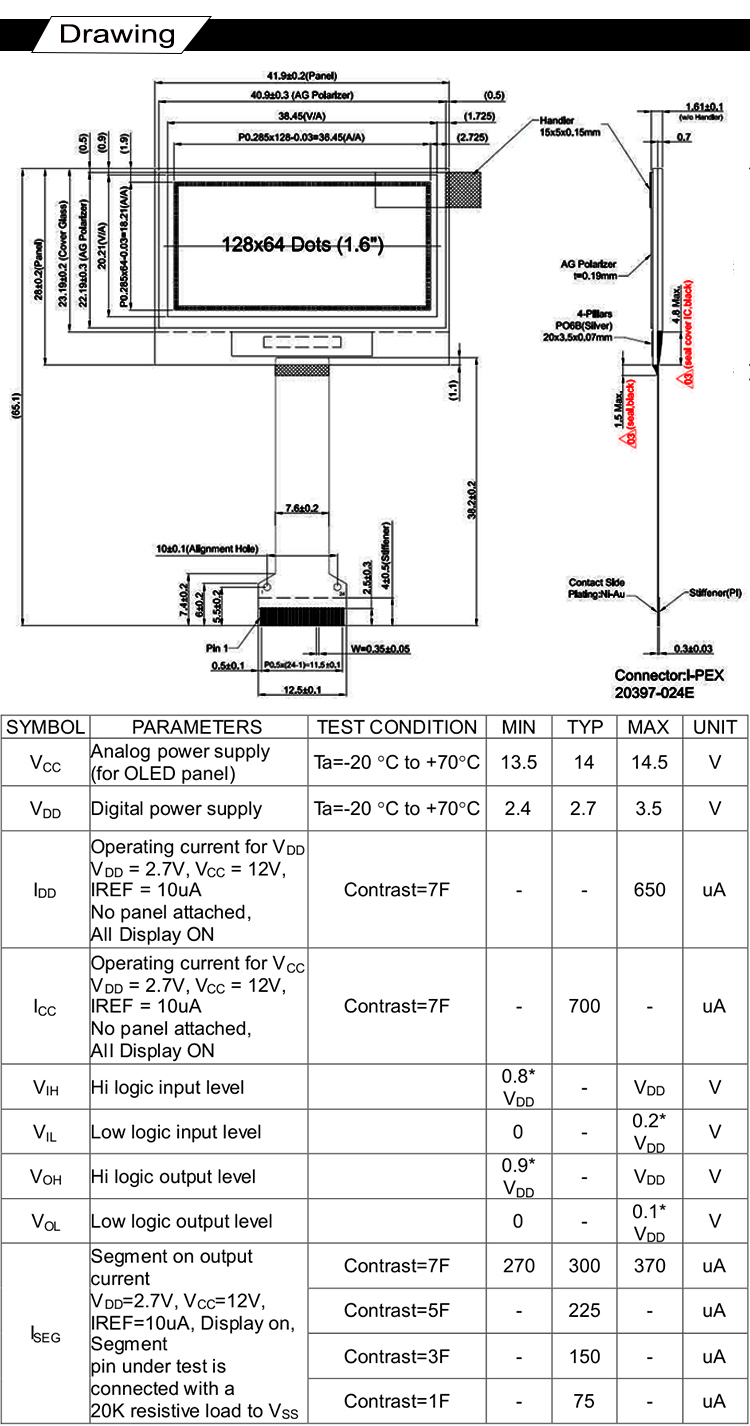

DRAWING

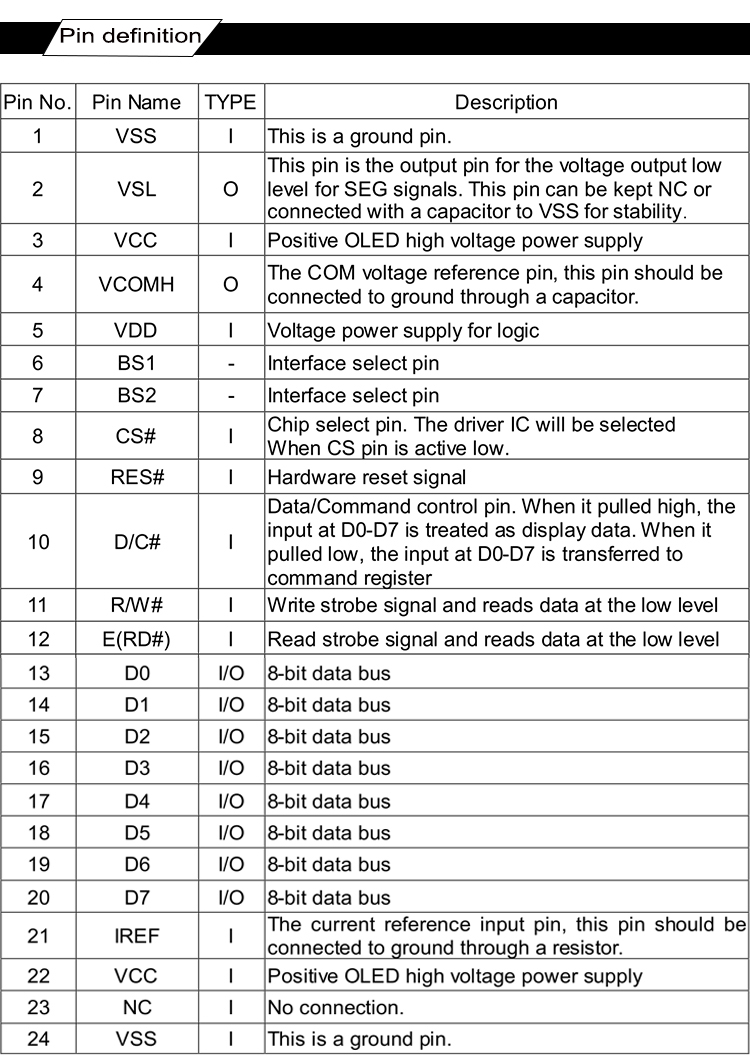

INTERFACE PIN FUNCTION
