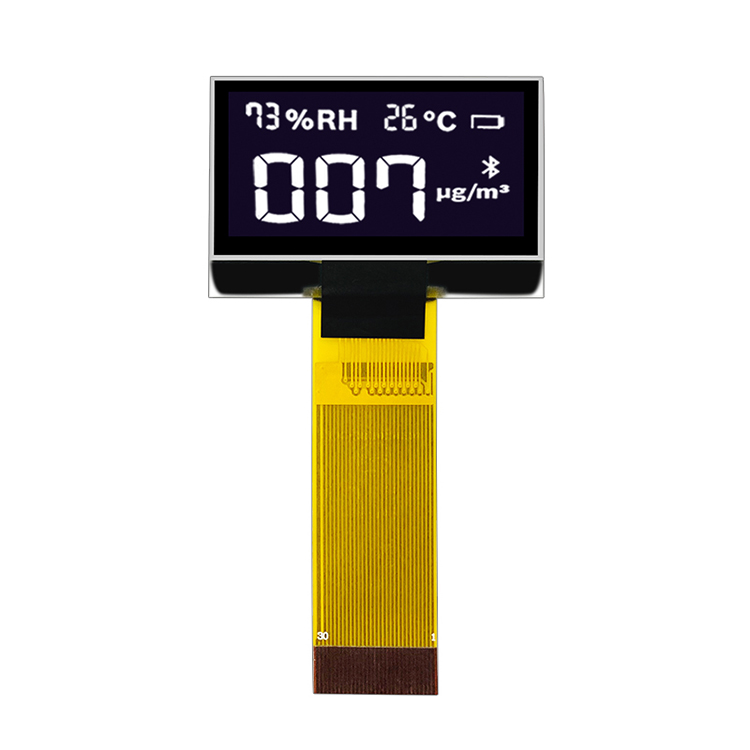

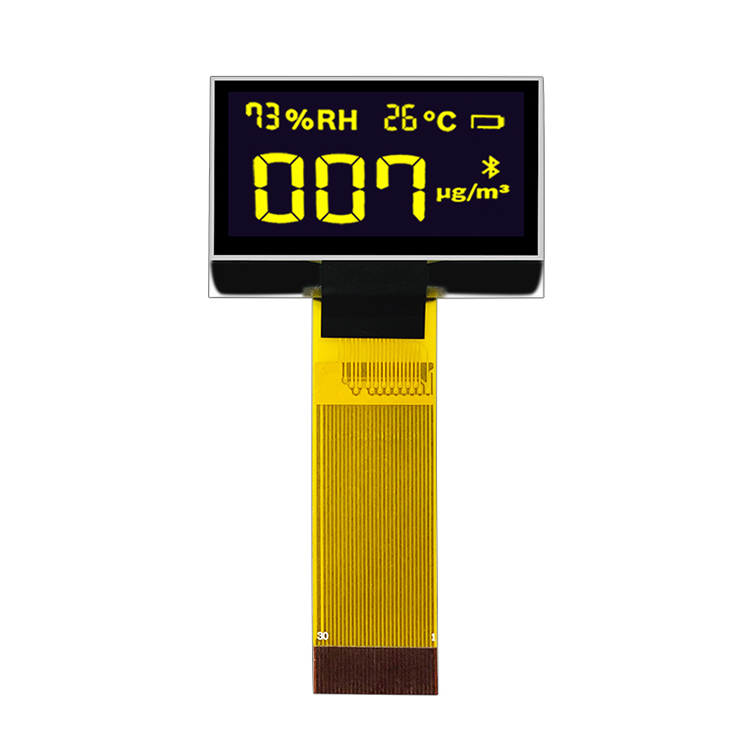

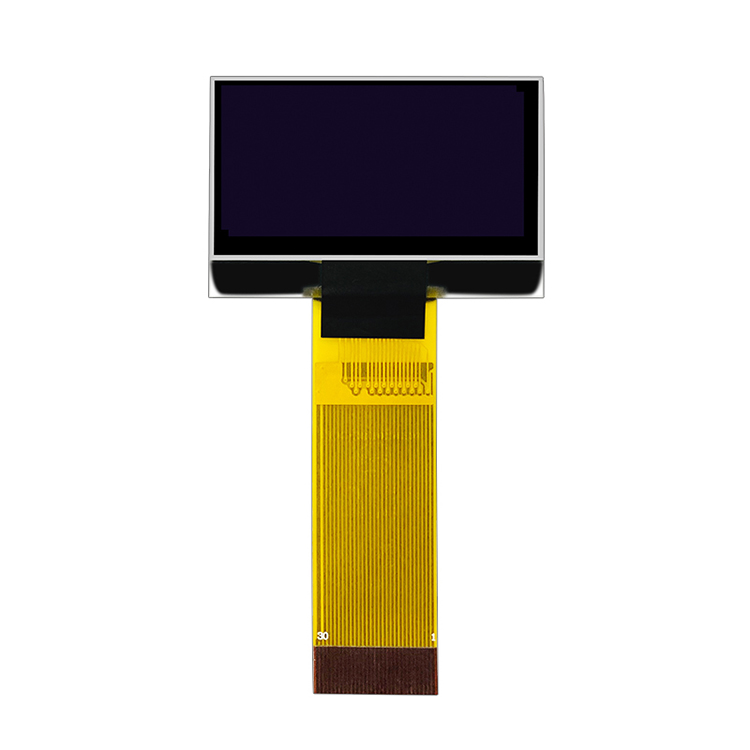

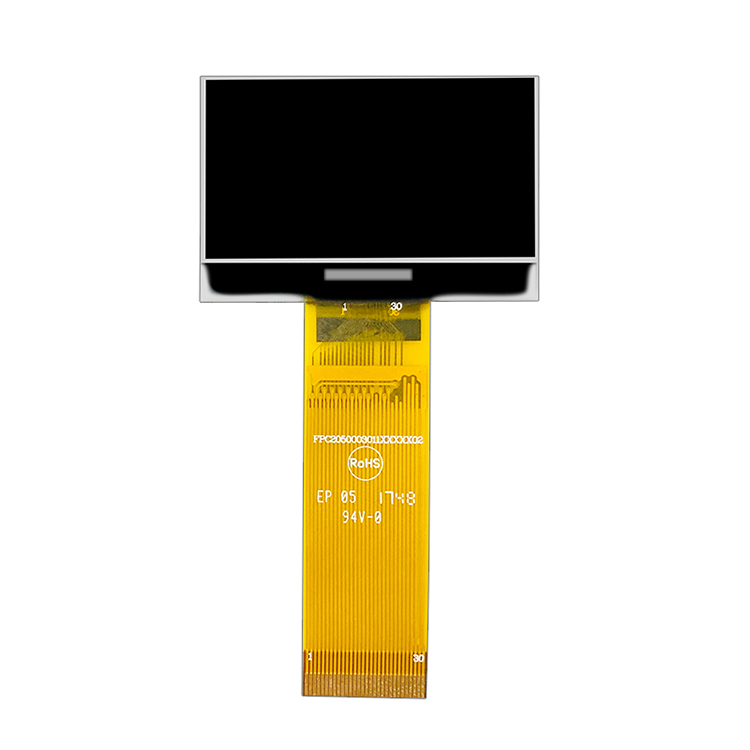

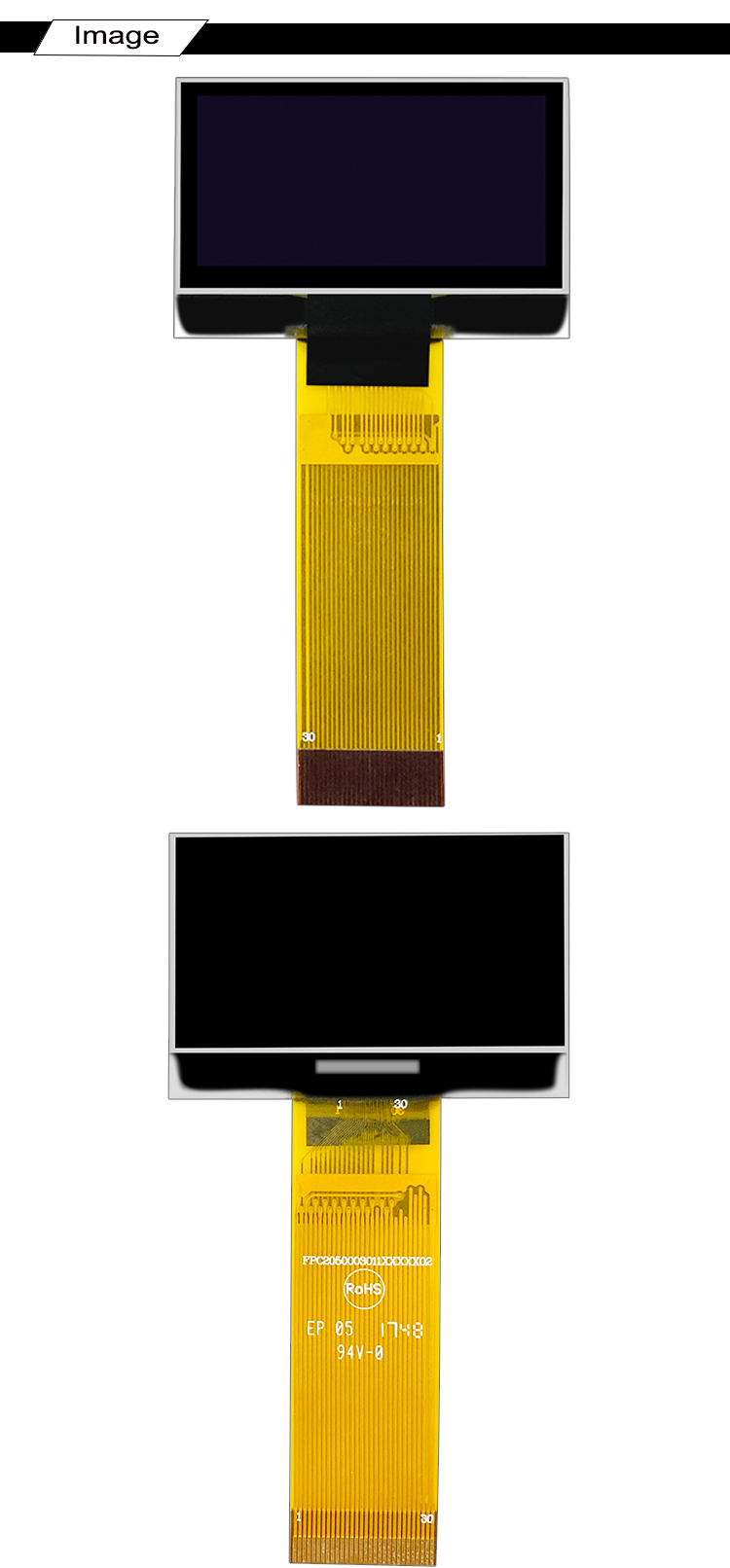

OLED Graphic Display 1.6", 128x64

  • Size: 1.54 OLED
  • Controller IC:SSD1325
  • Resolution: 128*64
  • Interface: MCU 30P
  • Product description: OLED Graphic Display 1.6", 128x64
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 1.6 is a  passive matrix micro OLED display module which is made of 128x64 dots. It has the module dimension of 41.8 × 27.9× 1.8 mm and Active Area size 36.45× 18.21 mm. This OLED micro display is built in with SSD1325 IC, it supports  MCU interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.60 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Display Type:                                                                        oled display  (White/Yellow/Blue)
Display Mode: Passive Matrix
Model Number:

HG--160-12864KSWEG17

Diagonal Screen size: 1.60 inch
Interface:

MCU 30P (Connector)

Drive Duty:

1/64 Duty

Number of Pixels:

128x64

Panel Size

41.8 × 27.9× 1.8(mm)

Driver IC:

SSD1325

Active Area:

36.45× 18.21 (mm)

Pixel Pitch:

0.274 x 0.274(mm)

Pixel Size:

0.258 x 0.258 (mm)

Weight:

5.15 (g)

Operating Temperature:

-40~85°

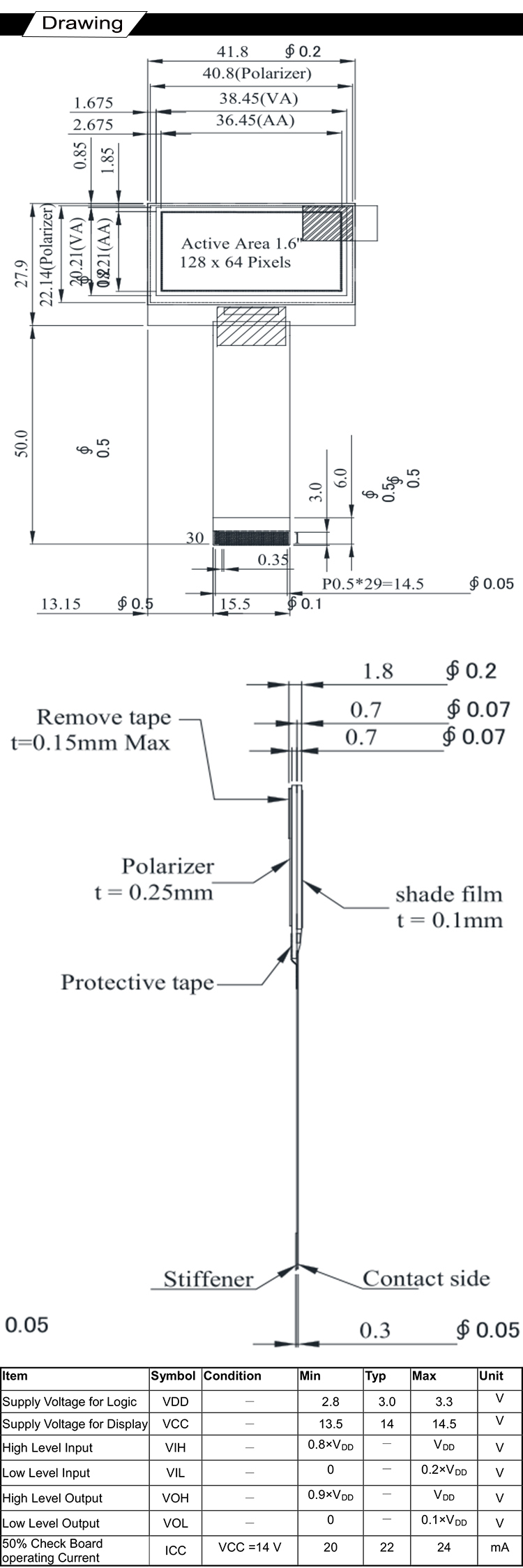

DRAWING

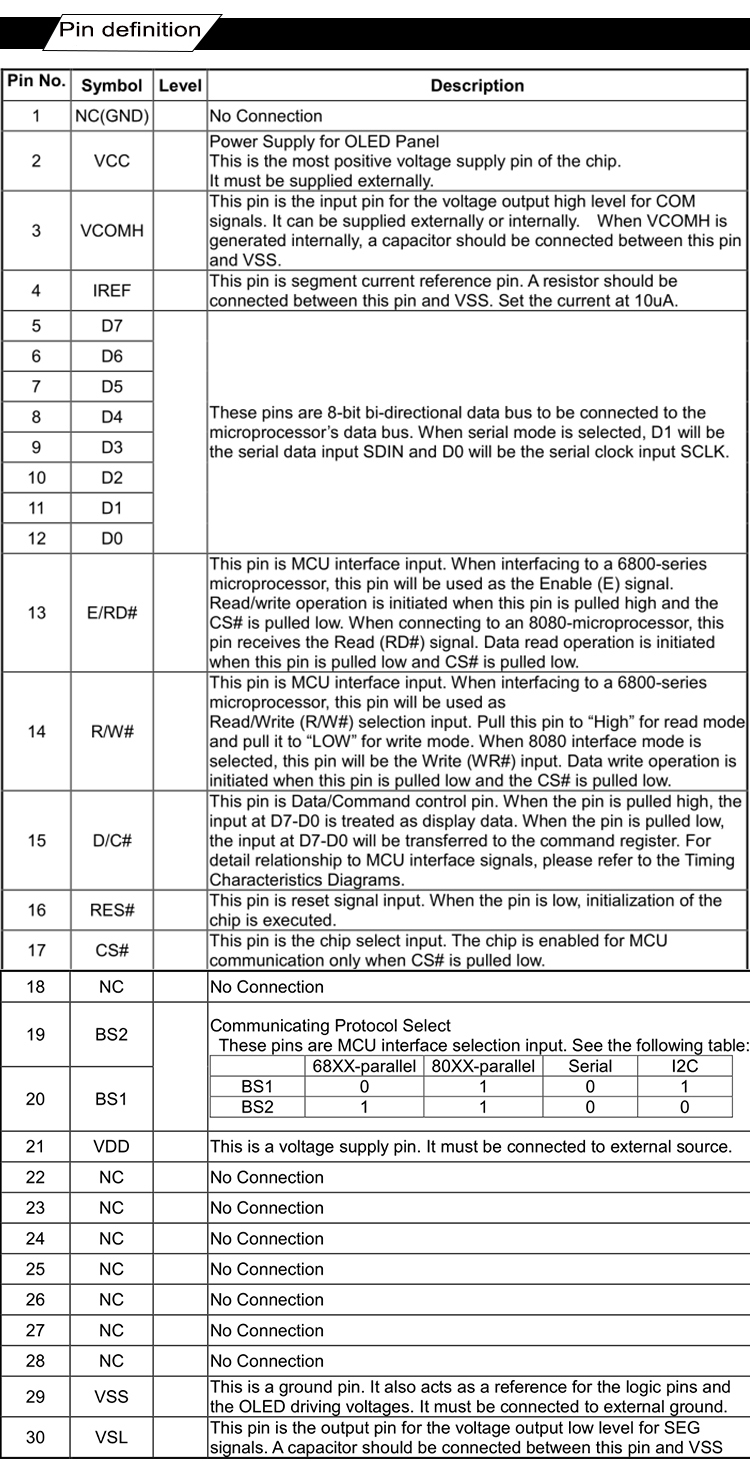

INTERFACE PIN FUNCTION

CONTACT US

Contact: David

Phone: +8618665976986

Tel: +8675521563288

Email: [email protected]

Add: 708 Room A Buiding Huafeng International Robot Industrial Park Xixiang Bao'an
