1.69" color

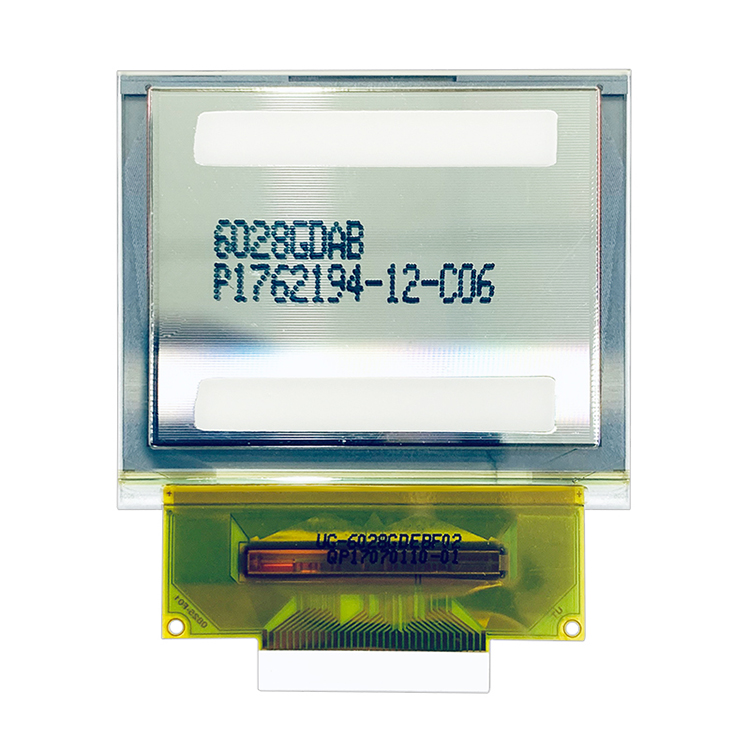

  • OLED COLOR Display 1.69 inch 160x128 oled SEPS525

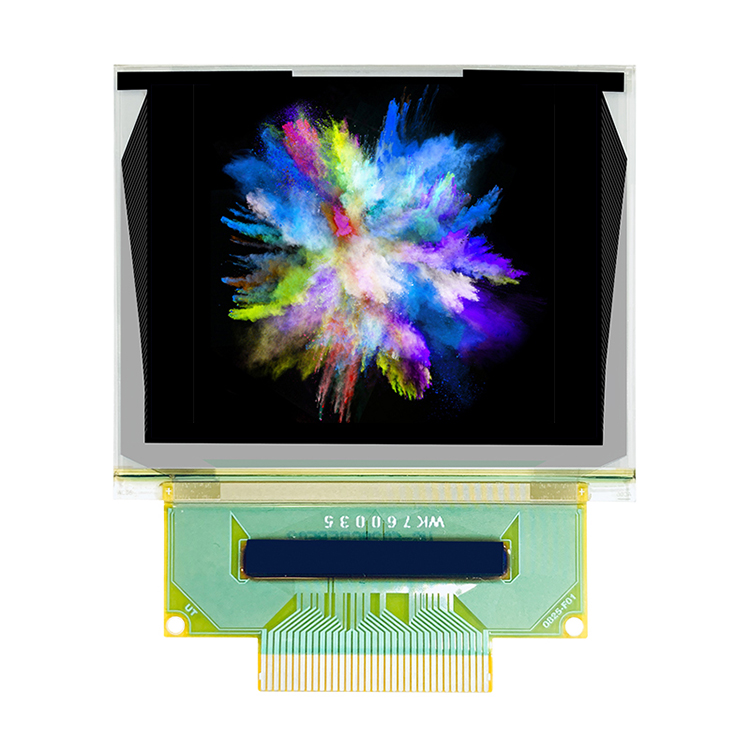

  • OLED COLOR Display 1.69 inch 160x128 oled SEPS525

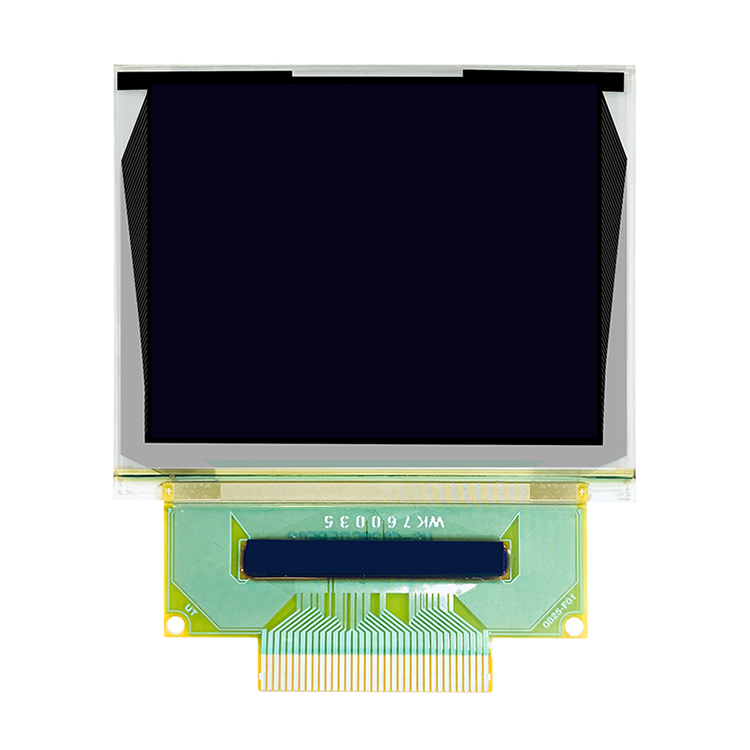

  • OLED COLOR Display 1.69 inch 160x128 oled SEPS525
OLED COLOR Display 1.69 inch 160x128 oled SEPS525OLED COLOR Display 1.69 inch 160x128 oled SEPS525OLED COLOR Display 1.69 inch 160x128 oled SEPS525

OLED COLOR Display 1.69 inch 160x128 oled SEPS525

  • Size:1.69 color OLED
  • Controller IC:SEPS525
  • Resolution:160x128
  • Interface:8080/6080/ 6 bits RGB 35P
  • Product description: OLED COLOR Display 1.69" 160x128
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 1.69 is a  passive matrix micro color OLED display module which is made of 160X128 dots. It has the module dimension of 39.9 x 48.5 ×1.67 mm and Active Area size 33.575 ×26.864 mm. This OLED micro display is built in with SEPS525 IC, it supports 8080/6080/ 6 bits RGB interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 1.69 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION


Display Type: oled display   (full color)
Display Mode: Passive Matrix
Model Number:

HG--169-96KSWEG16

Diagonal Screen size: 1.69 inch
Interface:

8080/6080/ 6 bits RGB 35P(Connector)

Drive Duty:

1/128 Duty

Number of Pixels:

160x128

Panel Size

39.9 x 48.5 ×1.67 (mm)

Driver IC:

SEPS525

Active Area:

33.575 ×26.864 (mm)

Pixel Pitch:

0.07 x 0.21(mm)

Pixel Size:

0.045 x 0.194(mm)

Weight:

4.5 (g)

Operating Temperature:

-40~85°

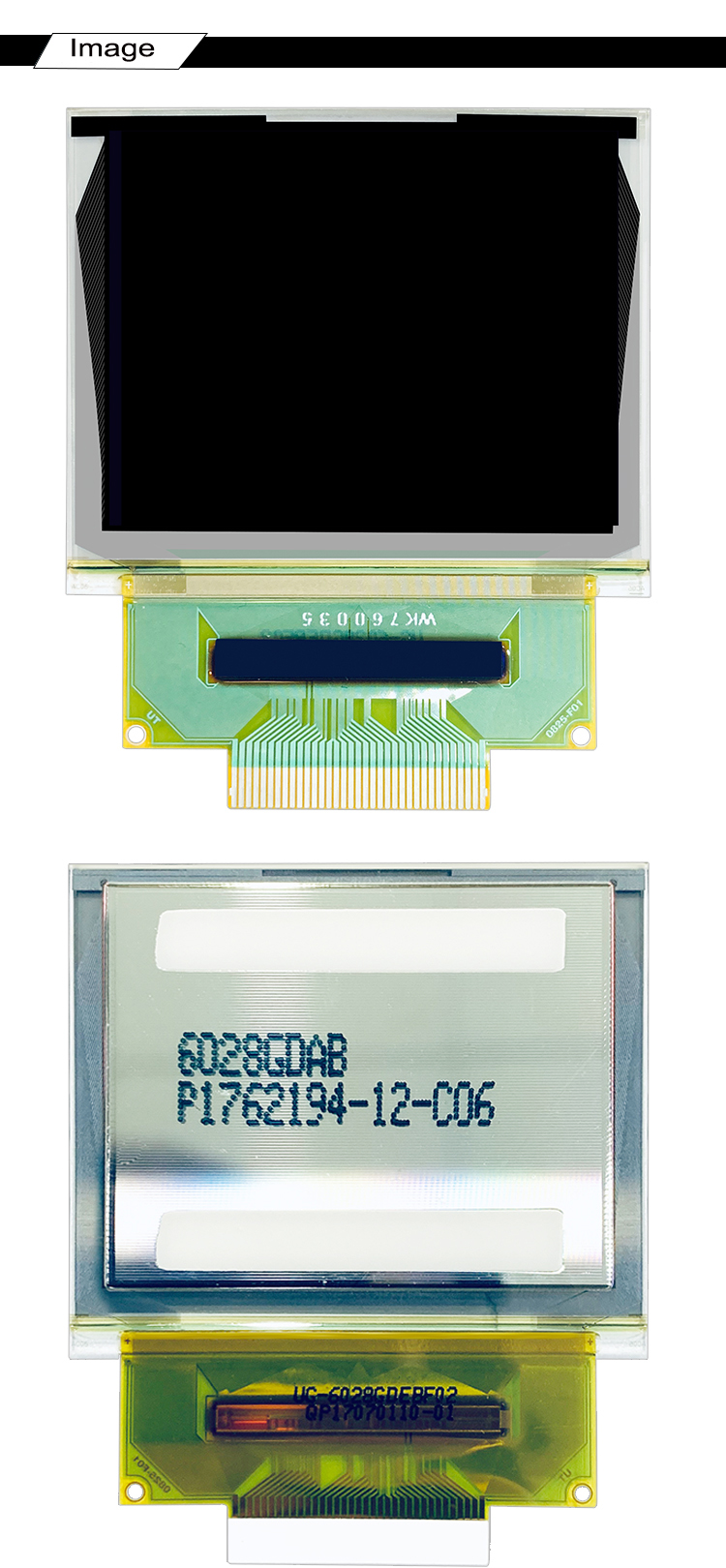

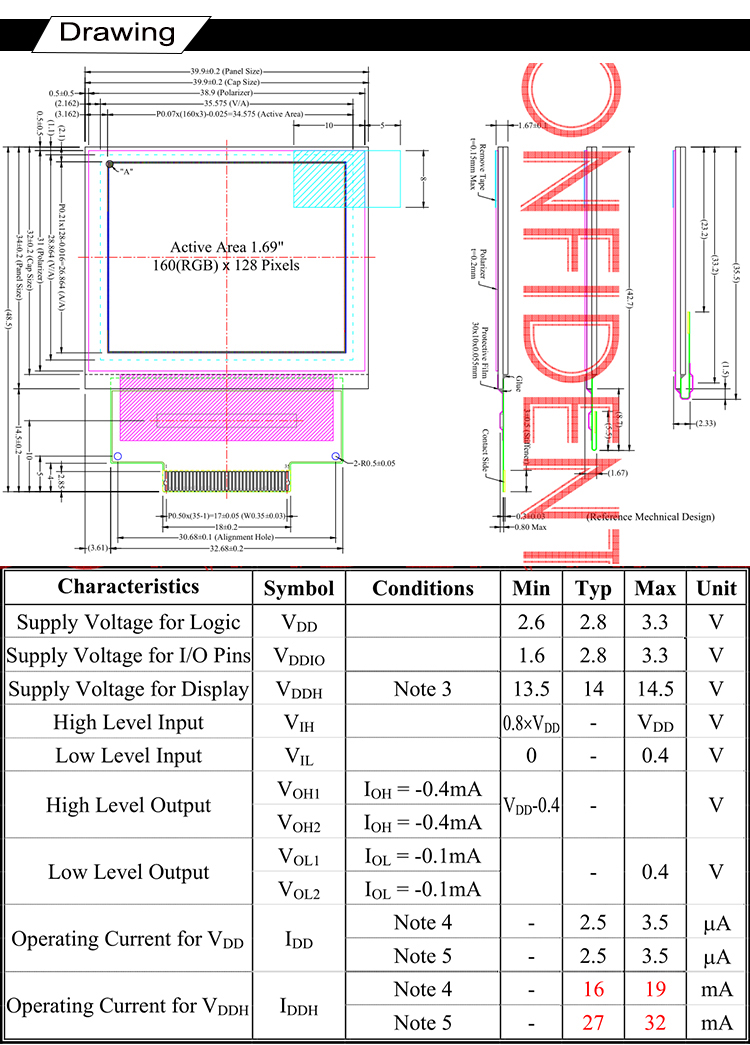

DRAWING



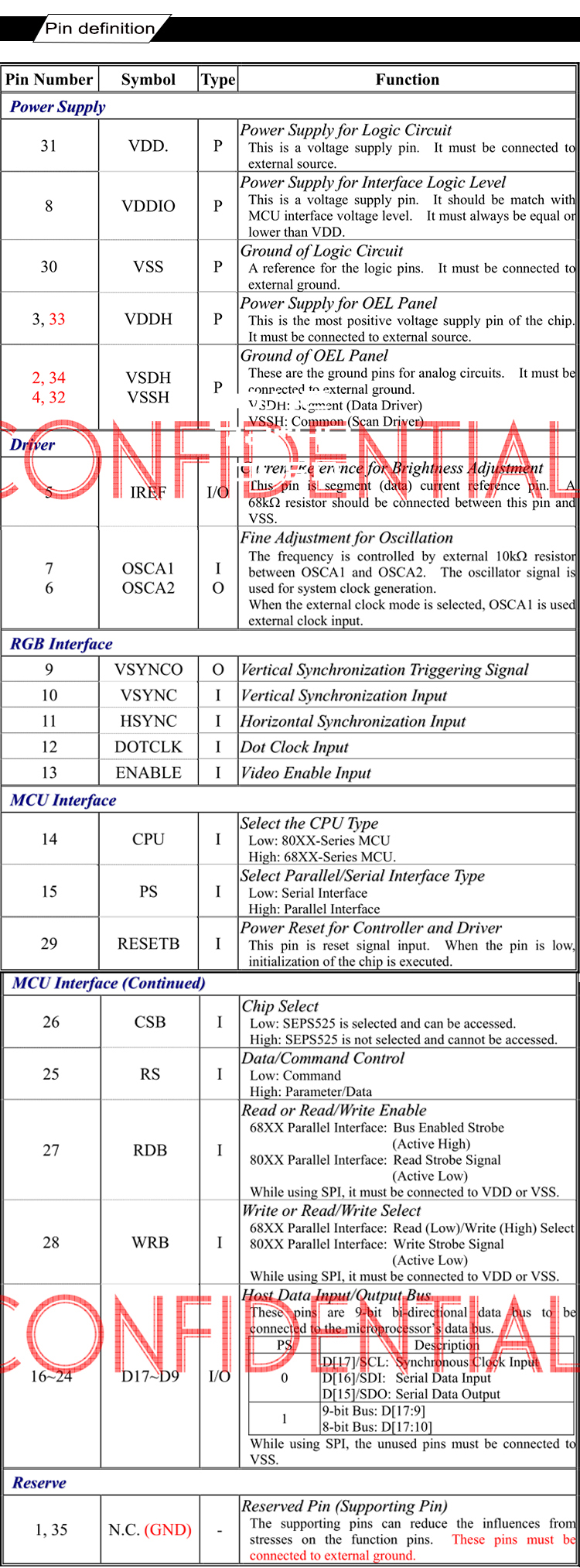

INTERFACE PIN FUNCTION
