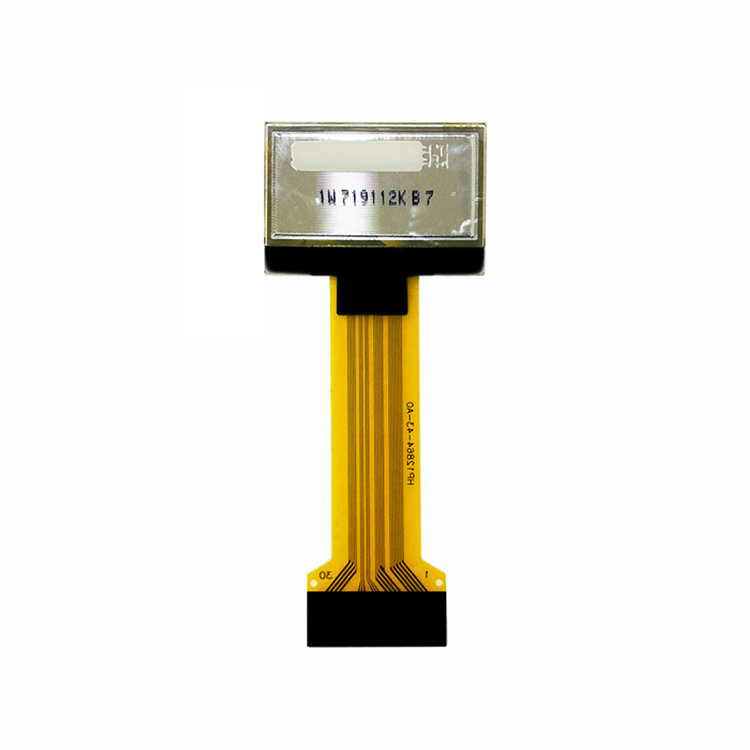

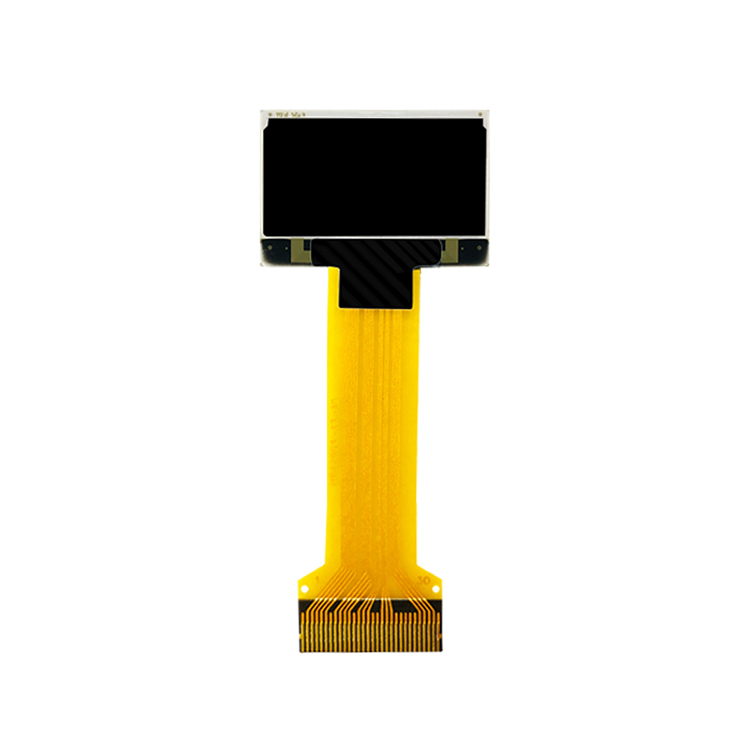

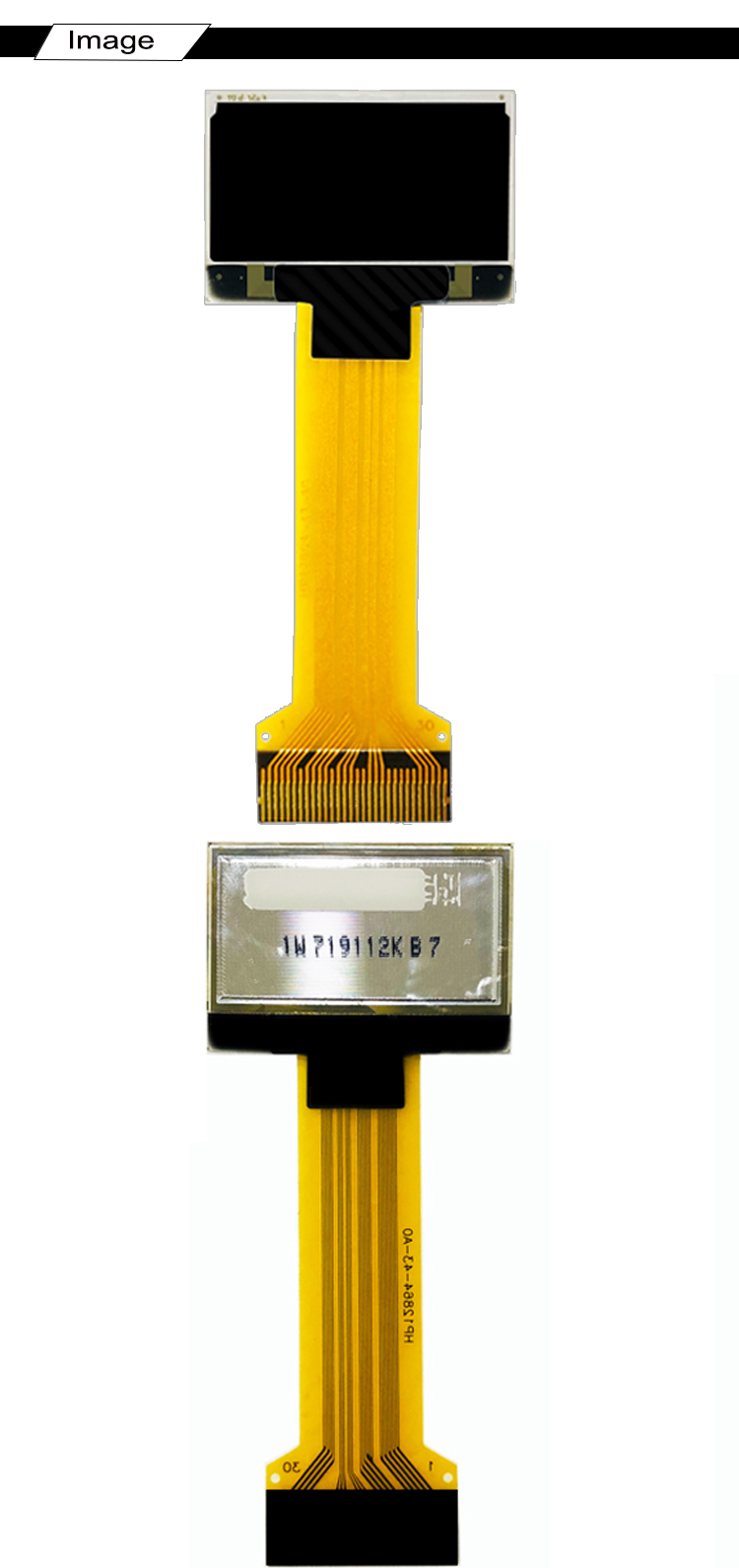

  • Size: 0.96 OLED
  • Controller IC:SSD1315
  • Resolution: 128*64
  • Interface: I2C/SPI 30P
  • Product description: 0.96" inch Graphic OLED Display 128X64 DOTS
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION


HICENDA OLED 0.96 is a  passive matrix micro OLED display module which is made of 128x64 dots. It has the module dimension of 24.74 × 58.5 × 1.42 mm and Active Area size 21.74 × 10.86 mm. This OLED micro display is built in with SSD1315 IC, it supports I2C interface, 3V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.96 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +70℃; its storage temperatures range from -40℃ to +85℃.




GENERAL SPECIFICATION




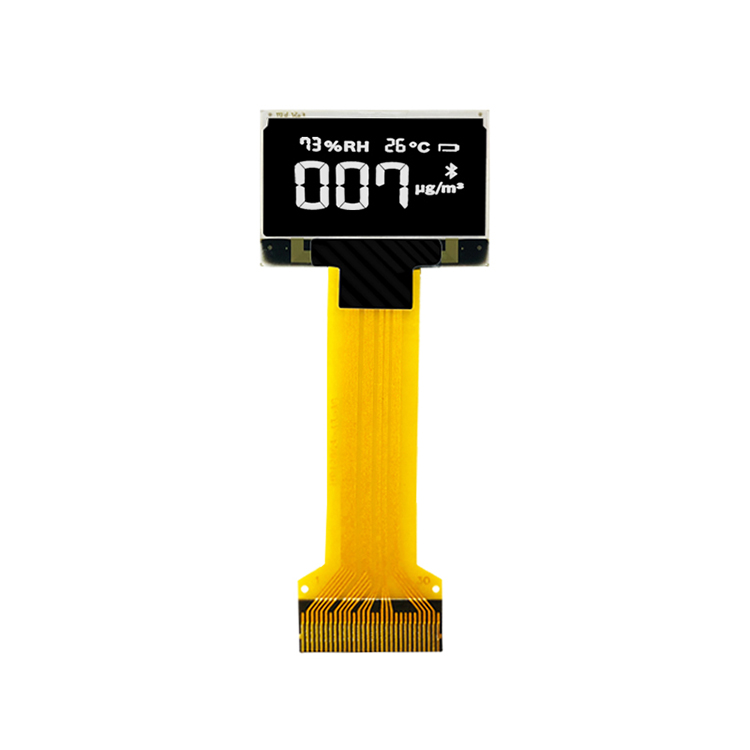

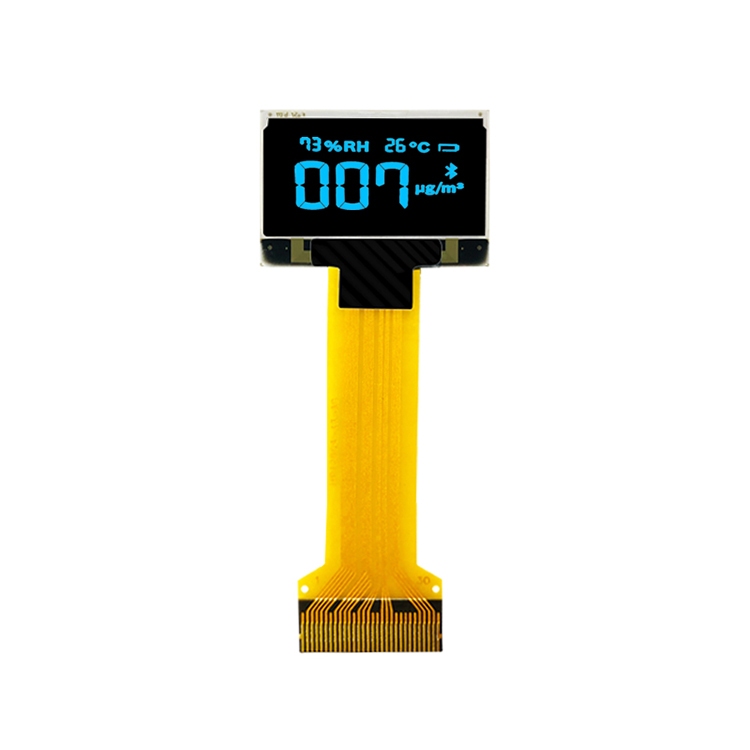

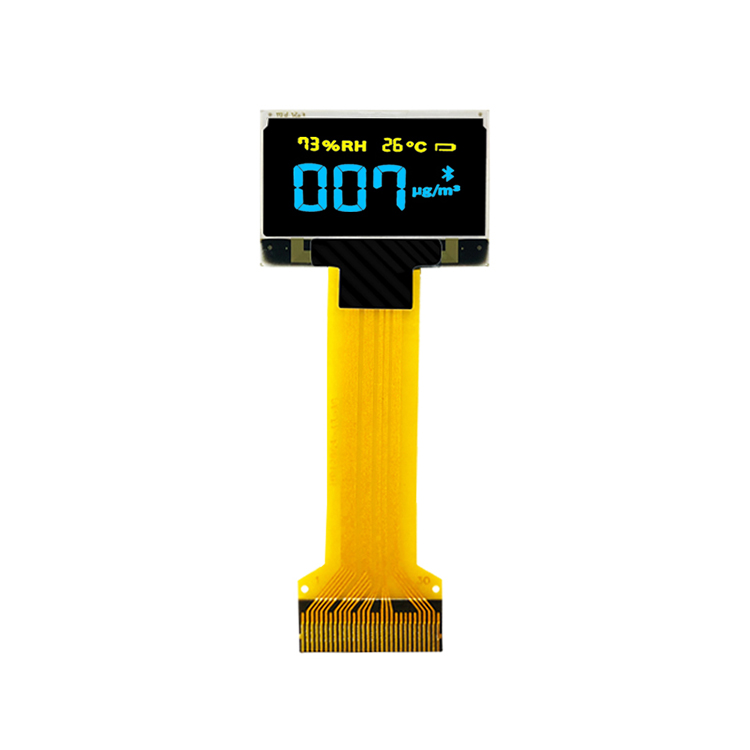

Display Type: oled display (White/Blue/Yellow blue)
Display Mode: Passive Matrix
Model Number:

HG--096-2864KSWEG08

Diagonal Screen size: 0.96 inch
Interface:

I2C/SPI  20P

Drive Duty:

1/64 Duty

Number of Pixels:

128x64

Panel Size:

24.74 × 58.5 × 1.42 (mm)

Driver IC:

SSD1315

Active Area:

21.74 × 10.86 (mm)

Pixel Pitch:

0.17 x 0.17(mm)

Pixel Size:

0.154 x 0.154 (mm)

Weight:

1.54 (g)

Operating Temperature:

-40~85°

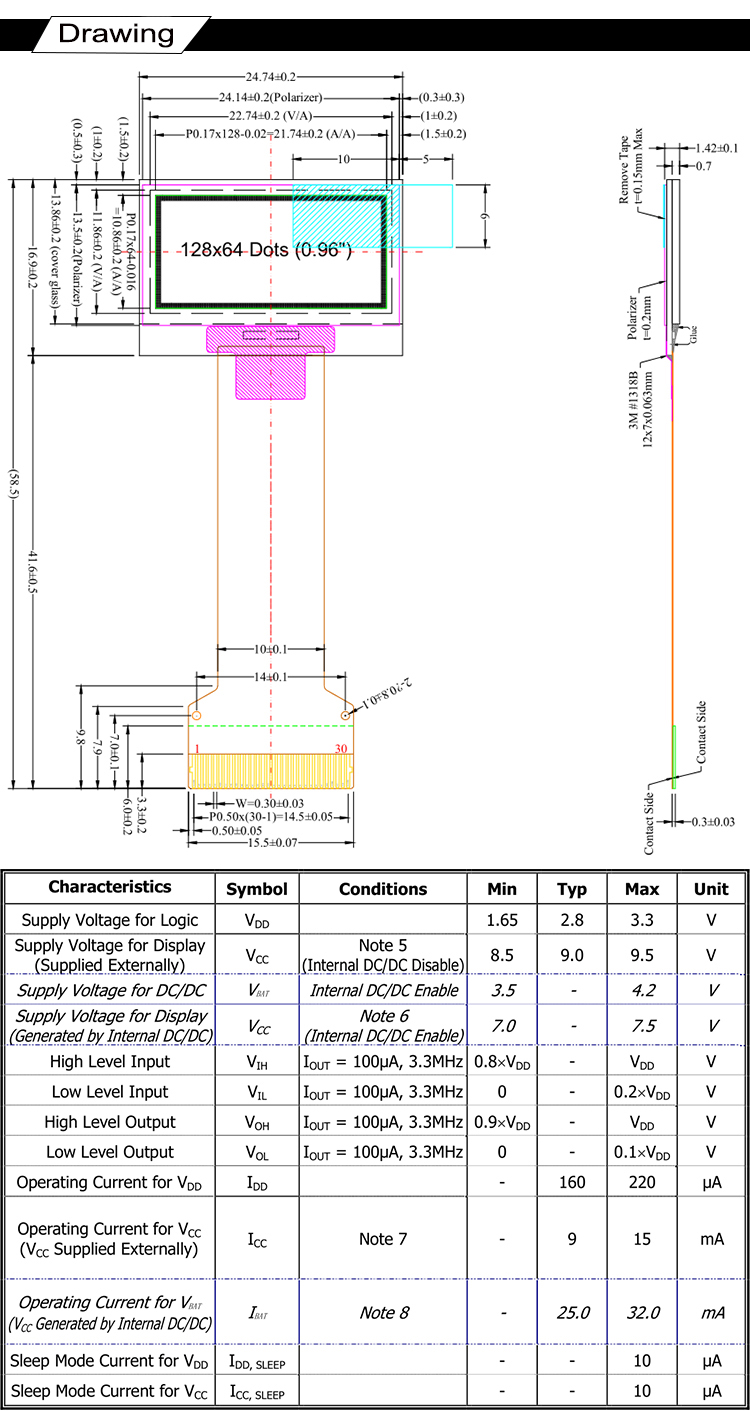

DRAWING

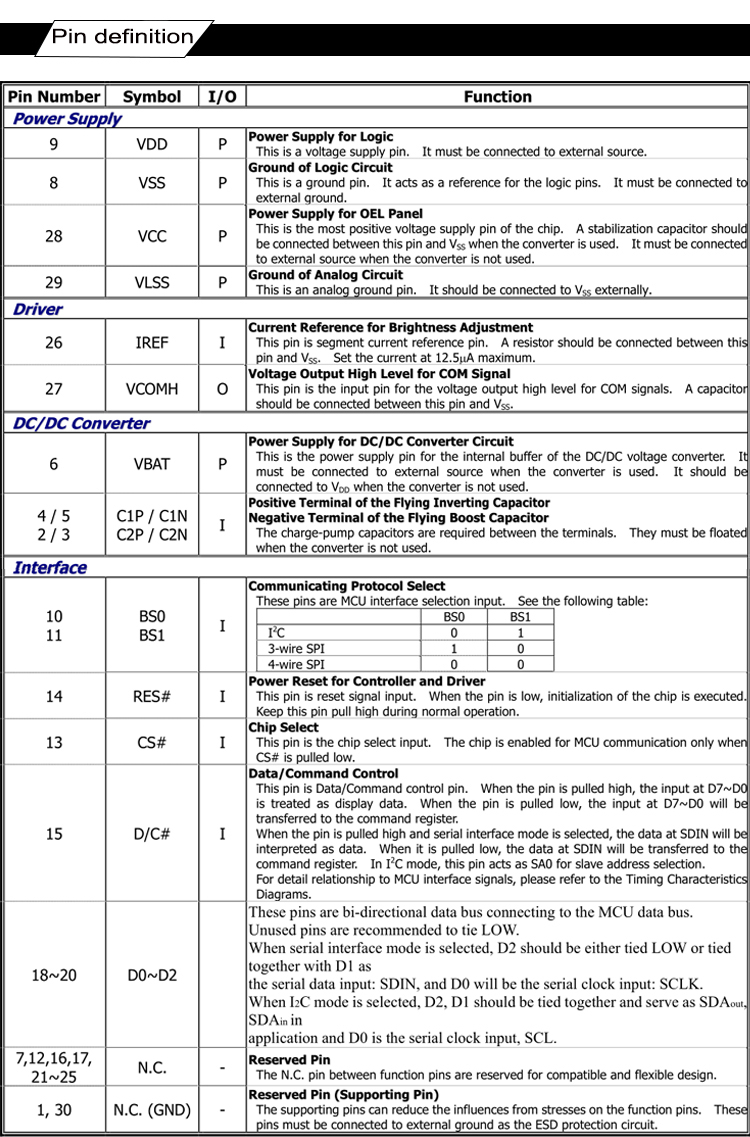

INTERFACE PIN FUNCTION
