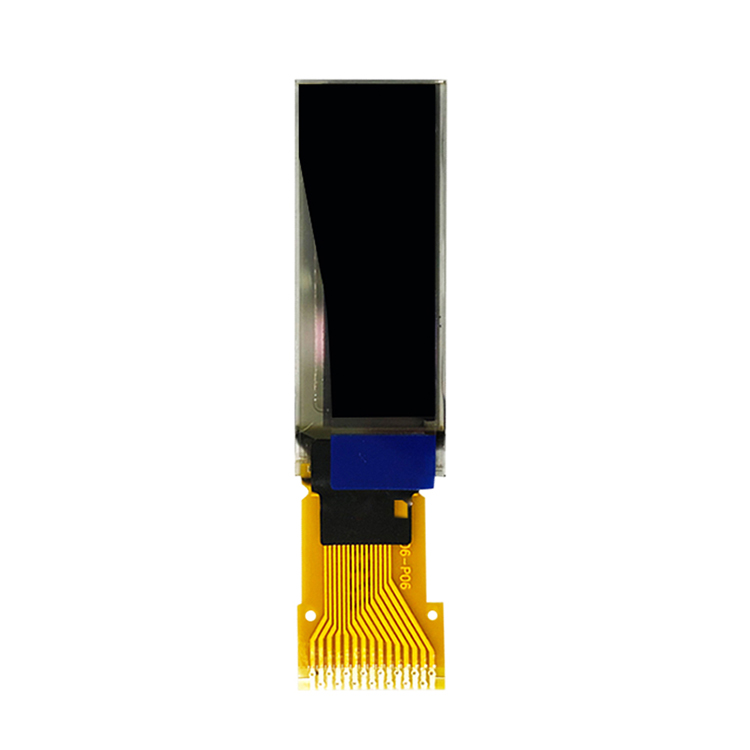

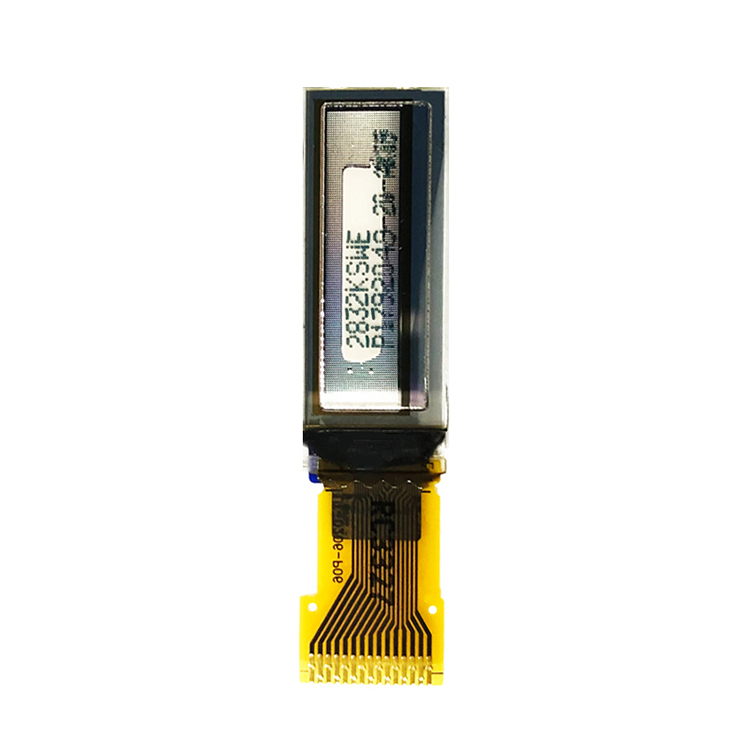

0.91" 128x32 OLED Micro Display 15P

  • Size: 0.91 OLED
  • Controller IC: SSD1306
  • Resolution: 128x32
  • Interface:SPI 15p
  • Product description: Micro OLED Display, 0.91" 128x32 OLED Micro Display 15P
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA OLED 0.91 is a  passive matrix micro OLED display module which is made of 128x32 dots. It has the module dimension of 30x11.5x1.2 mm and Active Area size 22.384x5.584 mm. This OLED micro display is built in with SSD13066 IC, it supports I2C interface, 3V-5V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.91 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.  the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



GENERAL SPECIFICATION

Diagonal Screen Size
0.91 inch
Color
Mono(White/Blue)
Model number
HT--091OLED7
Resolutions
128x32
Outline dimension
30x11.5x1.2mm
Active area
22.384x5.584mm
Pixel pitch
0.175x0.175mm
Pixel size
0.159x0.159mm
Driver IC
SSD1306
Voltage
3-5V
Interface
SPI
Operating temperature
-40~70℃
Storge Temperature
-40~80℃
Assemble
Soldering
Pins
15 P



DRAWING



INTERFACE PIN FUNCTION
