Please kindly contact us for full data sheet of the display.
DESCRIPTION
HICENDA OLED 0.86 is a passive matrix micro OLED display module which is made of 96x32 dots. It has the module dimension of 39.6x9.2x1.227 mm and Active Area size 39.6x9.2x1.227 mm. This OLED micro display is built in with SSD1316 IC, it supports I2C interface, 3V-5V power supply. It is a COG structure OLED display which is ultra thin and no need of backlight (self emitting); it's lightweight and low power consumption. This 0.86 inch small sized OLED module is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc. the module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.
GENERAL SPECIFICATION
Diagonal Screen Size
0.86 inch
Color
Mono(White)
Model number
HT--071OLED5
Resolutions
96x32
Outline dimension
39.6x9.2x1.227mm
Active area
21.06x6.06mm
Pixel pitch
0.202x0.202mm
Pixel size
0.182x0.182mm
Driver IC
SSD1316
Voltage
3-5V
Interface
I2C
Operating temperature
-40~70℃
Storge Temperature
-40~80℃
Assemble
Soldering
Pins
14P

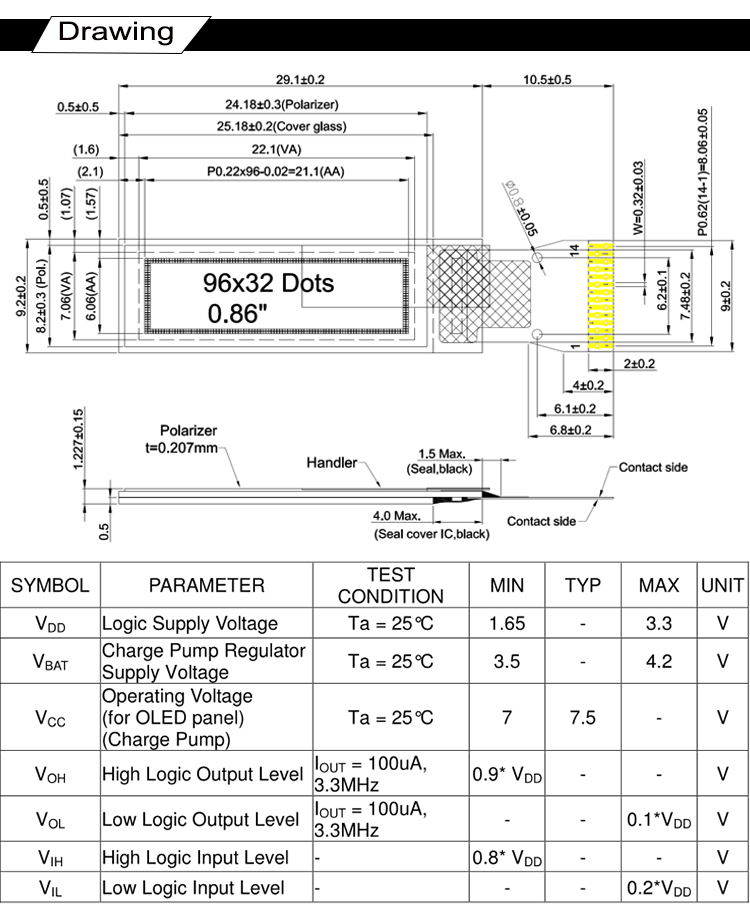

DRAWING

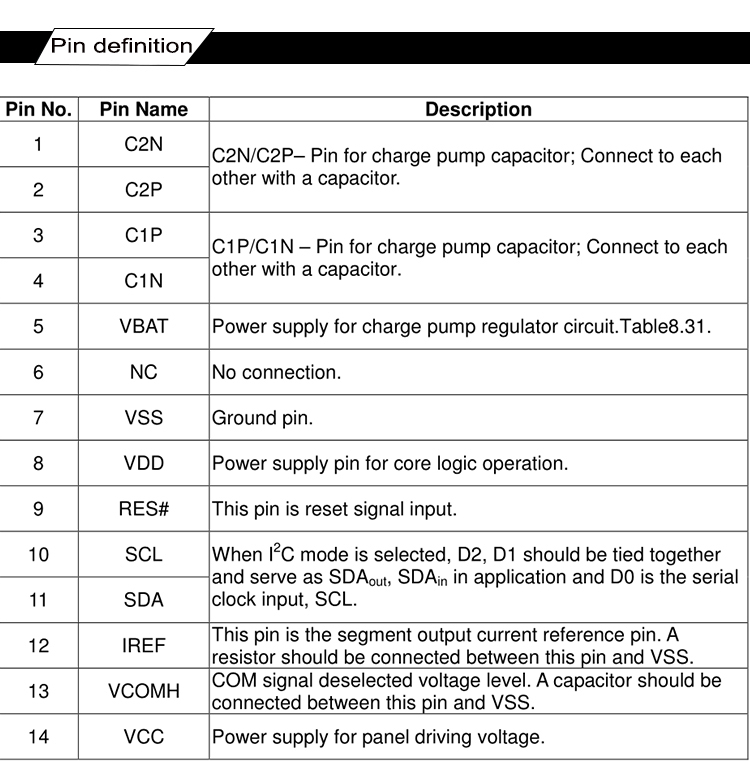

INTERFACE PIN FUNCTION
