5.5" sharp ls055d1sx05(g) tft lcd display 2160(RGB)x3840

  • Size: 5.5 OLED
  • Controller IC: WD5EA5F01
  • Resolution: 1080(RGB)*1920
  • Interface: MIPI
  • Product description: 5.5" FHD 1080P AMOLED Display, 1080(RGB)*1920
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

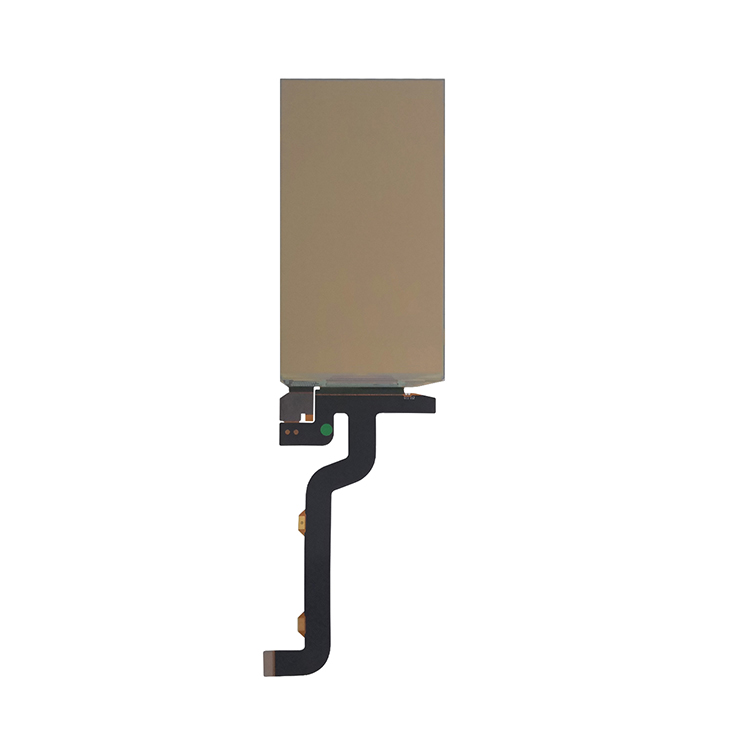

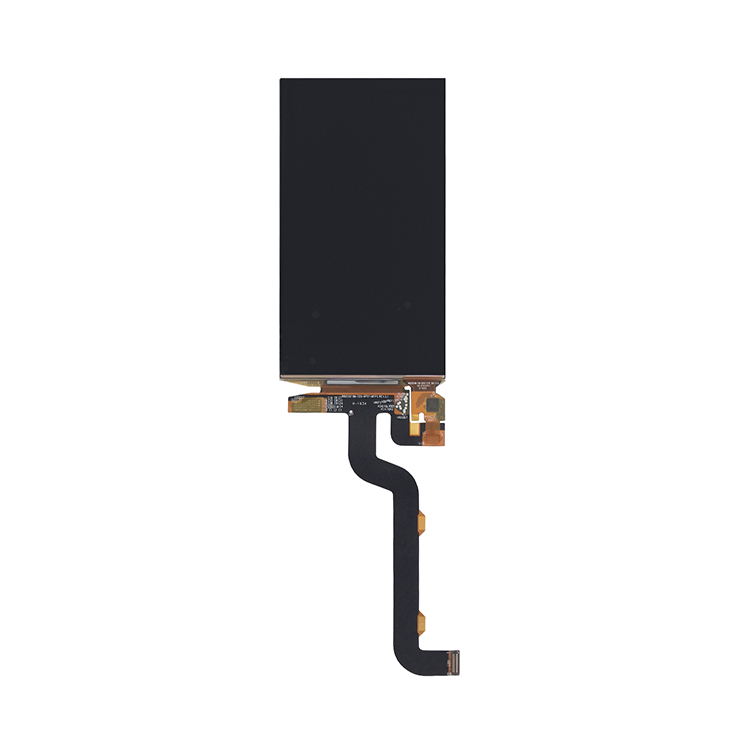

HICENDA 5.5” FHD1080 is a color active matrix AMOLED module using Low Temperature Poly-silicon Thin Film Transistors as active switching devices. This module has a 5.5inch diagonally measured active area with FHD resolutions (1080horizontal by 1920vertical pixel arrays). Each pixel is divided into RED and GREEN dots, orBLUE and GREEN dots, and two pixels share RED or BLUE dots which are arranged in vertical stripe and thismodule can display 16.7M colors.




GENERAL SPECIFICATION


Display Type:                                                         amoled  display
Display Mode: COLOR AMOLED
Model Number:

HG-BB055FHM-T00-6P01
Diagonal Screen size: 5.5 inch
Interface:

MIPI 4-lane
Driver Duty:

-


Number of Pixels: 1080(RGB)*1920
Panel Size

70.71(W) × 128.44(H) × 0.50(T) (mm)
Driver IC:

WD5EA5F01
Active Area:

68.31(W) × 121.44(H)
Pixel Pitch:

63.25(W) × 63.25(H)(um)
Display Colors:

16.7M

Weight:

TBD

Operating Temperature:

-40~85°


DRAWING





INTERFACE PIN FUNCTION
