5.46-Inch AMOLED Display with Capacitive Touch, MIPI Interface, and RM69071 Driver

5.46-inch AMOLED display with built-in capacitive touch, a MIPI interface, RM69071 driver IC, and 39-pin connection. Supports 16.7 million colors for smart-device interfaces; confirm host and touch integration requirements.

Product Inquiry
Share your love

The 5.46-inch AMOLED display combines a rectangular color panel, a built-in capacitive touch panel, and an RM69071 driver IC. With a MIPI display interface and 16.7 million display colors, this module is a candidate for smart devices and compact embedded interfaces requiring an integrated display and touch surface.

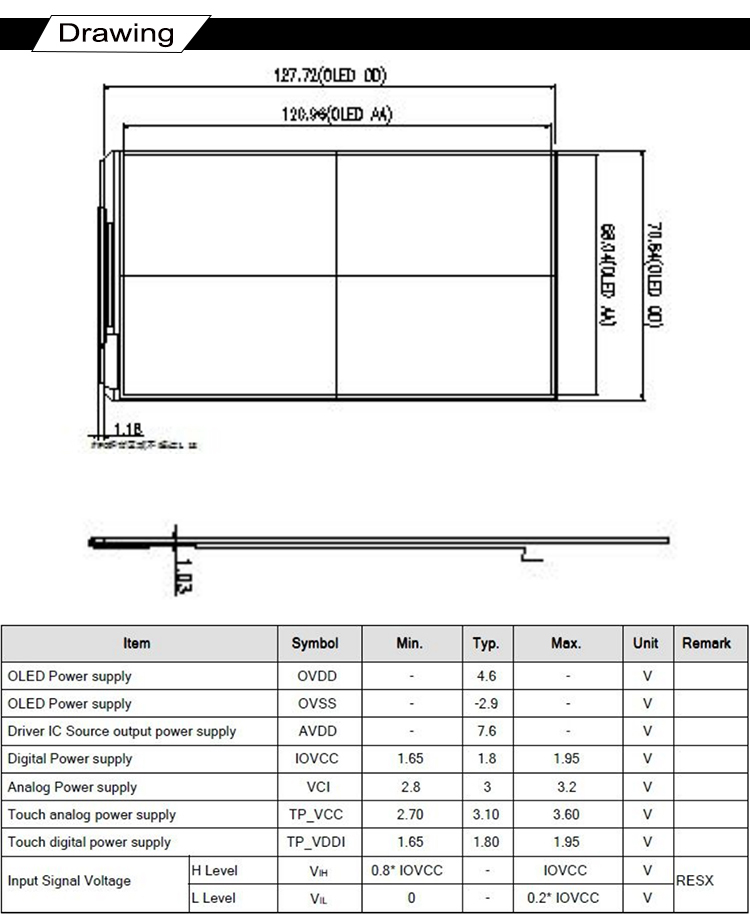

Potential applications include handheld terminals and other smart equipment with compatible MIPI host hardware. Integration requires confirmation of the connector pinout, power sequencing, touch controller, and touch communication interface. Review the module datasheet and mechanical drawing to confirm panel resolution, electrical requirements, and enclosure clearances before finalizing the design.

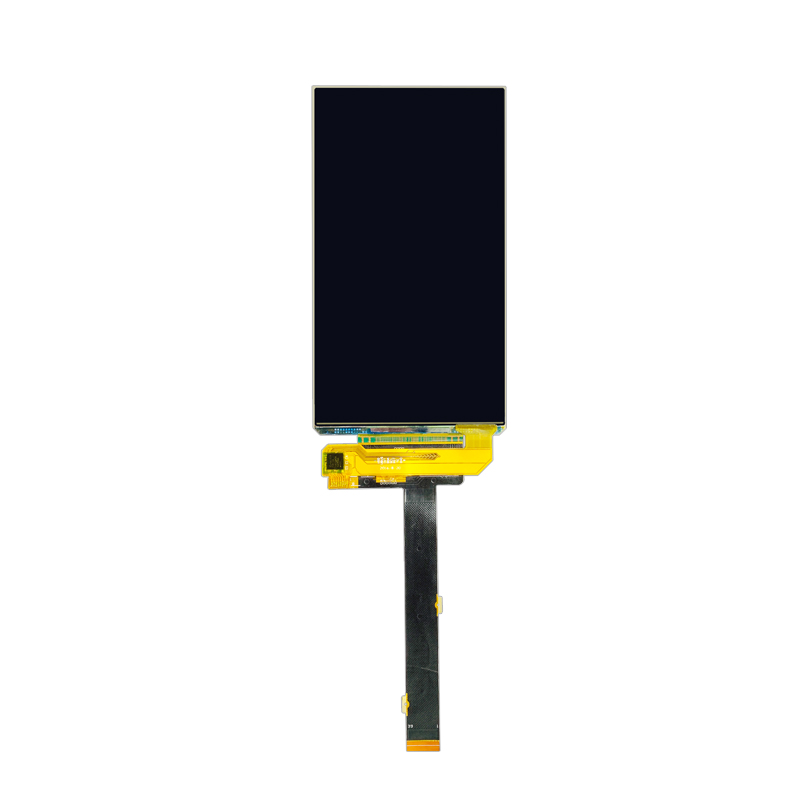

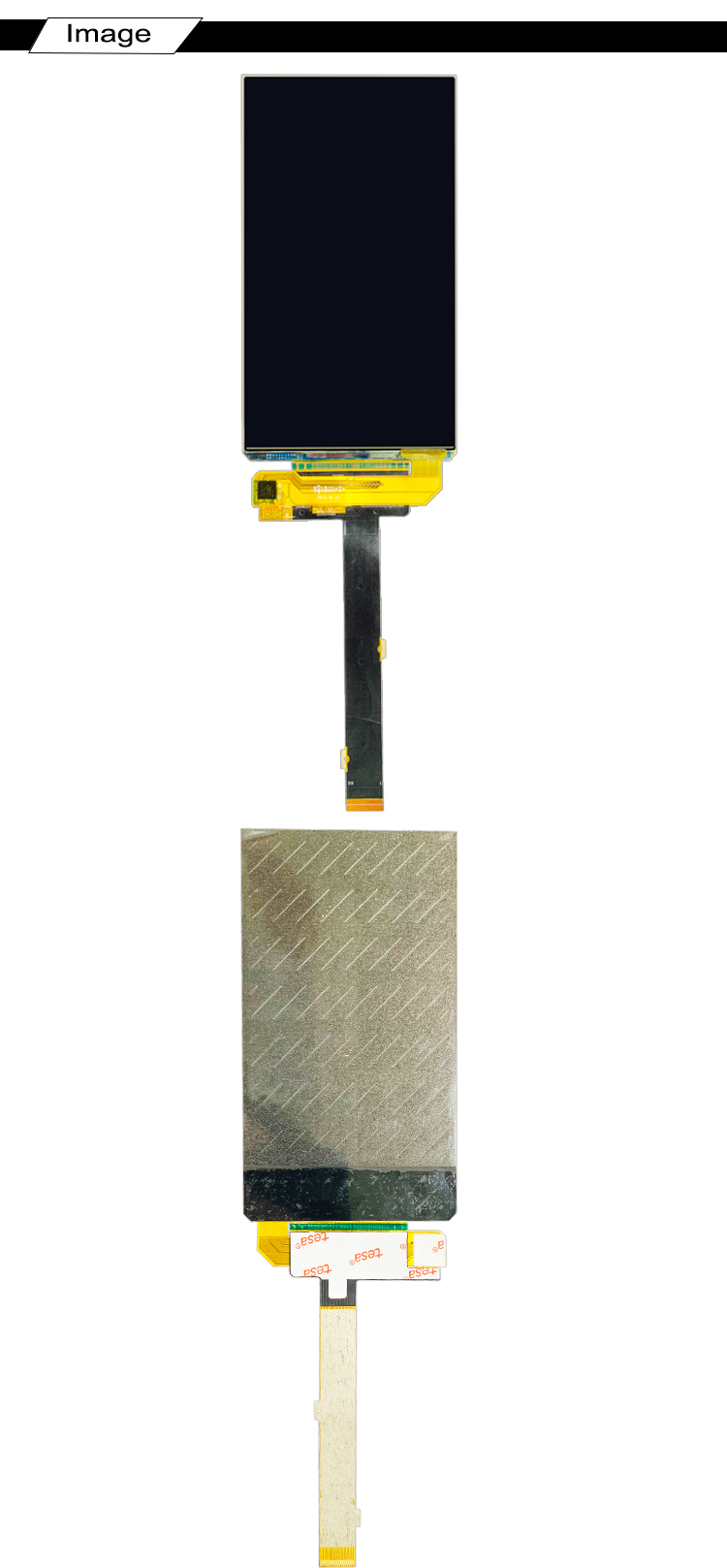

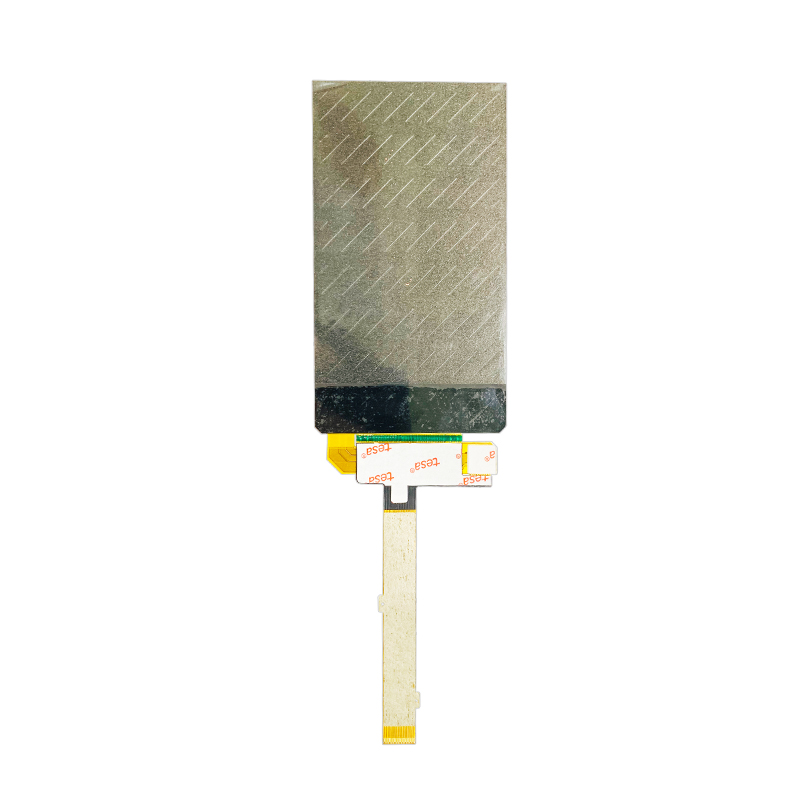

5.46 Inch AMOLED Display with Capacitive Touch 1 5.46 Inch AMOLED Display with Capacitive Touch 2

Supplier

Hicenda Technology Co., Ltd.

Product Type

Touch Display Module

Display Technology

AMOLED

Display Shape

Rectangular

Screen Size

5.46 inches

Active Area

68.04 (H) × 120.96 (V) mm

Display Colors

16.7 million

Color Configuration

RGB

Interface Type

MIPI DSI

Driver IC

RM69071

Touch Panel Type

Built-in capacitive touch panel

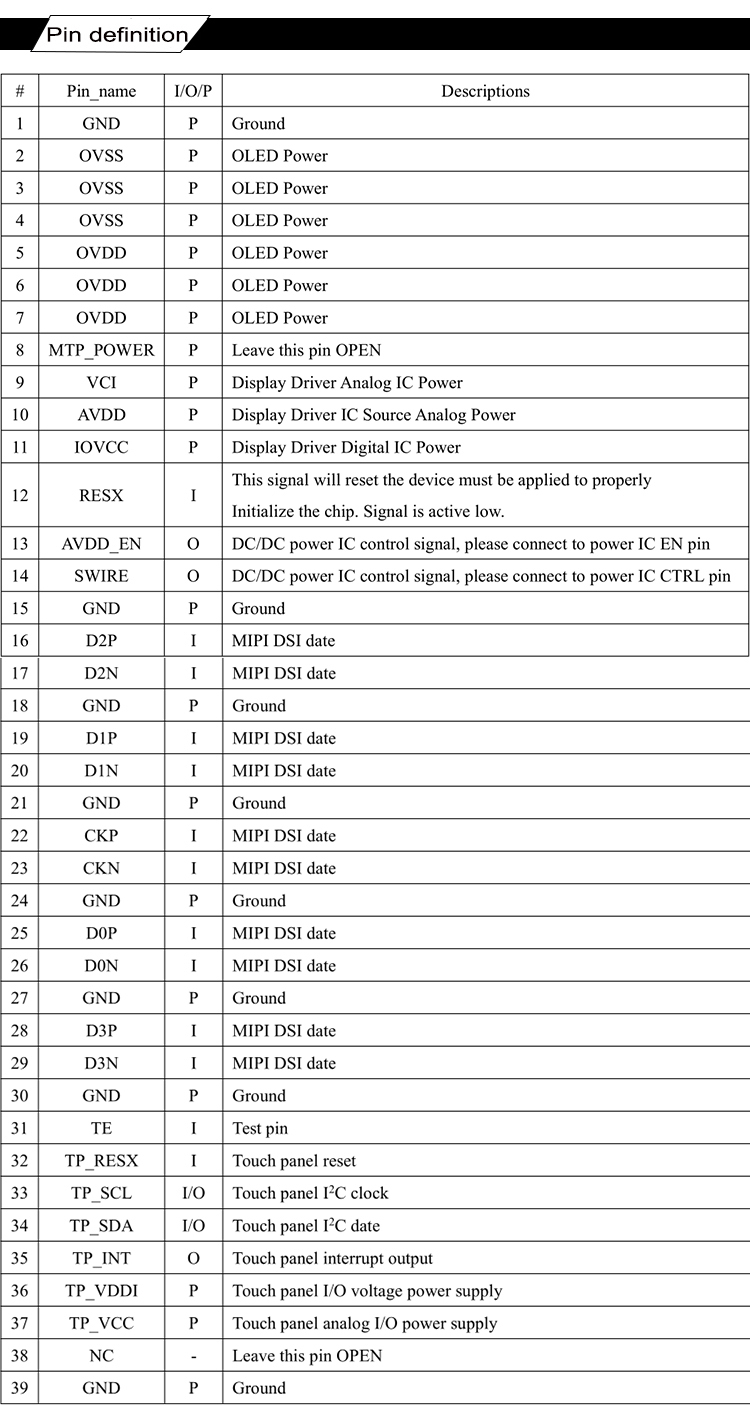

Pin Count

39

Operating Voltage

2.8–3.6 V

FPC Details

Attached flexible circuit with extended connection tail

Warranty

12 months
