  • Size: 0.85
  • Controller IC:GC9107
  • Resolution: 128x128
  • Interface: SPI4 LINE

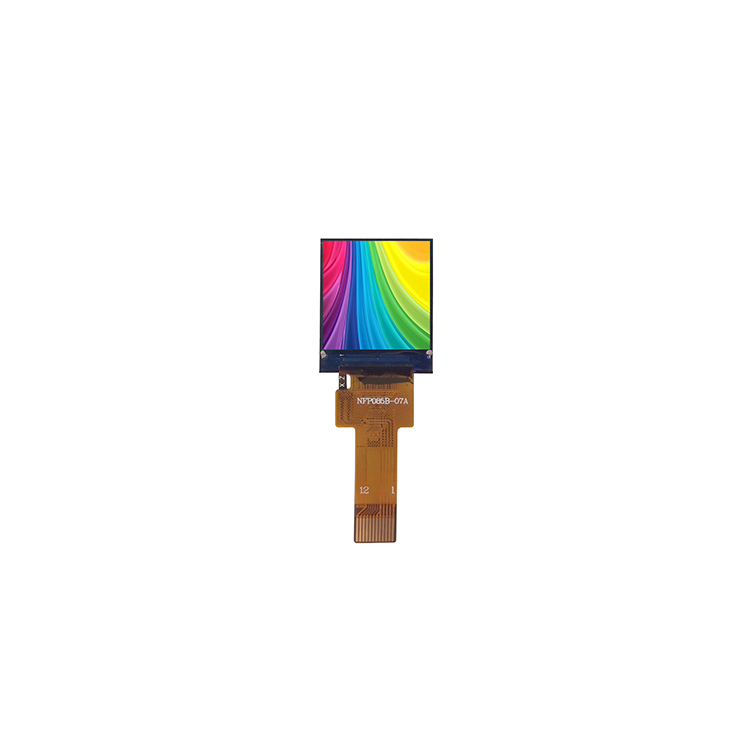

  • Product description: 0.85" 128x128 TFT LCD Display
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA TFT 0.85 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin

Film Transistor). It is composed of a color TFT - LCD panel, driver IC, FPC and a back light unit. The module display area contains 128*128 pixels. This product accords with ROHS environmental criterion.




GENERAL SPECIFICATION



Display Type: TFT display
Display Mode: color active matrix
Model Number:

HT085-1212TBWIG07-C12

Diagonal Screen size: 0.85 inch
Interface:

SPI4 LINE

Luminance(cd/m2):

260 (TYP)


Number of Pixels:

128X128

Panel Size:

17.58(H) x 20.82(V) x1.5(D) mm


Driver IC:

GC9107

Active Area:

15.2064(H) x 15.2064 (V) mm


Pixel Pitch:

39.6 (H) x 118.8(V) um


Viewing Direction:

All View


Weight:

TBD

Operating Temperature:

-20~70°

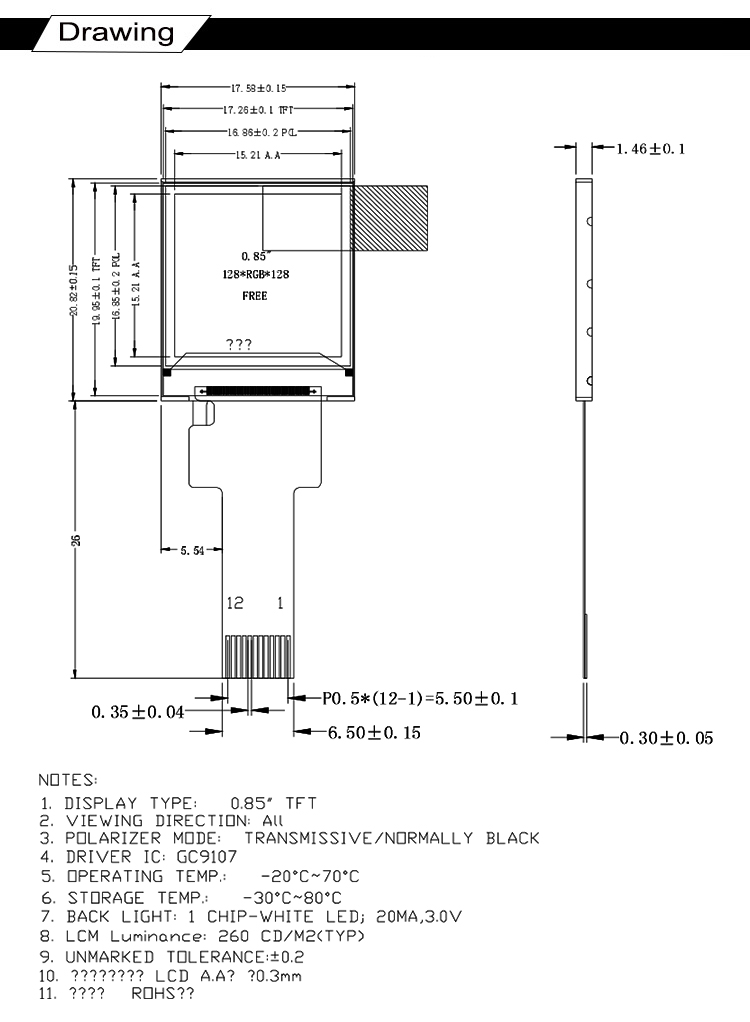

DRAWING

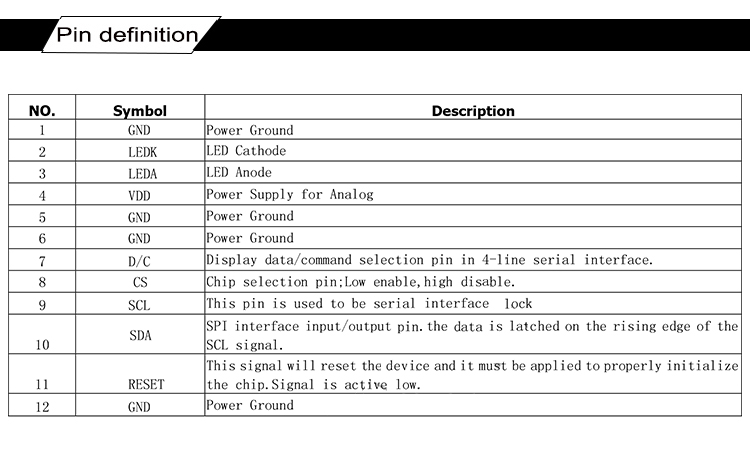

INTERFACE PIN FUNCTION
