E-Ink Display 2.66 inch E-Paper Module 296×152

  • Size:2.66 Eink
  • Controller IC: SSD1680ZA
  • Resolution:296×152 pixel
  • Interface:4-wire SPI or 3- wire SPI i
  • Product description: E-Ink Display 2.66 inch E-Paper Module 296×152
  • INQUIRY


Please kindly contact us for full data sheet of the display.



DESCRIPTION

HICENDA HE003F isis an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The 2.66”active area contains 152×296pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.






GENERAL SPECIFICATION

Display Type: Eink display
Display Mode:
Active Matrix Electrophoretic Display
Model Number: HE003F
Diagonal Screen size: 2.66 inch
Interface:
4-wire SPI or 3-wire SPI i
Number of Pixels:

152(H)×296(V)
Panel Size:

36.3(H)×71.82(V)×0.92(D)(mm)
Driver IC:

SSD1680ZA

Active Area:

30.70(H)×60.09(V)(mm)
Display Mode:

EINK
Pixel Pitch:

0.202×0.203(mm)

Weight:

4.88±0.5(g)

Color:
Eink

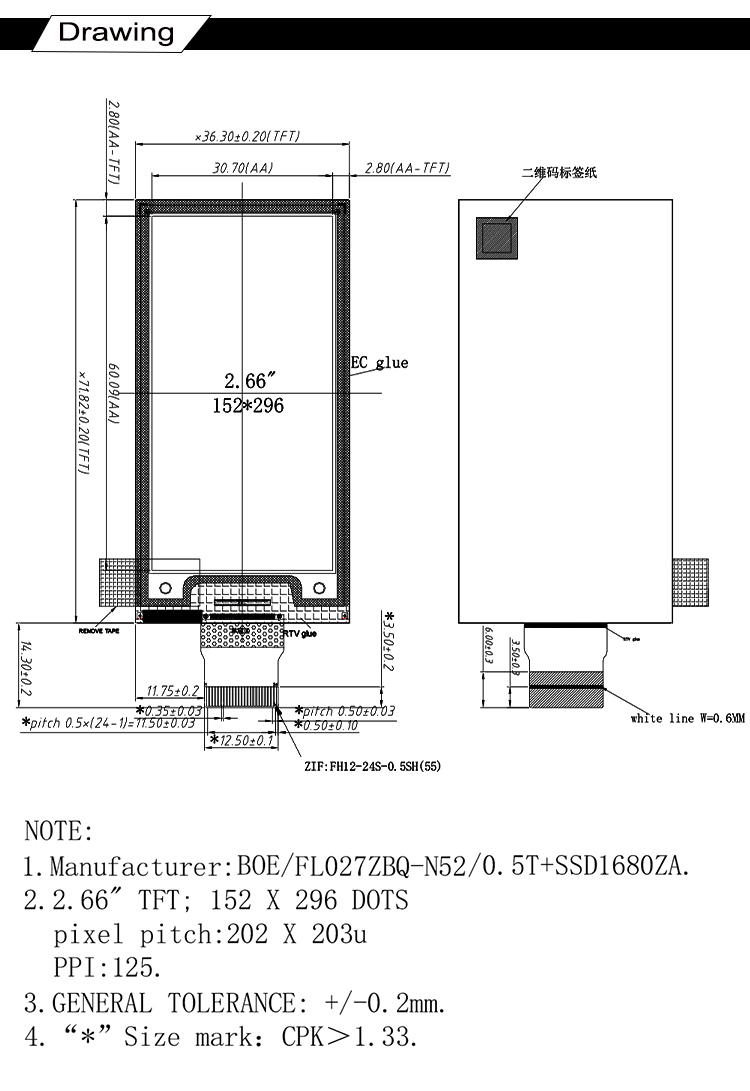

DRAWING

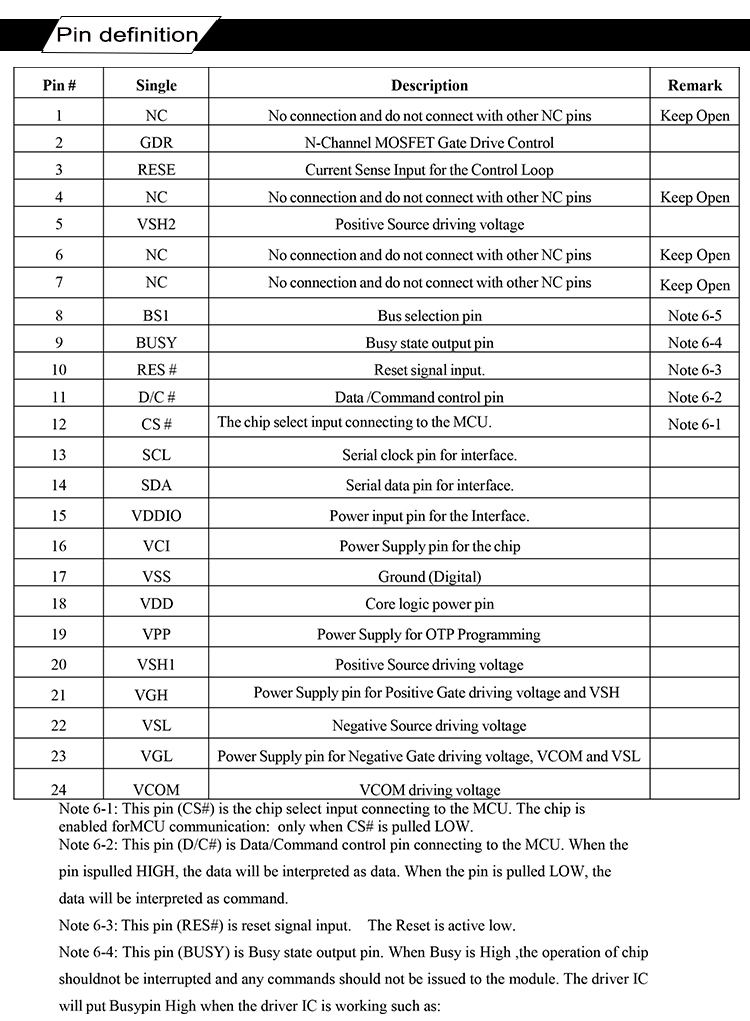

INTERFACE PIN FUNCTION
