Please kindly contact us for full data sheet of the display.
DESCRIPTION

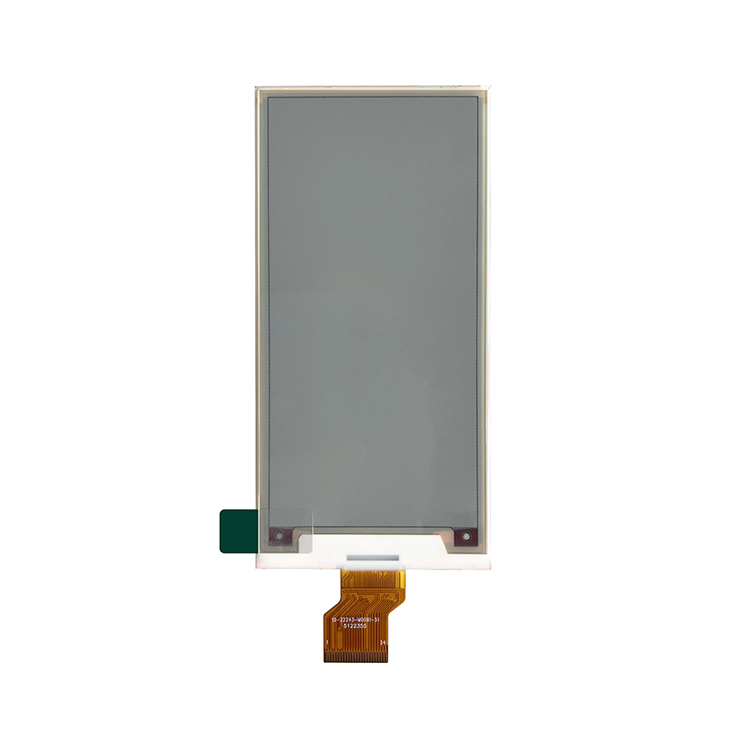

HICENDA HE13502- 008F is an Active Matrix Electrophoretic Display (AMEPD),with interfaceand a reference system design.The 3.5”active area contains 184×384 pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator,DC-DC, SRAM, LUT, VCOM and border are supplied with each
GENERAL SPECIFICATION
| Display Type: | Eink display |
| Display Mode: |
Active Matrix Electrophoretic Display
|
| Model Number: | HE13502- 008F |
| Diagonal Screen size: | 3.5 inch |
| Interface: |
4-wire SPI or 3- wire SPI i
|
| Number of Pixels: |
184(H)×384(V)
|
| Panel Size: |
36.7(H)×79.0 (V) ×0.92(D)(mm)
|
| Driver IC: |
SSD1685 |
| Active Area: |
45.03(H)×91.75 (V) ×0.92(D)(mm)
|
|
Display Mode:
|
EINK
|
|
Pixel Pitch:
|
0.207×0.207(mm)
|
|
Weight: |
7.54±0.5(g)
|
|
Color:
|
Eink
|

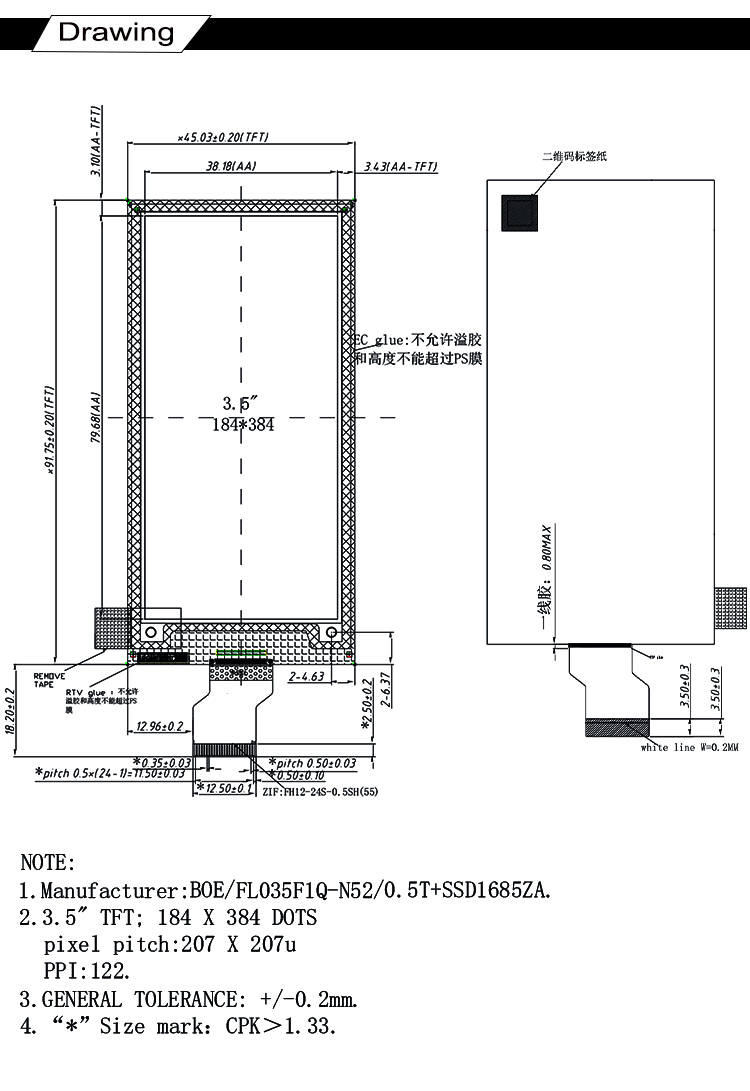

DRAWING

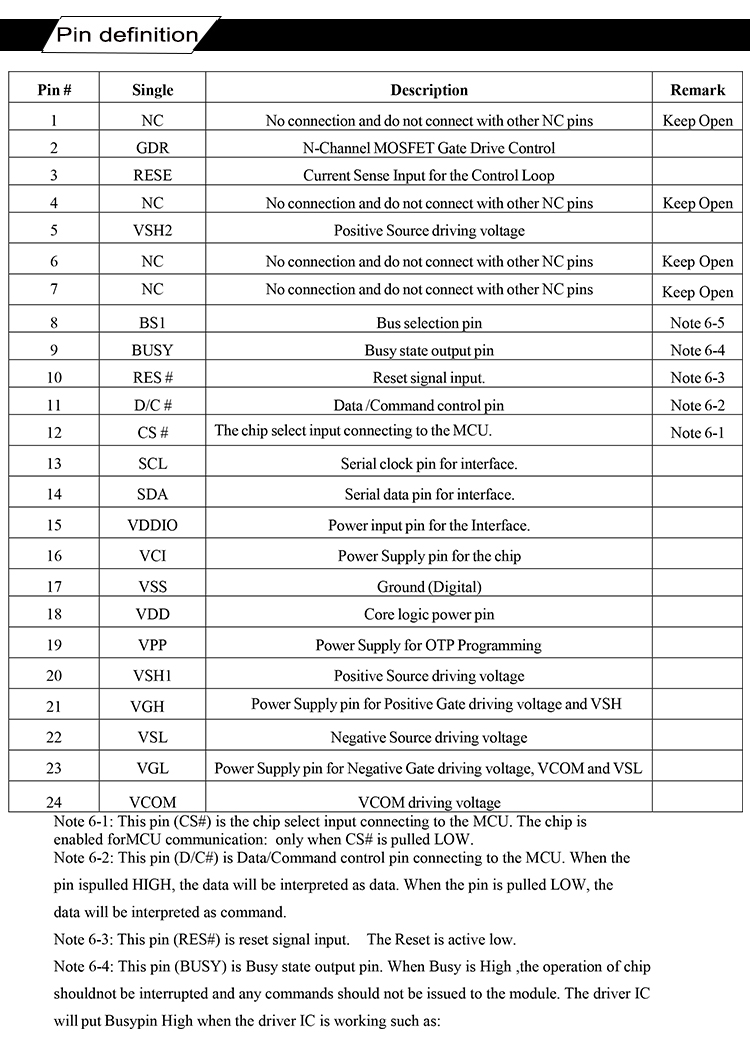

INTERFACE PIN FUNCTION
