Please kindly contact us for full data sheet of the display.
DESCRIPTION

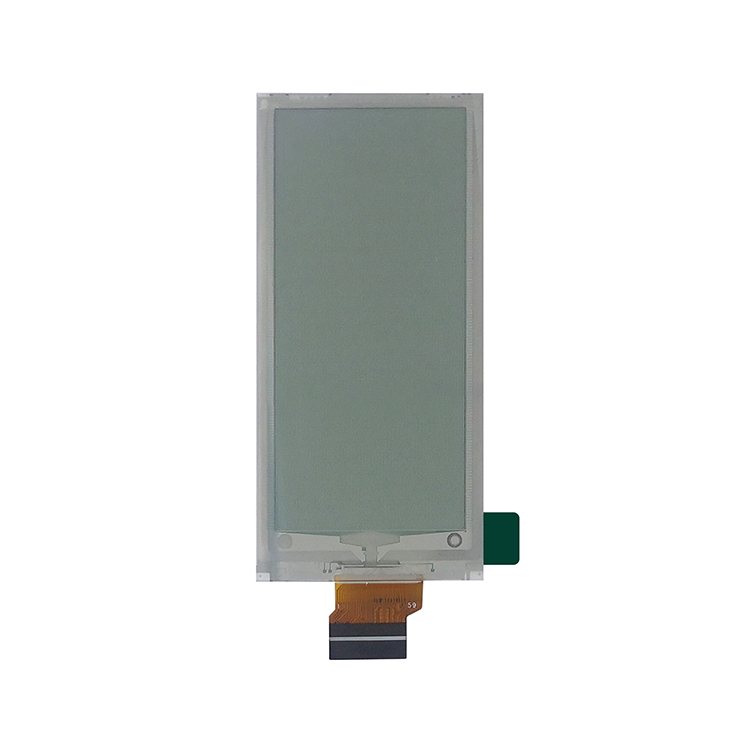

HICENDA HE004F is 004F is an Active Matrix Electrophoretic Display (AMEPD), with interface and a reference system design.The2.9”active area contains 128×296pixels, and has 1-bit B/W/R full display capabilities. An integrated circuit contains gatebuffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.
GENERAL SPECIFICATION
| Display Type: | Eink display |
| Display Mode: |
Active Matrix Electrophoretic Display
|
| Model Number: | HE004F |
| Diagonal Screen size: | 2.9 inch |
| Interface: |
4-wire SPI or 3- wire SPI i
|
| Number of Pixels: |
128(H)×296(V)
|
| Panel Size: |
36.7(H)×79.0 (V) ×0.92(D)(mm)
|
| Driver IC: |
SSD1680ZA |
| Active Area: |
29.06(H)×66.90(V)(mm)
|
|
Display Mode:
|
EINK
|
|
Pixel Pitch:
|
0.227×0.226(mm)
|
|
Weight: |
5.22±0.5(g)
|
|
Color:
|
Eink
|

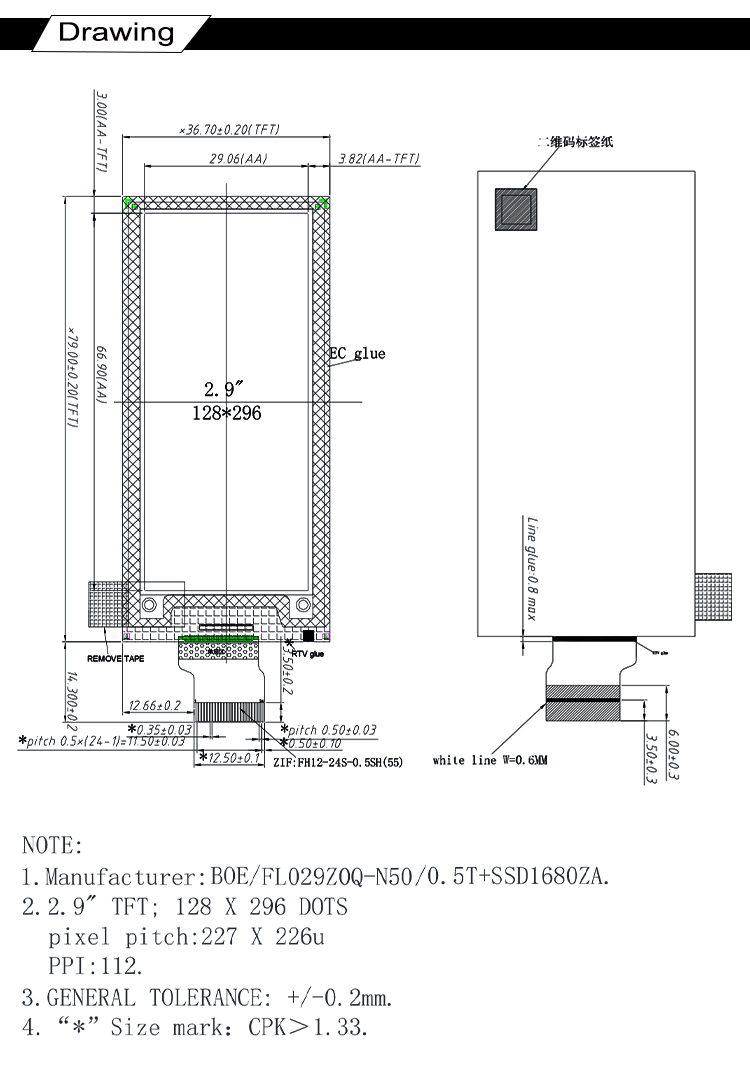

DRAWING

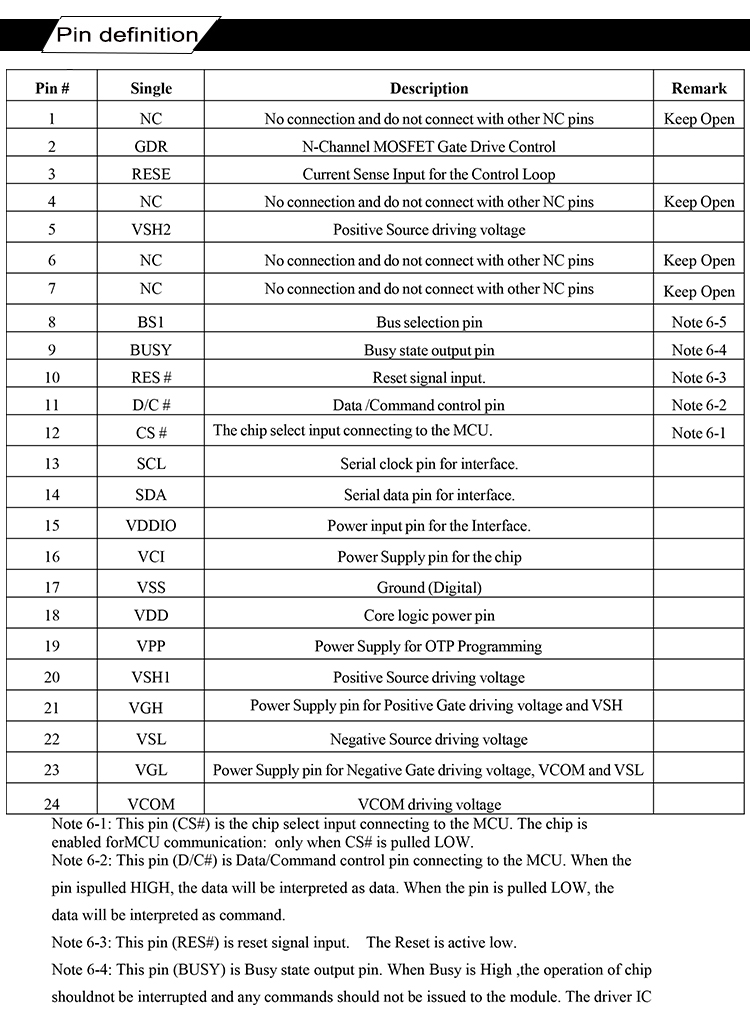

INTERFACE PIN FUNCTION
