3.2"

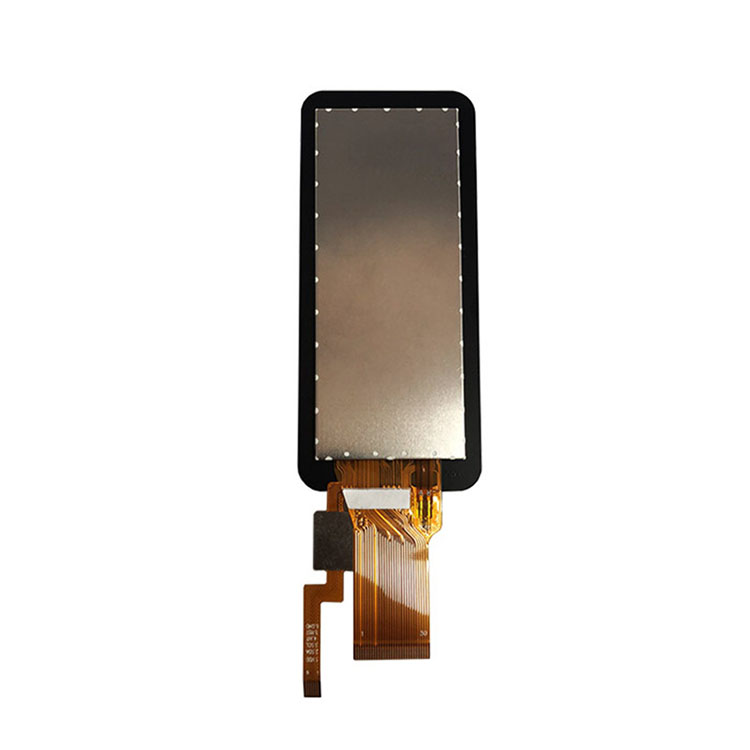

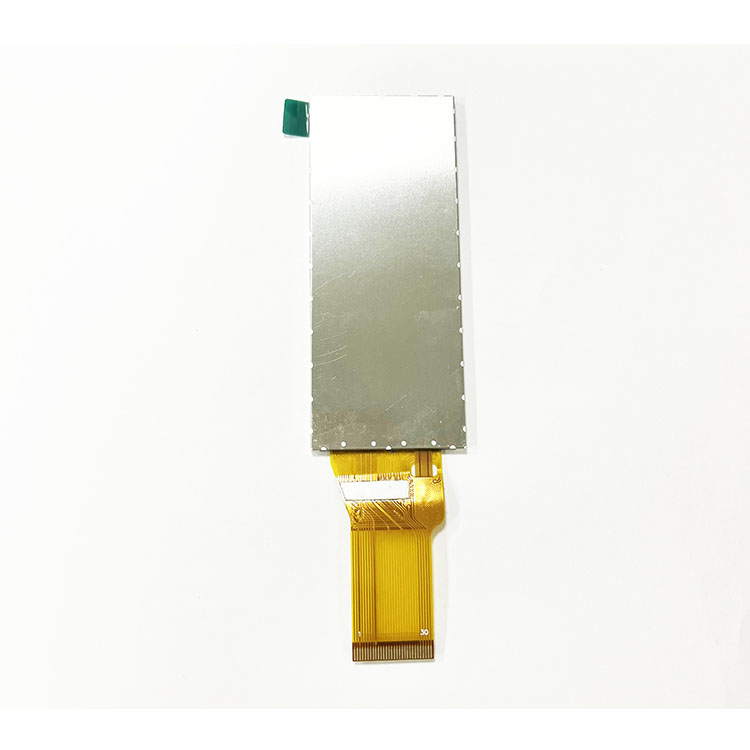

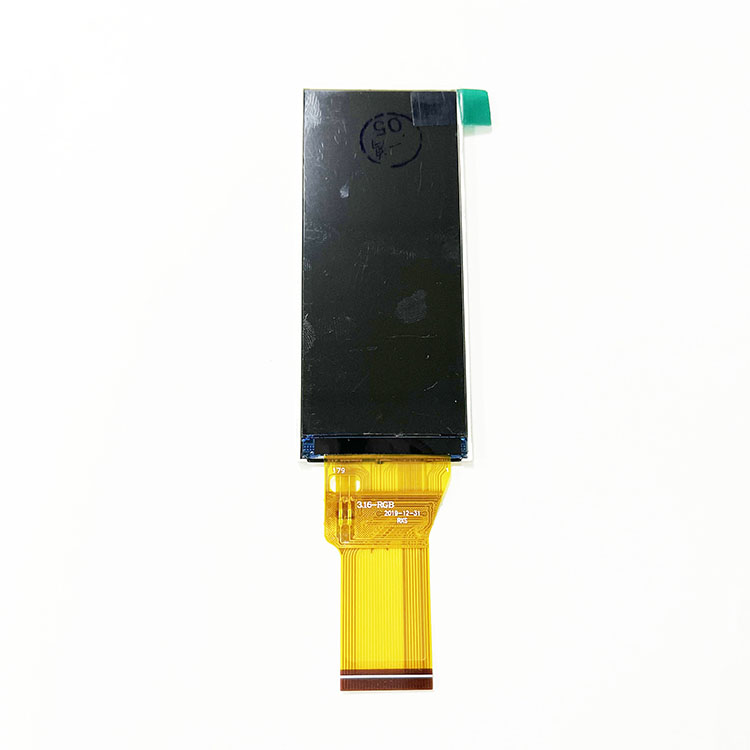

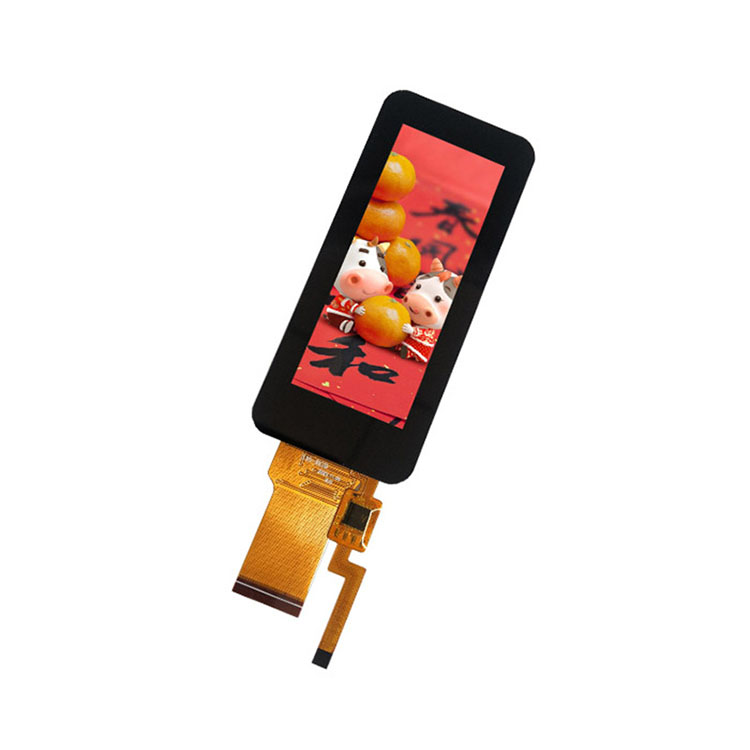

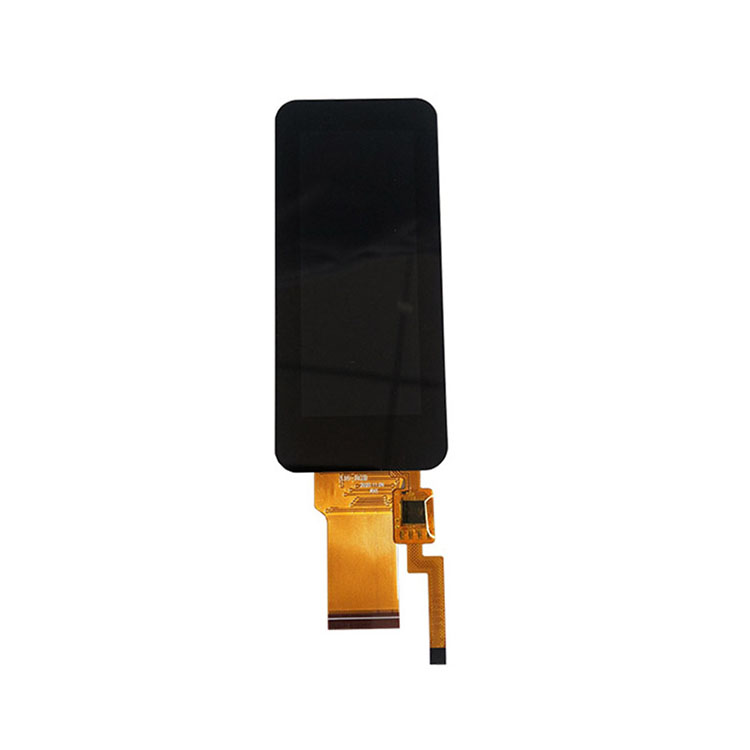

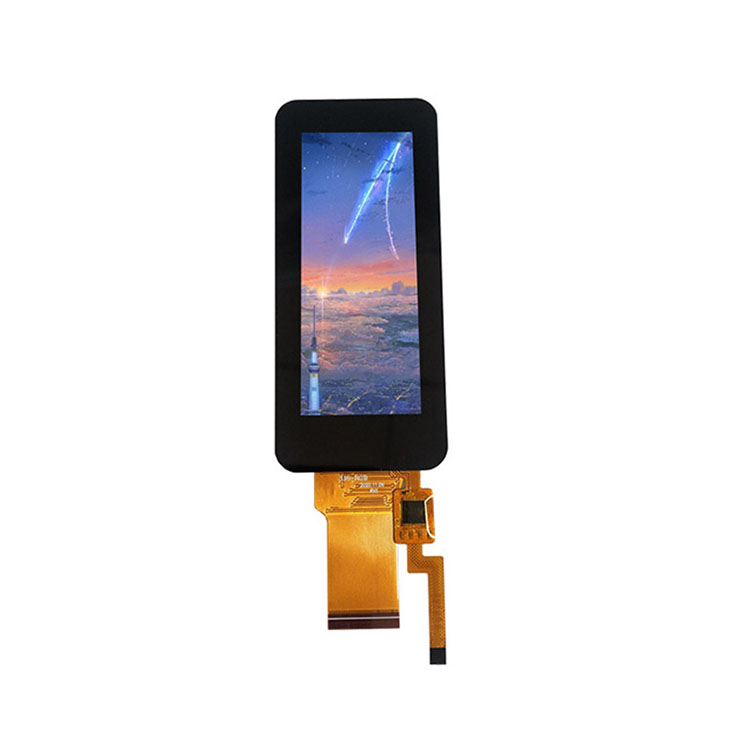

3.2 inch 320(RGB)x820 IPS TFT LCD Display ST7701S with Capacitive Touch Screen

3.2 inch 320(RGB)x820 IPS TFT LCD Display ST7701S with Capacitive Touch Screen

Size:3.2 inch
Resolution: 320(RGB)x820
Interface: SPI+16BIT RGB interface
Backlight type:White LED(4*LED)
Product description: 3.2 inch 320(RGB)x820 IPS TFT LCD Display ST7701S with Capacitive Touch Screen
INQUIRY

3.2 inch 320(RGB)x820 IPS TFT LCD Display ST7701S with Capacitive Touch Screen

DESCRIPTION

3.2 inch 320(RGB)x820 IPS TFT LCD Display ST7701S with Capacitive Touch Screen for industrial applications

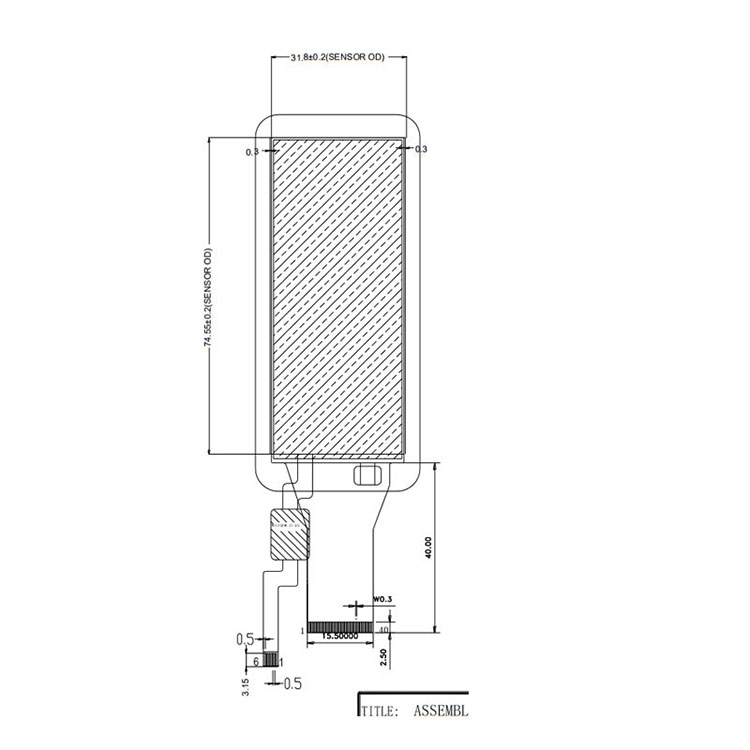

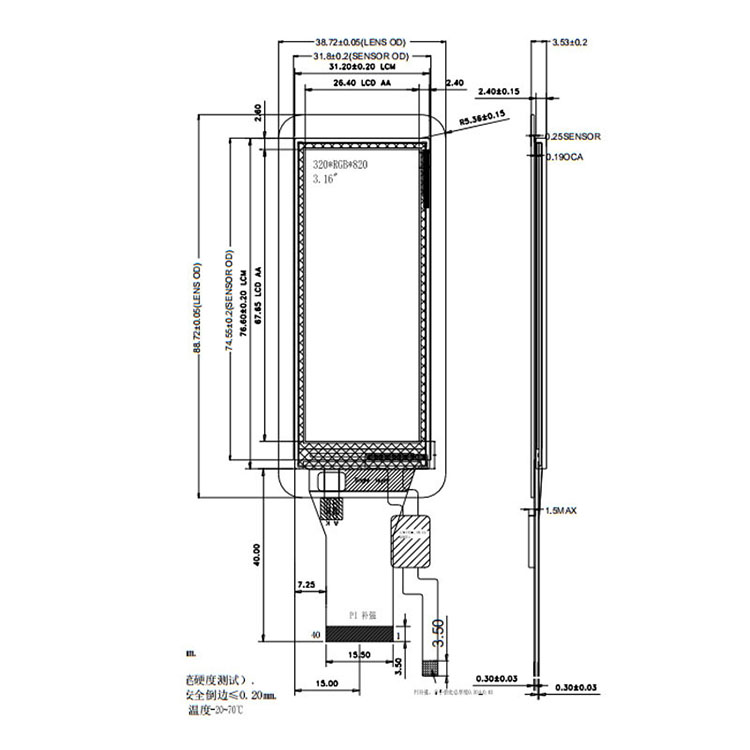

DRAWING

SPECIFICATIONS

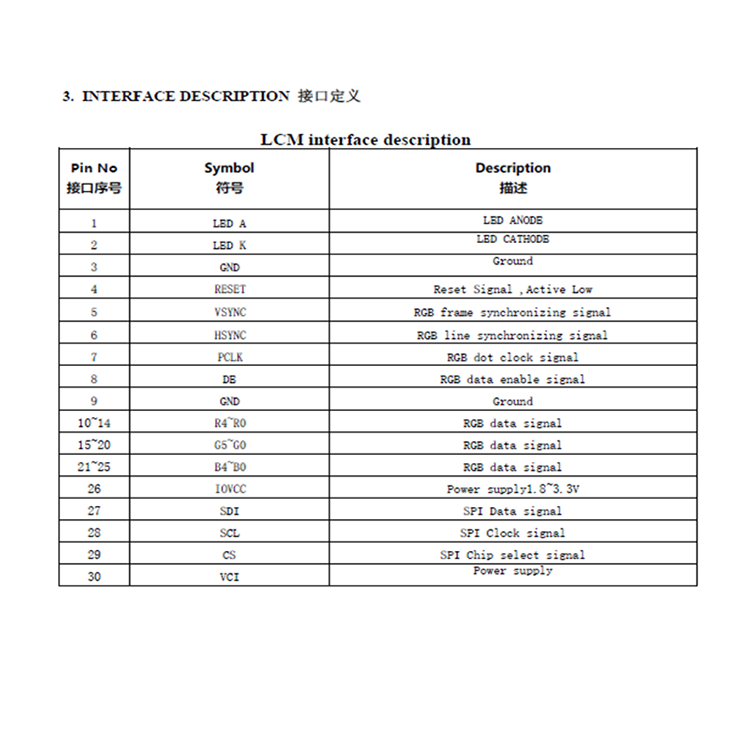

Interface Pin Function

General Specification

Display Type: TFT display

Display Mode: Passive Matrix

Model Number:
HT32010A

Diagonal Screen size: 3.2 Inch

Interface:
SPI+16BIT RGB interface

Number of Pixels:
320(RGB)x820

Panel Size:
31.2(W)* 76.6(H)*2.40(T) (mm)

Active Area:
26.4(W)* 67.65 (H) (mm)

Weight:

TBD

Operating Temperature:
-10~70°

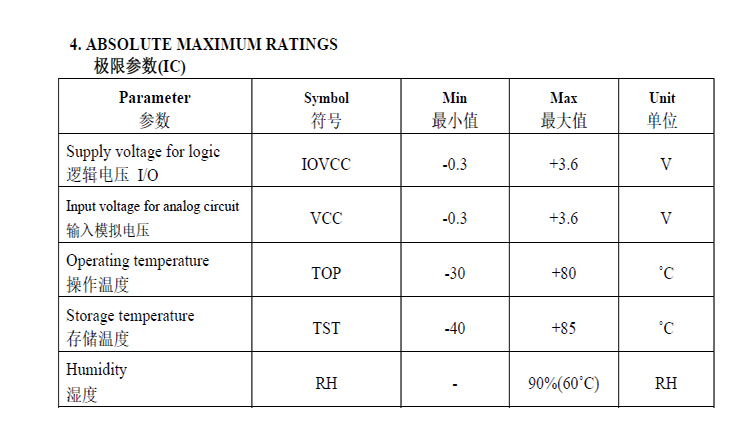

ABSOLUTE MAXIMUM RATINGS

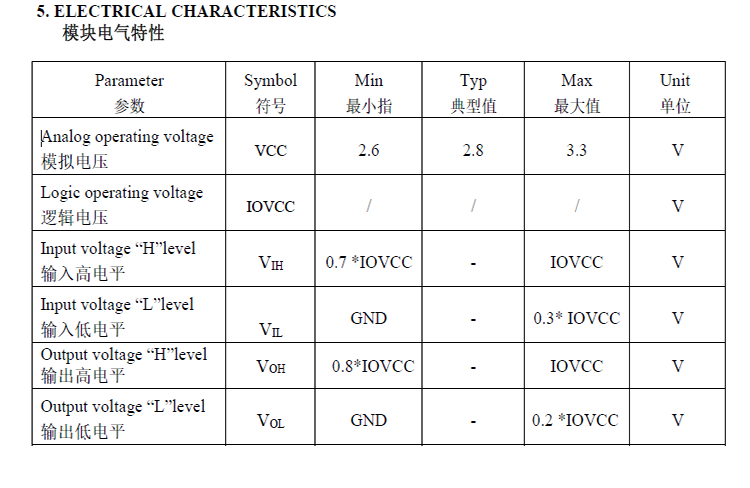

ELECTRICAL CHARACTERISTICS

PREVIOUS：3.2 inch 320*240 IPS Small Strip TFT LCD Screen with CTP Capacitive Display Panel Module GC9306 MCU 23Pin NEXT：0.71 inch AMOLED Microdisplay,1920(RGB)X1080, 3000nits

RELATED PRODUCTS

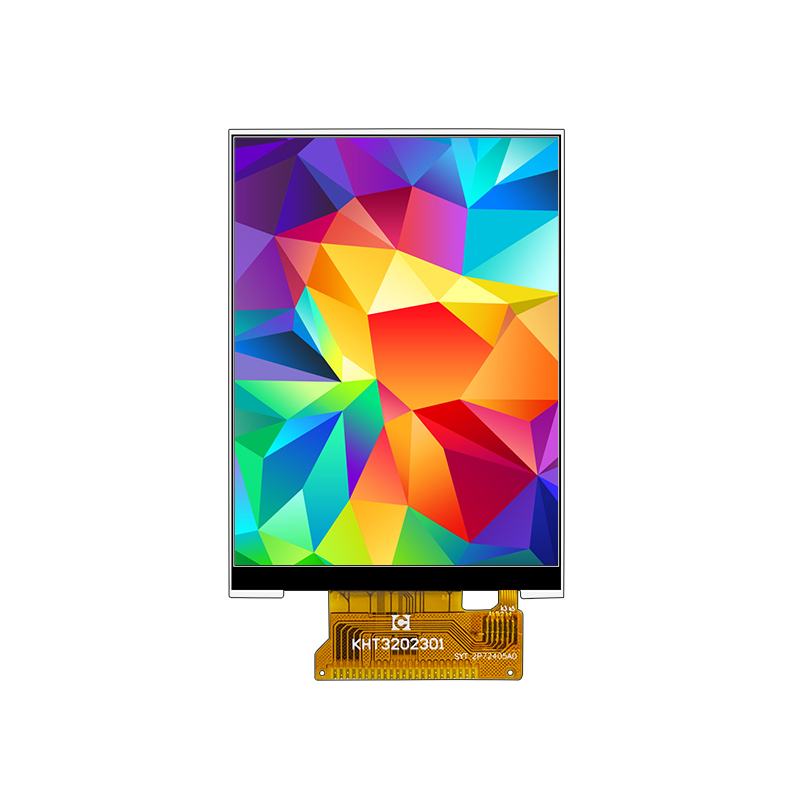

3.2 inch 400*240 IPS
