3.2"

  • 3.2 inch 400*240 IPS Small Strip TFT LCD Screen with CTP Capacitive  Display Panel Module ST7793 SPI 50Pin
  • 3.2 inch 400*240 IPS Small Strip TFT LCD Screen with CTP Capacitive  Display Panel Module ST7793 SPI 50Pin
  • 3.2 inch 400*240 IPS Small Strip TFT LCD Screen with CTP Capacitive  Display Panel Module ST7793 SPI 50Pin
3.2 inch 400*240 IPS Small Strip TFT LCD Screen with CTP Capacitive  Display Panel Module ST7793 SPI 50Pin3.2 inch 400*240 IPS Small Strip TFT LCD Screen with CTP Capacitive  Display Panel Module ST7793 SPI 50Pin3.2 inch 400*240 IPS Small Strip TFT LCD Screen with CTP Capacitive  Display Panel Module ST7793 SPI 50Pin

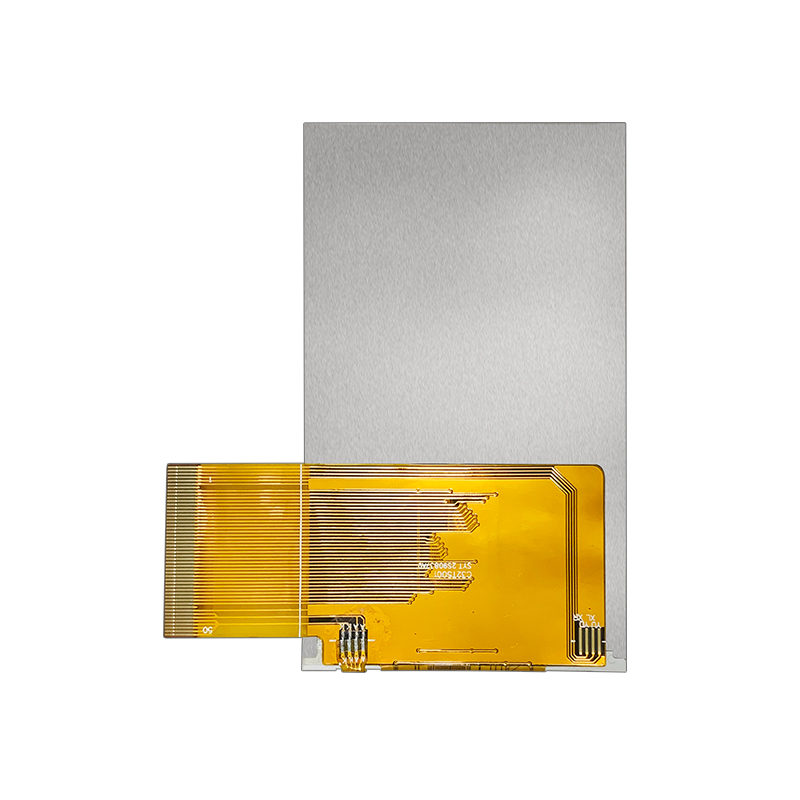

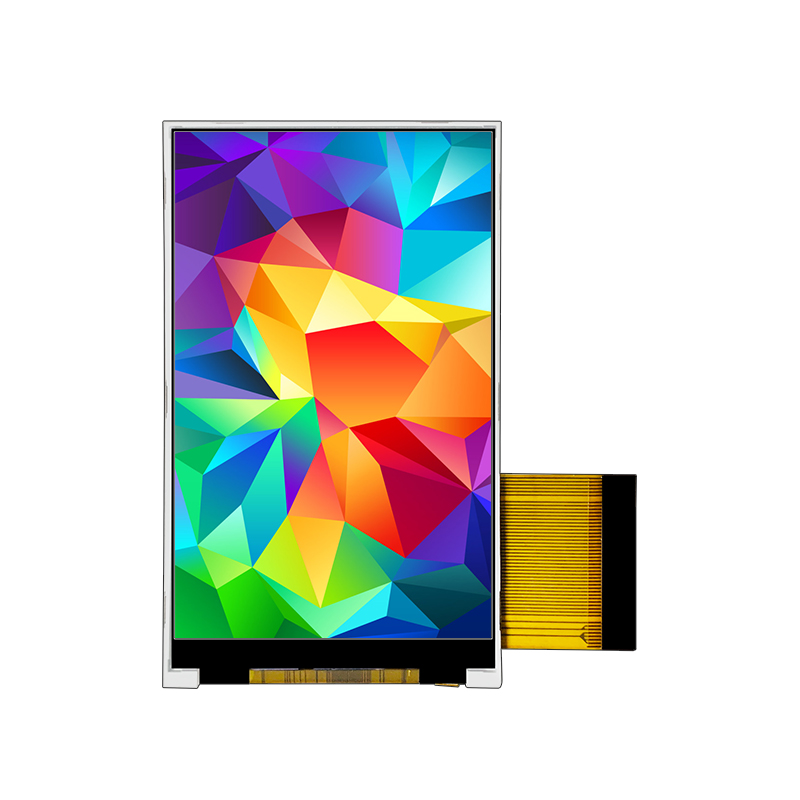

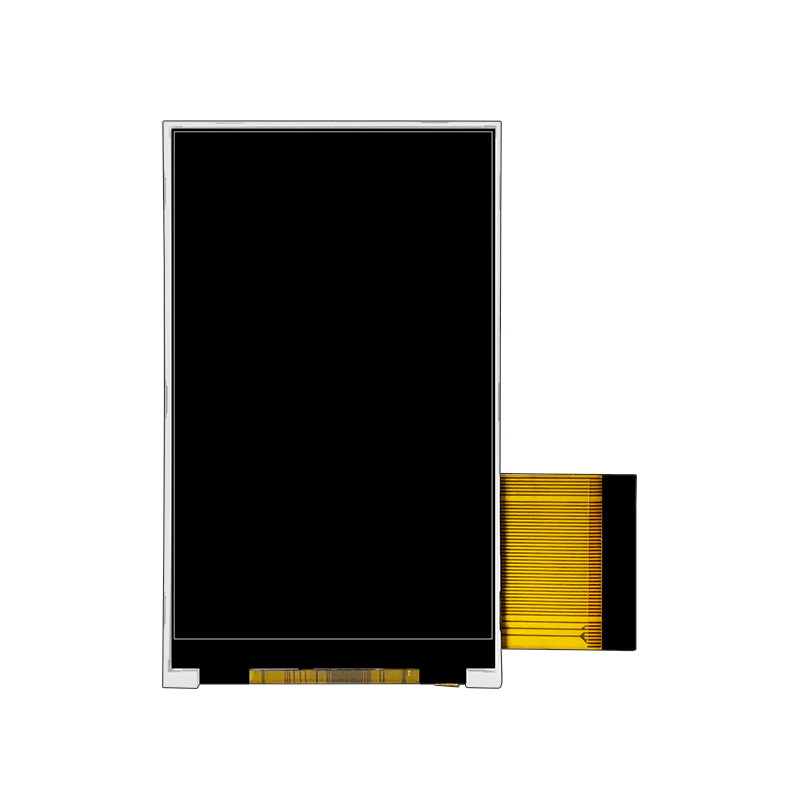

3.2 inch 400*240 IPS Small Strip TFT LCD Screen with CTP Capacitive Display Panel Module ST7793 SPI 50Pin

  • Panel Type: TN
  • Size: 3.2
  • Resolution: 240*400
  • Interface:RGB
  • Product description: Hicenda Technology Co.,ltd can supply high quality 3.2 inch small tft display for medical or industrial device.400*240 dot matrix 3.2 inch 3.2" mipi dsi interface tft lcd display 240*400 pixels
  • INQUIRY


1. Display Specifications

  • LCD Size: 3.2 inches
  • Dot Matrix Size: 400*240
  • Backlight Type:7 LEDs
  • Hardware Interface: RGB
  • Driver IC: ST7793V
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  19Pin
  • Display Area:47.88x63.84 mm
  • Size: 47.66(H)x80.9(V)x2.3(D)
  • Viewing Direction: 12 O'CLOCK

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
