3.5 Inch 1920x1080 FHD TFT LCD Display 1350 Nits Sunlight Readable

3.5 Inch 1920x1080 FHD TFT LCD Display 1350 Nits Sunlight Readable

Size: 3.5 TFT
Controller IC: EK79303
Resolution:1920(RGB)x1080
Interface:MIPI 4-lane
Product description: TFT LCD Display 3.5 inch,320(RGB)x480
INQUIRY

Please kindly contact us for full data sheet of the display.

DESCRIPTION

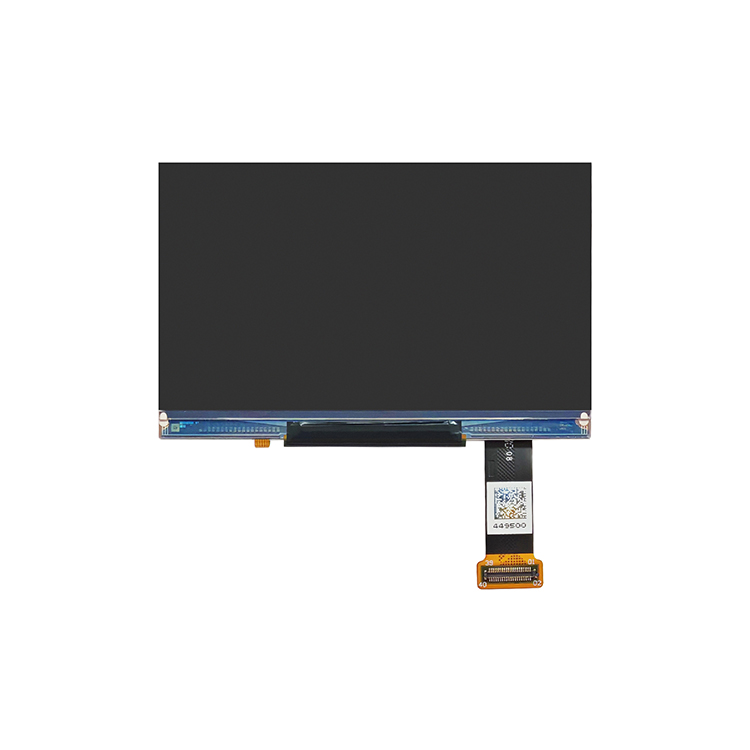

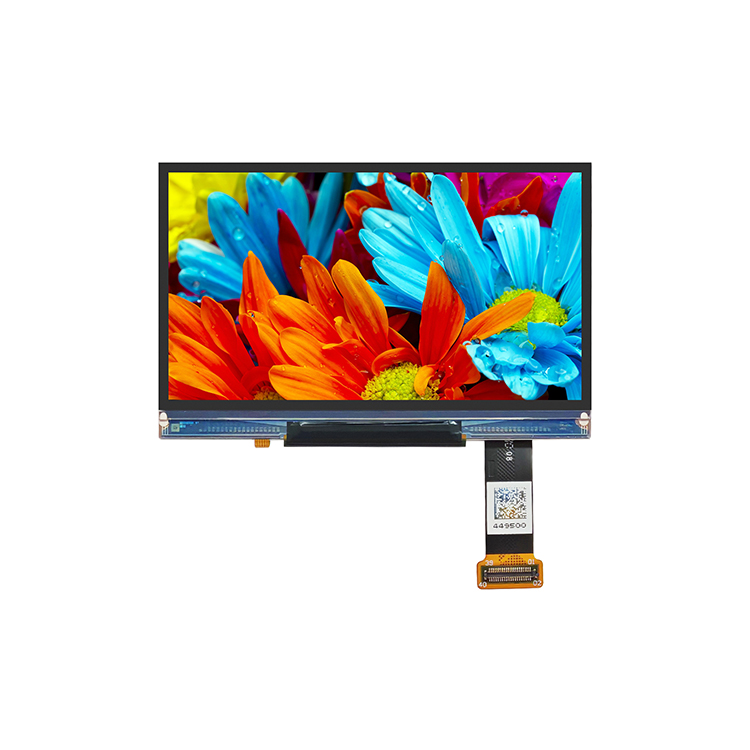

HICENDA TH035FHD-B401M is a high-performance 3.5-inch Full HD (1920x1080) TFT LCD display module designed for applications requiring exceptional image sharpness in high-ambient light environments. Featuring an impressive 1350 cd/m² high-brightness backlight and ADS wide-viewing-angle technology, this compact panel ensures flawless outdoor readability and rich, accurate color rendition (95% sRGB).

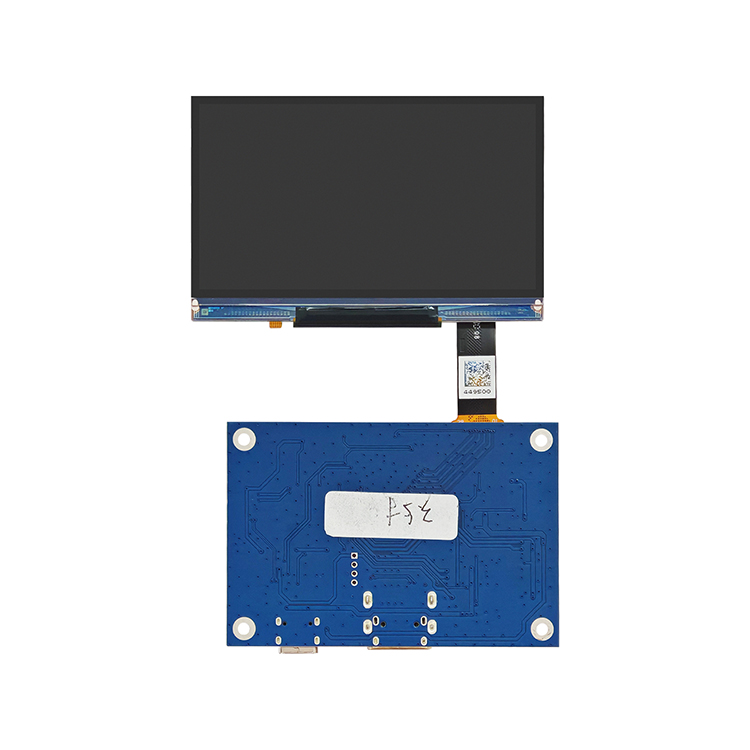

Driven by the EK79303 IC via a high-speed MIPI 4-lane interface, it supports a smooth 60 Hz refresh rate for seamless user interfaces. For engineers seeking quick testing or rapid development, an optional HDMI controller board kit is available, allowing direct connection to PCs, single-board computers, or embedded systems without custom hardware setups.

GENERAL SPECIFICATION

Parameter	Specification	Unit	Remark
Model No.	TH035FHD-B401M
Display Method	Active matrix TFT
Display Mode	ADS (Normally Black)		Full viewing angle
Screen Size	3.5	inch	Diagonally
Number of Pixels	1920(H) × 1080(V)	pixels	Ultra-high PPI
Aspect Ratio	16:9
Active Area	77.76(H) × 43.74(V)	mm
Pixel Pitch	13.5 × 40.5	µm	RGB Stripe arrangement
Brightness	1350	cd/m²	Typ. (+/-20%) / Sunlight Readable
Display Colors	16.7M	colors	8-bit
sRGB Ratio	95%		Typ. color gamut
Frame Rate	60	Hz
LCM Outline Dimension	81.16(H) × 52.14(V) × 2.30(T)	mm	Compact slim design
LCM Weight	24.3	gram
Driver IC	EK79303
Interface	MIPI 4-lane		Optional HDMI driver board available
Operating Temperature	0 to +50	°C
Storage Temperature	-20 to +70	°C

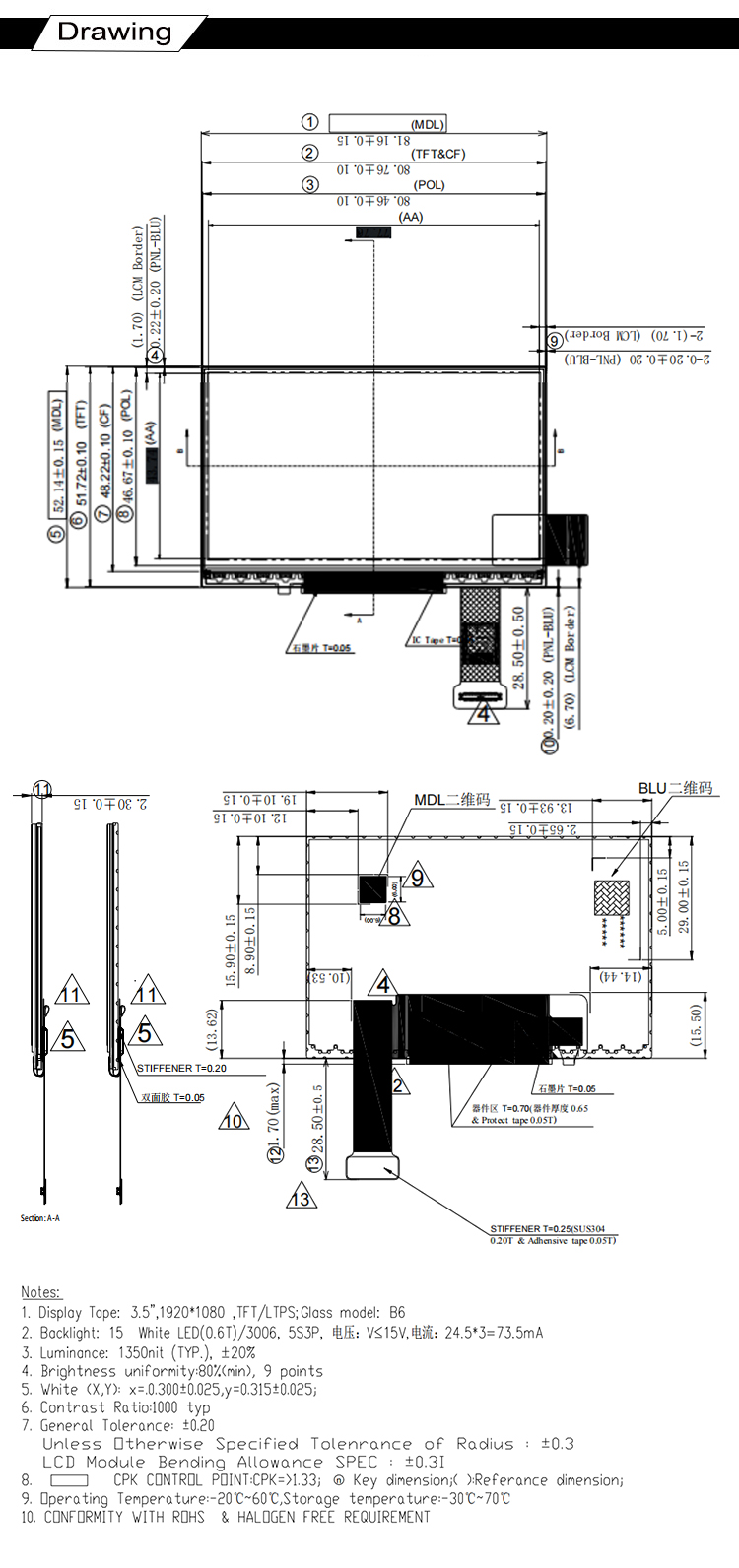

DRAWING

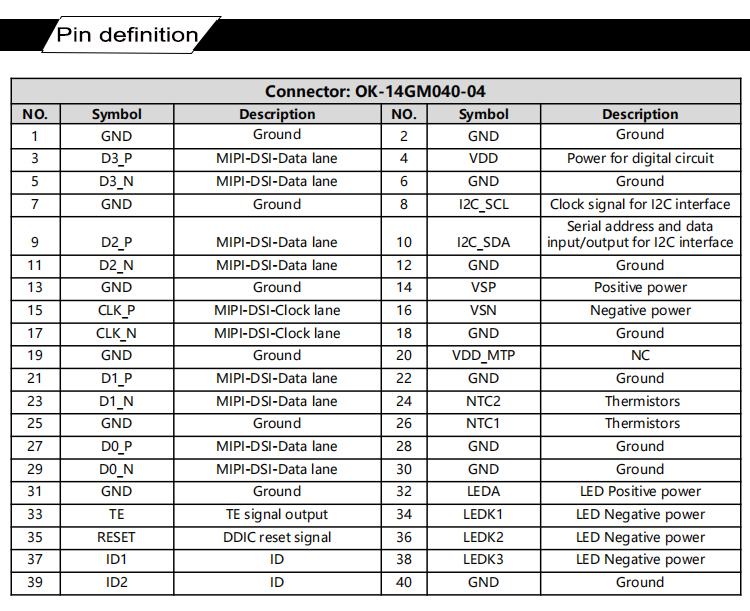

INTERFACE PIN FUNCTION

Key Features

Ultra-High Resolution (FHD 1080p): Delivers outstanding clarity with a native 1920×1080 resolution on a compact 3.5-inch panel, perfect for high-density graphic interfaces.

1350 Nits Sunlight-Readable Brightness: Designed for high ambient light and outdoor environments, providing crystal-clear visibility under direct sunlight.

ADS Full Viewing Angle & Rich Color: Features ADS display technology with a 95% sRGB gamut and 16.7M colors for wide viewing angles and vivid display performance.

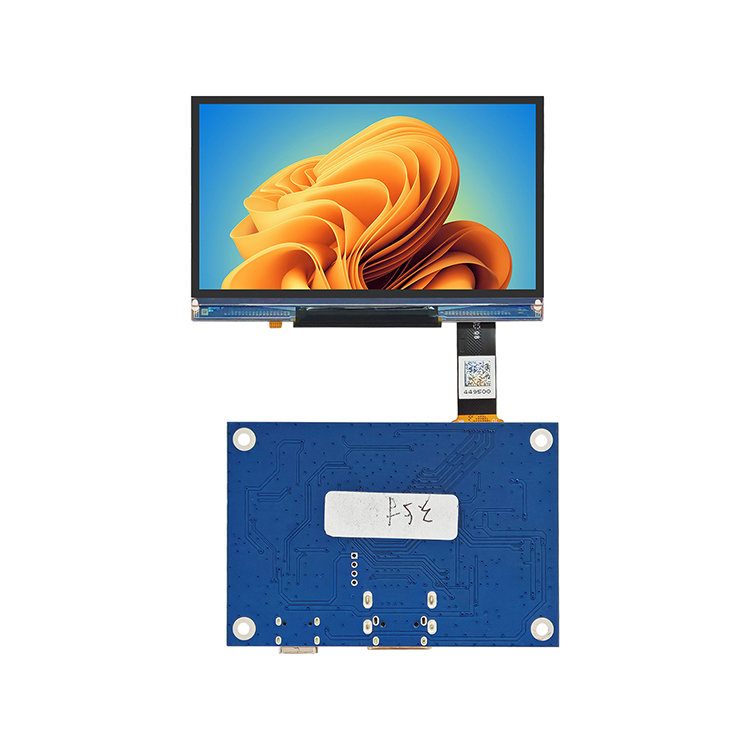

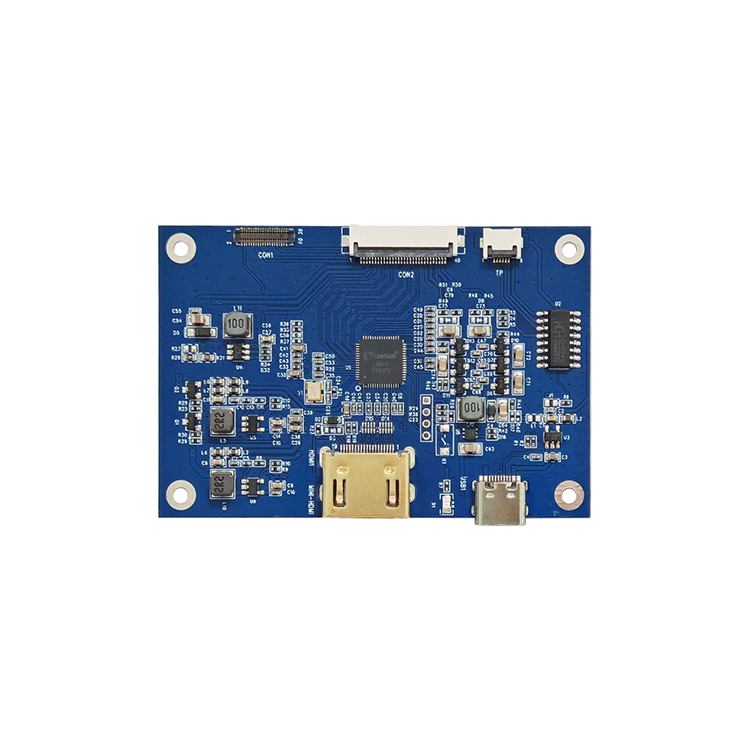

Flexible Connectivity & HDMI Option: Equipped with a native MIPI 4-lane interface and available with an optional plug-and-play HDMI driver board for effortless prototype evaluation and rapid system integration.

Slim & Lightweight Form Factor: At just 2.30 mm thickness and 24.3 g, it fits seamlessly into handheld, portable, and space-constrained industrial devices.
