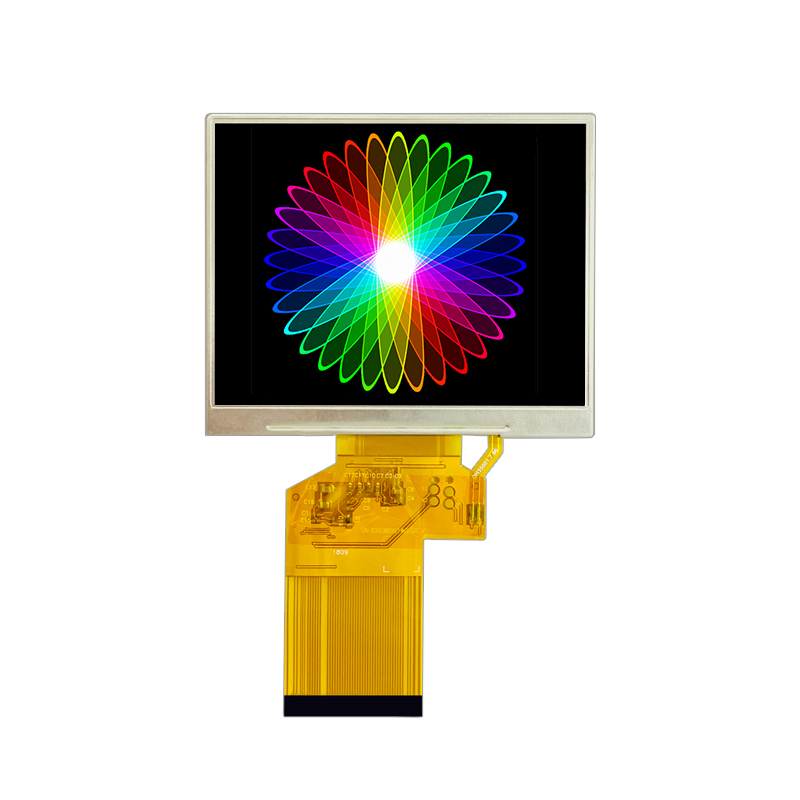

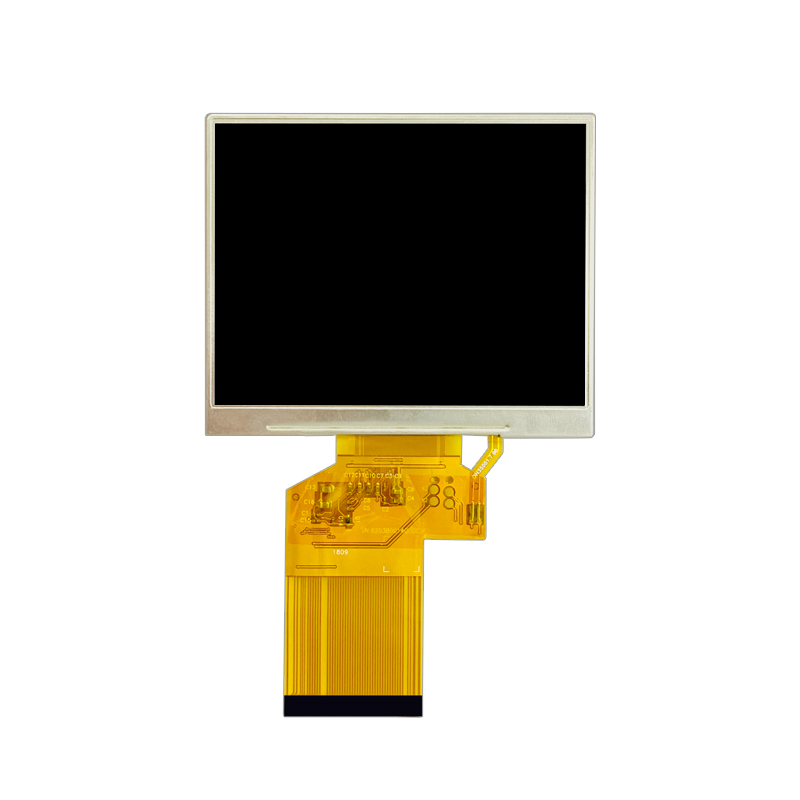

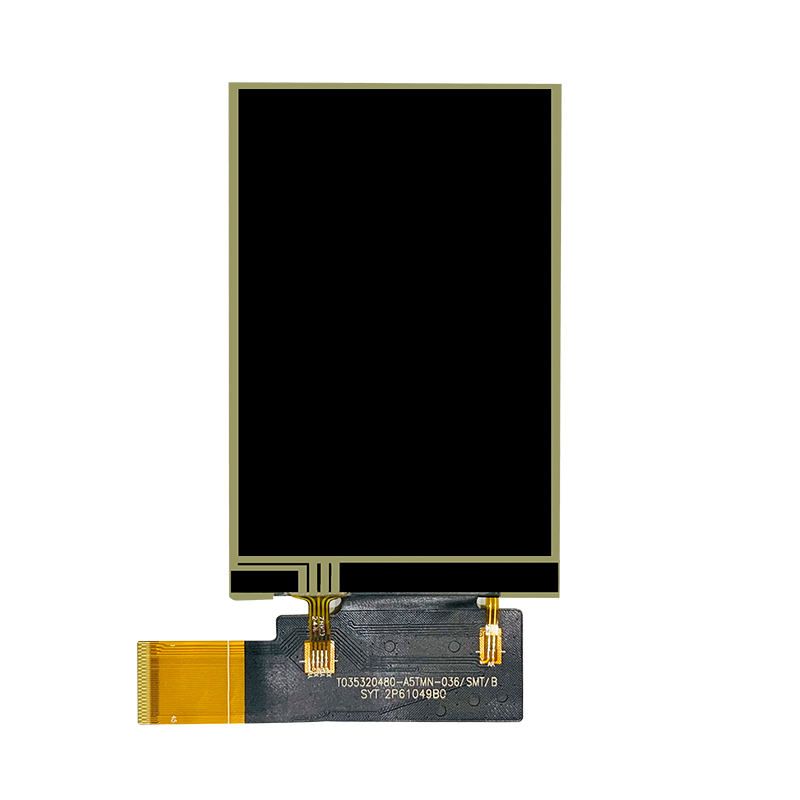

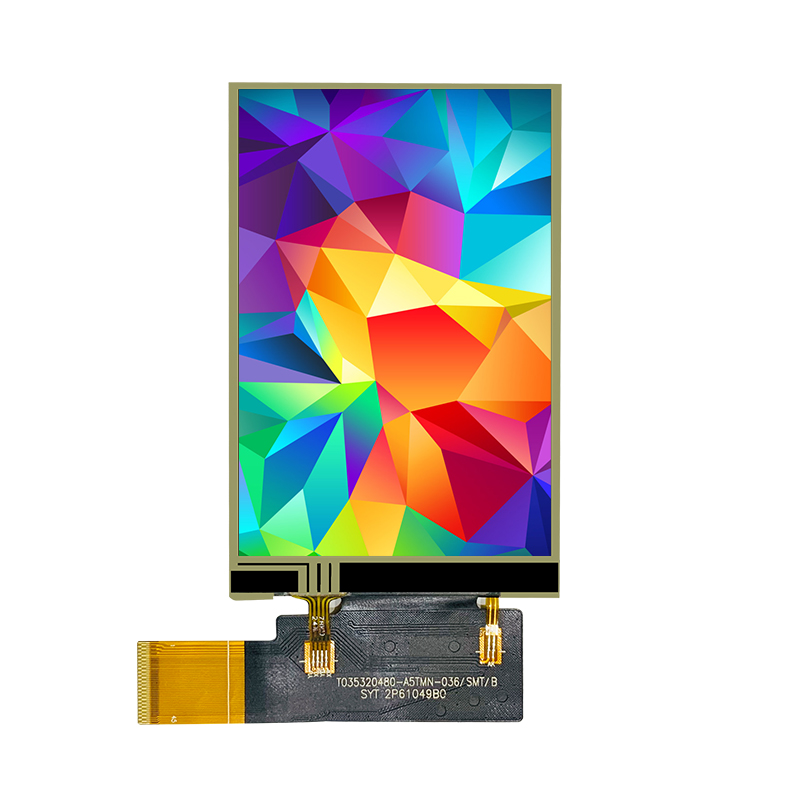

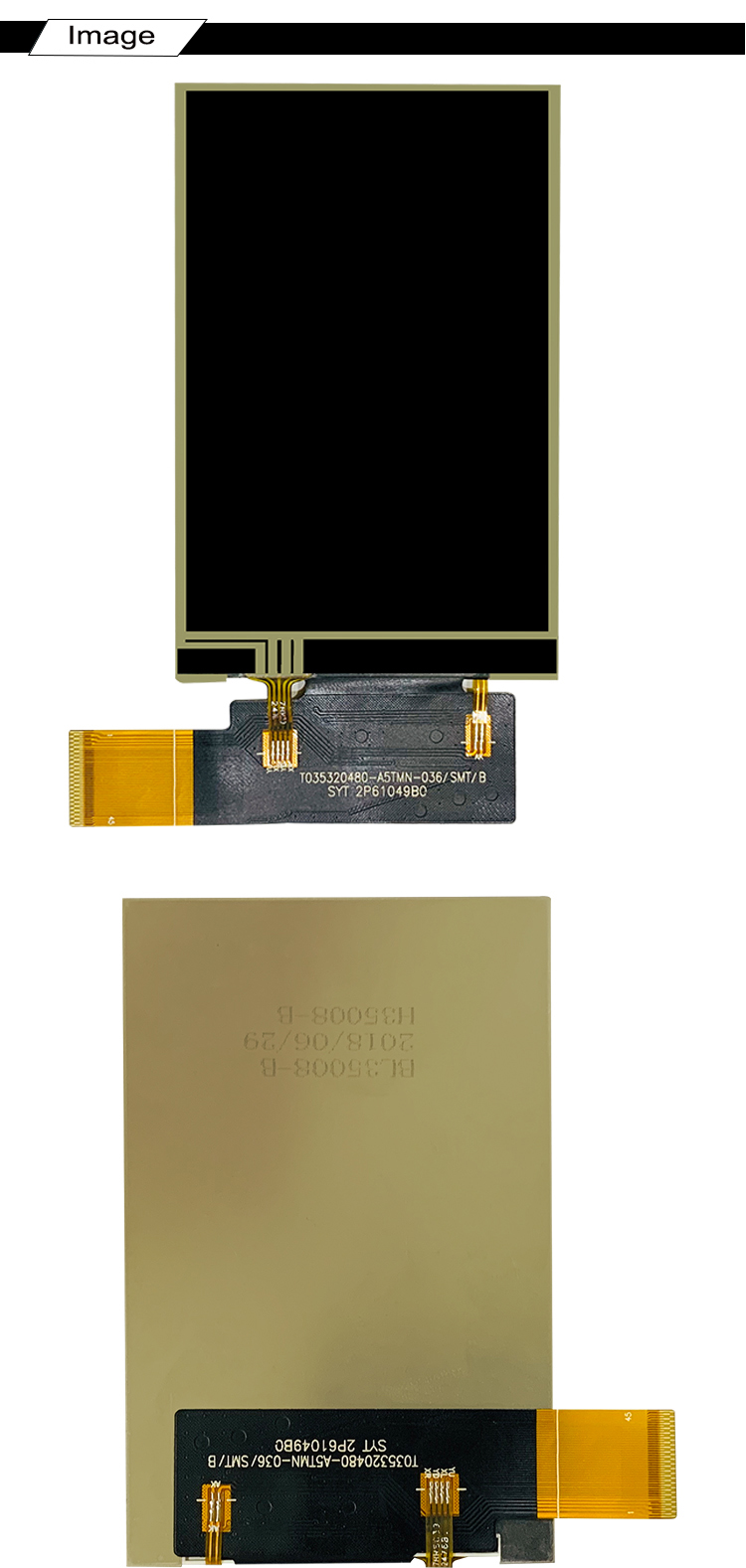

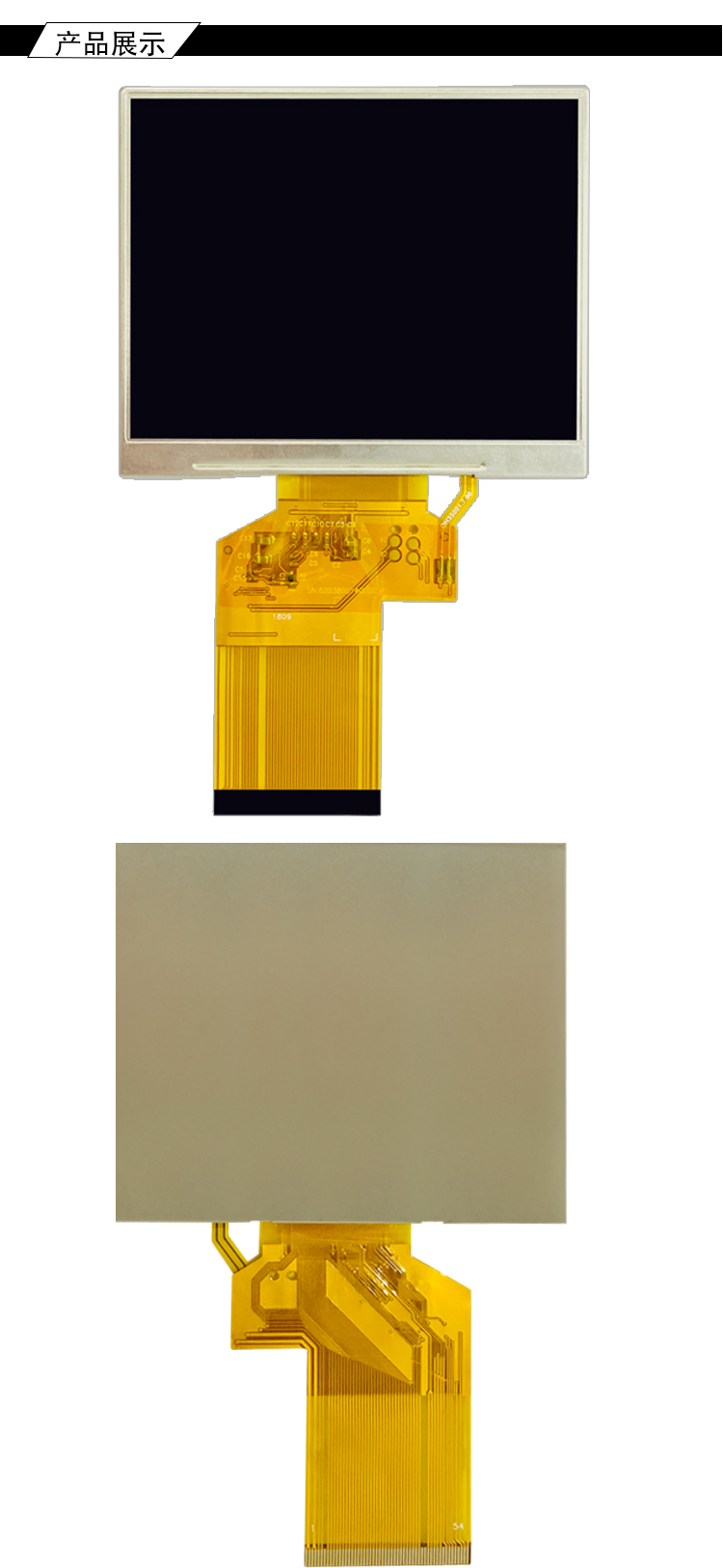

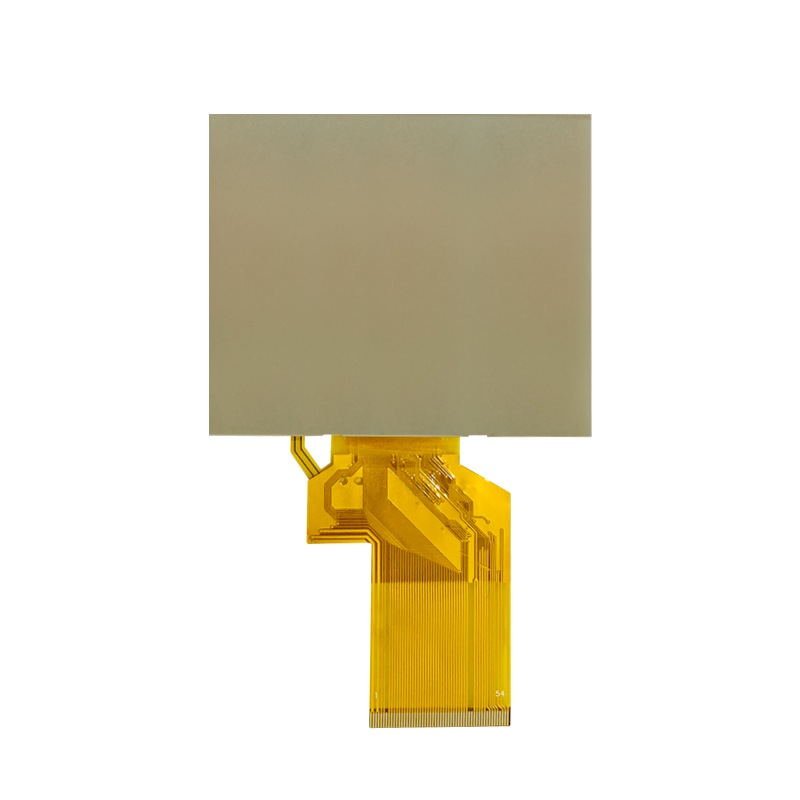

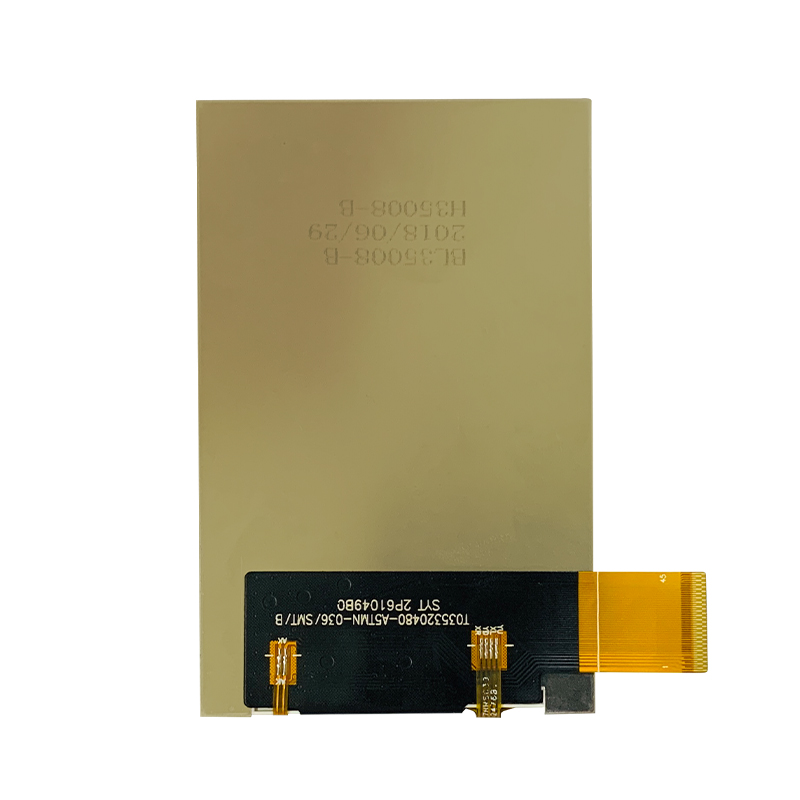

3.5 inch 320*480 IPS Small Strip TFT LCD Display with Capacitive Driver Chip ILI9488 8080 parallel with 45&54pin- 副本

  • LCD Type :TFT , Transflective , Positive
  • Size: 3.5
  • Resolution: 320*480
  • Interface:8080 parallel
  • Product description: Hicenda Technology Co.,ltd can supply high quality 3.5 inch small tft display for medical or industrial device. 480*320 dot matrix 3.5 Inch Tft Lcd Display,tft lcd display 45&54 pin
  • INQUIRY


1. Display Specifications

  • LCD Size: 3.5 inches
  • Dot Matrix Size: 320*480
  • View direction:12 O’clock
  • Hardware Interface: 8080 parallel port&RGB
  • Driver IC:    ILI9488
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  45&54Pin

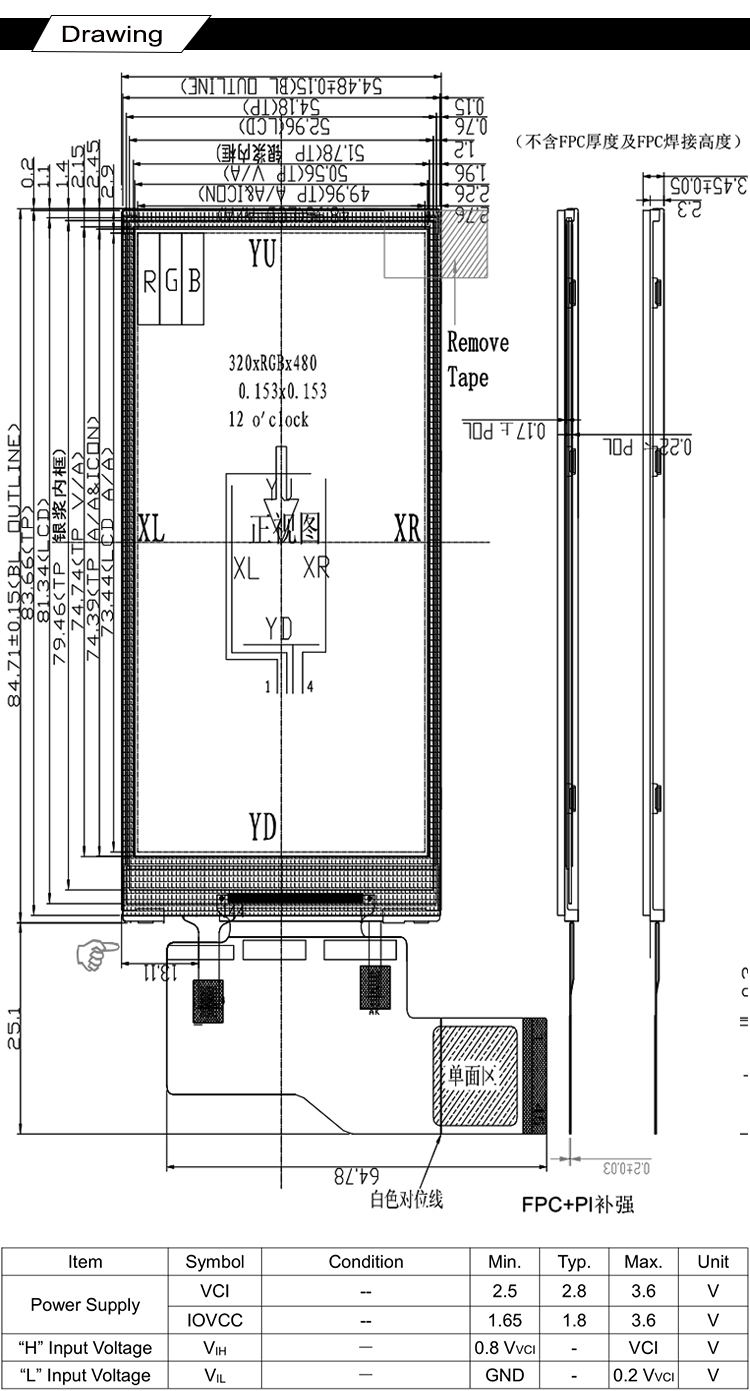

  • Display Area:48.96*73.44
  • Size: 54.48(H)x84.71(V)x3.5(D)
  • Backlight: White LED

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
