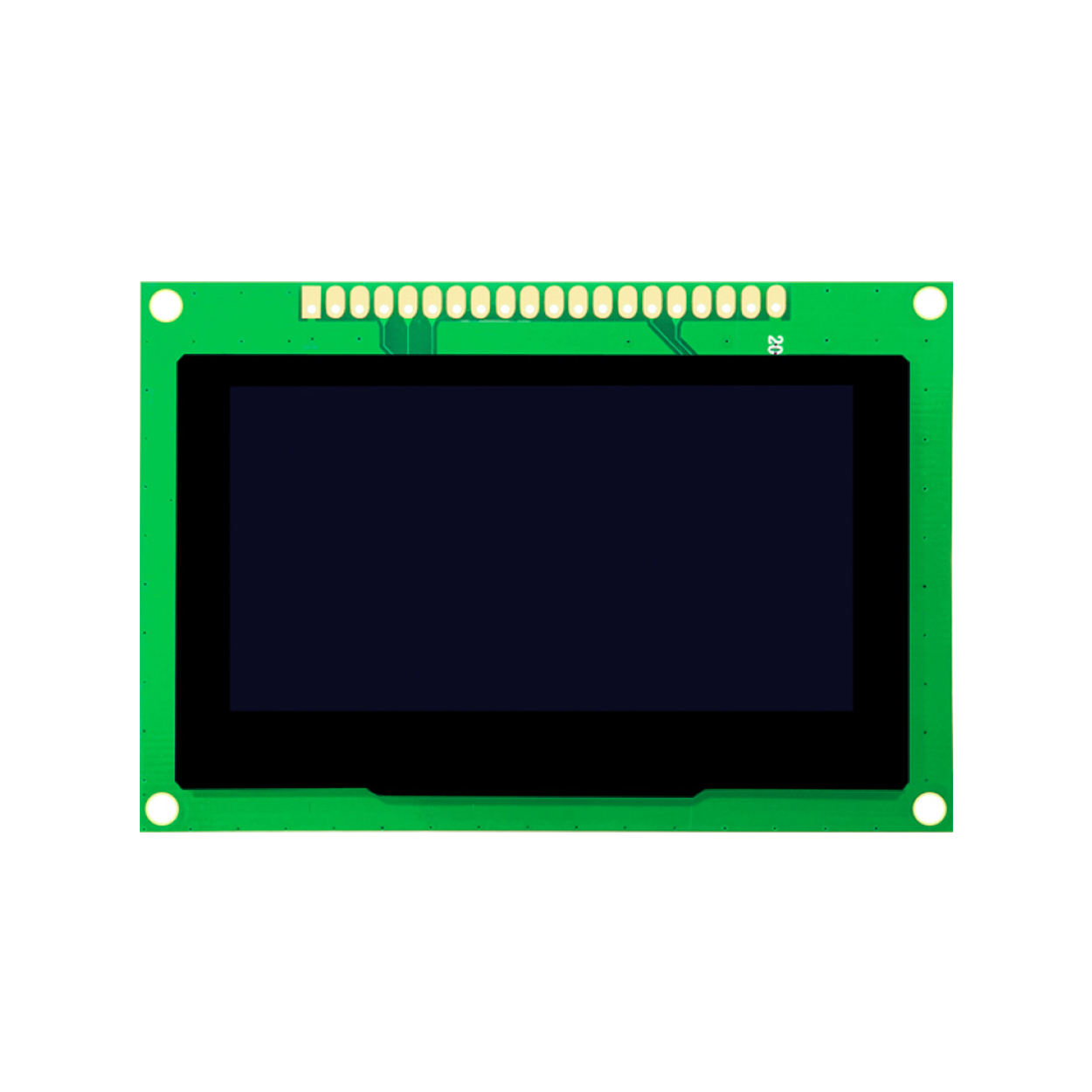

Description:

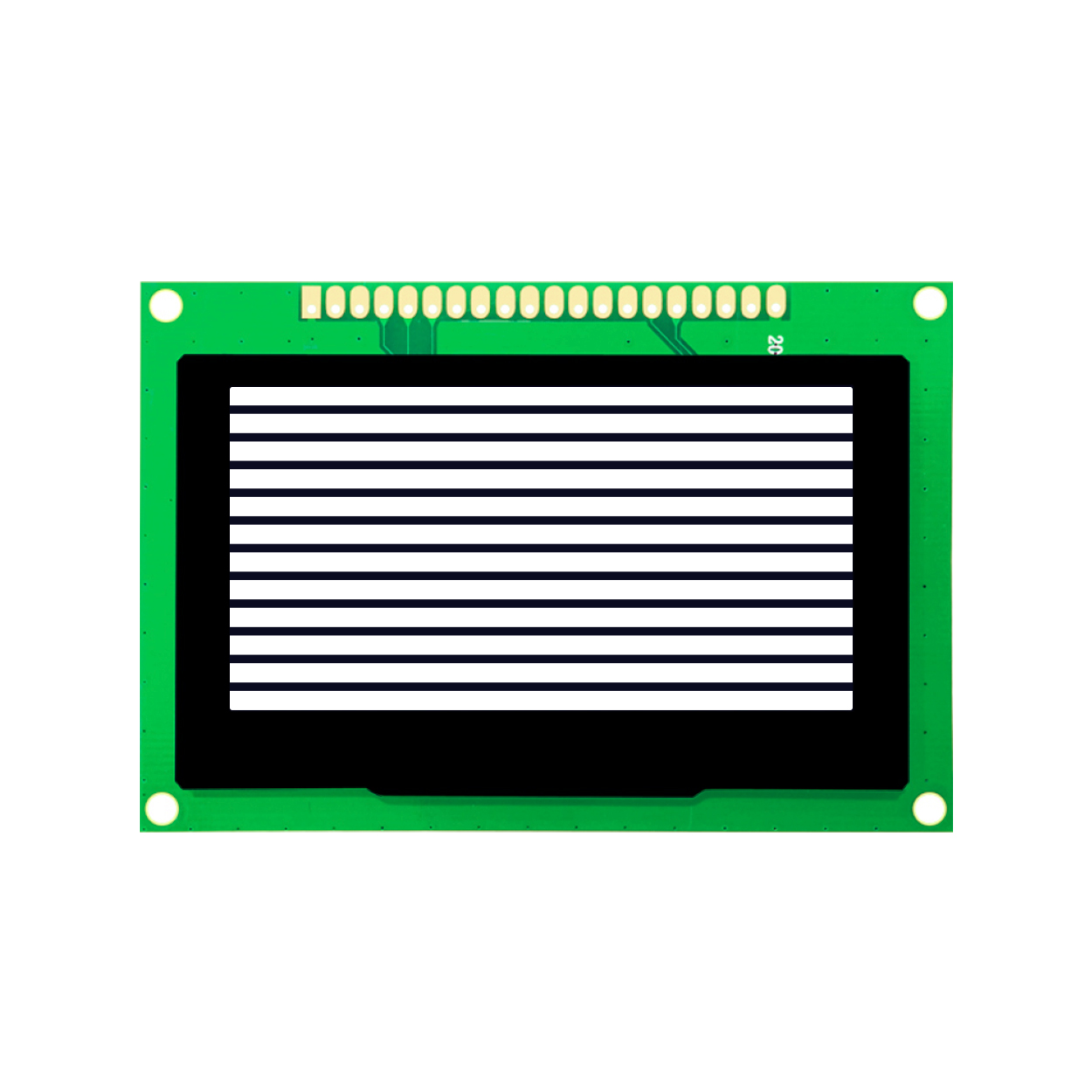

The 2.7 inch OLED display module described here is a monochrome passive-matrix graphic display featuring a resolution of 128×64 dots. It integrates the SSD1325 driver IC and supports both 8-bit 68XX/80XX parallel and SPI interfaces. With a compact outline of 85.0 × 58.0 × 6.3 mm and a viewing area of 65.0 × 33.0 mm, the module is designed for reliable operation across a wide temperature range from -40℃ to 80℃, making it suitable for industrial and embedded applications.

Structural and Electrical Characteristics

This module adopts a passive matrix OLED (PMOLED) architecture, which balances simplicity of driving circuitry with reliable optical output. The SSD1325 controller integrates display RAM, segment/common drivers, and command decoding, enabling efficient system integration.

The display operates with a 1/64 duty cycle, matching its 128×64 pixel matrix. Each pixel is defined with a pitch of 0.48 mm, ensuring consistent luminance distribution and legibility across the active area. The module’s mechanical outline (85.0 × 58.0 × 6.3 mm) reflects a design optimized for panel mounting while maintaining sufficient robustness for handling and assembly.

Structural Characteristics and Display Architecture

The module adopts a passive matrix OLED (PMOLED) architecture, which emphasizes low power consumption and simplified driving schemes for medium-resolution displays. Each pixel is individually controlled within a 1/64 duty driving method, ensuring uniform luminance distribution across the panel.

With a pixel size of 0.45 × 0.45 mm and a pitch of 0.48 × 0.48 mm, the display achieves a balanced compromise between clarity and manufacturing efficiency. The 128×64 dot matrix format is particularly suited to graphical user interfaces, symbolic representation, and low-complexity imaging tasks.

Visual Performance and Optical Properties

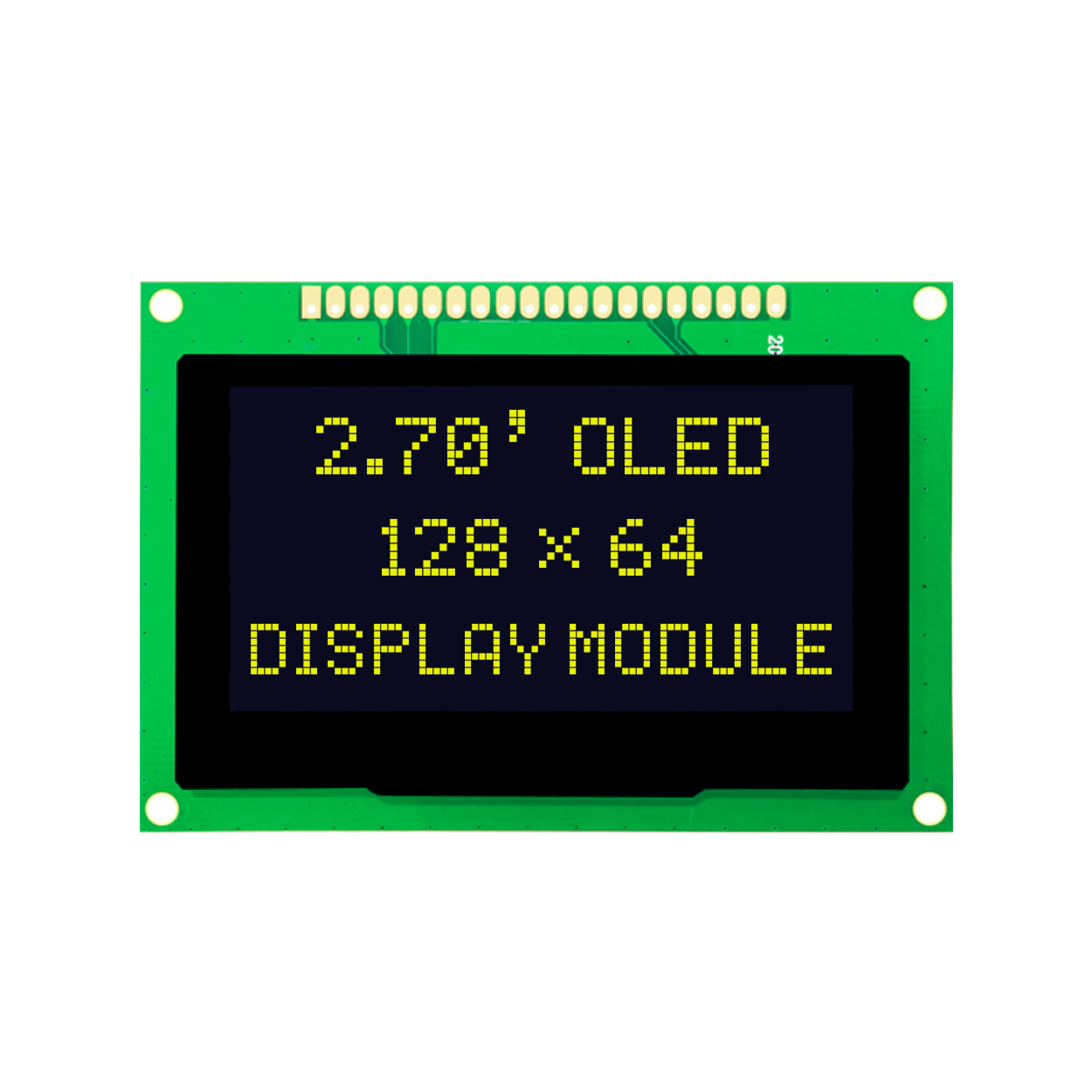

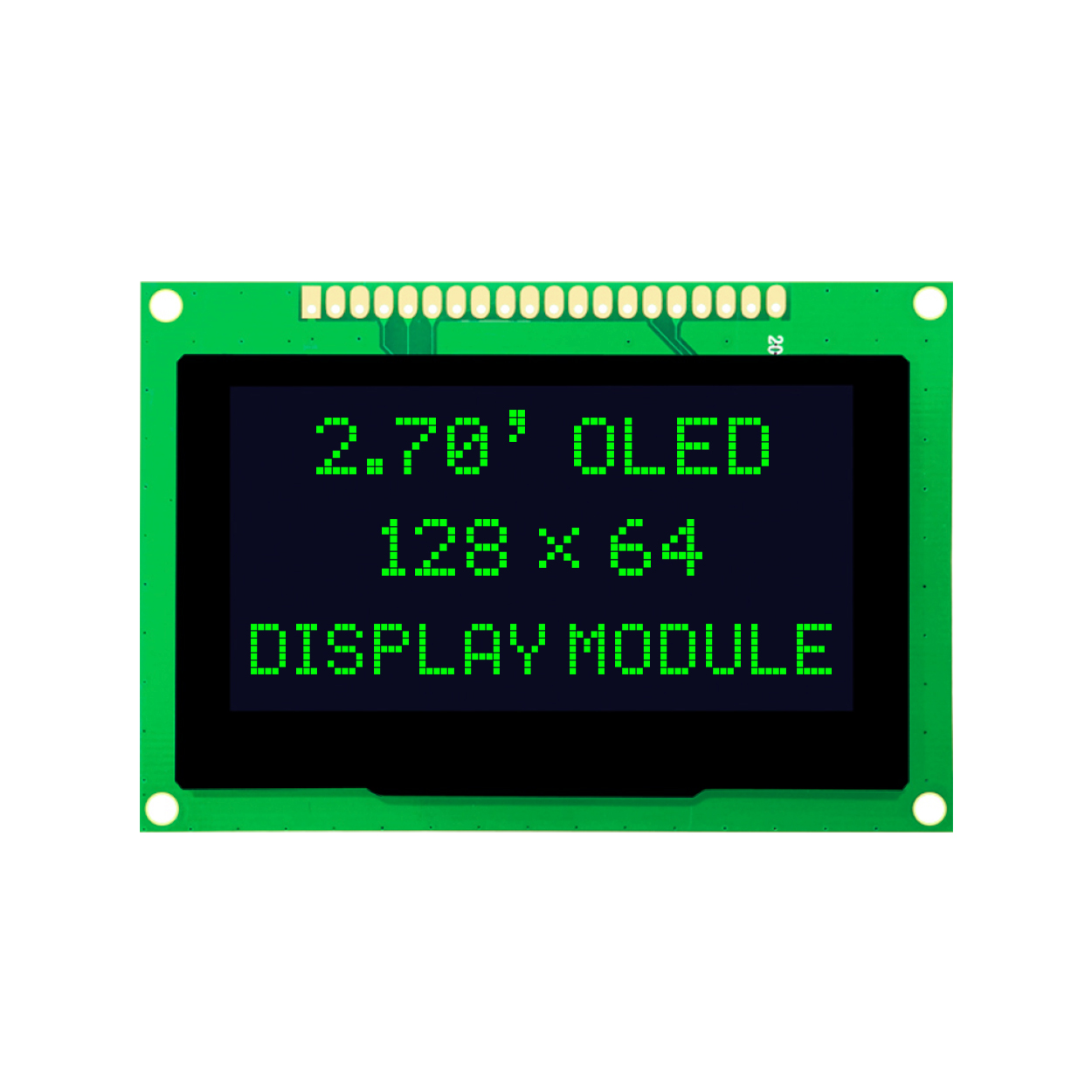

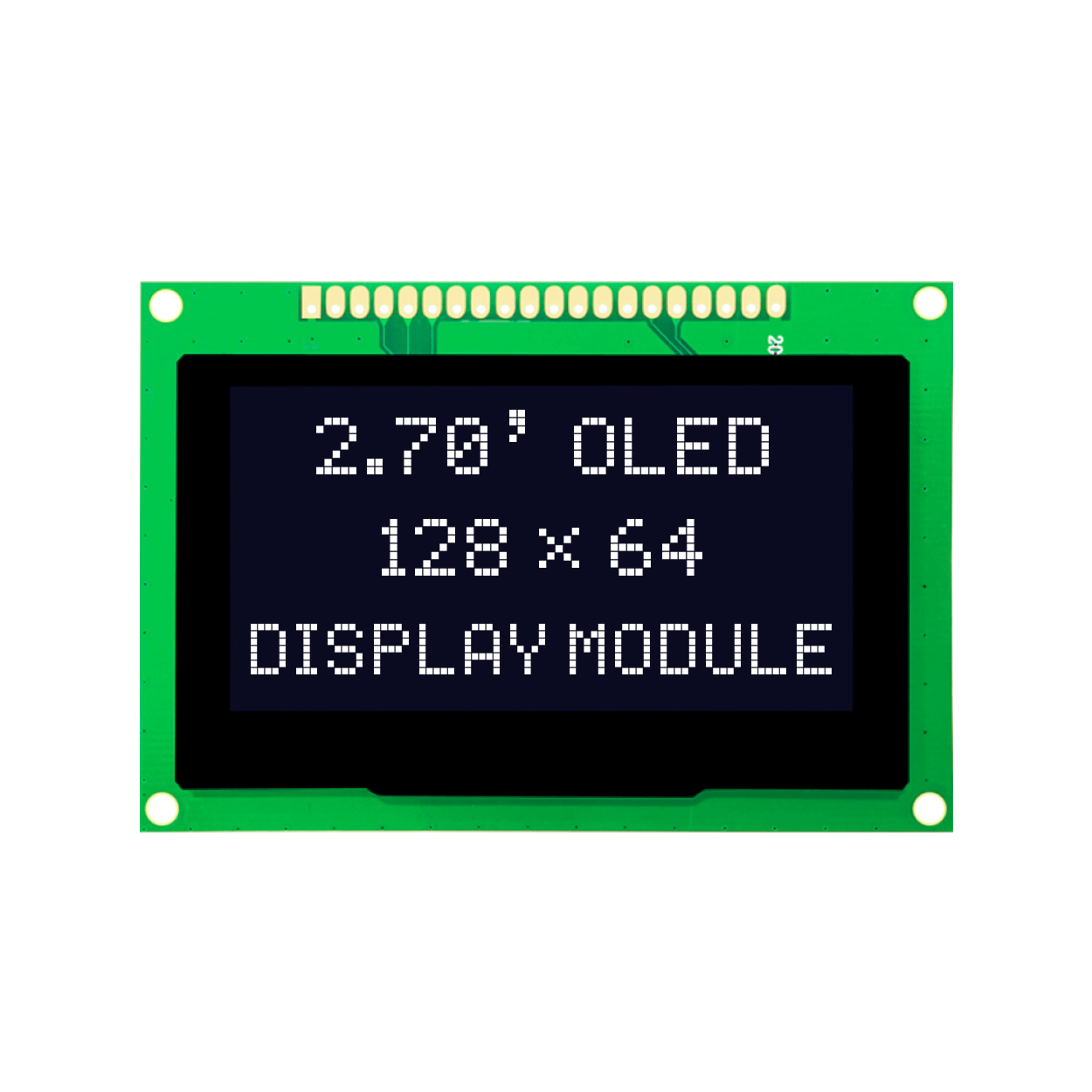

The display supports monochrome emission in multiple color variants, including yellow, white, and green. These options enable flexibility in adapting to different ambient lighting conditions and product design requirements.

The wide viewing angle characteristic inherent to OLED technology ensures consistent readability from virtually all directions, which is advantageous in handheld devices and control panels where viewing positions may vary.

Electrical Interface and Driver Integration

At the core of the module lies the SSD1325 driver IC, a mature and widely adopted solution for PMOLED displays. It provides integrated control over grayscale rendering, row/column driving, and internal display RAM management.

Interface Compatibility

The module supports dual interface modes:

· 8-bit parallel interface (68XX/80XX) for high-speed data transfer in performance-sensitive systems

· SPI interface for reduced pin count and simplified hardware integration

This dual-interface capability allows designers to select the most appropriate communication method based on system constraints such as MCU resources, PCB complexity, and power budget.

Mechanical Design and Reliability

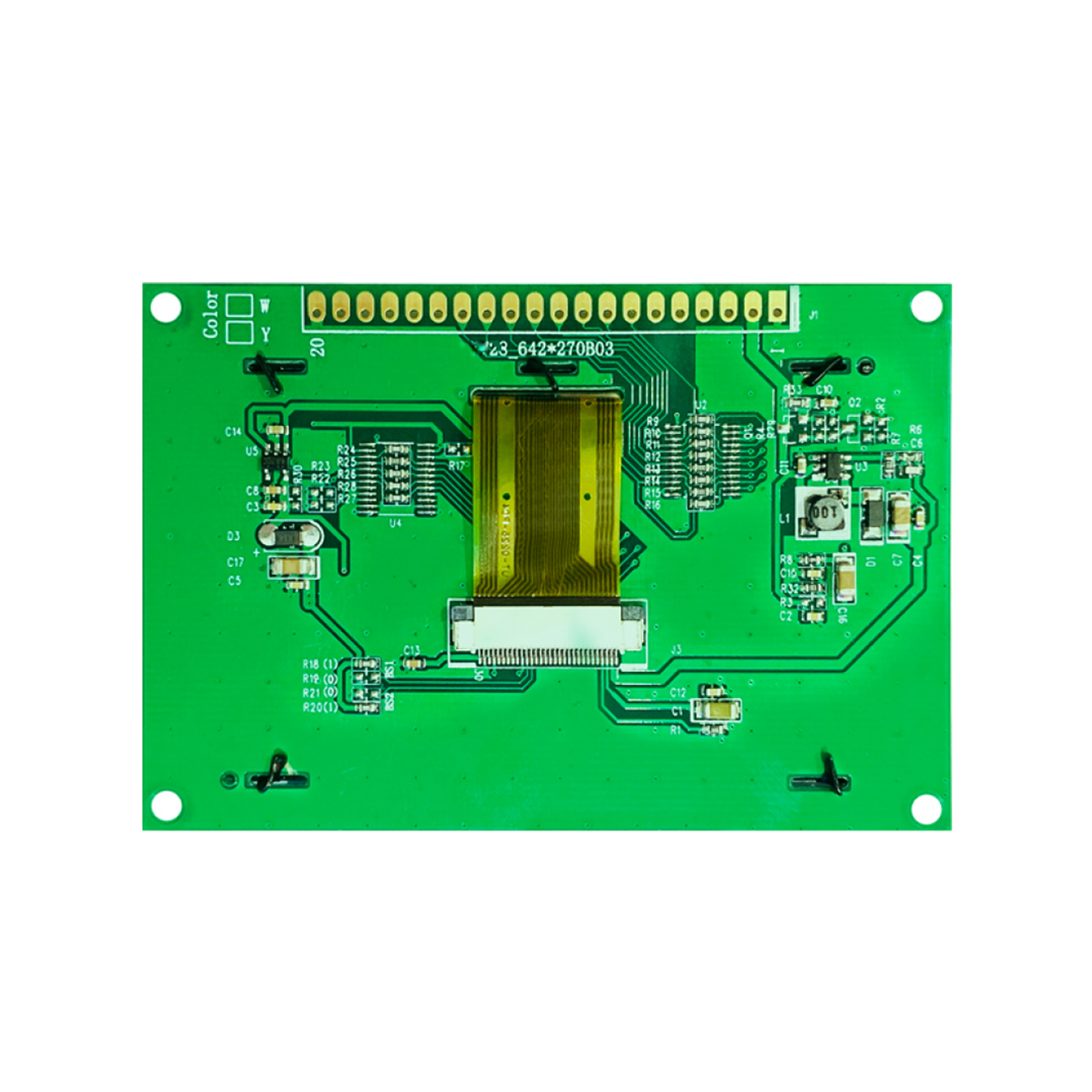

The module’s external dimensions of 85.0 mm (L) × 58.0 mm (W) × 6.3 mm (H) reflect a robust yet compact mechanical structure. The 20-pin configuration ensures stable electrical connection while maintaining ease of integration into embedded systems.

From a reliability standpoint, the module is engineered to operate within an extended temperature range:

· Operating: -40℃ to 80℃

· Storage: -40℃ to 85℃

Such resilience makes it well-suited for demanding environments including industrial control systems, outdoor instrumentation, and automotive auxiliary displays.

Mechanical Specifications

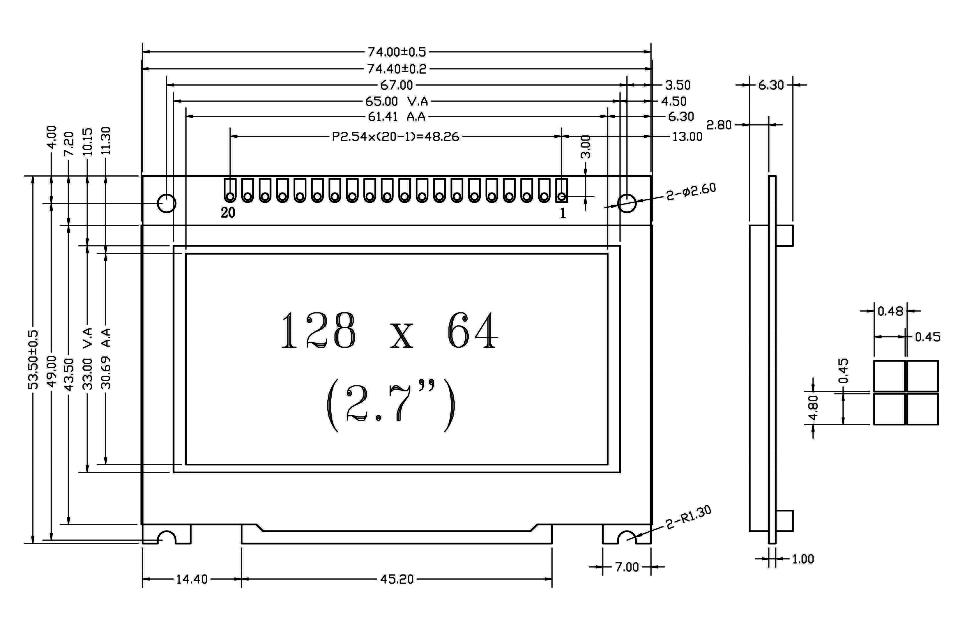

Drawing

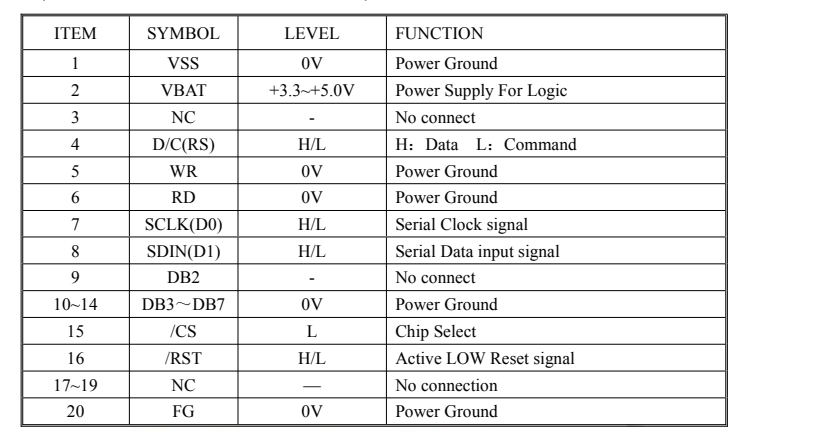

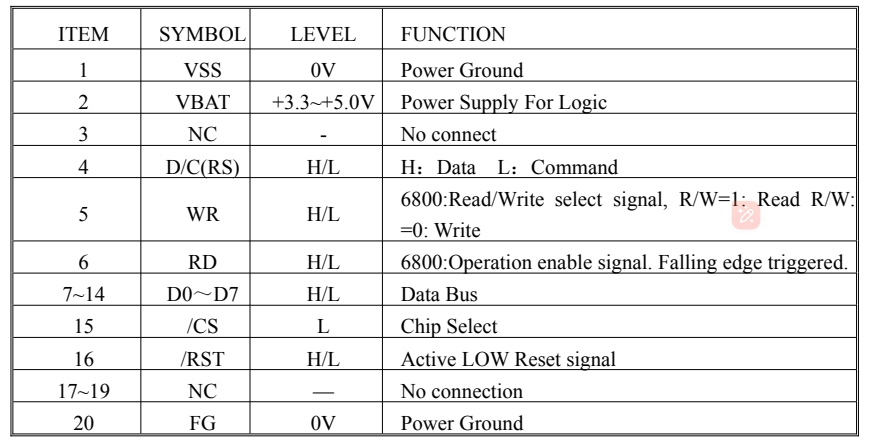

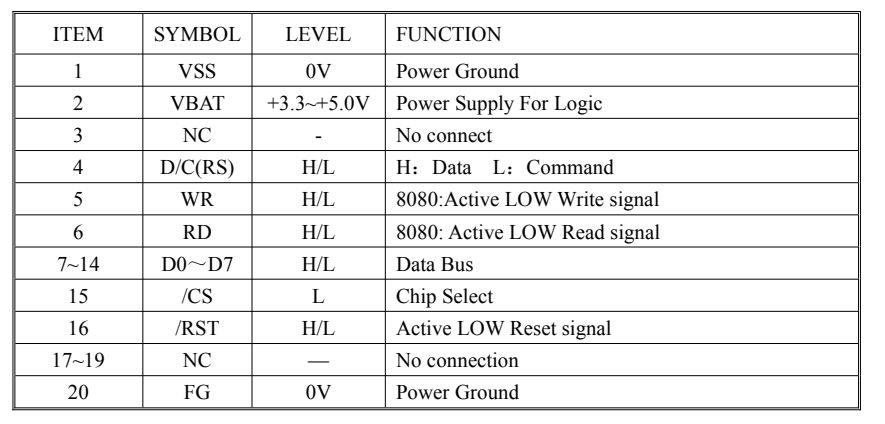

Pin Definition

Application Considerations

Owing to its balanced performance characteristics, the 2.7 inch OLED module is well positioned for applications that require stable graphical display without the overhead of high-resolution active matrix panels. Typical use cases include:

· Industrial control interfaces

· Portable measurement instruments

· Medical monitoring equipment

· Smart home control panels

The combination of flexible interface options, wide temperature tolerance, and consistent optical performance supports long-term deployment in both consumer and professional environments.

Conclusion

This 2.7 inch 128×64 OLED display module, driven by the SSD1325 IC, represents a practical and mature solution within the PMOLED category. Its thoughtful integration of electrical, optical, and mechanical features enables reliable performance across a wide range of applications, while maintaining design flexibility for system engineers.
