TFT Displays

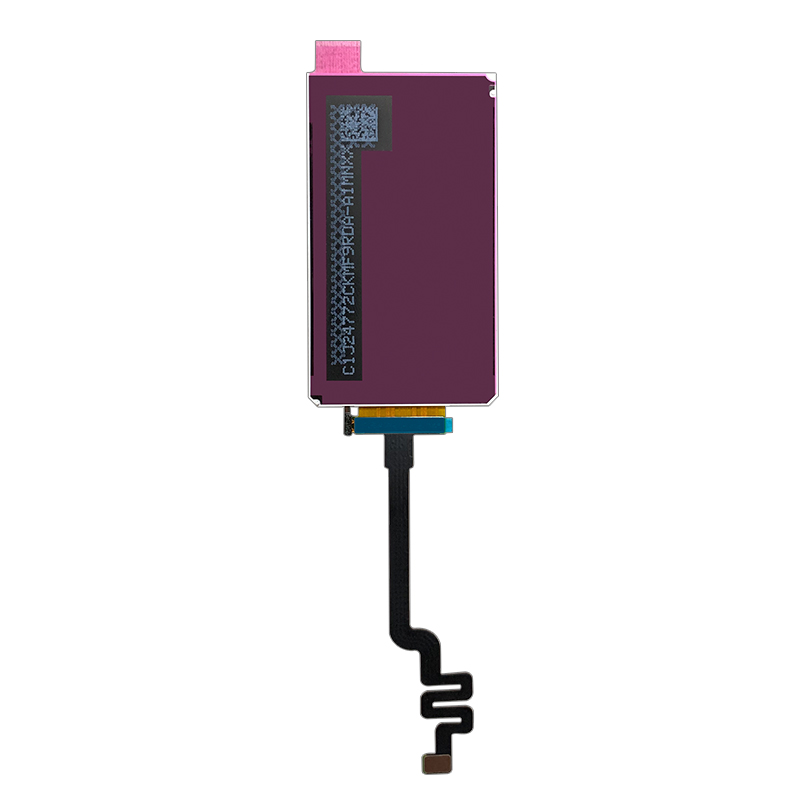

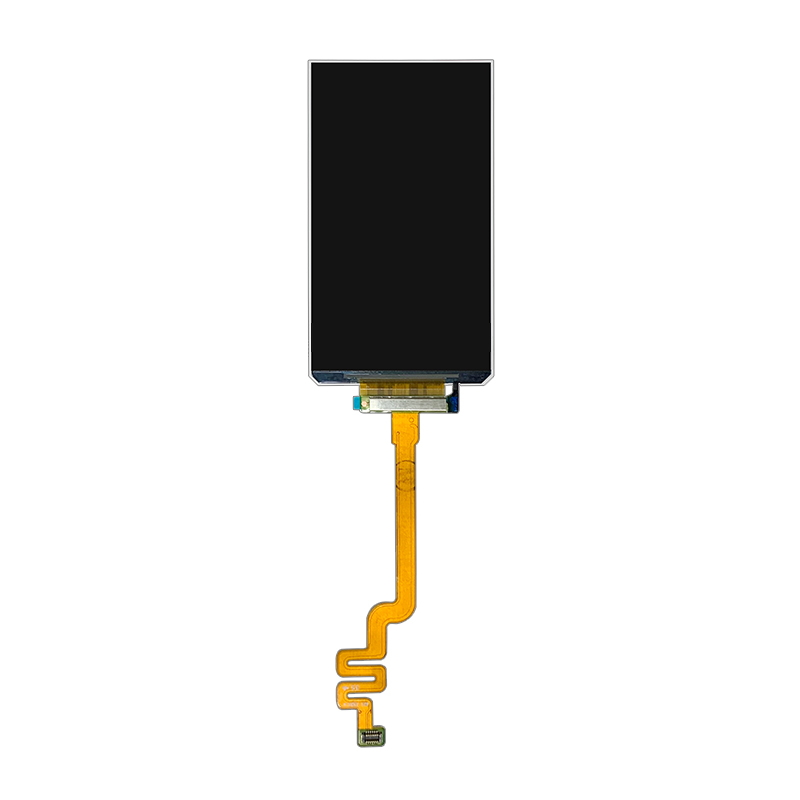

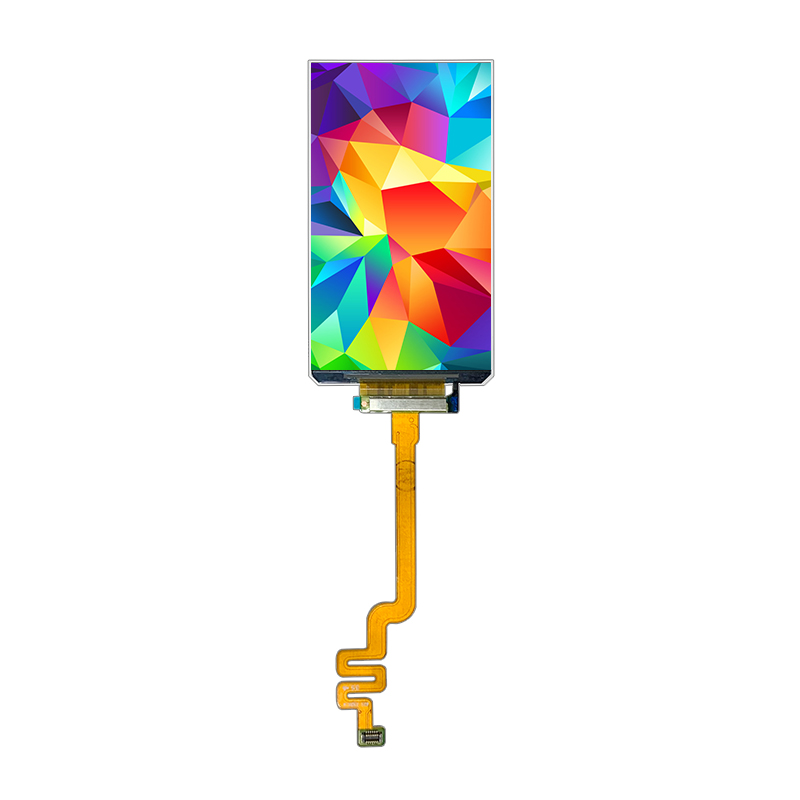

  • 2.45 Inch 240x430 Color TFT LCD Display 2.45 inch customized 240*430 dot matrix tft lcd display with wide temperature
  • 2.45 Inch 240x430 Color TFT LCD Display 2.45 inch customized 240*430 dot matrix tft lcd display with wide temperature
  • 2.45 Inch 240x430 Color TFT LCD Display 2.45 inch customized 240*430 dot matrix tft lcd display with wide temperature
2.45 Inch 240x430 Color TFT LCD Display 2.45 inch customized 240*430 dot matrix tft lcd display with wide temperature2.45 Inch 240x430 Color TFT LCD Display 2.45 inch customized 240*430 dot matrix tft lcd display with wide temperature2.45 Inch 240x430 Color TFT LCD Display 2.45 inch customized 240*430 dot matrix tft lcd display with wide temperature

2.45 Inch 240x430 Color TFT LCD Display 2.45 inch customized 240*430 dot matrix tft lcd display with wide temperature

  • Display mode:ECB Normally white
  • Size: 2.45
  • Resolution: 240*430
  • Interface: MIPI
  • Product description: Hicenda Technology Co.,ltd can supply high quality 2.45 inch small tft display for medical or industrial device.2.45 inch 240*430 pixels MIPI interfaceI tft lcd display
  • INQUIRY

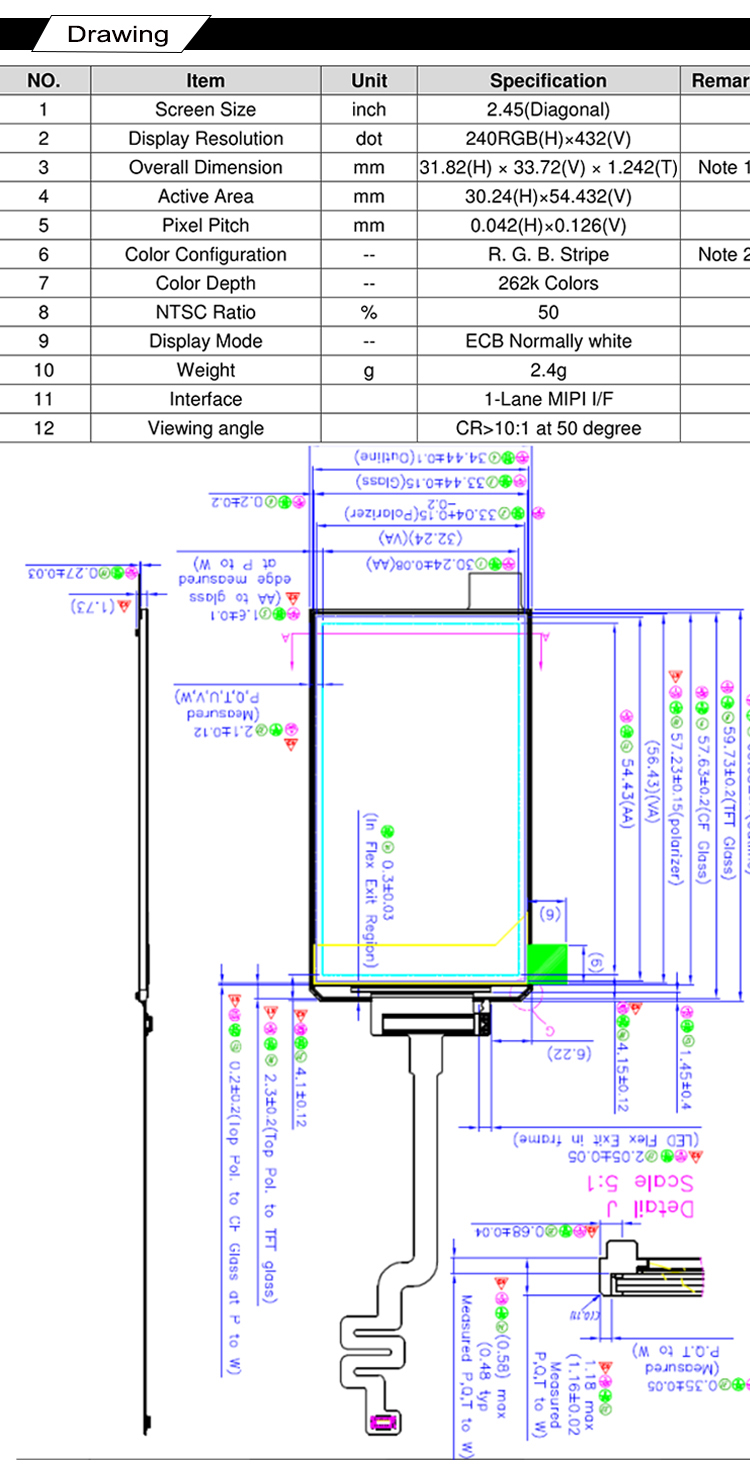

1. Display Specifications

  • LCD Size: 2.45 inches
  • Dot Matrix Size: 430*240
  • LCD Color: 262k Colors
  • Hardware Interface: MIPI interface
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  12Pin
  • Display Area: 30.24*54.432mm
  • Size: 31.82*33.72*1.24mm
  • Viewing Direction: 12 O'CLOCK

PIN No Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
