  • RGB interface  tft 480x234 pixels lcd tft display 2.36 inch 480*234 with acceptable price
  • RGB interface  tft 480x234 pixels lcd tft display 2.36 inch 480*234 with acceptable price
  • RGB interface  tft 480x234 pixels lcd tft display 2.36 inch 480*234 with acceptable price
RGB interface  tft 480x234 pixels lcd tft display 2.36 inch 480*234 with acceptable priceRGB interface  tft 480x234 pixels lcd tft display 2.36 inch 480*234 with acceptable priceRGB interface  tft 480x234 pixels lcd tft display 2.36 inch 480*234 with acceptable price

RGB interface tft 480x234 pixels lcd tft display 2.36 inch 480*234 with acceptable price

  • Display mode:240(RGB) × 320 dot matrix, TFT-LCD module
  • Size: 2.36
  • Resolution: 480*234
  • Interface: RGB

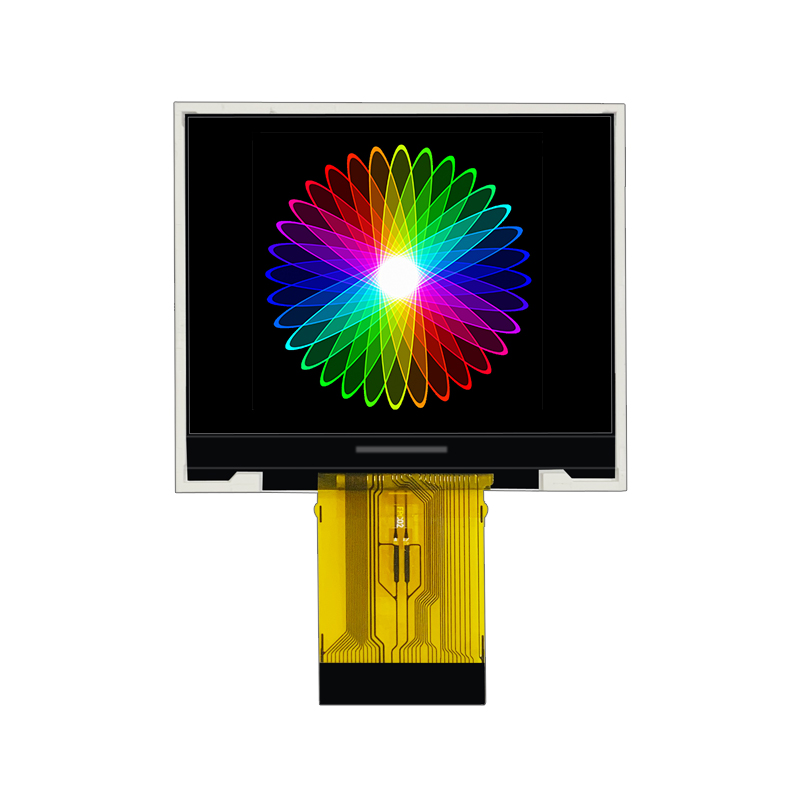

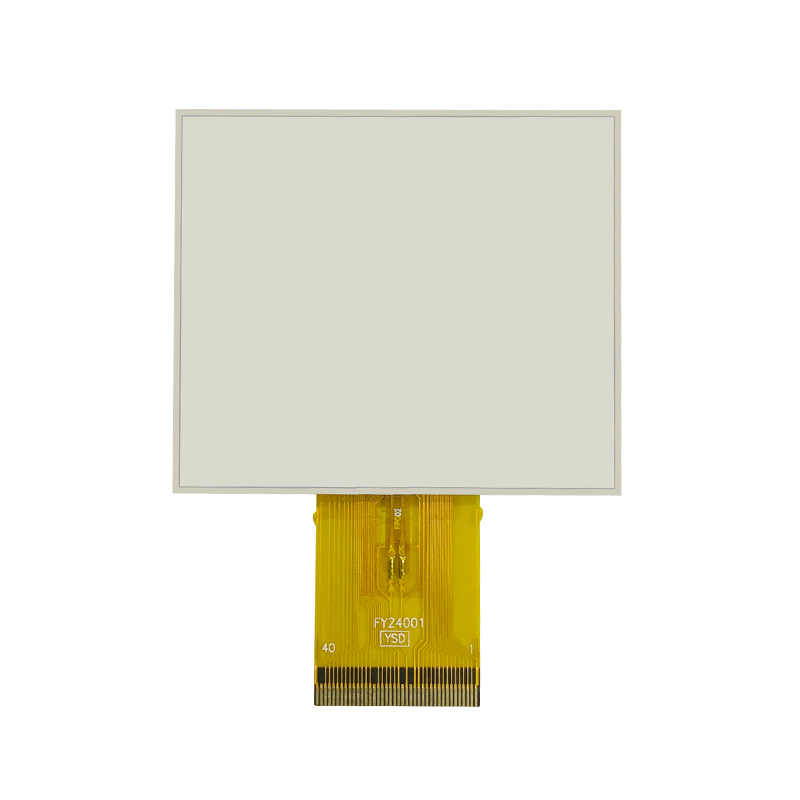

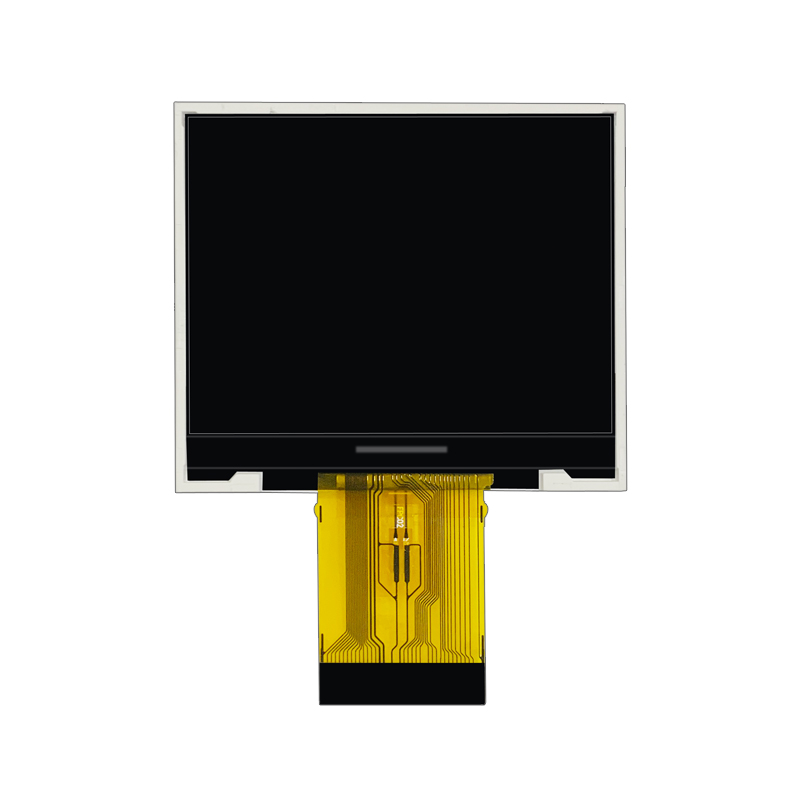

  • Product description: Hicenda Technology Co.,ltd can supply high quality 2.36 inch small tft display for medical or industrial device.high lightness 2.36 inch tft lcd display Plug 40pin
  • INQUIRY


1. Display Specifications

  • LCD Size: 2.36 inches
  • Dot Matrix Size: 480*240
  • LCD Color: 16M COLORS
  • Hardware Interface: RGB interface
  • Driver IC: OTA5182
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  40Pin
  • Display Area: 48*35.69mm

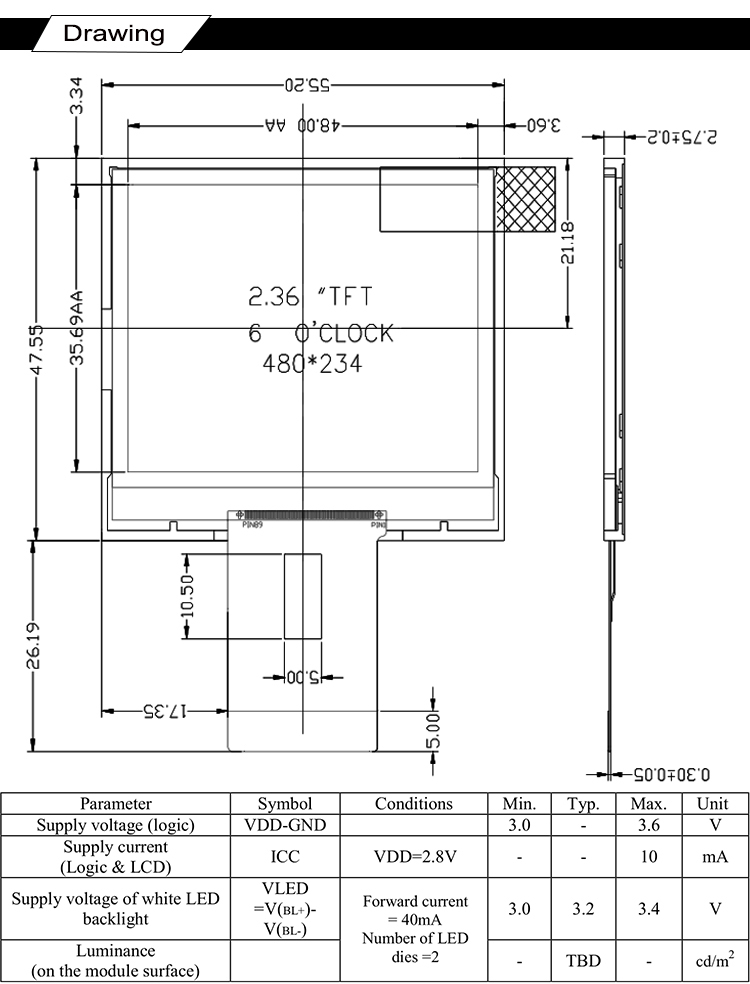

  • Size: 55.2*47.55*2.75mm
  • Viewing Direction: 6 O'CLOCK

PIN No Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
