TFT Displays

  • 2.31 inch tft lcd display lcd screen 960*240 graphic dot  mini lcd screen with discount price
  • 2.31 inch tft lcd display lcd screen 960*240 graphic dot  mini lcd screen with discount price
  • 2.31 inch tft lcd display lcd screen 960*240 graphic dot  mini lcd screen with discount price
2.31 inch tft lcd display lcd screen 960*240 graphic dot  mini lcd screen with discount price2.31 inch tft lcd display lcd screen 960*240 graphic dot  mini lcd screen with discount price2.31 inch tft lcd display lcd screen 960*240 graphic dot  mini lcd screen with discount price

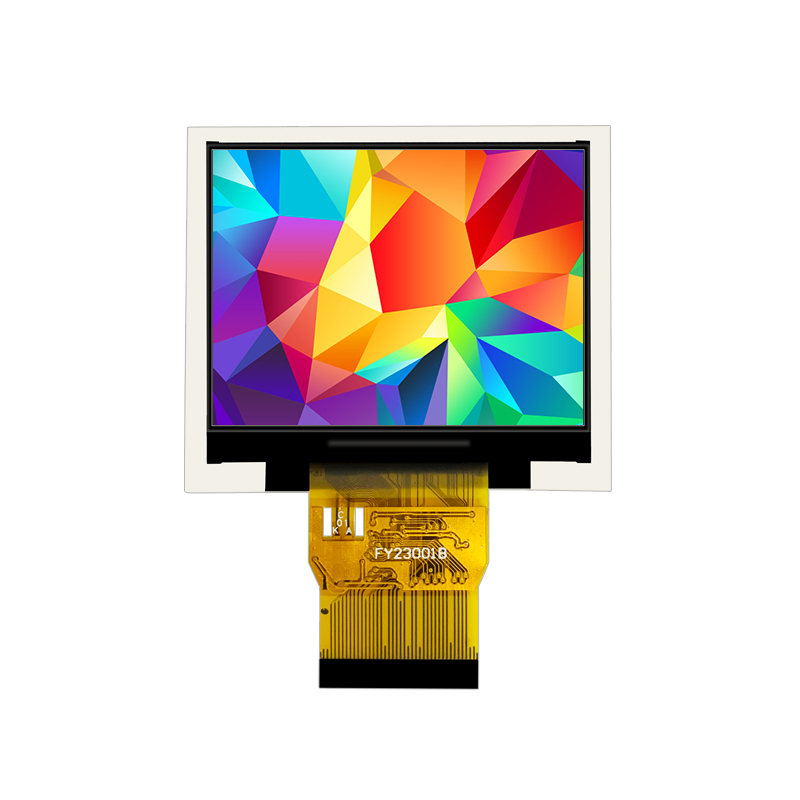

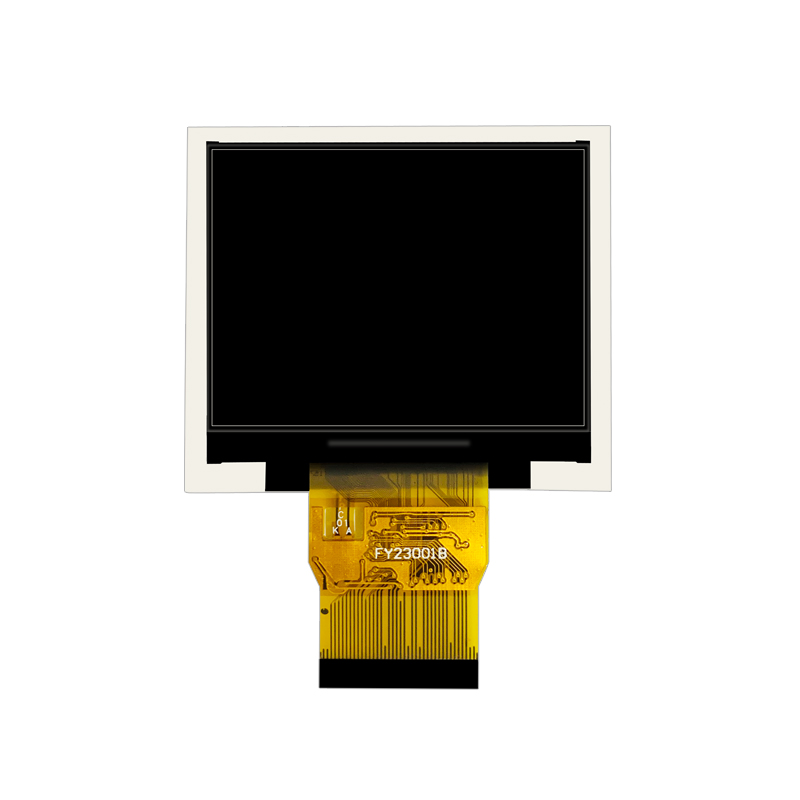

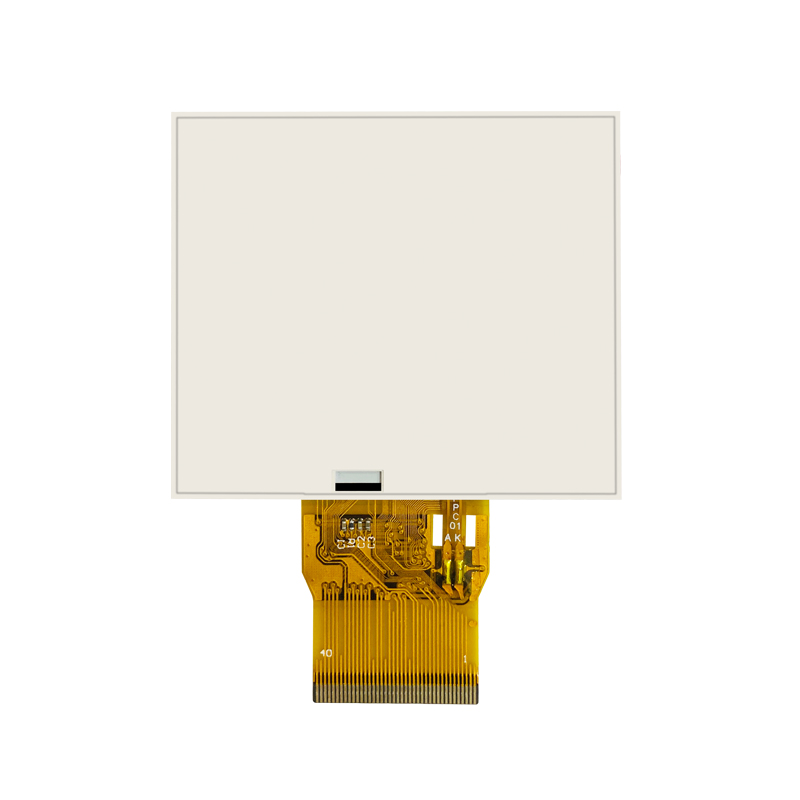

2.31 inch tft lcd display lcd screen 960*240 graphic dot mini lcd screen with discount price

  • Display mode:240(RGB) × 320 dot matrix, TFT-LCD module
  • Size: 2.31
  • Resolution: 240*960
  • Interface: RGB
  • Product description: Hicenda Technology Co.,ltd can supply high quality 2.31 inch small tft display for medical or industrial device.high lightness 2.36 inch tft lcd display Plug 40pin
  • INQUIRY


1. Display Specifications

  • LCD Size: 2.31 inches
  • Dot Matrix Size: 960*240
  • LCD Color: 16M
  • Hardware Interface: RGB interface
  • Driver IC: ILI9342
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  40Pin

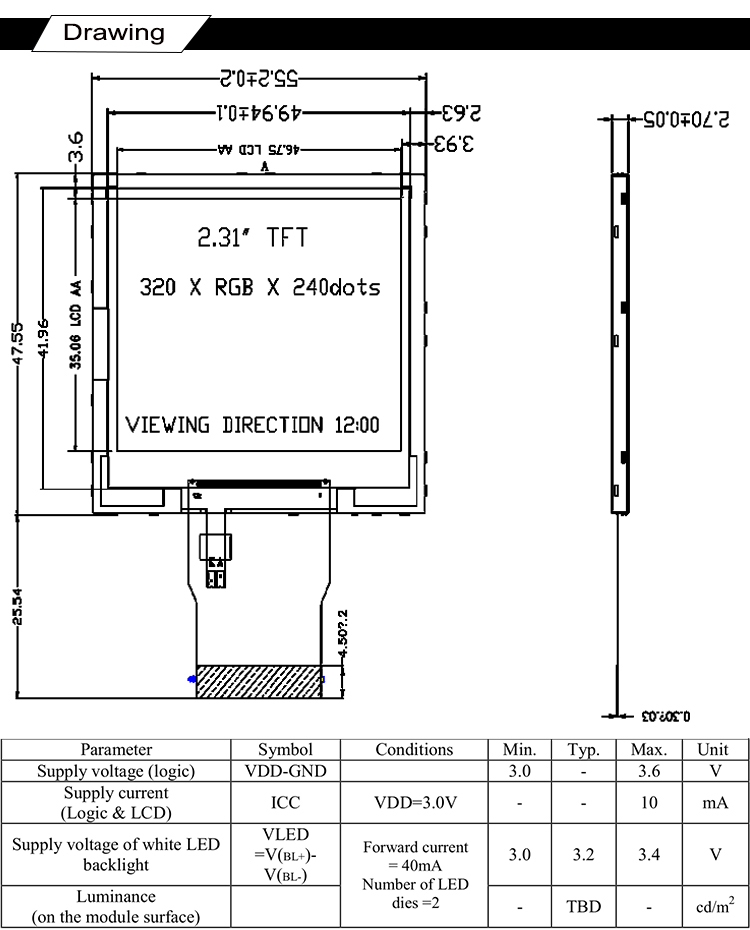

  • Display Area: 46.75*35.6mm
  • Size: 55.2*47.55*2.7mm
  • Viewing Direction: 12 O'CLOCK

PIN No Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
