TFT Displays

  •  2.8
  •  2.8
  •  2.8
 2.8 2.8 2.8

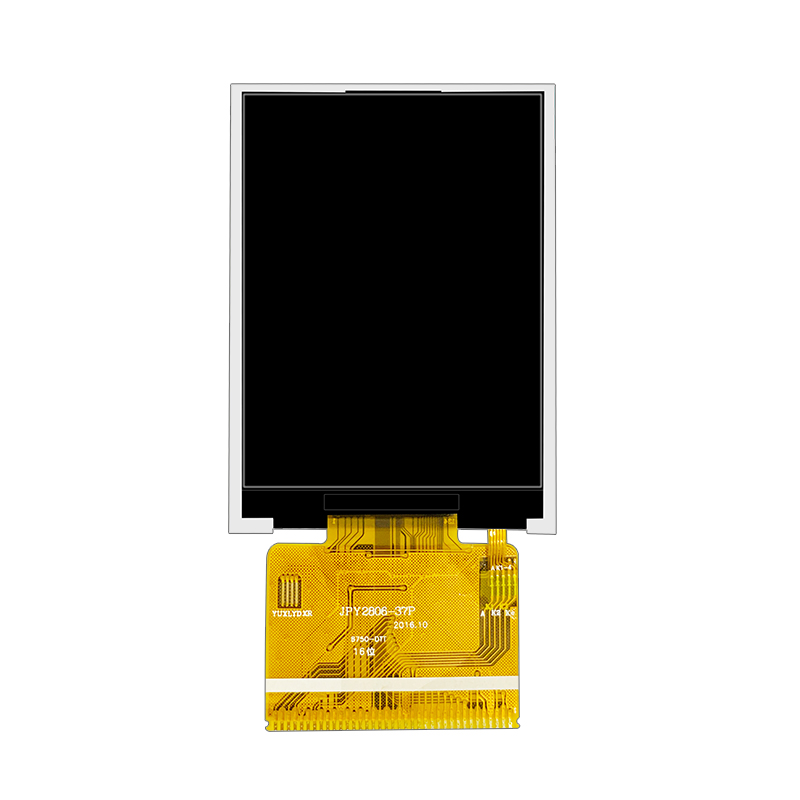

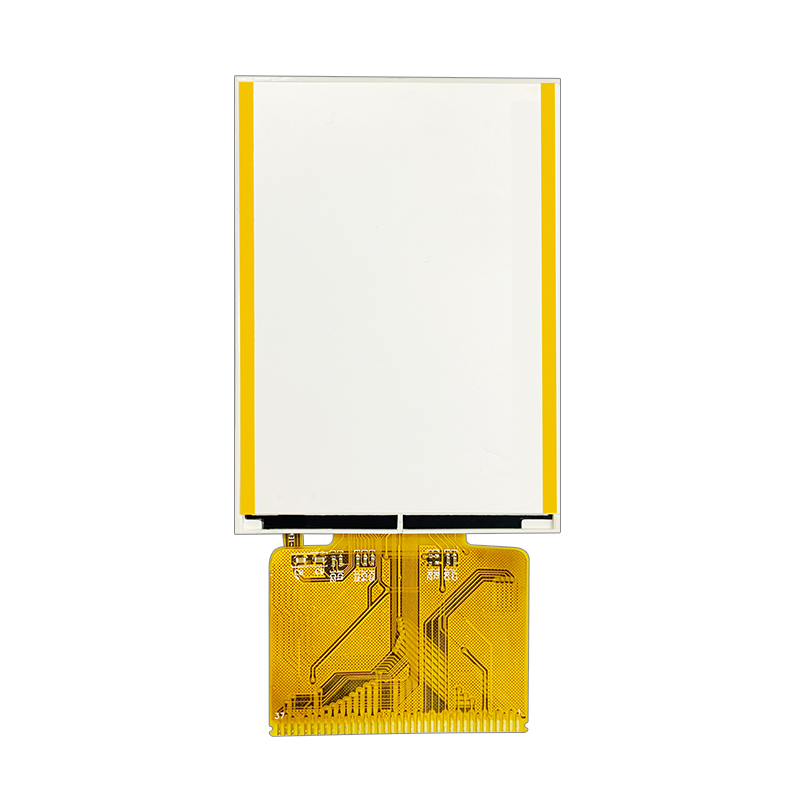

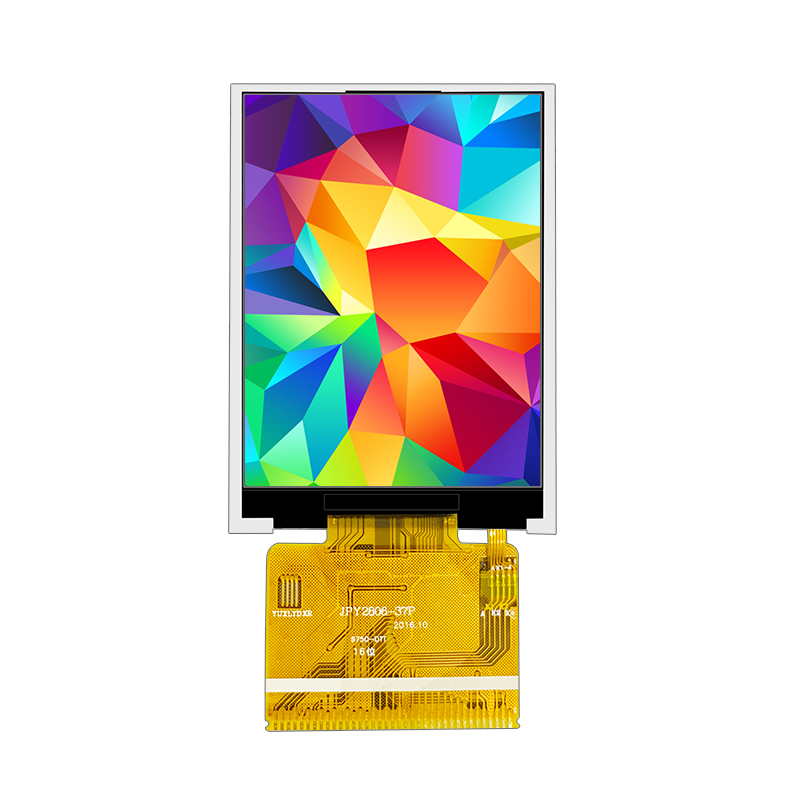

2.8

  • Panel Type: a-si TFT
  • Size: 2.8
  • Resolution: 240*320
  • Interface:80-bit system 8-bit parallel port
  • Product description: Hicenda Technology Co.,ltd can supply high quality 2.8 inch small tft display for medical or industrial device.37 pin tft lcd display Small display 240*320 LCD module 2.8 inch TFT
  • INQUIRY


1. Display Specifications

  • LCD Size: 2.8 inches
  • Dot Matrix Size: 320*240
  • Backlight Type: 4 White LEDs in Parallel
  • Hardware Interface: 80-bit system 8-bit parallel port
  • Driver IC: ILI9341
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  37Pin

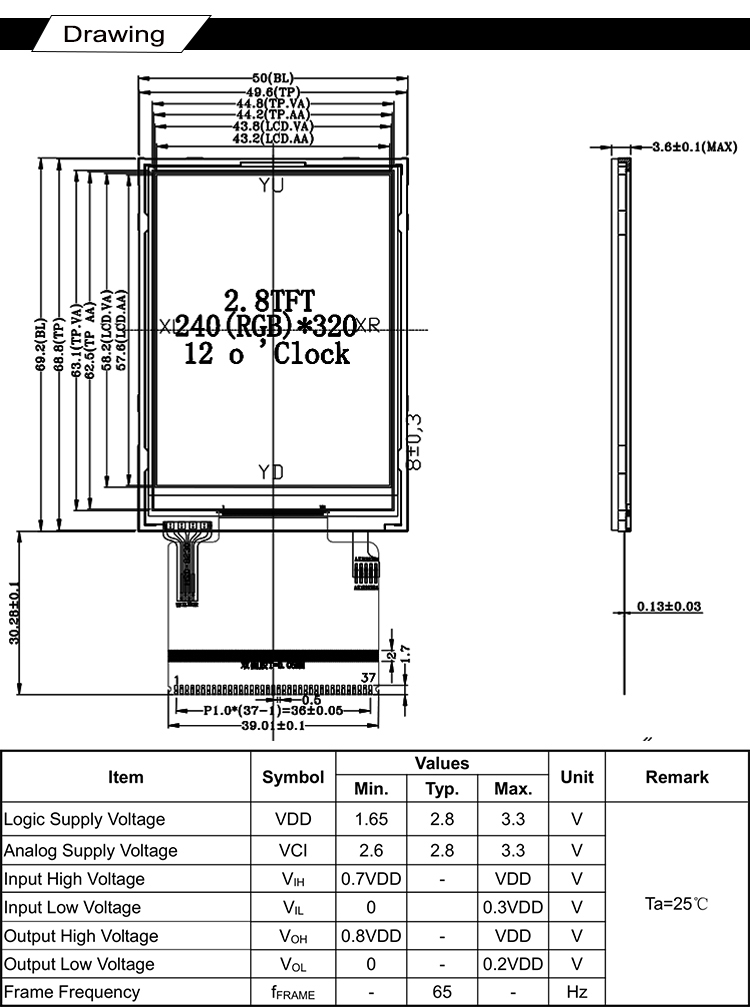

  • Display Area: 43.2*57.6mm
  • Size: 50*69.2*65mm
  • Viewing Direction: 12 O'CLOCK

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
