2.8"

  • intelligent tft colorful display 240x320 MCU lcd 2.8
  • intelligent tft colorful display 240x320 MCU lcd 2.8
  • intelligent tft colorful display 240x320 MCU lcd 2.8
intelligent tft colorful display 240x320 MCU lcd 2.8intelligent tft colorful display 240x320 MCU lcd 2.8intelligent tft colorful display 240x320 MCU lcd 2.8

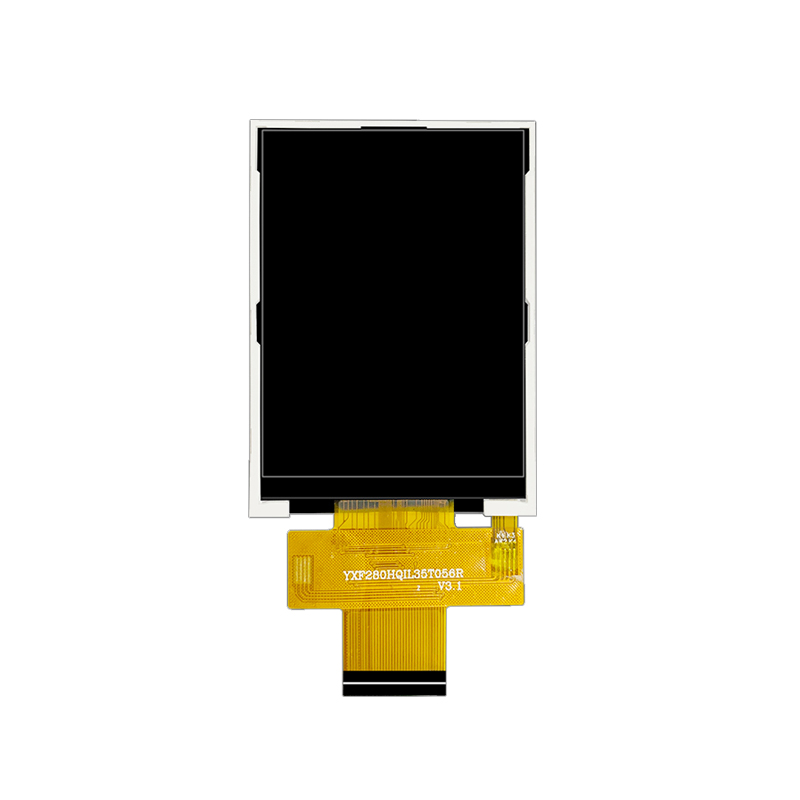

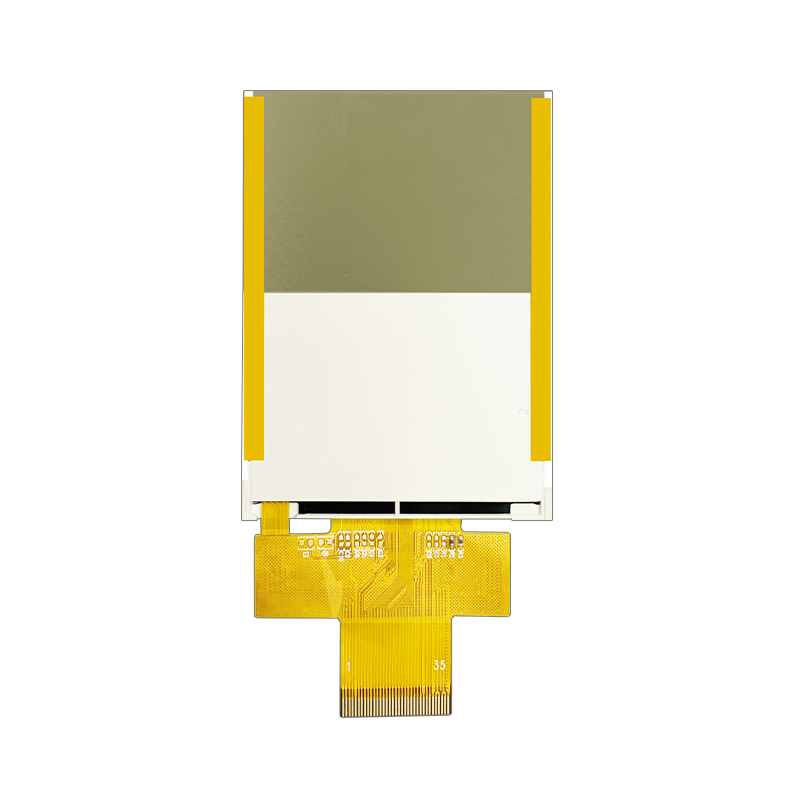

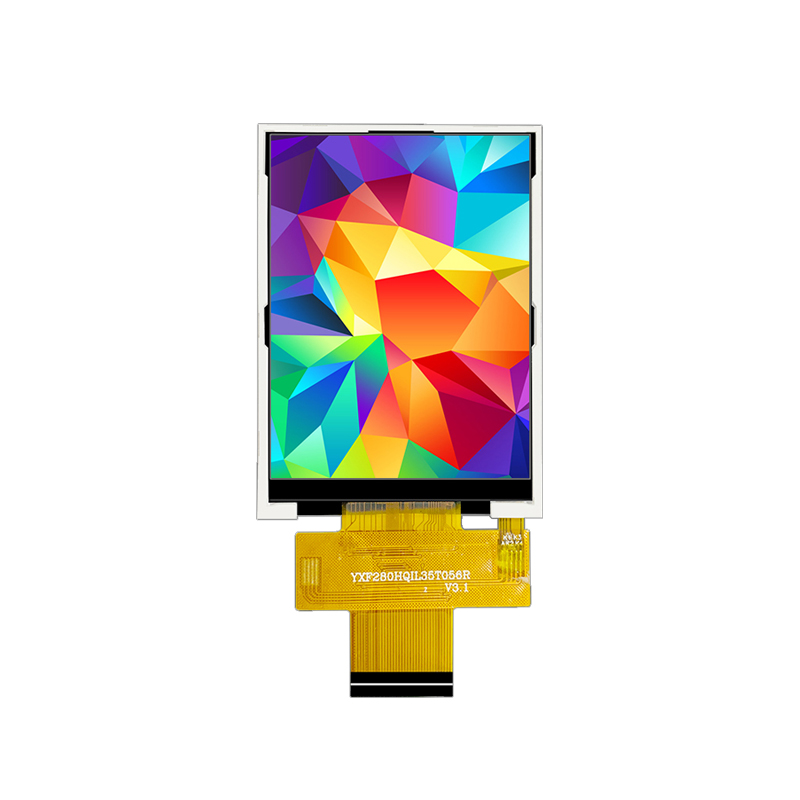

intelligent tft colorful display 240x320 MCU lcd 2.8

  • Panel Type: a-si TFT
  • Size: 2.8
  • Resolution: 240*320
  • Interface:16-bit MCU interface
  • Product description: Hicenda Technology Co.,ltd can supply high quality 2.8 inch small tft display for medical or industrial device.35 pin tft lcd display Small display 240*320 LCD module 2.8 inch TFT
  • INQUIRY


1. Display Specifications

  • LCD Size: 2.8 inches
  • Dot Matrix Size: 320*240
  • Backlight Type: 4 White LEDs in Parallel
  • Hardware Interface: 80-bit system 8-bit parallel port
  • Driver IC: ILI9341
  • Operating Temperature: -20 - 70
  • Working Power Supply: 3.0V
  • PIN NO:  35Pin

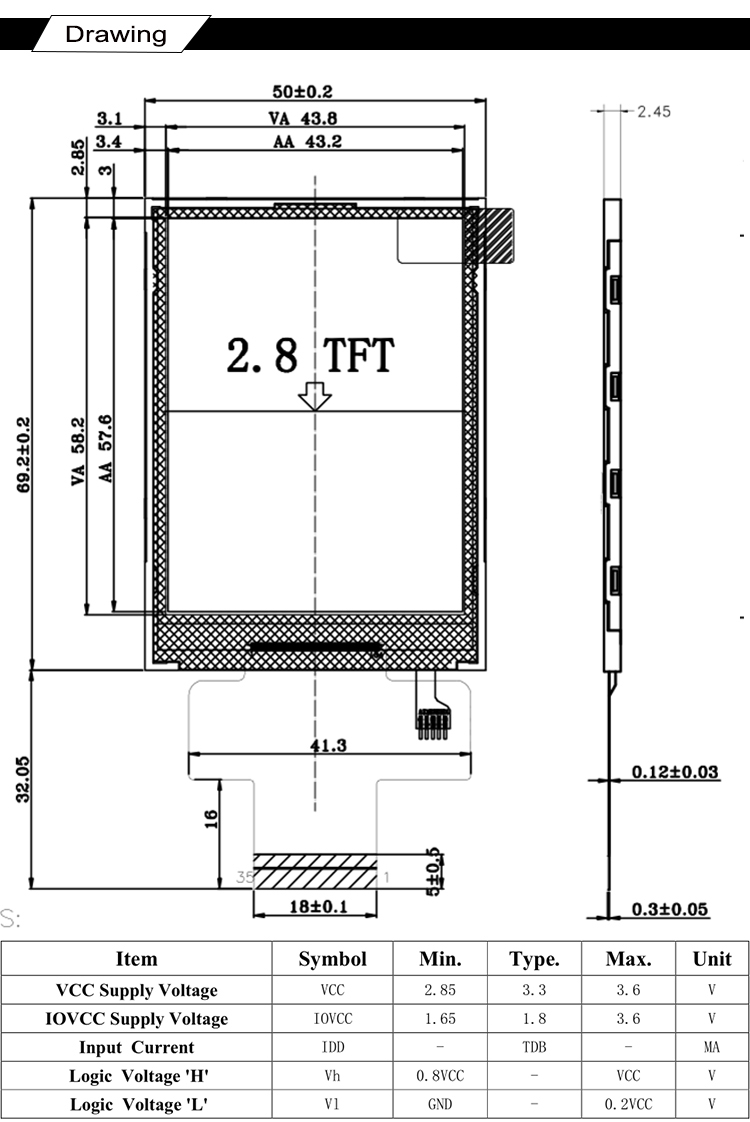

  • Display Area: 43.2*57.6mm
  • Size: 50*69.2*2.45mm
  • Viewing Direction: 12 O'CLOCK

PINo Symbol Description

Pin Define
1 GND GroundD
2 VCC Power 3.3V
3 SCL Serial clock pin.
4 SDA Serial data input
5 RES LCM Reset pin
6 DC Data/Command Control
7 CS Chip Select
8 BLK Backlight control pin
