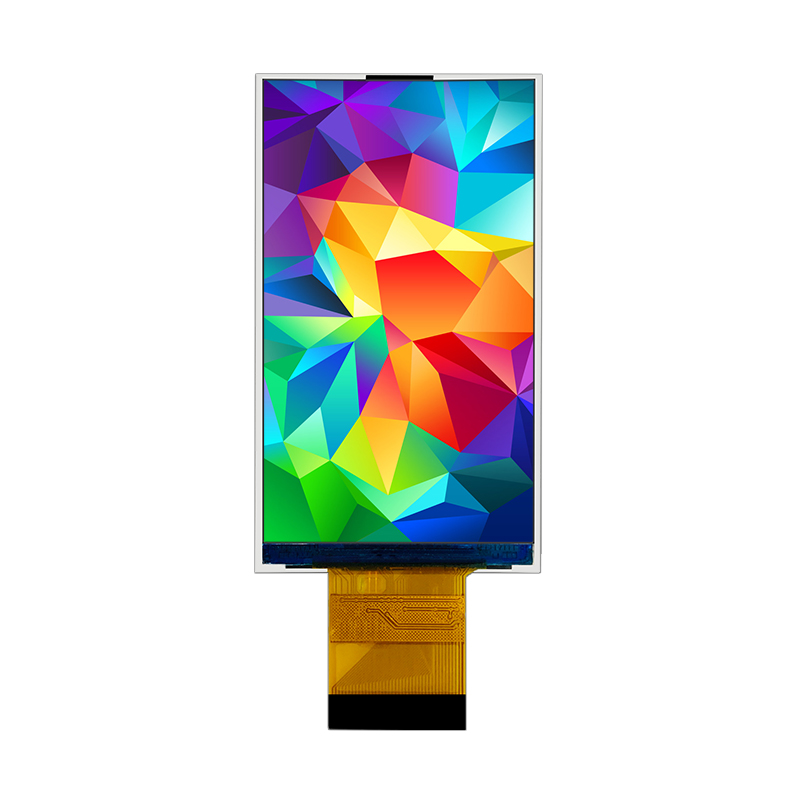

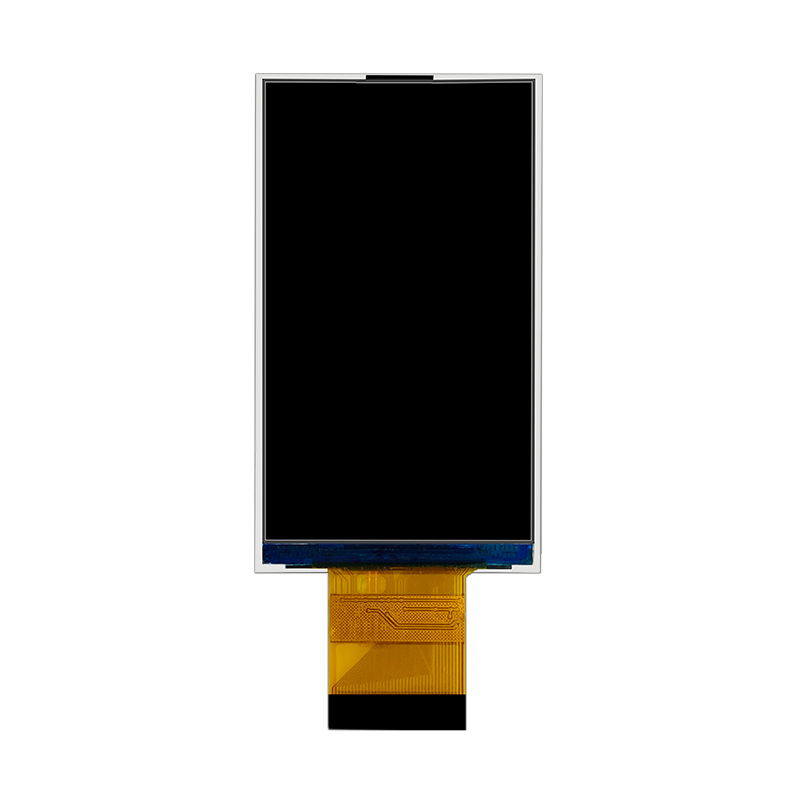

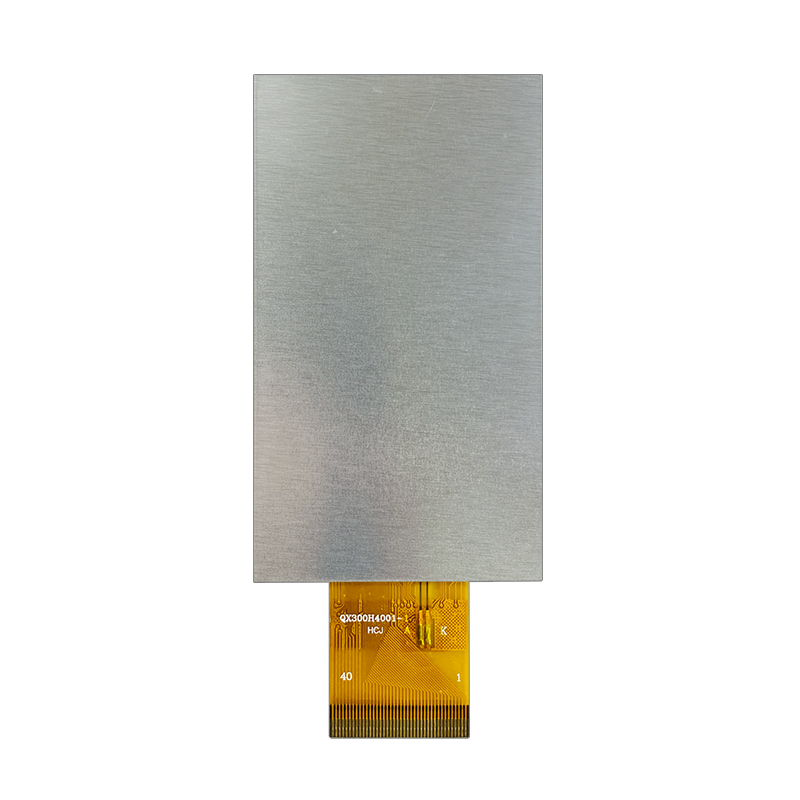

2.95 inch 360*640 full viewing angle IPS tft LCD lcd display providing technical support monitor

  • Type: IPS
  • Size: 2.95
  • Resolution: 360*240
  • Interface: MIPI/RGB
  • Product description: Hicenda Technology Co., Ltd can supply 2.95 inch360*240 Monochrome tft Display Small Size lcd Panel with ST7701 driver IC 40 PIN Long PFC,pulg 40pin tft lcd display with good price for Small household
  • INQUIRY

1. Display Specifications

1) Display Mode: Passive Matrix
2) Display Color: 16.7M
3) Drive Duty: 1/32 Duty

4) Wide viewing angel: >160 degree

5) Brightness: 150 cd/m2

6) Dark Room Contrast: >2000:1

7) Sleep Mode Current for VCC: 1uA

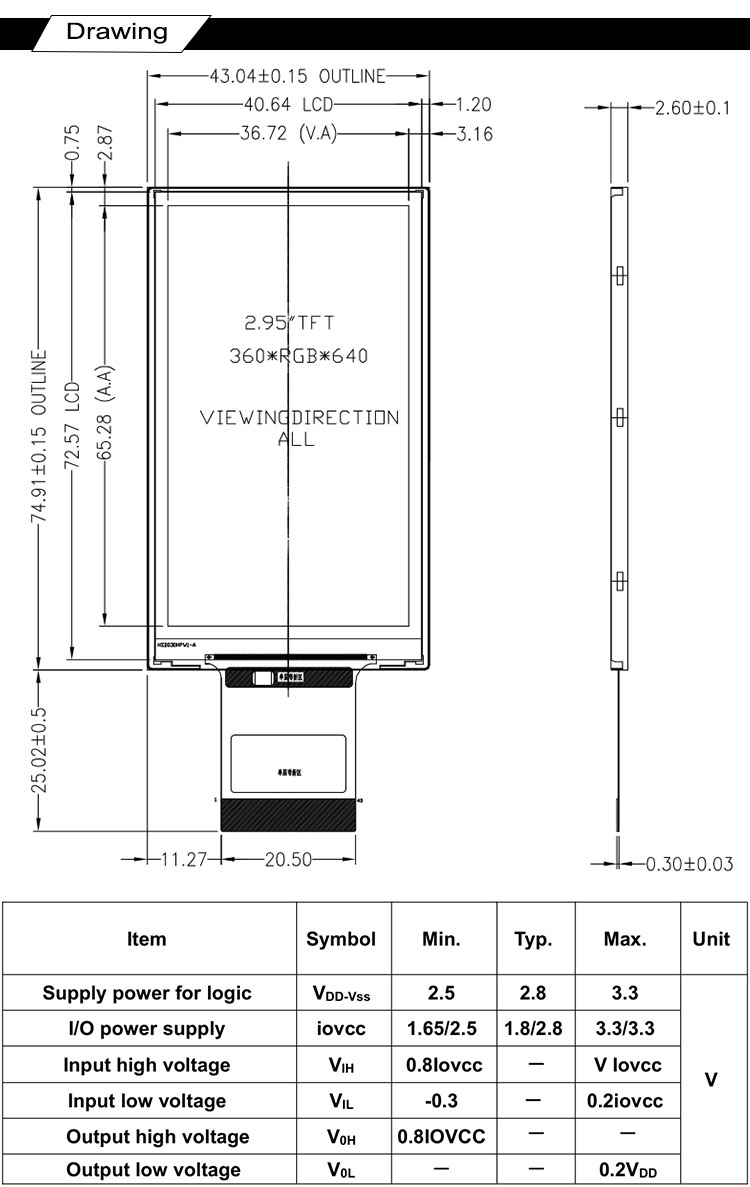

2. Mechanical Specifications


Display Type: TFT display
Display Mode: Passive Matrix
Model Number:

HT--9632TSWEG02

Diagonal Screen size: 2.95 inch
Interface:

MIPI/RGB

Drive Duty:

1/32 Duty

Number of Pixels:

360x640

Panel Size:

43.04 × 74.91 × 2.6 (mm)

Driver IC:

ST7701

Active Area:

36.72 × 65.28 (mm)

Pixel Pitch:

0.102 x 0.102(mm)

Pixel Size:

0.154 x 0.154 (mm)

Weight:

TBD

Operating Temperature:

-40~85°
