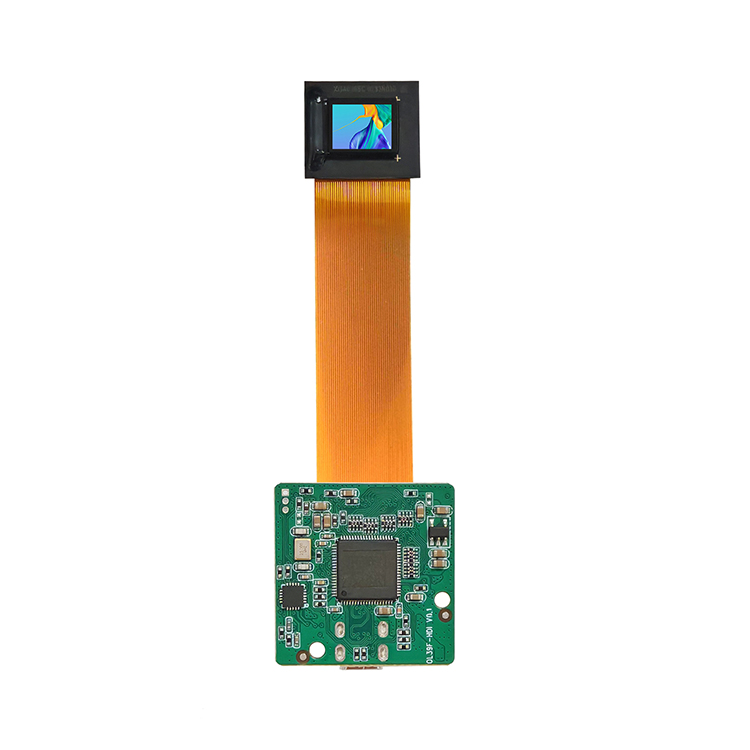

0.39 Inch 1024x768 High-Luminance Micro OLED Display with HDMI & CVBS Board

0.39 Inch 1024x768 High-Luminance Micro OLED Display with HDMI & CVBS Board

Size: 0.39 inch micro oled
Interface:I2C Universal Serial Protocol/YCbCr/RGB
Resolution: 1024(RGB)X768
Luminance:500 cd/m2
Product description: High-resolution 0.39 inch Micro OLED display (1024x768) with HDMI and CVBS driver board options. Ultra-compact design for AR/VR, thermal imaging, and electronic viewfinders (EVF). Request a quote toda
INQUIRY

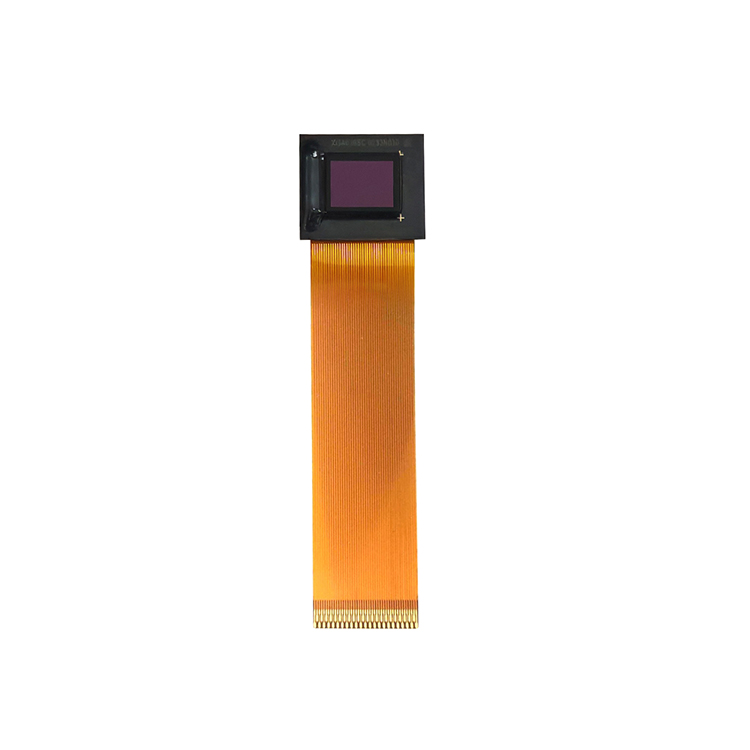

0.39 inch Micro OLED Display Module (1024x768)

Please kindly contact us for full data sheet of the display.

DESCRIPTION

The 0.39 inch Micro OLED Display Module (1024x768) is a versatile, high-resolution active-matrix microdisplay engineered for high-precision optical systems. Available in Full Color, White, Green, and Red monochrome versions, this display delivers exceptional flexibility for specialized vision systems, with monochrome variants achieving an outstanding luminance of up to 10,000 cd/m².

Designed to excel in challenging environments, this 1g lightweight display features an ultra-high contrast ratio (>10,000:1), a smooth refresh rate up to 120Hz, and an extended operating temperature range of -40°C to +65°C. It supports versatile digital video interfaces (24-bit RGB, 24/16-bit YCbCr, 8-bit Mono) alongside I2C control protocol, integrated PWM dimming, and adaptive brightness control.

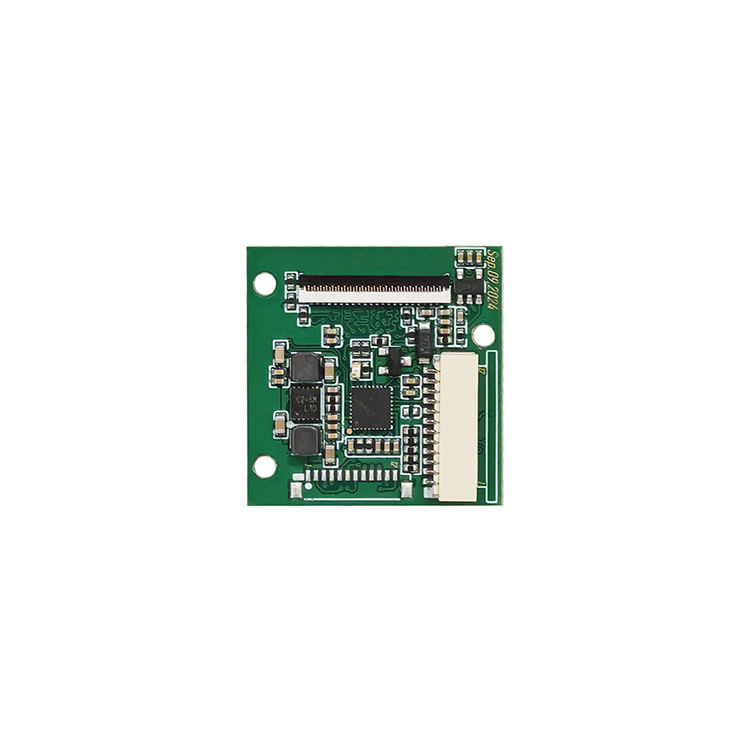

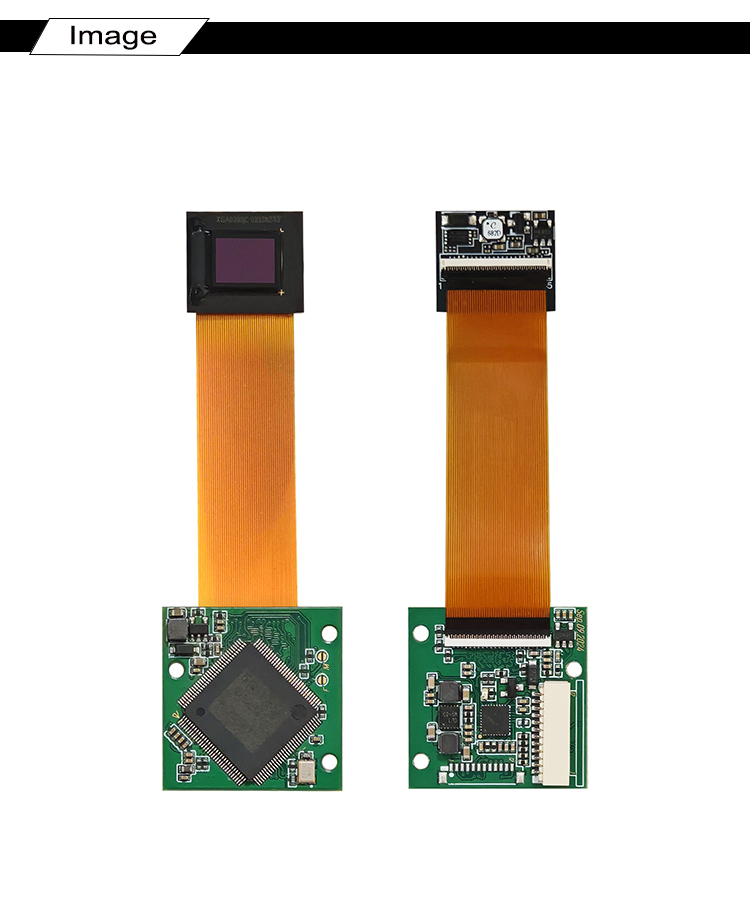

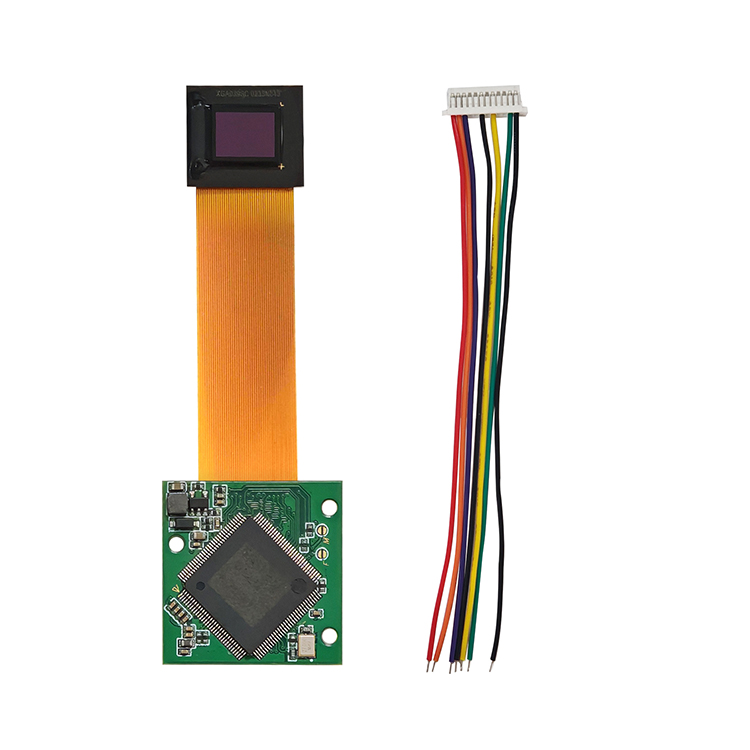

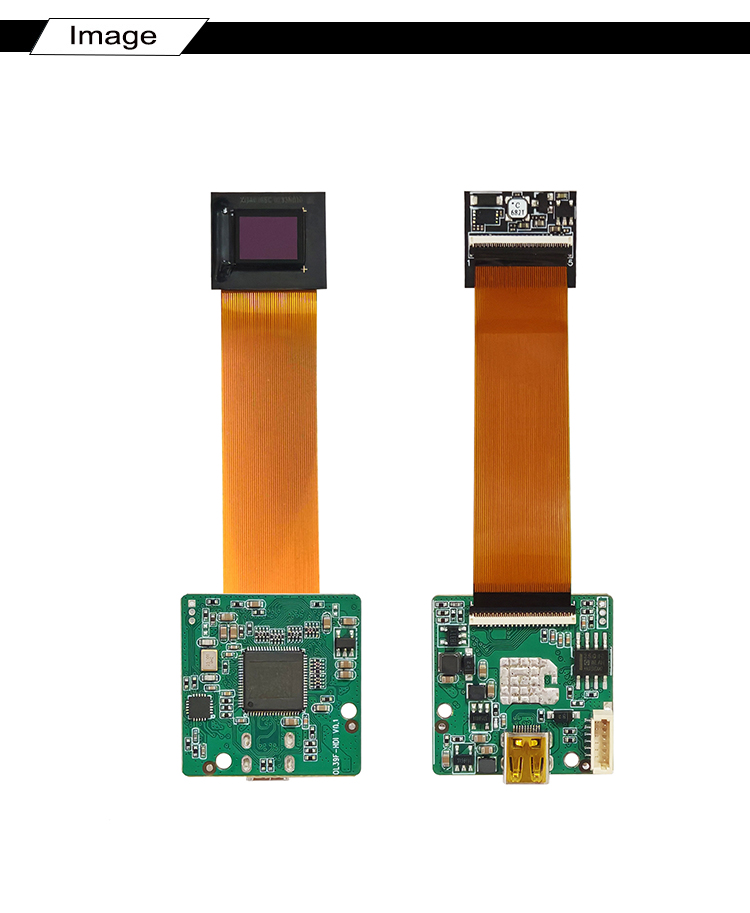

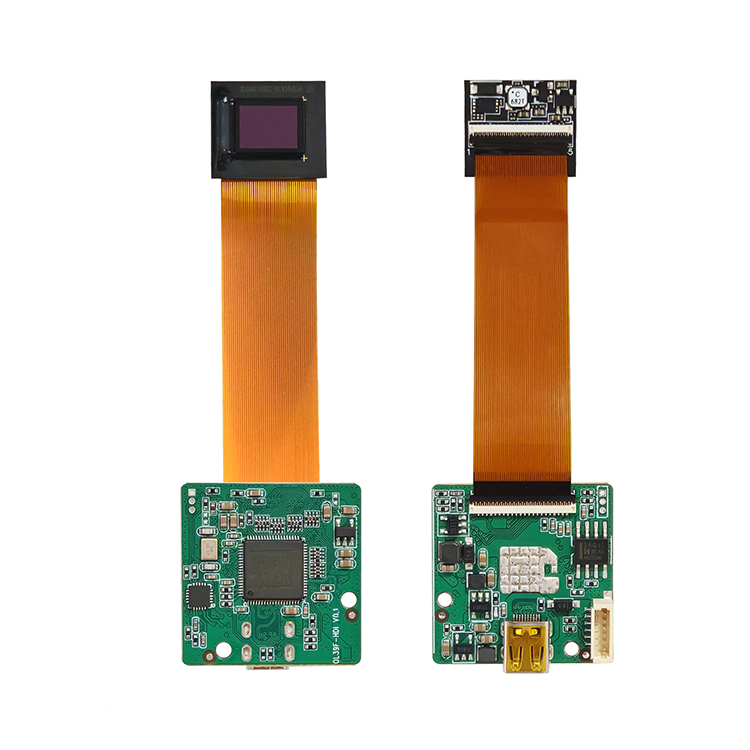

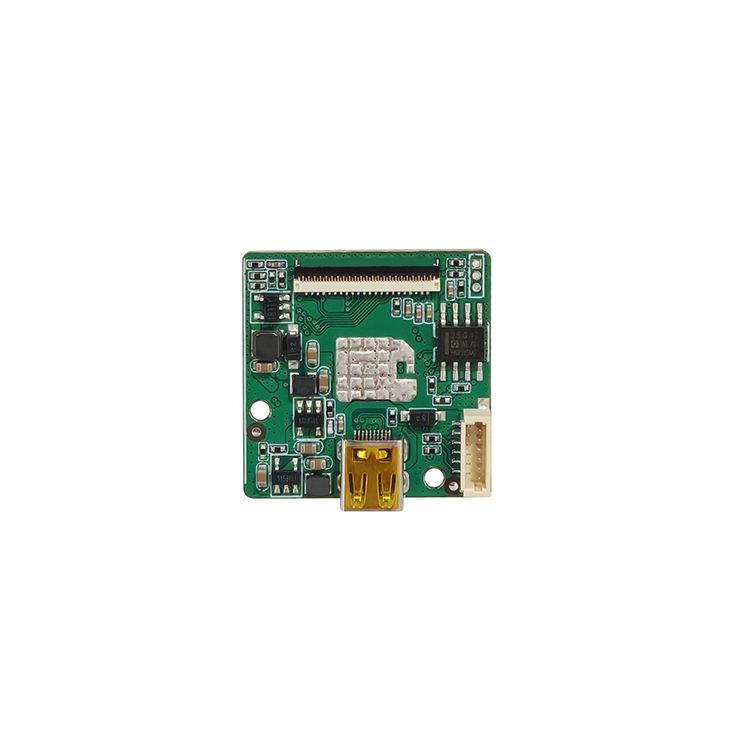

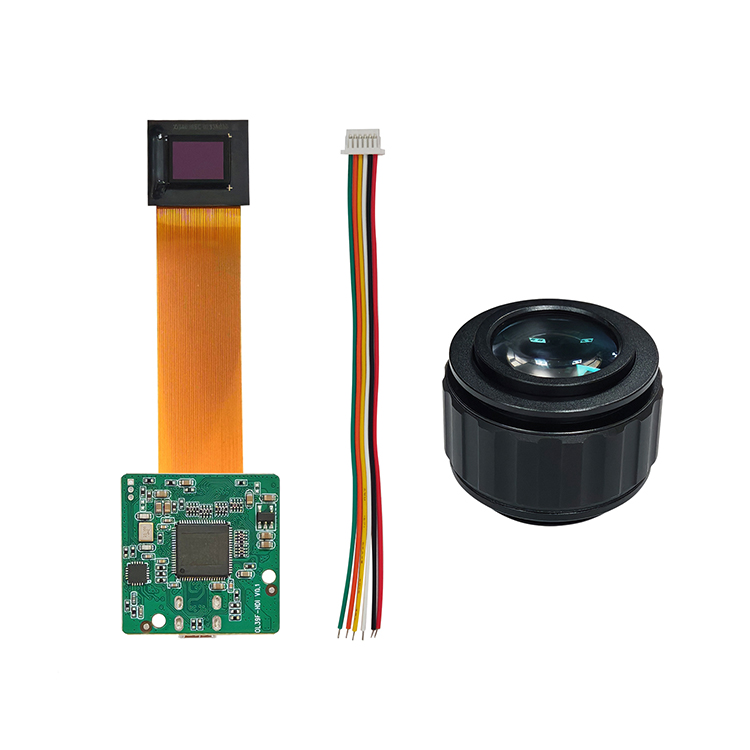

To simplify system development, the module is provided with configurable HDMI and CVBS controller board options. It is the ideal microdisplay solution for thermal imaging scopes, night vision systems, electronic viewfinders (EVF), wearable AR headsets, and compact medical optics.

Contact our engineering team to request datasheets, pinout diagrams, or sample orders with custom driver boards.

GENERAL SPECIFICATION

Item	Parameter Details
Model No.	LXR039XGA
Display Type	Full Color / Monochrome White / Monochrome Green / Monochrome Red
Resolution	1024 × 768 (Active Pixels: 1040 × 784, XGA)
Pixel Size	7.8 μm × 7.8 μm
Pixel Array	RGB Vertical Stripe

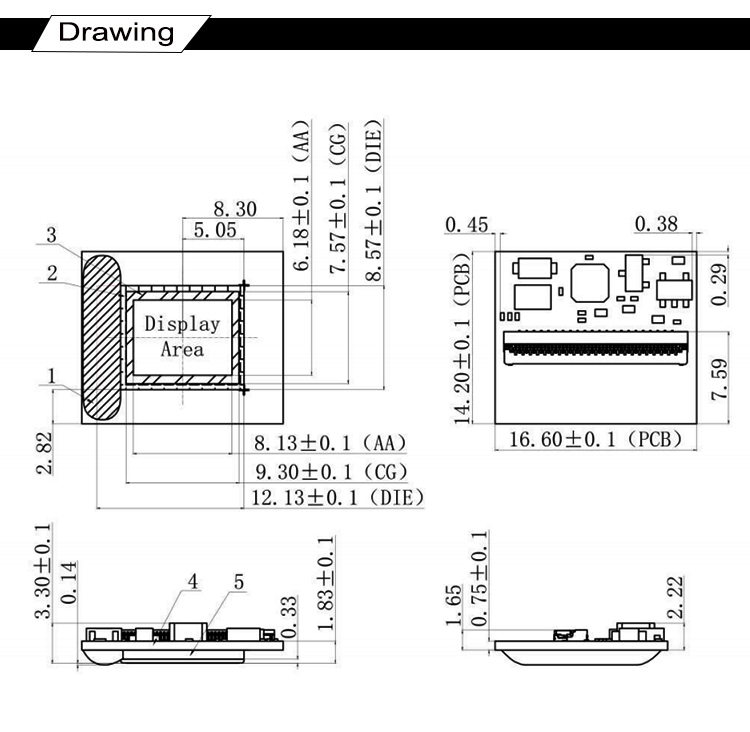

Active / View Area	8.1325 mm × 6.1779 mm (0.393" Diagonal)
Module Outline Dimension	16.6 mm × 14.2 mm × 3.3 mm
Operating Voltage (Power Supply)	Digit Core: DC 1.8V @ Max 15mA / OLED Array: DC 5.0V @ Max 150mA
Gray Level	256 Levels (Lv.256)
Video Interface	24-bit RGB / 24-bit or 16-bit YCbCr / 8-bit Mono
Frame Refresh Rate	25 Hz ~ 120 Hz
Contrast Ratio	> 10,000 : 1
Luminance Uniformity	> 90%
Typical Luminance	Full Color: 500 cd/m² \| Mono White: 500 cd/m² \| Mono Green: 10,000 cd/m² \| Mono Red: 10,000 cd/m²
Chromaticity Coordinate (CIE x, y)	Full Color / Mono White: CIE-x: 0.31±0.05, CIE-y: 0.33±0.05 \| Mono Green: CIE-x: 0.21±0.05, CIE-y: 0.70±0.05 \| Mono Red: CIE-x: 0.63±0.05, CIE-y: 0.33±0.05
Lifetime	20,000 Hours
Operating Temperature	-40°C to +65°C
Storage Temperature	-55°C to +90°C
Net Weight	1g

Key Features

4 Display Color Options: Available in Full Color (C), Monochrome White (W), Monochrome Green (G), and Monochrome Red (R) to fit diverse visual and thermal optics applications.
Ultra-High Brightness & Contrast: Delivers up to 10,000 cd/m² typical luminance (Green/Red) and a >10,000:1 contrast ratio for clear visibility under intense ambient light.
Smooth 120Hz Refresh Rate: Supports a wide refresh rate range from 25Hz to 120Hz, providing fluid motion display without visual lagging or flicker.
Flexible Signal Inputs & Boards: Supports 24-bit RGB, YCbCr, and 8-bit Mono interfaces, offered with custom HDMI and CVBS driver board options for rapid plug-and-play evaluation.
Industrial-Grade Reliability: Operating temperatures from -40°C to +65°C and ultra-lightweight 1g design, ideal for rugged military, industrial, and medical optics.
